EP-3-5kW Electric Vehicle PMSM Drive Controller

2. Operational Dynamics and Working Principle of Electric Vehicle PMSM Drive Controller

At its technological core, this electric vehicle's permanent magnet synchronous motor drive controller utilizes highly sophisticated sinusoidal wave vector control, also known widely throughout the automotive electronics industry as Field-Oriented Control (FOC). This advanced mathematical control technology empowers our Electric Vehicle Motor Controller to precisely and independently manage the complex magnetic fields and the mechanical torque of the permanent magnet synchronous motor in absolute real-time. By continuously and accurately monitoring the rotor's exact angular position through high-precision feedback sensors—such as Hall effect sensors, high-resolution magnetic encoders, or rugged rotary resolvers—the Electric Vehicle PMSM Drive Controller dynamically adjusts the three-phase alternating currents supplied to the motor stator windings at microsecond intervals.

This instantaneous phase adjustment ensures that the electromagnetic field is always optimally aligned with the permanent magnets, resulting in maximum torque generation with absolutely minimal electrical energy waste. Furthermore, this state-of-the-art motor controller for electric vehicles incorporates a highly responsive built-in anti-slip slope function, which actively prevents the vehicle from rolling backward on steep inclines by instantly modulating the electromagnetic torque output to maintain a safe standstill or propel the vehicle forward smoothly and safely. Comprehensive intelligent fault management firmware actively monitors both internal hardware system states and external driver inputs, ensuring that the entire electric vehicle motors and controllers ecosystem operates securely, proactively mitigating severe risks associated with battery over-voltage, phase over-current, and catastrophic thermal overloads.

3. Material Composition of EP-3-5kW Electric Vehicle PMSM Drive Controller

The advanced material composition and structural integrity of the EP-3-5kW Electric Vehicle PMSM Drive Controller are absolutely foundational to its exceptional long-term durability and peerless thermal management capabilities in punishing real-world automotive environments. The heavy-duty outer casing of this high-performance motor controller in an electric vehicle is meticulously forged from a premium-grade aerospace aluminum alloy, selected specifically for its superior thermal conductivity properties and remarkable mechanical strength-to-weight ratio. This extruded aluminum housing is architected with deep external cooling fins that act as a highly efficient, passive heat sink, rapidly dissipating the massive thermal energy generated by the internal power electronics during continuous, heavy-load vehicular operations without ever requiring failure-prone external cooling fans. Inside the Electric Vehicle PMSM Drive Controller, high-tier automotive-grade electronic components are surface-mounted on extra-thick, heavy-copper Printed Circuit Boards (PCBs) specifically designed and routed to handle massive electrical current capacities without inducing dangerous localized overheating.

Furthermore, the critical high-power switching modules and logic MOSFET devices are securely bonded using advanced thermal interface pastes and completely encapsulated using high-performance, resilient potting compounds. This comprehensive internal chemical encapsulation not only drastically enhances the conductive heat transfer from the silicon chips to the external aluminum shell but also provides an impenetrable layer of robust physical protection against severe mechanical vibrations, acoustic resonances, and impact shocks common in commercial automotive applications.

4. How to install the EP-3-5kW Electric Vehicle PMSM Drive Controller?

1. Preparation

• Ensure you have the required tools and equipment for the installation.

• Check the compatibility of the controller with your system, including voltage and current ratings, which can be found on the product specification page (e.g., page 15).

• Ensure that the electrical wiring and connections are in accordance with the standards outlined on page 15 and 16 of the manual, especially regarding proper insulation, grounding, and polarity.

2. Mounting the Controller

• The EP-3-5kW controller should be mounted in a well-ventilated area, ensuring it is kept away from moisture and direct heat sources.

• The dimensions of the controller are provided in the technical specifications (on page 15), which include mounting hole locations. Use these to install the controller securely onto the vehicle or machine frame.

3. Wiring

• Connect the power input terminals to your power source, making sure to adhere to the voltage and current specifications mentioned on the product label.

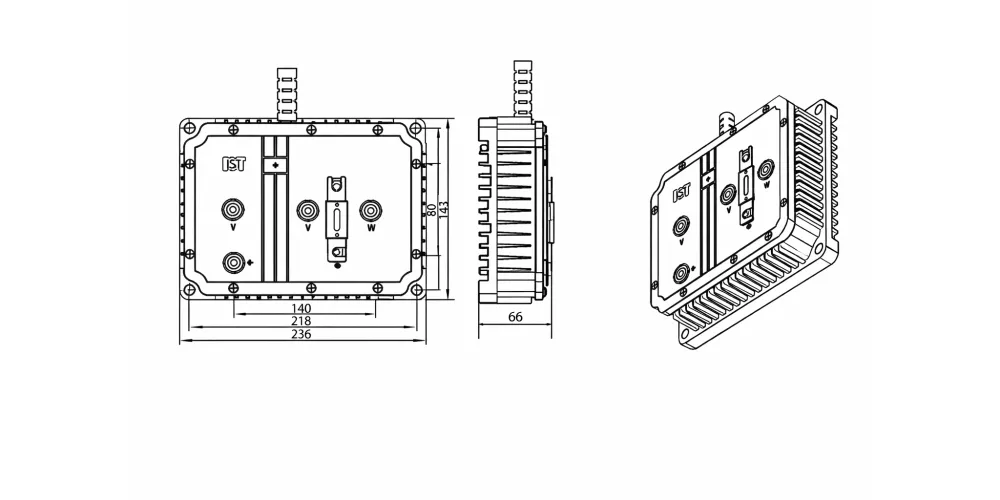

• Attach the motor wires to the controller’s motor output terminals, ensuring proper phase alignment. The controller's pin-out is detailed in the wiring diagram on page 15.

• Connect any required signal or communication lines, such as CAN bus or UART, to enable communication with other vehicle systems (if applicable).

4. Cooling System Setup

• The controller may require a cooling system depending on the environment and application. The installation document notes that the controller has built-in thermal protection, but external cooling might be necessary for optimal performance.

• If an external fan or radiator is used, ensure it is mounted in a location that allows for optimal airflow.

5. Electric Vehicle PMSM Drive Controller Testing and Calibration

• Before full operation, perform a system test to ensure that all connections are correct, the controller is powering on, and the motor is running as expected.

• Calibration settings may need to be adjusted based on the type of motor and the desired performance, which can be done via the controller’s interface (typically accessible through a computer or handheld device).

6. Safety Considerations

• Always use appropriate personal protective equipment (PPE) during installation.

• Double-check all connections for any loose or exposed wiring that could lead to short circuits or other hazards.

6. About EVER-POWER

At EVER-POWER, our commitment to innovation and technical excellence ensures that we deliver top-quality solutions for electric vehicles (EVs). Our Electric Vehicle PMSM Drive Controller are engineered with precision to meet the dynamic demands of modern EV systems.

1. Advanced Design & Innovation: Our PMSMs are designed to offer high efficiency and robust performance. With efficiency ratings up to 94.1% and high torque outputs, our motors ensure optimal energy use, reducing operational costs for your vehicle.

2. Industry-Leading Expertise: Our R&D team is composed of seasoned experts, with 60% of our engineers holding advanced degrees and a collective experience of over 30 years in manufacturing. This deep expertise allows us to create cutting-edge products tailored to specific needs in the electric vehicle sector.

3. Customization and Flexibility: We provide a range of PMSM models from 1.8 kW to 4.5 kW, suitable for everything from electric scooters to electric cars, allowing our customers to choose the perfect motor for their application. Additionally, we offer IP67 protection, ensuring that our motors perform reliably in challenging environments.

4. Advanced Manufacturing System: Our high-tech manufacturing facilities feature robotic automation, ensuring consistent product quality, precision, and scalability. This, combined with first-class testing platforms, guarantees that every motor is thoroughly tested to meet the highest standards.

Choose EVER-POWER for a partner that combines expertise, cutting-edge technology, and a commitment to delivering innovative, reliable, and efficient solutions for your electric vehicle systems.
