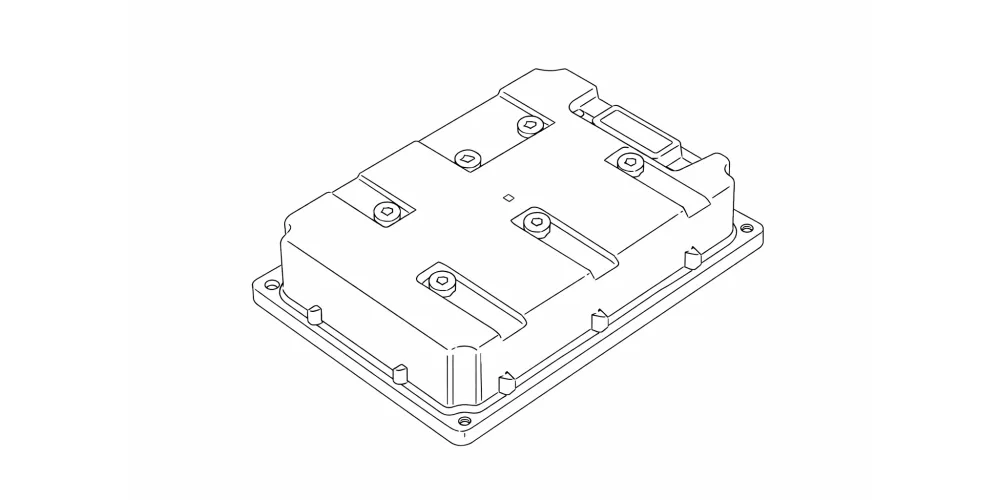

EP-6-10kW Electric Vehicle PMSM Drive Controller

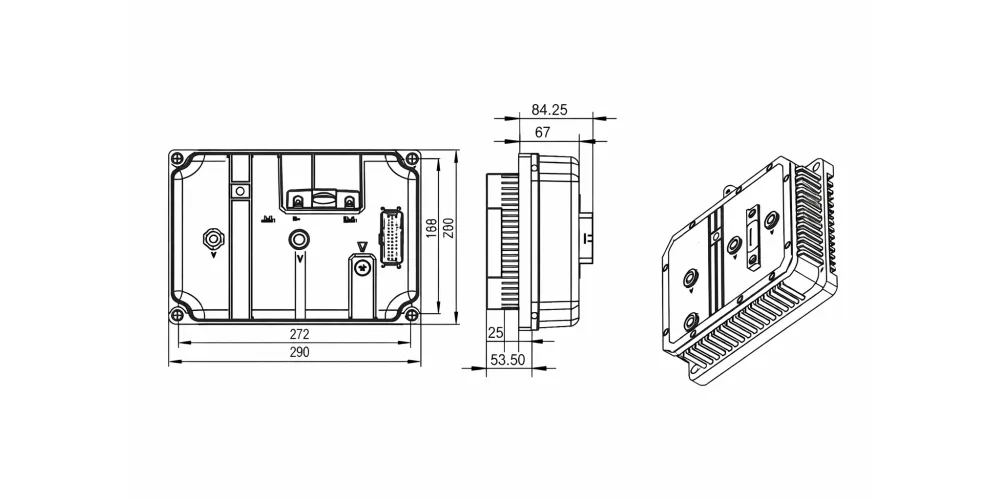

1. Technical Specifications of EP-6-10kW Electric Vehicle PMSM Drive Controller

2. Electric Vehicle PMSM Drive Controller Core Advantages

Product Features

1. Adopt high-efficiency vector control technology to improve system efficiency and extend driving range.
2. Smooth control with minimal torque ripple, effectively reducing motor vibration and noise.
3. Large starting torque significantly improves hill-climbing performance.
4. Anti-slope-slip function enhances safety performance.
5. Automotive-grade design positioning and component selection ensure system reliability.
6. Protection class up to IP67.

Product Functions

1. Built-in multiple protection mechanisms to effectively ensure system safety.
2. Optional position sensor types (Hall, magnetic encoder, resolver, etc.).
3. Intelligent management of system status and faults, effectively monitoring system operation and external input status.
4. Online circuit detection and parameter configuration.
5. Optional communication protocols such as RS232, RS485, and CAN.

3. Working Principle of Electric Vehicle PMSM Drive Controller

Understanding the intricate working principle of the EP-6-10kW Electric Vehicle PMSM Drive Controller requires a deep dive into the fascinating world of modern power electronics and digital signal processing. At its most fundamental level, this Electric Vehicle PMSM Drive Controller acts as the highly intelligent central nervous system of the vehicle's powertrain. It continuously draws direct current (DC) from the high-voltage battery pack and meticulously converts it into precisely modulated three-phase alternating current (AC) to drive the permanent magnet synchronous motor. This complex conversion process is governed by an advanced Field-Oriented Control (FOC) algorithm, often referred to as vector control. The pmsm motor drive relies on real-time feedback from high-precision position sensors—such as Hall effect sensors, magnetic encoders, or resolvers—to accurately determine the exact instantaneous position of the motor's rotor. Armed with this critical data, the microprocessor within the Electric Vehicle PMSM Drive Controller calculates the optimal voltage vectors required to maintain maximum torque per ampere (MTPA). By doing so, the electric vehicle's permanent magnet synchronous motor drive controller ensures that the magnetic field generated by the stator is always perfectly aligned with the rotor's permanent magnets, resulting in highly efficient power transfer and minimal energy waste as heat. Additionally, the system features a comprehensive state-machine fault management protocol that continuously monitors input variables such as throttle position, brake status, temperature, and voltage levels. If any parameter deviates from safe operational thresholds, the Electric Vehicle Motor Controller instantly implements protective measures, safeguarding both the powertrain hardware and the vehicle's occupants. This sophisticated synergy of hardware and software is what makes our ev motor controllers highly sought after in the competitive automotive market.

4. Material Composition & Structural Durability

The exceptional longevity and rugged reliability of the EP-6-10kW Electric Vehicle PMSM Drive Controller are direct results of uncompromising material selection and advanced structural engineering. Operating in the harsh, dynamic environment of a moving vehicle requires a motor controller for electric vehicle applications to withstand extreme temperature fluctuations, intense mechanical vibrations, and continuous exposure to moisture, dust, and road debris. To conquer these challenges, the outer enclosure of this Electric Vehicle PMSM Drive Controller is constructed from a high-grade, heavy-duty aluminum alloy. This specific aluminum alloy is chosen not only for its impressive tensile strength and structural rigidity but also for its outstanding thermal conductivity. Because this particular series relies on a natural cooling methodology, the highly optimized finned design of the aluminum chassis acts as a highly efficient heat sink, rapidly dissipating the thermal energy generated by the internal power semiconductor modules (such as IGBTs or high-current MOSFETs) into the surrounding air. Inside the Electric Vehicle PMSM Drive Controller, the printed circuit boards (PCBs) are manufactured using high-Tg (glass transition temperature) materials to prevent warping under heavy electrical loads. Furthermore, the entire internal electronic assembly is encapsulated using advanced potting compounds and sealed with custom-molded automotive-grade silicone gaskets. This rigorous sealing process is what allows the electric car controllers to achieve their impressive IP67 protection rating, making them completely dust-tight and capable of surviving temporary immersion in water. By combining these premium metallurgical choices with state-of-the-art waterproofing techniques, the electric vehicle motors and controllers we manufacture consistently outlast standard industry expectations, delivering unyielding performance year after year.

5. How to choose the right Electric Vehicle PMSM Drive Controller?

1. Motor Power Range

The motor power and the drive controller's power capacity must match to ensure efficient operation. For instance:

The controllers for motors in the 1.5kW to 2.0kW range are ideal for smaller electric vehicles and electric bikes

For 6.0kW to 10kW motors, suitable controllers are designed for electric cars and larger vehicles.

2. Voltage and Current Compatibility

Choose a controller that matches the voltage specifications of the motor. Controllers typically come in configurations for 48V, 72V, and 96V motors. For example, vehicles with motors operating at 48V would require controllers rated for that voltage

3. Operating Efficiency

Efficiency ratings of the controller in different conditions are crucial. Controllers are designed to maximize energy use, ensuring low power loss and high reliability. For instance, models that manage up to 3kW-5kW power ratings are optimized for both energy saving and smooth operation in mid-range applications.

4. Cooling and Heat Dissipation

Effective heat dissipation systems are essential to maintain controller performance over extended periods. Controllers come with heat sink designs (like aluminum-based systems) to prevent overheating.

5. Size and Installation Requirements

Depending on the vehicle's design, the controller's size must be compatible with the available installation space. For example, compact vehicles such as scooters may require smaller controllers that fit under tight spaces, typically rated 500W-1500W

6. Motor Torque Control

For smoother acceleration and braking, select controllers that provide precise torque control for the motor, which ensures the best performance across different speeds.

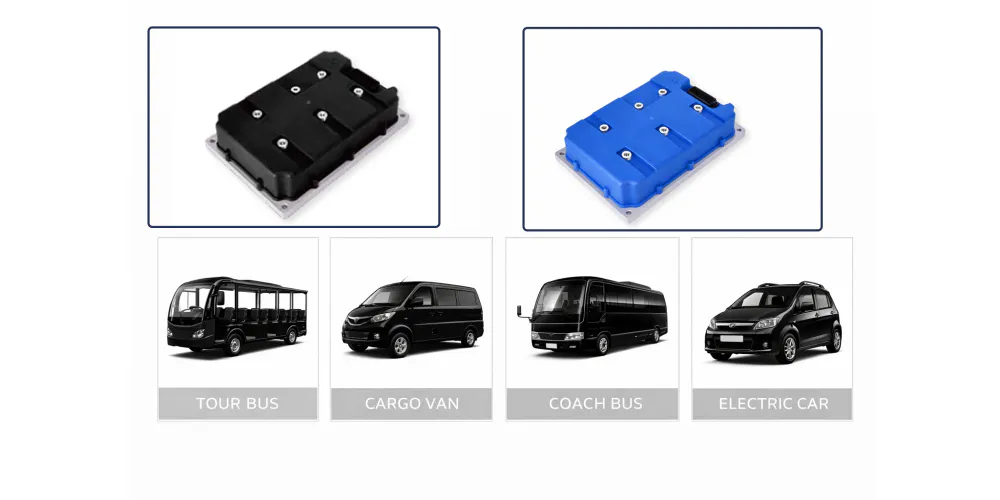

6. Electric Vehicle PMSM Drive Controller's Application Scenarios
