EP-1.5-2kW Electric Vehicle PMSM Drive Controller

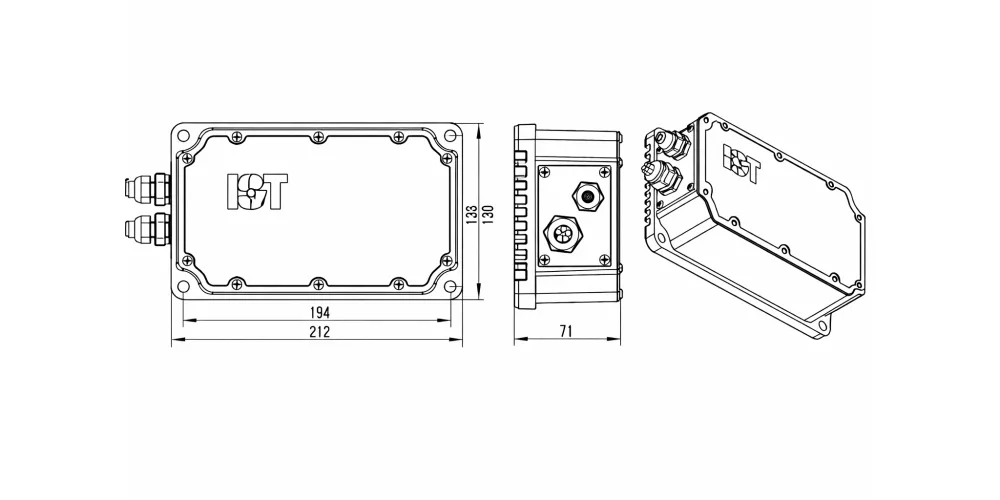

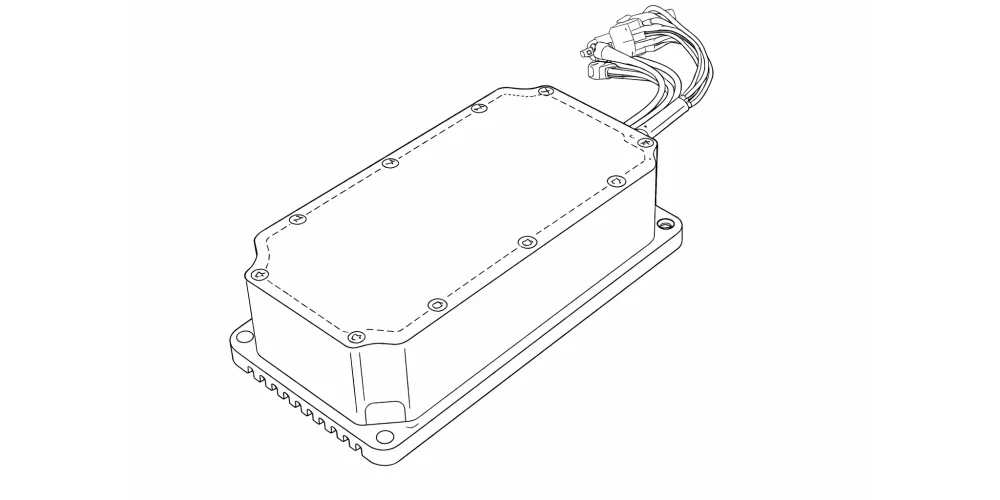

EP-1.5-2.0kW Electric Vehicle PMSM Drive Controller Diagram

The EP-1.5-2.0kW Electric Vehicle PMSM Drive Controller operates on the principles of modern power electronics and digital signal processing. At its core, it functions as an inverter, converting the direct current (DC) stored in the vehicle's battery pack into precise three-phase alternating current (AC) required to drive the Permanent Magnet Synchronous Motor (PMSM). Unlike older generation bldc motor controllers for electric vehicle systems that use trapezoidal commutation, our controller employs Space Vector Pulse Width Modulation (SVPWM) driven by Field Oriented Control (FOC).

FOC technology mathematically decouples the motor's stator current into two components: the torque-producing current (Iq) and the magnetic flux-producing current (Id). By controlling these components independently in real-time, the pmsm motor drive achieves superior dynamic response and smooth torque output with minimal ripple. This results in a significant reduction of motor vibration and noise, providing a "silent ride" experience. Furthermore, the controller continuously monitors the rotor position using sensors (Hall effect, Magnetic Encoder, or Resolver) to ensure perfect synchronization between the stator magnetic field and the rotor. During braking or downhill coasting, the controller switches to regenerative mode, converting the kinetic energy of the vehicle back into electrical energy to recharge the battery, acting as an efficient ev charge controller during deceleration.

The EP-1.5-2.0kW series is housed in a high-strength, die-cast aluminum alloy casing. This material choice serves two critical functions: it provides a robust physical shield against impact and vibration, and it acts as a highly efficient heat sink. The integrated fin design maximizes surface area for natural cooling, eliminating the need for cooling fans that are prone to failure. This passive cooling capability ensures the controller maintains optimal performance even under heavy loads or high ambient temperatures.

Internally, EVER-POWER utilizes automotive-grade electronic components, including high-performance MOSFETs and capacitors, sourced to meet stringent quality standards. The PCB layout is optimized to minimize electromagnetic interference (EMI), ensuring stable operation of the Electric vehicle permanent magnet synchronous drive system. The entire assembly is sealed with high-quality gaskets and potting compounds to achieve an IP65 protection rating. This construction renders the controller dust-tight and resistant to low-pressure water jets, protecting critical circuitry from road splash, rain, and humidity, ensuring a long service life for your electric vehicle motors and controllers.

4. The advantage of 1.5-2.0kW Electric Vehicle PMSM Drive Controller

Power Options: The controller is available in multiple configurations, including 1.5kW and 2.0kW, with voltage options of 48V/60V/72V. These configurations ensure that the controller meets the power requirements for various electric vehicle types.

Wide Temperature Range: The operating temperature range for this controller is between -15°C to 55°C, making it suitable for diverse environmental conditions.

Cooling Efficiency: The controller features a natural cooling system, which ensures its efficient operation without the need for complex cooling mechanisms.

Versatile Communication: It supports communication protocols such as RS232, RS485, and CAN, ensuring compatibility with various vehicle systems and enabling seamless integration.

Safety and Durability: With an IP67 protection rating, this controller is highly resistant to dust and water, making it reliable for use in harsh environments, including in electric logistics vehicles, electric city buses, and other electric transportation.

5. How to choose the right 1.5-2kW Electric Vehicle PMSM Drive Controller

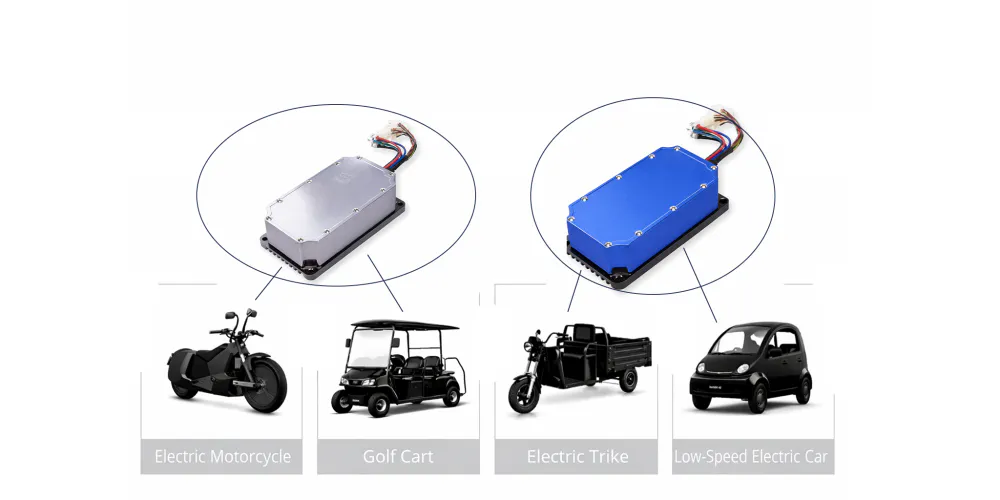

• Application Needs: The controller is suitable for vehicles like electric motorcycles, low-speed electric vehicles, and other light electric vehicles (as shown in the application examples on page 14 ).

• Technical Specifications:

  • Voltage Options: Available in 48V, 60V, and 72V configurations (refer to page 14 ).

  • Current and Temperature Range: The controller operates efficiently with a current range of 90/80/60A and supports temperatures between -15°C to 55°C, ensuring reliable performance in various environmental conditions.

  • Cooling Method: It uses natural air cooling (page 14 ), making it simpler to maintain.

• Communication Features: The controller supports RS232, RS485, and CAN communication protocols, which provide flexibility for monitoring and system integration (page 14 ).

• Reliability and Protection: With an IP67 rating (page 14 ), the controller is protected against dust and water, making it ideal for outdoor environments.

7. About EVER-POWER

At EVER-POWER, our commitment to innovation and technical excellence ensures that we deliver top-quality solutions for electric vehicles (EVs). Our Electric Vehicle PMSM Drive Controller are engineered with precision to meet the dynamic demands of modern EV systems.

1. Advanced Design & Innovation: Our PMSMs are designed to offer high efficiency and robust performance. With efficiency ratings up to 94.1% and high torque outputs, our motors ensure optimal energy use, reducing operational costs for your vehicle.

2. Industry-Leading Expertise: Our R&D team is composed of seasoned experts, with 60% of our engineers holding advanced degrees and a collective experience of over 30 years in manufacturing. This deep expertise allows us to create cutting-edge products tailored to specific needs in the electric vehicle sector.

3. Customization and Flexibility: We provide a range of PMSM models from 1.8 kW to 4.5 kW, suitable for everything from electric scooters to electric cars, allowing our customers to choose the perfect motor for their application. Additionally, we offer IP67 protection, ensuring that our motors perform reliably in challenging environments.

4. Advanced Manufacturing System: Our high-tech manufacturing facilities feature robotic automation, ensuring consistent product quality, precision, and scalability. This, combined with first-class testing platforms, guarantees that every motor is thoroughly tested to meet the highest standards.

Choose EVER-POWER for a partner that combines expertise, cutting-edge technology, and a commitment to delivering innovative, reliable, and efficient solutions for your electric vehicle systems.
