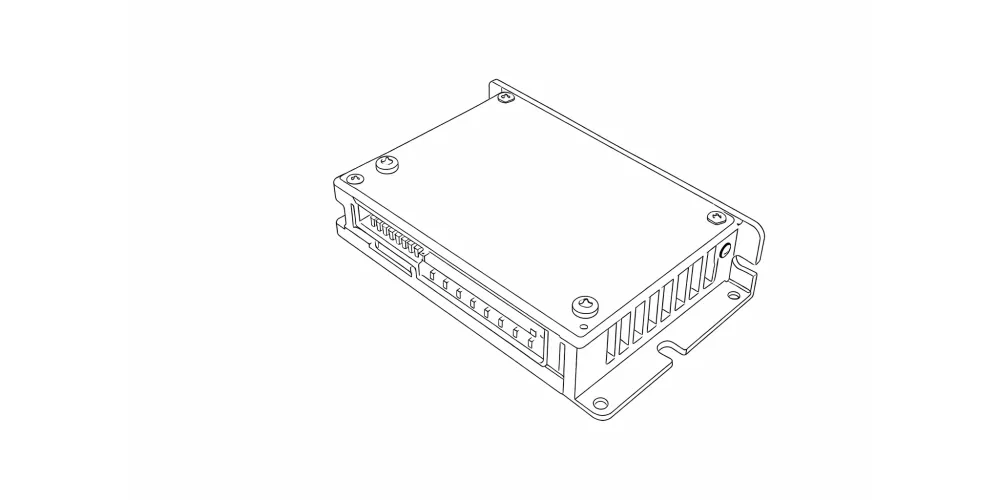

EP-50-300W Card-type Miniature Motor Drive

1. Advantages of EP-50-300W Card-type Miniature Motor Drive

Leveraging advanced sinusoidal vector control and permanent magnet DC variable frequency technology, the EP series achieves efficiencies above 94% across its operating envelope. This translates to longer battery life, reduced heat, lower noise, and smoother operation compared to brushed or trapezoidal drives. The drive includes built-in protections for over-current, over-voltage, under-voltage, over-temperature, and short circuit, plus regenerative braking for energy recovery.

2. Working Principle

The EP-50-300W employs field-oriented control (FOC) of a permanent magnet synchronous motor. DC bus voltage is converted to three-phase sinusoidal AC using high-frequency PWM. Rotor position is sensed in real-time via Hall-effect sensors or optional encoders. The microcontroller decomposes stator current into torque (q) and flux (d) components, independently regulating speed and torque for smooth, efficient operation from standstill to maximum speed.

Sinusoidal modulation minimizes harmonics, reducing motor heating, vibration, and acoustic noise. Regenerative braking returns energy to the battery during deceleration. The compact PCB integrates power stage, current sensing, gate drivers, and protection circuitry. Thermal vias transfer heat to the aluminum case, eliminating bulky heatsinks while maintaining low junction temperatures.

This architecture delivers 94%+ efficiency across wide load and speed ranges, high starting torque, precise speed regulation, and low electromagnetic interference—critical for sensitive instrumentation and passenger comfort in miniature electric vehicles.

3. Materials & Build Quality

4. EP-50-300W Card-type Miniature Motor Drive Features

1. Adopts permanent magnet DC variable frequency technology, which is more efficient and eco-friendly.
2. Sinusoidal vector control ensures low vibration and low noise.
3. Compact design, credit card size, offering greater installation flexibility.
4. Rich interface definitions support more system control functions.
5. Custom development is supported.

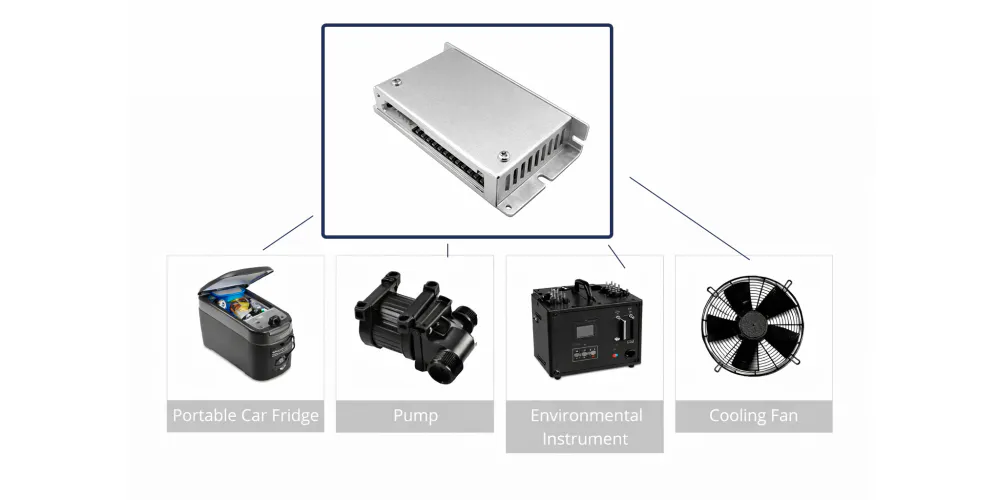

5. Application Scenarios

6. About EVER-POWER

At EVER-POWER, our commitment to innovation and technical excellence ensures that we deliver top-quality solutions for electric vehicles (EVs). Our Card-type Miniature Motor Drive are engineered with precision to meet the dynamic demands of modern EV systems.

1. Advanced Design & Innovation: Our PMSMs are designed to offer high efficiency and robust performance. With efficiency ratings up to 94.1% and high torque outputs, our motors ensure optimal energy use, reducing operational costs for your vehicle.

2. Industry-Leading Expertise: Our R&D team is composed of seasoned experts, with 60% of our engineers holding advanced degrees and a collective experience of over 30 years in manufacturing. This deep expertise allows us to create cutting-edge products tailored to specific needs in the electric vehicle sector.

3. Customization and Flexibility: We provide a range of PMSM models from 1.8 kW to 4.5 kW, suitable for everything from electric scooters to electric cars, allowing our customers to choose the perfect motor for their application. Additionally, we offer IP67 protection, ensuring that our motors perform reliably in challenging environments.

4. Advanced Manufacturing System: Our high-tech manufacturing facilities feature robotic automation, ensuring consistent product quality, precision, and scalability. This, combined with first-class testing platforms, guarantees that every motor is thoroughly tested to meet the highest standards.

Choose EVER-POWER for a partner that combines expertise, cutting-edge technology, and a commitment to delivering innovative, reliable, and efficient solutions for your electric vehicle systems.

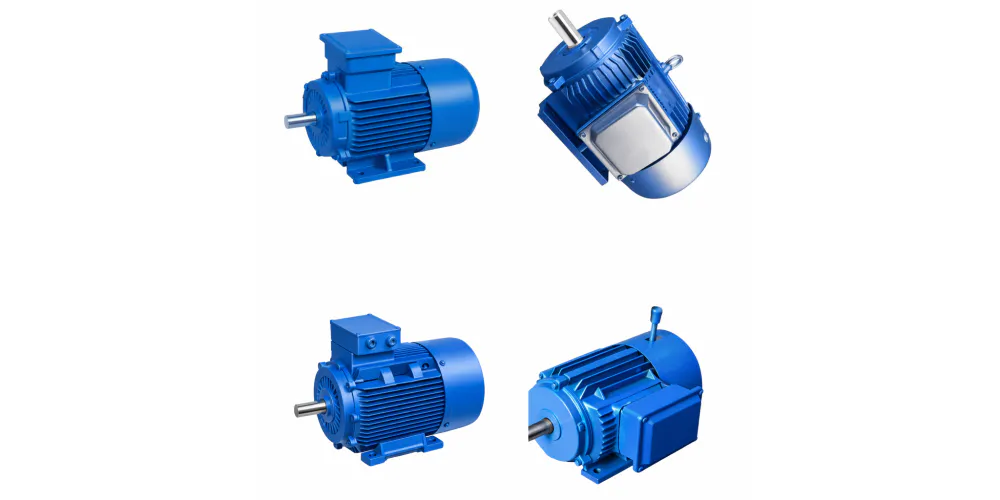

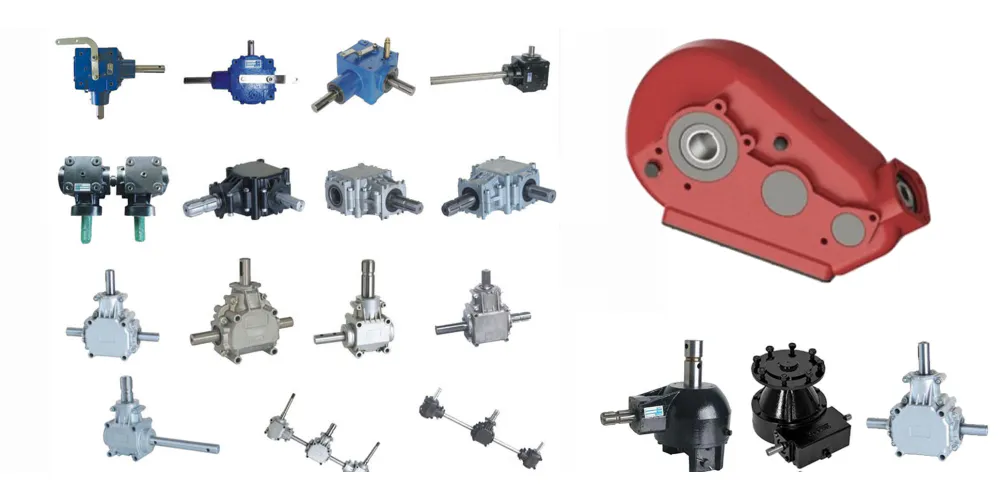

7. Related Products
