Series R68 Aluminum Worm Reducer

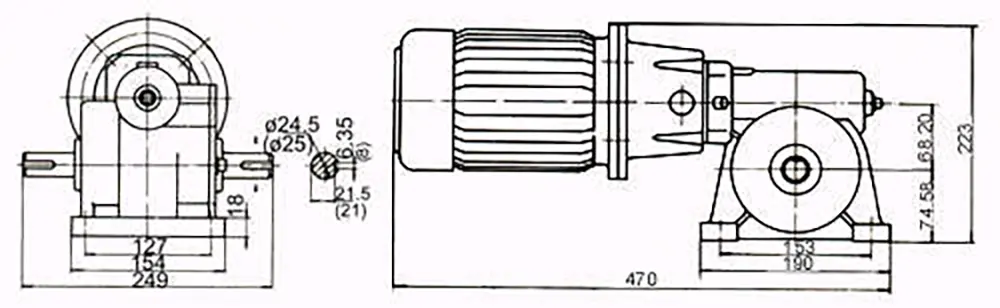

Series R68 Aluminum Worm Gear Reducer Dimensions

The Series R68 Aluminum Worm Gear Reducer is a high-quality, precision-engineered product designed to provide efficient and reliable power transmission in a wide range of applications. This product is built to meet the highest standards of quality and durability, making it the perfect choice for customers who demand the best.

Details About Series R68 Aluminum Worm Gearmotor

Motor with 4 poles 0.37kw matched with the reducer. Ratio 30:1 output speed 48r/min
maximum output torque 60N·m
Ratio 50:1 output speed 28r/min
maximum output torque 100N·m
Both metric and inch dimension of output shaft are available to be selected by user.Our products may be widely used in various kinds of transmission.Inquiry and order are welcome.

The Series R68 Aluminum Worm Gear Reducer is designed to provide maximum strength and durability while minimizing weight. The reducer features a high-strength aluminum housing and a precision-engineered worm gear set, which work together to deliver reliable and efficient power transmission. The reducer also features high-quality bearings and seals, which minimize friction and ensure long-lasting performance.

Aluminum Worm Gear Reducer Features

- Lightweight: The Series R68 Aluminum Worm Reducer is constructed using aluminum, making it significantly lighter than other gear reducers in the market. This allows for easier transportation and installation.

- Compact Design: The reducer features a compact design, making it ideal for applications with limited space. Its small size allows for versatile mounting options and easy integration into existing systems.

- High Efficiency: The worm gear design ensures high efficiency and smooth operation. The reducer efficiently transmits power while minimizing energy loss, resulting in improved overall performance.

- Durability: Despite its lightweight construction, the Series R68 Aluminum Worm Reducer is built to last. It is made from high-quality materials and undergoes rigorous testing to ensure durability and reliability in various operating conditions.

- Low Noise and Vibration: This gear reducer is engineered to reduce noise and vibration levels during operation, providing a quieter working environment and minimizing wear on surrounding equipment.

- Wide Range of Ratios: The reducer offers a wide range of gear ratios, allowing for precise speed control in diverse applications. This flexibility makes it suitable for use in various industries, such as manufacturing, automation, and robotics.

- Easy Maintenance: The reducer is designed for easy maintenance, with accessible components and a user-friendly interface. This simplifies troubleshooting and reduces downtime, maximizing productivity.

- Cost-Effective Solution: The Series R68 Aluminum Worm Reducer offers a cost-effective solution without compromising on quality. Its competitive pricing and long-lasting performance make it a reliable choice for businesses looking to optimize their operations.

Applications of Aluminum Worm Reducer

The Series R68 Aluminum Worm Reducer is a versatile and reliable gearbox that finds its application in various industries. Its unique design and features make it suitable for a wide range of uses. Below are some specific applications where the Aluminum Worm Reducer excels:

1. Conveyor Systems: The Aluminum Worm Reducer is commonly used in conveyor systems across industries such as manufacturing, logistics, and material handling. Its high torque and compact size make it ideal for driving conveyor belts and ensuring smooth and efficient transportation of goods.
2. Automation Equipment: With its precise positioning and high load-bearing capacity, the Aluminum Worm Reducer plays a vital role in automation equipment. It is widely used in robotic arms, pick and place machines, and other automated systems that require accurate and reliable motion control.
3. Packaging Machinery: The Aluminum Worm Reducer provides the necessary power and torque for various packaging machinery, including filling machines, capping machines, and labeling machines. Its compact design and quiet operation make it an excellent choice for these applications.
4. Food and Beverage Industry: In the food and beverage industry, the Aluminum Worm Reducer is commonly employed in mixers, blenders, and other mixing equipment. Its hygienic design, resistance to corrosive substances, and ability to handle high loads make it suitable for demanding food processing applications.
5. Material Handling Equipment: Whether it's lifting heavy loads in a construction site or moving goods in a warehouse, the Aluminum Worm Reducer is an indispensable component of various material handling equipment such as cranes, hoists, and forklifts. Its durability and efficiency ensure smooth and reliable operation.

Worm Reducer Common Problems and Solutions

The Series R68 Aluminum Worm Reducer is a reliable and efficient gearbox commonly used in various industrial applications. However, during its usage, there might be some common problems that you may encounter. To help you address these issues, we have listed the possible problems and the corresponding solutions below:

• Overheating: The gearbox may overheat if it is run for extended periods or if it is overloaded beyond its capacity. To solve this problem, you can reduce the load or use a larger gearbox. You can also install a cooling fan to improve the cooling efficiency.
• Noise: If you hear any unusual noise coming from the gearbox, it might be due to misalignment, insufficient lubrication, or worn-out gears. To solve this issue, you can check the alignment and lubrication of the gearbox. If the gears are worn out, you may need to replace them.
• Leakage: Leakage from the gearbox can occur due to a damaged seal or gasket. To solve this problem, you can replace the damaged seal or gasket with a new one.
• Vibration: Vibration from the gearbox can be caused by misalignment, worn-out gears, or an unbalanced load. To solve this issue, you can check the alignment of the gearbox and replace the worn-out gears. You can also balance the load to reduce vibration.

It is essential to perform regular maintenance to prevent any issues from occurring. Always ensure that the gearbox is well lubricated, and the load is within its capacity. By following these tips, you can extend the lifespan of your gearbox and prevent any unexpected downtime.

How to Choose the Right Worm Gear Reducer?

Choosing the right worm gear reducer for your needs can be a daunting task, but by following these simple steps, you can make the process easier:

1. Identify your application's requirements: Consider the power requirements, speed, torque, and duty cycle of your application. Knowing these details will help narrow down the options.
2. Select the appropriate reduction ratio: The reduction ratio determines the output speed of the reducer and should be chosen based on your application's needs.
3. Determine the mounting position: Will the reducer need to be mounted vertically or horizontally? This will help determine which model to choose.
4. Choose the right size: It's important to select the right size worm gear reducer to ensure optimal performance and longevity. Consult the manufacturer's size chart and factor in any potential future needs.
5. Select the appropriate Series R68 Aluminum Worm Reducer: The R68 series offers a high-quality aluminum housing and precision machining for smooth operation. Choose the model that meets your application requirements.

By following these steps and selecting the appropriate Series R68 Aluminum Worm Reducer, you can ensure reliable and efficient operation for your application. Check out the image below for a visual reference of a worm gear reducer:

Motors for Worm Reducers

The Series R68 Aluminum Worm Reducer requires a motor that is specifically designed to complement its gear box. The motor and gear box work together to ensure smooth and efficient operation in various applications.

The relationship between the motor and the gear box is crucial for the overall performance of the system. The motor provides the necessary power and torque to drive the gear box, which in turn converts the high-speed, low-torque input into a low-speed, high-torque output. This reduction in speed and increase in torque is essential for many industrial processes and machinery.

At our company, we understand the importance of having the right motor to match the Series R68 Aluminum Worm Reducer. We offer a wide range of motors that are compatible with this gear box, ensuring optimal performance and reliability. Our motors are carefully selected to meet the specific requirements of different applications, providing the perfect fit for your needs.

Whether you need a motor with high starting torque, low noise, or energy efficiency, we have the right solution for you. Our motors are designed to deliver superior performance and durability, making them ideal for demanding industrial environments.

As shown in the image below, we offer a variety of electric motors that are suitable for the Series R68 Aluminum Worm Reducer:

About Ever-power

Ever-power is a professional manufacturer of worm gearboxes with a proven track record of producing high-quality products. Our company specializes in the production of worm gearboxes and has a team of skilled professionals who are dedicated to ensuring that each gearbox is made to the highest standards.

We have state-of-the-art precision testing equipment that allows us to test each gearbox for accuracy and durability. Our team has the technical expertise and experience to ensure that every gearbox we produce meets the exact specifications of our customers.

As a manufacturer, we take great pride in our ability to produce high-quality products that meet the needs of our customers. Our Series R68 Aluminum Worm Reducer is a prime example of our commitment to quality. The gearbox is designed to provide high torque at low speeds, making it ideal for a wide range of applications.

Our strength lies in our ability to produce customized gearboxes that meet the unique needs of each customer. We work closely with our customers to ensure that each gearbox is designed to meet their specific requirements.

At Ever-power, we are committed to providing our customers with the highest quality products and services. We believe that our customers deserve the best, and we strive to meet and exceed their expectations.
