Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 5 SNU-O Worm Gear Unit

SNU-O Worm Gear Unit

SNU-O Worm Gear Unit is a type of worm gearbox that provides high torque in a compact design. It is widely used in equipment for industries such as food, packaging, transmission, automation, and solar energy.

Our company provides replacement worm gearboxes for Elecon brand products. Our products are of high quality and offered at competitive prices. It is important to note that our products are replacement parts and not original parts. If you require original parts, please contact the original supplier.

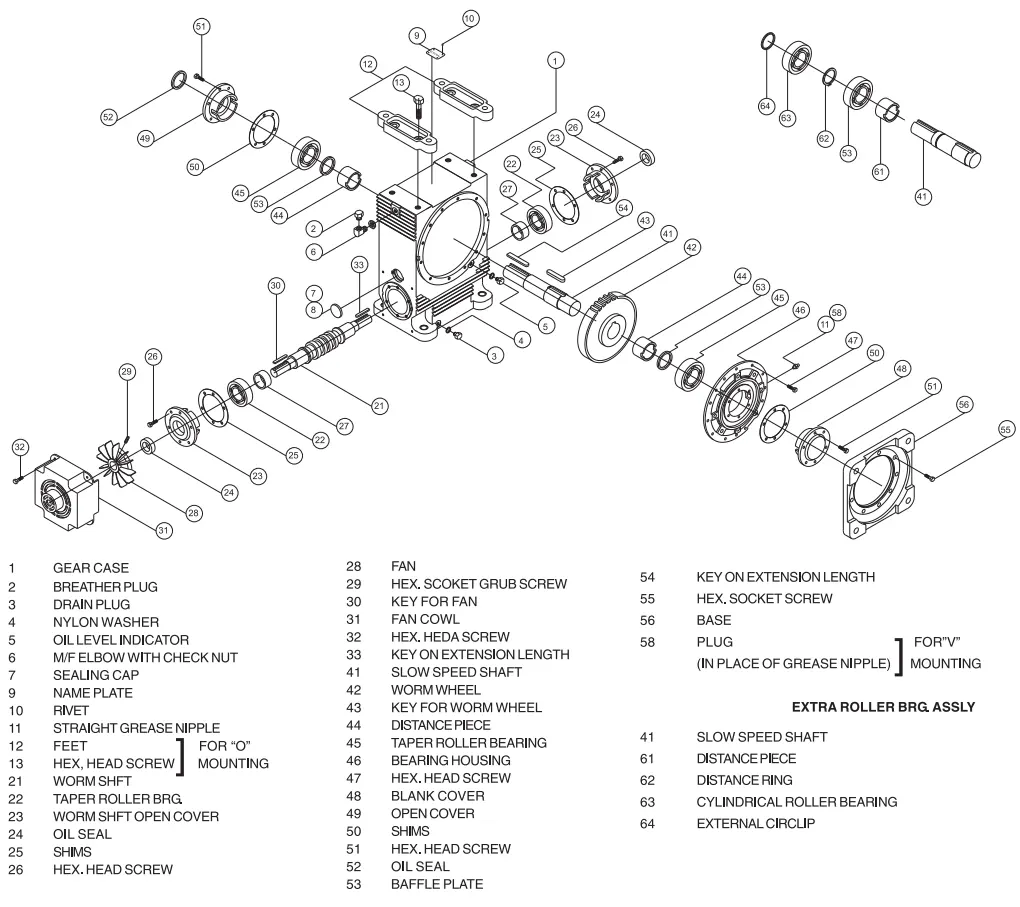

Structure

The gearbox housing is designed to be streamlined and constructed from fine-grained cast iron, making it sturdy and durable. It is completely oil and dust-proof, and can be installed outdoors without the need for separate covers. The surface and apertures are precisely drilled and machined using the latest precision machinery to ensure perfect alignment and interchangeability.

The worm shaft is made of carburized alloy steel that is ground and polished, and is connected to the shaft. The bearing journal is precisely ground. The worm wheel is made of centrifugally cast phosphor bronze and is machined on a dedicated worm milling machine, gas-carburized, and ground on an automatic workpiece grinder. The worm wheel is precision-machined with a high-precision hobbing machine. Each worm wheel is checked and matched with the main worm shaft to ensure complete interchangeability.

The worm shaft and worm wheel are supported by a ball or roller anti-friction bearing, providing ample safety margins to withstand the required shaft and thrust loads. Cantilever loads generated by chain or small gear drives are generally allowed, as the gearbox and bearings are designed for this purpose. However, complete detailed information should be provided to us for confirmation. Extra roller bearings can be provided in cases of heavier cantilever loads.

The wheel shaft is made of high-strength carbon steel. The large diameter of the wheel shaft can withstand twisting and bending loads caused by cantilever drives.

Applications

The SNU-O Worm Gear Unit series is suitable for a wide range of applications, including:

- Conveyor belts
- Mixers
- Agitators
- Winches
- Elevators
- Cranes

Each application has specific requirements, and our team can help you select the right SNU-O Worm Gear Unit for your needs.

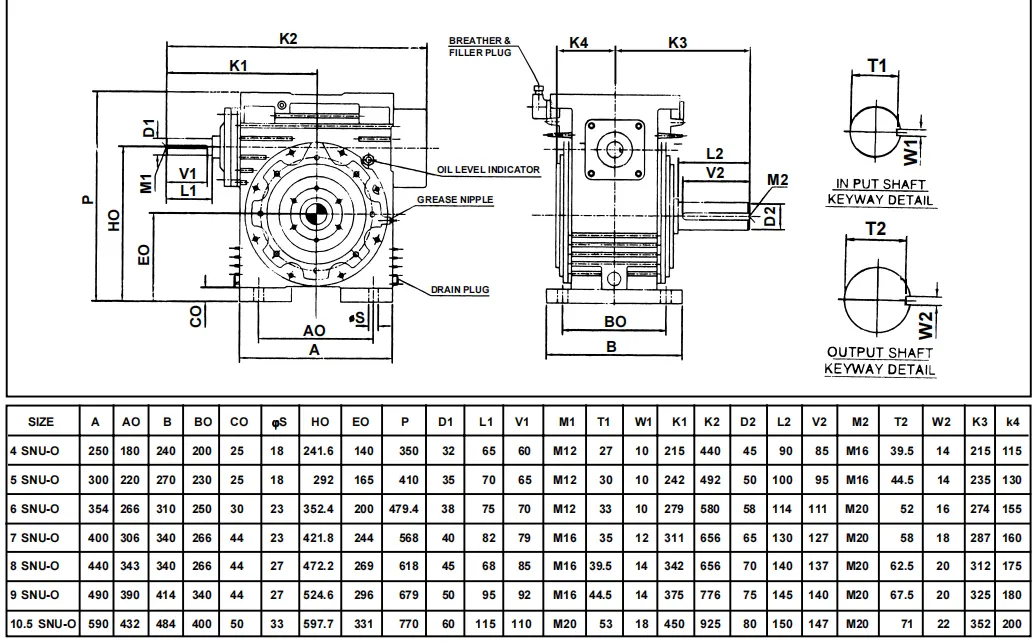

Dimensions

The dimensions of the SNU-O Worm Gear Unit series are as follows:

Installation

A single-piece universal housing with top and bottom flanges is provided, as well as a support flange, allowing the gearbox to be universally installed in positions such as low speed, high speed, and vertical. This means that internal components can be interchanged for all installation positions. Simply invert the device and change the position of the drain plug, vent plug, and oil level indicator to quickly change the installation position from low speed to high speed and vice versa. The sturdy and compact streamlined design provides ample heat capacity.

SNU-O Worm Gear Unit Features

The SNU-O Worm Gear Unit series gearboxes have large fins that increase the heat dissipation area, as well as a streamlined oil pan that can hold more oil. The larger-capacity fan can increase the gearbox's thermal rating. All of these features mean that the continuous carrying capacity is increased and the temperature does not rise significantly. There is no need to open the gearbox for manual replacement. simply replace the fan and fan cover from one end of the worm shaft to the other.

Elecon Worm Gear Unit Replacement

Our company provides the following advantages for replacing Elecon brand worm gearboxes:

- High-quality products
- Competitive prices
- Replacement parts, not original parts
- We provide customization services to meet customer requirements
- We only provide replacement parts for original parts. If you require original parts, please contact the original supplier.

Motors for Worm Gear Reducers

Motors play a crucial role in the operation of worm gear reducers. Our company also provides various electric motors for sale, with different sizes and capacities to meet different customer needs. The motors and worm gear reducers work together to provide reliable performance in various applications.

About Ever-power

We are a comprehensive transmission equipment manufacturer that integrates research and development, manufacturing, and sales of speed reducers. With more than 15 years of experience in the design, production, manufacture, and sales of gearboxes, we have served customers in Europe, America, Africa, Asia, and other regions, winning the praise of the market.

Our company has introduced advanced production and testing equipment at home and abroad, employs industry professionals and technicians to carry out innovative research and development and manufacturing, uses standardized production management methods to strictly control every aspect of reducer production, and provides customers with high-quality, high-energy-efficiency, and high-stability production. Our gearboxes are widely used in various industries, such as the food industry, equipment industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry.

We offer the best services, high-quality products, and competitive prices. We encourage our customers to explore our products and contact us for purchases.

Q&A

Q: Can the SNU-O Worm Gear Unit be installed outdoors?
A: Yes, the SNU-O Worm Gear Unit is designed to be completely oil and dust-proof, and can be installed outdoors without the need for separate covers.

Q: Does Ever-power provide original parts for Elecon brand worm gearboxes?
A: No, we only provide replacement parts for original parts. If you require original parts, please contact the original supplier.

Q: What industries are Ever-power's gearboxes used in?
A: Our gearboxes are widely used in various industries, such as the food industry, equipment industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry.
