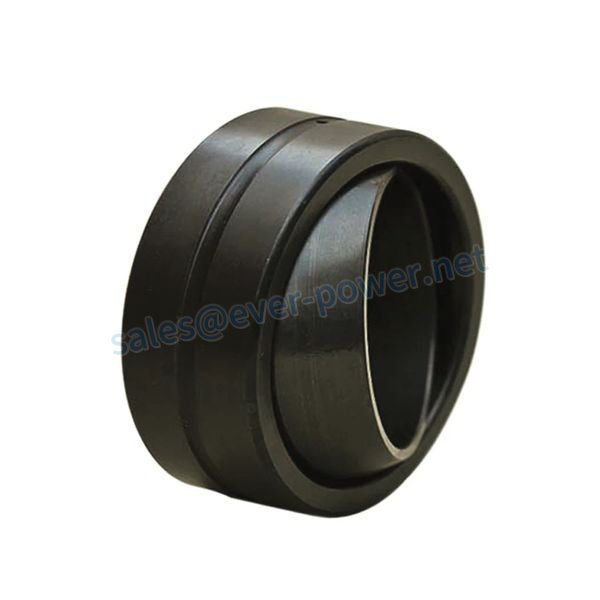

Radial Spherical Plain Bearings

Radial spherical plain bearings have an inner ring with a sphered convex outside surface and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing must be accommodated or oscillating or recurrent tilting or slewing movements must be permitted at relatively slow sliding speeds. Radial spherical plain bearings are available with different sliding contact surface combinations, i.e., the sliding surfaces of inner and outer rings are made from other materials. There are two main groups: spherical plain bearings requiring maintenance(steel-on-steel) and maintenance-free spherical plain bearings.

Radial spherical plain bearings requiring maintenance(steel-on-steel) generally have a hardened sliding contact surface on both rings. The characters are treated with molybdenum disulfide and phosphate. It has characteristics of wear resistance and wears corrosion. Bearings with this sliding contact surface combination require regular re-lubrication. The high strength of the sliding contact surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads, or heavy static loads must be accommodated.

Product parameters

DesignationPrincipal dimensionsAngle of tiltBasic load ratings
dynamicstatic
Bearing No
d[mm]
D[mm]
B[mm]
C[mm]
α[°]
C[kN]
C0[kN]
  GE 4 C   4  12  5  3  16  2.16  5.4
  GE 4 E   4  12  5  3  16  2.04  10.2
  GE 5 E   5  14  6  4  13  3.4  17
  GE 6 C   6  14  6  4  13  3.6  9
  GE 6 E   6  14  6  4  13  3.4  17
  GE 8 C   8  16  8  5  15  5.85  14.6
  GE 8 E   8  16  8  5  15  5.5  27.5
  GE 10 C   10  19  9  6  12  8.65  21.6
  GE 10 E   10  19  9  6  12  8.15  40.5
  GEH 10 C   10  22  12  7  18  11.4  28.5
  GE 12 C   12  22  10  7  10  11.4  28.5
  GE 12 E   12  22  10  7  10  10.8  54
  GE 12 TXGR   12  22  10  7  10  30  50
  GEG 12 ESA   12  22  12  7  4  10.8  54
  GEH 12 C   12  26  15  9  18  18  45
  GEZ 008 ES   12.7  22.225  11.1  9.525  6  14  41.5
  GE 15 C   15  26  12  9  8  18  45
  GE 15 ES   15  26  12  9  8  17  85
  GE 15 ES-2RS   15  26  12  9  8  17  85
  GE 15 TXGR   15  26  12  9  8  47.5  80
  GEH 15 C   15  30  16  10  16  22.4  56
  GEZ 010 ES   15.875  26.988  13.894  11.913  6  21.5  65.5
  GEG 16 ES   16  28  16  9  4  17.6  88
  GE 17 C   17  30  14  10  10  22.4  56
  GE 17 ES   17  30  14  10  10  21.2  106
  GE 17 ES-2RS   17  30  14  10  10  21.2  106
  GE 17 TXGR   17  30  14  10  10  60  100
  GEH 17 C   17  35  20  12  19  31.5  78
  GEZ 012 ES   19.05  31.75  16.662  14.275  6  31.5  93
  GEZ 012 ES-2RS   19.05  31.75  16.662  14.275  6  31.5  93



DesignationPrincipal dimensionsAngle of tiltBasic load ratings
dynamicstatic
Bearing No
d[mm]
D[mm]
B[mm]
C[mm]
α[°]
C[kN]
C0[kN]
  GEZM 012 ES   19.05  31.75  28.575  14.275  9  31.5  93
  GE 20 C   20  35  16  12  9  31.5  78
  GE 20 ES   20  35  16  12  9  30  146
  GE 20 ES-2LS   20  35  16  12  9  30  146
  GE 20 ES-2RS   20  35  16  12  9  30  146
  GE 20 ESL-2LS   20  35  16  12  9  30  146
  GE 20 ESX-2LS   20  35  16  12  9  44  146
  GE 20 TXE-2LS   20  35  16  12  9  83  140
  GE 20 TXG3E-2LS   20  35  16  12  9  83  140
  GEG 20 ES   20  35  20  12  4  30  146
  GEH 20 C   20  42  25  16  17  51  127
  GEH 20 ES-2LS   20  42  25  16  17  48  240
  GEH 20 ES-2RS   20  42  25  16  17  48  240
  GEH 20 ESL-2LS   20  42  25  16  17  48  240
  GEH 20 ESX-2LS   20  42  25  16  17  72  240
  GEH 20 TXE-2LS   20  42  25  16  17  137  228
  GEH 20 TXG3E-2LS   20  42  25  16  17  137  228
  GEM 20 ES-2RS   20  35  24  12  6  30  146
  GEM 20 ESX-2LS   20  35  24  12  6  44  146
  GEZ 014 ES   22.225  36.513  19.431  16.662  6  42.5  127
  GE 25 C   25  42  20  16  7  51  127
  GE 25 ES   25  42  20  16  7  48  240
  GE 25 ES-2LS   25  42  20  16  7  48  240
  GE 25 ES-2RS   25  42  20  16  7  48  240
  GE 25 ESL-2LS   25  42  20  16  7  48  240
  GE 25 ESX-2LS   25  42  20  16  7  72  240
  GE 25 TXE-2LS   25  42  20  16  7  137  228
  GE 25 TXG3E-2LS   25  42  20  16  7  137  228
  GEG 25 ES   25  42  25  16  4  48  240
  GEH 25 C   25  47  28  18  17  65.5  166

Key Features

1, Material: the inner and outer rings bear steel(GCr15).
2, Heat Treatment: the inner and outer rings are quenched and phosphating.
3, Structure: There are oil grooves and holes in the inner and outer circle. The outer ring has an axial slot. Sealing rings are attached on both sides.
4, The sliding surface is coated with MoS2 powder lubricant.
5, Performance Characteristic: It has the advantages of abrasion resistance, corrosion resistance, and self-aligning. It applies to the machine requiring heavy radial and axial loads in a small-range direction.

Variants

  • Steel on Steel Spherical Bushings
    • Standard Spherical Bushings
    • Special Bushings for Hydraulic Cylinders
  • Maintenance Free Spherical Bushings
