Angular Contact Spherical Plain Bearings

The sliding contact surfaces of angular contact spherical plain bearings are spherical in shape and inclined at an angle to the bearing axis. Consequently, these bearings are well suited for accommodating combined (radial and axial) loads. Single angular contact spherical plain bearings can only accommodate axial loads acting in one direction. These bearings can be separated, enabling the rings to be mounted separately.

Angular contact spherical plain bearing to be service is constructed with a washer for the shaft with a sliding external spherical surface positioned obliquely and with a washer for housing with a sliding concave spherical surface. The spherical plain bearing with oblique contact is characteristic of absorbing combined loads (in the axial and radial direction); it can therefore be mounted in pairs (coupled). It presents the exact encumbrance as series 320; tapered roller bearing; it can consequently be supplementary as sliding bearing, where the application of revolving bearing would create functional complications. As for the maintenance, the standard models require lubrication with grease; other types require an oil bath lubrication means a groove.

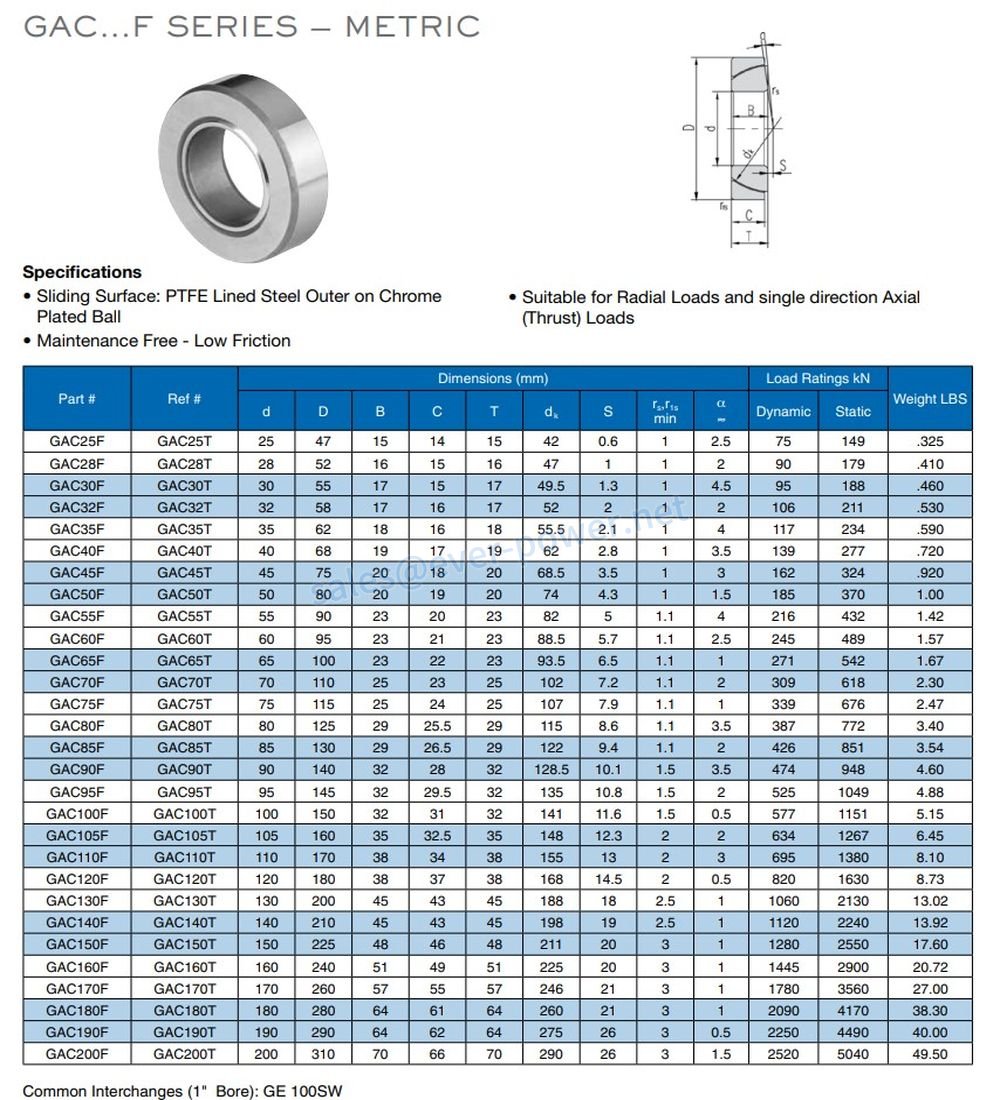

Product parameters

Applications of angular contact spherical plain bearings

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need angular contact spherical plain bearings, please feel free to contact us.
