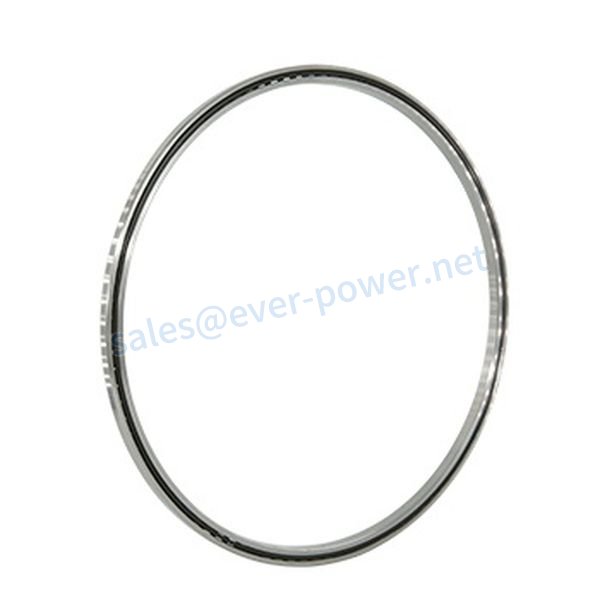

X Type-Thin Section Four-point Contact Bearings( Open )

The X Type-thin section four-point contact bearings( Open ) can support double direction axial and radial load and specific tilting torque. This type of bearing is generally used for horizontal installation.

There are two centers of the raceway radius on each side of the raceway. Both deviate from the centerline of the steel balls, which enables the thin-section four-point contact ball bearings (X Type) to form four-point contact between the raceway and steel balls. Like the A-Type bearings and the C-Type bearings, the X-Type bearings have the same depth of the groove, 25% of the diameter of the steel ball. The Four Point Bearings can carry radial and axial loads in two directions, like the back-to-back combination of a pair of A-Type bearings; therefore, one Four Point Ball Bearing can replace the two Angular Contact Ball Bearings.

The bore diameters of our Angular Contact Bearing range from 1.000 inches to 40.000inch. Series range from 0.1875 X 0.1875 inch to 1.000 X 1.000 inch in cross-section. In these series, the material of rings could be GCr15 and stainless.

Applications:

Technical data

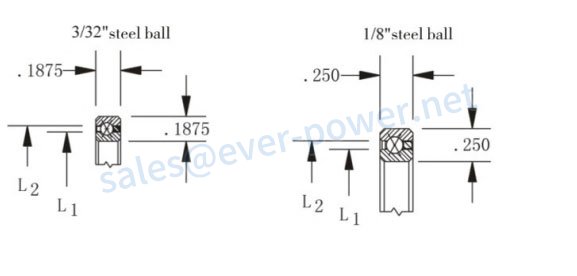

(1) HKAA series & HKA series

(2) HKB series

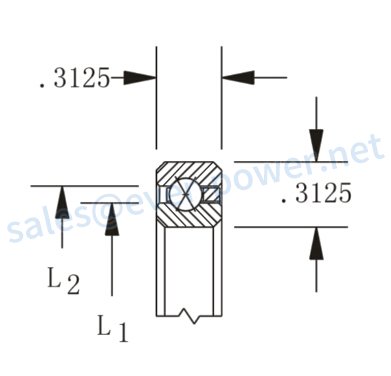

(3) HKC series

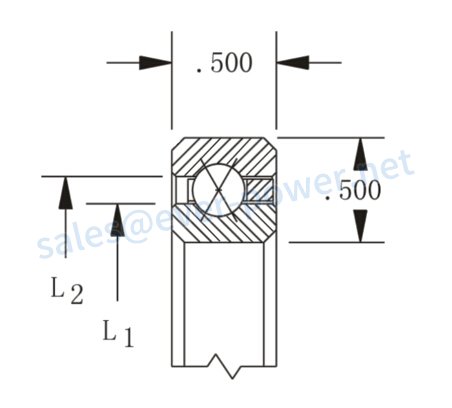

(4) HKD series

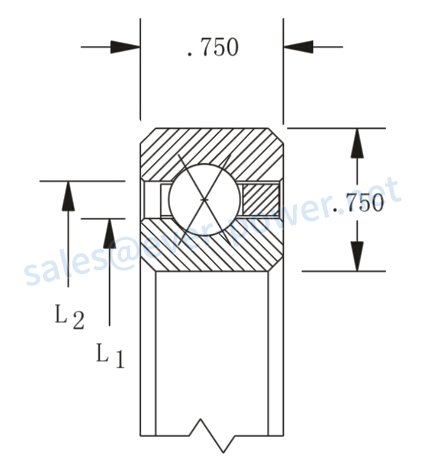

(5) HKF series

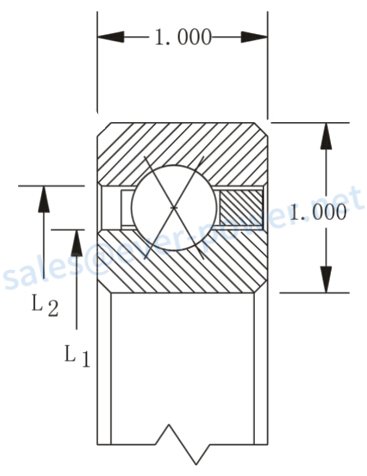

(6) HKG series

How do you select the best thin section bearing configuration?

They are selecting which type of thin section bearing configuration is usually driven by the type and magnitude of loading required in the application. In environments with axial loads present in one direction, recommend their A-Type angular contact ball bearing, which also works well in radial or combined thrust applications. However, this option is not best suited to applications that require the support of moment loads or reversing axial loading. Contact bearings, such as Type-C bearings, are the best choice for these situations as their deep ball grooves can withstand higher loads. Although this type of bearing is used primarily in applications with radial loads, it can also withstand moderate axial loads, reversing axial loads, and moment loads which Carter is best advised on.
