Worm Reducer-Replacement of PREMIUM Modular MSV Mark I 800 Worm Gearbox
The Worm Reducer is a high-quality replacement for the PREMIUM Modular MSV Mark I 800 Worm Gearbox. It is designed with compactness and ease of installation in mind. The reducer has a wide range of specifications, including a rated power of up to 350 kW, reduction ratios from 5:1 to 3000:1, and dimensions of 203.2mm (8 inches) for high wear resistance and strength. The product is easy to maintain and does not require special lubrication, except for filling the oil to the desired level. It boasts high durability, efficiency, and load-carrying capacity.

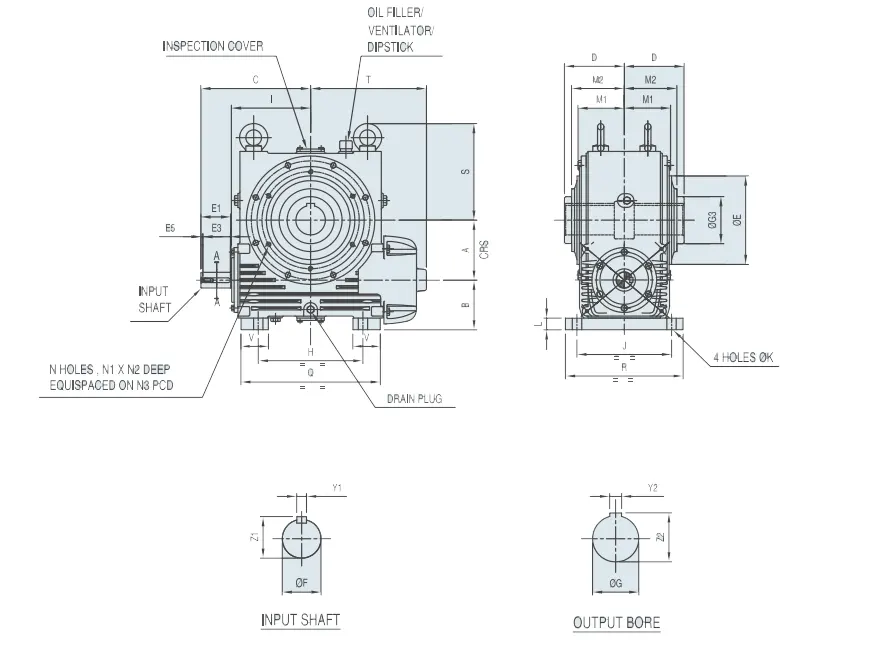

Composition and Structure
The Worm Reducer consists of several key components:
- Worm shaft
- Worm wheel
- Bearing
- Housing
- Gaskets
- Seals
Each component plays a crucial role in the overall functionality of the reducer. The worm shaft and worm wheel facilitate smooth power transmission, while the bearings provide support and reduce friction. The housing, gaskets, and seals ensure a robust and compact design, allowing for efficient heat dissipation. With fewer parts and minimal use of bolts and screws, the reducer has an aesthetic appearance and high thermal capacity.
Applications
The Worm Reducer finds extensive applications in various industries, including:
- Mining
- Oil and gas
- Packaging and labeling
- Pulp and paper
- Power generation
- Rubber and plastic
- Sugar
- Cement
- Chemical
- Food and beverage
- Material handling
- Steel
Choosing the Right Worm Reducer
When selecting a suitable worm reducer, several factors need to be considered:
- Type of prime mover
- Horsepower of the prime mover
- Output torque required by the driven element
- Input speed of the gear device
- Output speed of the gear device
- Required drive configuration and shaft arrangement
- Total operating hours per day
| Factor | Details |
|---|---|
| 1. Type of prime mover | Electric motor |
| 2. Horsepower of the prime mover | 50 HP |
| 3. Output torque required by the driven element | 500 Nm |
| 4. Input speed of the gear device | 1500 rpm |
| 5. Output speed of the gear device | 30 rpm |
| 6. Required drive configuration and shaft arrangement | Vertical, inline configuration |
| 7. Total operating hours per day | 10 hours |
Additional details about abnormal startup loads, reverse or impact loads, external loads on the gear device, and any unusual operating conditions like temperature and humidity should also be provided.
PREMIUM Worm Gearbox Replacement
Our company offers a range of advantages in replacing the PREMIUM Worm Gearbox:
- High-quality replacement for the original gearbox
- Competitive pricing
- Improved durability and efficiency
- Exceptional customer service
- Availability of customized solutions
Please note that our products are replacement parts and not original equipment. For original equipment, please contact the manufacturer. We encourage customers to explore our products and contact us for purchasing.
Worm Gear Reducer Lubrication
The gear and bearing lubrication of the Worm Gear Reducer is achieved through the splashing of lubricating oil from the oil sump. The modular series of worm gear reducers are equipped with an oil dipstick-oil filter and vent. Apart from occasional oil top-ups to the required level, no special care is needed. Chloroprene rubber lip seals are installed on the input and output shafts. For extremely low speeds below 50 rpm, forced lubrication is required. The reducer does not come pre-filled with lubricating oil and must have the correct amount of oil added. It is important to ensure not to exceed the correct oil level, as overfilling can cause oil agitation, leading to overheating and leakage.
Worm Gear Reducers and Motors
Worm Gear Reducers and electric motors are complementary to each other and play a crucial role in various applications. Our company also provides a wide range of electric motors for sale.
These motors are designed to work seamlessly with our Worm Gear Reducers, ensuring optimal performance and efficiency in various industries.
About Ever-power
We are a comprehensive transmission equipment manufacturer specializing in research, development, manufacturing, and sales of speed reducers. With over 15 years of experience, we have served customers worldwide and gained a reputable presence in Europe and America. Our company is dedicated to providing excellent service, high-quality products, and competitive prices. We have introduced advanced production and testing equipment, employed industry professionals, and implemented standardized production management methods. Our gearboxes find applications in a wide range of industries, including equipment, food, car wash, packaging, transmission, automation, and solar energy.
Encouraging customers to explore our products and contact us for purchases.
Q&A
Q: Can I use the Worm Reducer in the mining industry?
A: Yes, the Worm Reducer is suitable for use in the mining industry. Its robust design and high load-carrying capacity make it ideal for heavy-duty applications.
Q: How often should I lubricate the reducer?
A: The reducer requires occasional oil top-ups to the required level. Apart from that, no special care is needed for lubrication.
Q: Can the Worm Reducer be customized for specific applications?
A: Yes, our company offers customized solutions based on specific requirements. Please contact us with your customization needs.
