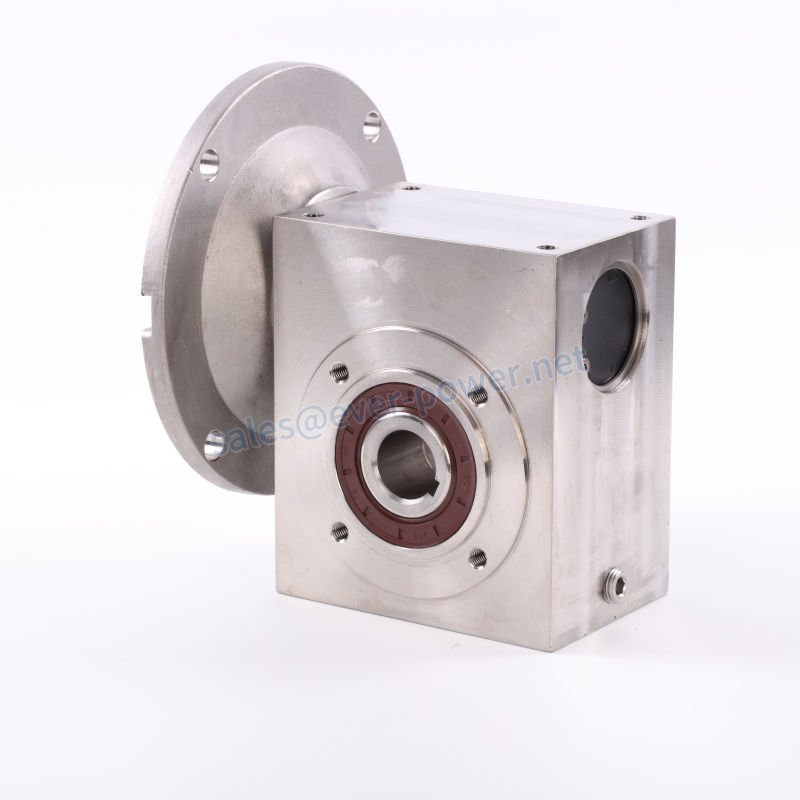

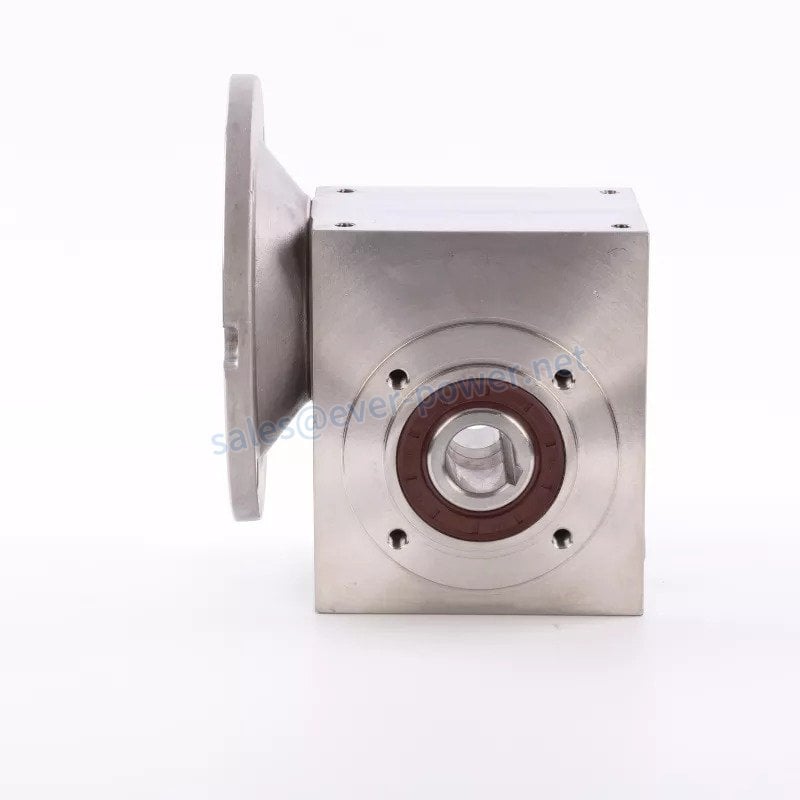

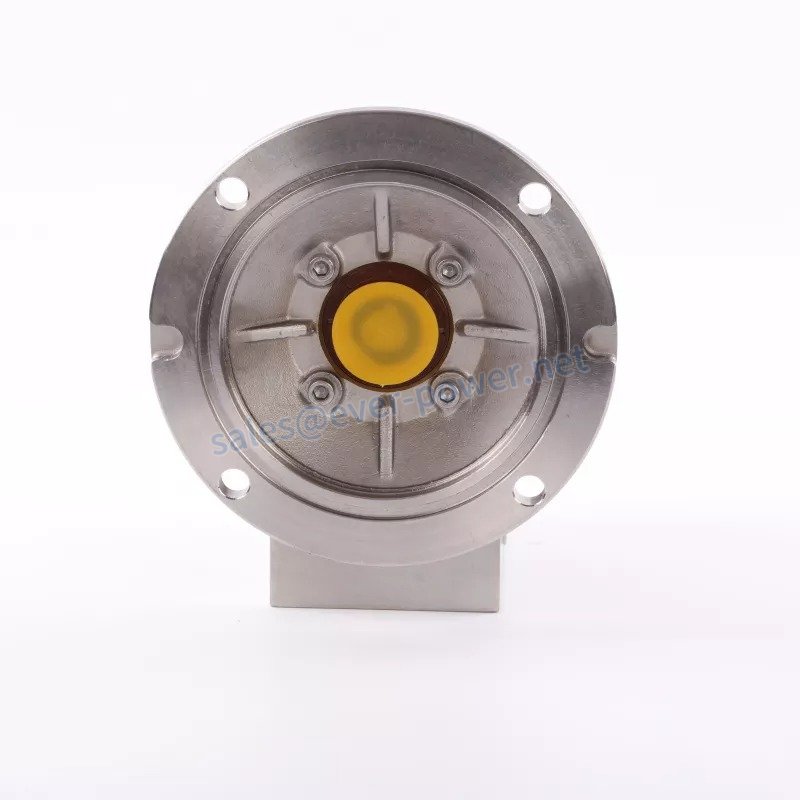

WMRV Stainless Steel Worm Gear Reducer

The stainless steel worm gear reducer has been a foundation in food and beverage applications for decades. As a mature manufacturer and supplier of worm gear reducers, Ever-power continues to improve product performance by developing innovative designs to meet more stringent demands and anticipated tightening of federal regulations in the food and beverage industry.

Category:

WMRV Stainless Steel Worm Gear Reducer

Ever Power Stainless Steel Worm Gear ReducersThe stainless steel worm gear reducer has been a foundation in food and beverage applications for decades. As a mature manufacturer and supplier of worm gear reducers, Ever-power continues to improve product performance by developing innovative designs to meet more stringent demands and anticipated tightening of federal regulations in the food and beverage industry.

  • Suitable For More Stringent Operating Environment
  • Good Corrosion Resistance
  • Use Of Fluorine Rubber Seal, High Temperature, Corrosion Resistance
  • Use Of Food Grade Synthetic Oil, More Secure, Environmentally Friendly
  • The stainless steel housing, cover and external hardware offer an exceptionally long life
  • Worms are cut, heat-treated, ground, and polished to provide efficient, quiet operation.
  • All units are 100% run and leak tested at the factory to ensure you receive the highest quality product.
  • Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges, and the largest selection of stock reducer styles.
  • Mounting dimensions are interchangeable with most industry standard reducers.

Ever-power Stainless Steel Worm Gear Reducers

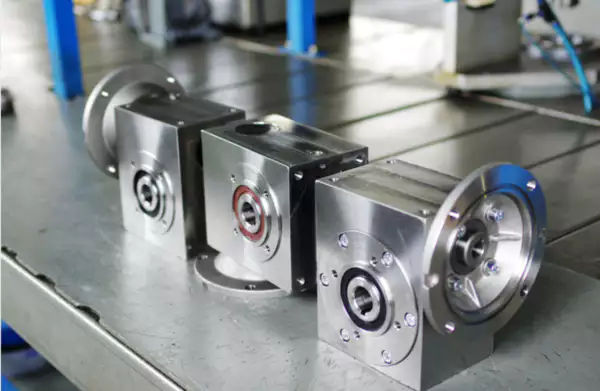

The WMRV Series worm gear speed reducer is made from stainless steel, which offers maximum corrosion resistance in washdown environments. Its exterior design is entirely new and designed to meet the most rigorous washdown environments. Furthermore, it is available in UL/ULc, and NSF International certified models. For easy retrofitting, this worm gear speed reducer is UL-certified, NSF-approved, and cUL-certified.

Stainless steel gear motors are built to be easy to clean and maintain. They can be customized to fit the specifications of conveyor systems and machines. Standard stainless steel worm motors are durable, long-lasting gearbox and motor combinations that can be used in various applications. If you require a stainless steel worm gear reducer, choose the Ever-power worm gearbox for its sleek, streamlined design.

 Stainless Steel Worm Gear Reducers  Stainless Steel Worm Gear Reducers  Stainless Steel Worm Gear Reducers

Features of Ever-power Stainless Steel Worm Gear Reducers

Blending trusted worm gearing with an innovative new exterior design, the stainless steel worm gear reducers have been optimized to withstand the harshest washdown conditions. The units feature trusted worm gearing, a rounded stainless housing with smooth, uninterrupted surfaces designed to prevent particle accumulation and pooling fluids, double-lipped shaft seals, covers for all hardware and counter bored holes.

A stainless steel gearbox costs more than a painted one, but investing in a more corrosion-resistant gearbox saves money and makes the most sense in the long run. Unmatched product performance in highly caustic washdown applications combined with first-class customer service makes Ever-power your first choice for speed reducers and gearmotors!

WMRV Stainless Steel Worm Gear Reducer

Specifications of Stainless Steel Worm Gear Reducers

Type
Worm Gear Speed Reducer/ gearbox
Model
WMRV 25/30/40/50/63/75/90/110/130/150/185
Ratio
7.5,10,15,20,25,30,40,50,60,80,100.
Color
Blue(RAL5010)/Silver grey (K9149) Or On Customer Request
Material
Stainless Steel
Worm wheel: Aluminum Bronze or Zinc Bronze
Worm shaft: 20CrMn Ti
Output Shaft: steel-45#
Packing
Carton, Honey Comb Carton, Wooden Case with wooden pallet
Bearing
C&U
Seal
SKF or viton oil seal
Warranty
1 Year
Input Power
0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW,11Kw and so on.
IEC Flange
IEC standard flange or on customer request
Lubricant
Synthetic oil or worm gear oil



Stainless Steel Worm Gearbox Manufacturer

Ever-power specializes in manufacturing various mechanical transmission and hydraulic transmission, such as planetary gearbox, worm gear reducers, inline helical gear reducers, parallel shaft helical gear reducers, helical bevel gear reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, automobile transmission, power output shafts, special reducers and related gear parts and other related products, sprocket, vacuum pump, hydraulic coupling, rack and pinion chain, timing pulley, UDL transmission, V-pulley, hydraulic cylinder, gear pump, screw air compressor, shaft ring low backlash worm gear reducer, etc. In addition, we can produce customized transmissions, gear motors, electric motors and other hydraulic products according to customers' drawings.

Our advanced inspection and testing equipment provide a reliable guarantee for product quality. We have a professional technical team, exquisite processing technology and a strict control system.

In recent years, the company has been developing rapidly with rich production experience, an advanced management system, a standardized management system and a strong technical force. We always adhere to the concept of survival by quality and development by scientific and technological innovation.

Additional information

Edited

Zqq

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
