Right Angle Planetary Speed Reducer Gearbox Replacement of Bonfiglioli 300R Series

Right Angle Planetary Speed Reducer Gearbox Replacement of Bonfiglioli.

With our Planetary gearbox, Wheel drive gearbox, Winch drive gearbox, and Track drive gearbox, the installation size is exactly the same as Trasmital bonfiglioli, and the performance parameters are very close to Trasmital bonfiglioli, which can be used instead of Trasmital bonfiglioli products.

Right Angle Planetary Speed Reducer Gearbox Replacement of Bonfiglioli 300R Series



Replacement gearbox for Bonfiglioli

With our Planetary gearbox, Wheel drive gearbox, Winch drive gearbox, and Track drive gearbox, the installation size is exactly the same as Trasmital bonfiglioli, and the performance parameters are very close to Trasmital bonfiglioli, which can be used instead of Trasmital bonfiglioli products.

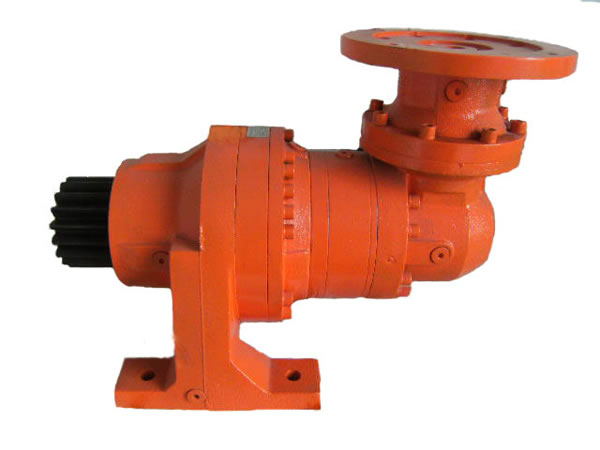

Right Angle Planetary Speed Reducer Gearbox Replacement of BonfiglioliEP301R2-PZ

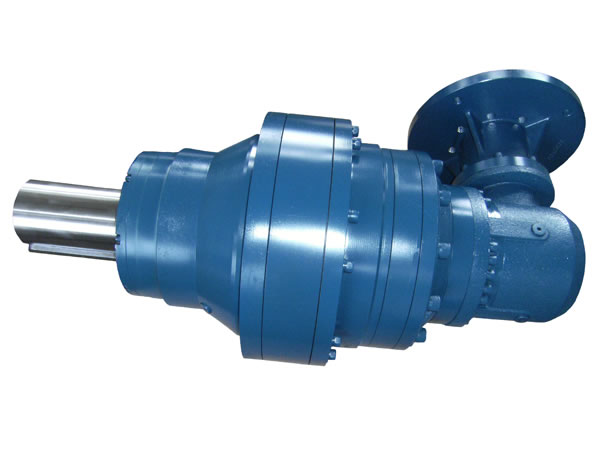

Right Angle Planetary Speed Reducer Gearbox Replacement of BonfiglioliEP306R2-HC

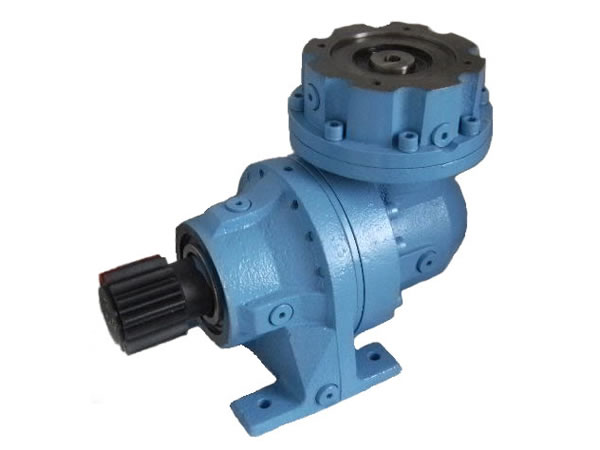

Right Angle Planetary Speed Reducer Gearbox Replacement of BonfiglioliEP305R4-PZ

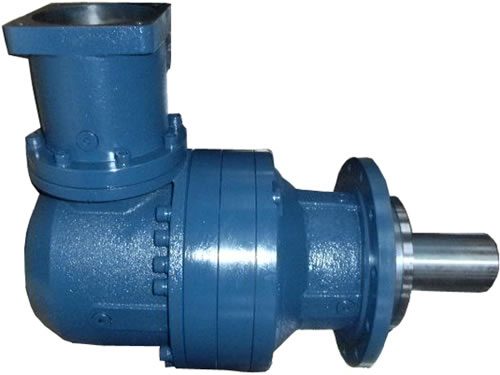

Right Angle Planetary Speed Reducer Gearbox Replacement of BonfiglioliEP311R4-HC

Tipo
Torque Nm
EP300R
EP300R1 /EP300R2 /EP300R4
1000
EP301R
EP301R1 /EP301R2 /EP301R4
1750
EP303R
EP303R1 /EP303R2 /EP303R4
2500
EP305R
EP305R1 /EP305R2 /EP305R4
5000
EP306R
EP306R1 /EP306R2 /EP306R4
8500
EP307R
EP307R1 /EP307R2 /EP307R4
12500
EP309R
EP309R1 /EP309R2 /EP309R4
18000
EP310R
EP310R1 /EP310R2 /EP310R4
25000
EP311R
EP311R1 /EP311R2 /EP311R4
40000
EP313R
EP313R1 /EP313R2 /EP313R4
55000
EP315R
EP315R1 /EP315R4
100000
EP316R
EP316R1 /EP316R4
135000
EP317R
EP317R1 /EP317R4
170000
EP318R
EP318R4
250000
EP319R
EP319R4
350000
EP321R
EP321R4
500000

Superior Performance OF Planetary Reducer


The Ever-power EP300R Series right angle planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation, and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300R Series is also available in a high power version, linking the performance of our planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, more compact, and more cost-effective compared with traditional gear units

Torque range 1,000 ... 1,100,000 Nm (8,850 … 9,735,820 in-lb)
Gear ratios 3.4 ... 5,000
Transmissible Mechanical Power up to 1,050 kW
Brake options Hydraulic brake
Hydraulically released parking brake on request
Electric brake
DC and AC type
Output Foot and flange mounted
Output shaft: solid with key, splined, splined hollow, hollow with shrink disc
Input Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and NEMA motor adapters
Solid input shaft
Applicable motors Piston hydraulic motors
Hydraulic orbit motors
Electric motors IEC



Application Of Right Angle Planetary Gearbox

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment (rotating filters, thickeners, clarifiers, Warm hoists, agitators)
Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling)
Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry (mixing machines, mixers, conveyors, fruit extractor machines)

Right Angle Planetary Speed Reducer Gearbox Replacement of Bonfiglioli

Other Types of Planetary Gearboxes

Gear Speed Reducer for Tracked VehicleGear Speed Reducer for Tracked Vehicle Gear Speed Reducer for WinchGear Speed Reducer for Winch Planetary Gear Reducer for Wheeled Vehicle
Planetary Gear Reducer for Wheeled Vehicle
Planetary Slewing DrivePlanetary Slewing Drive Gear Speed Reducer for Wind TurbinesGear Speed Reducer for Wind Turbines Inline Planetary Gear ReducerInline Planetary Gear Reducer
Right Angle Gear DrivesRight Angle Gear Drives Power Wheel Planetary Gear DrivePower Wheel Planetary Gear Drive Feed Mixer DriveFeed Mixer Drive

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
