Inline Planetary Gearbox Speed Reducer replacement of Bonfigliol 300L Series

Our Planetary gearbox, Wheel drive gearbox, Winch drive gearbox, and Track drive gearbox, the installation size is exactly the same as Trasmital bonfiglioli, and the performance parameters are very close to Trasmital bonfiglioli, which can be used as a substitute for Trasmital bonfiglioli products.

Category:

Inline Planetary Gear Drives Speed Reducer Gearbox replacement of Bonfigliol 300L Series

Alternatives Models to Bonfiglioli gearboxes

Our Planetary gearbox, Wheel drive gearbox, Winch drive gearbox, and Track drive gearbox, the installation size is exactly the same as Trasmital bonfiglioli, and the performance parameters are very close to Trasmital bonfiglioli, which can be used as a substitute for Trasmital bonfiglioli products.

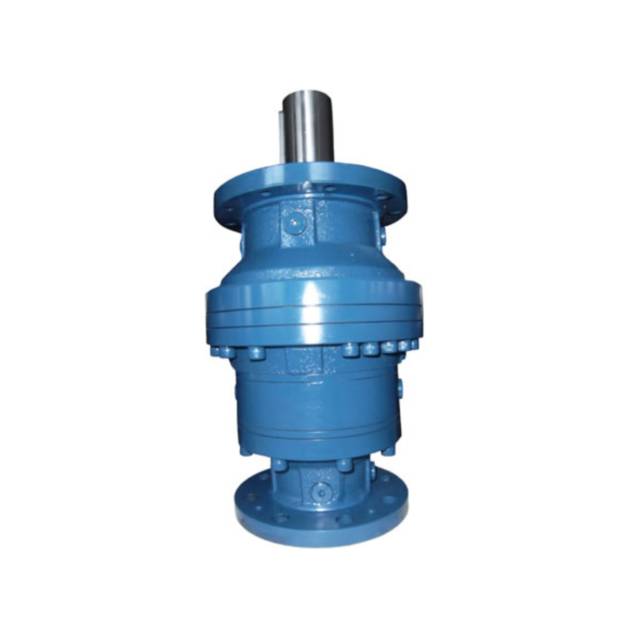

Bonfigliol planetary gearbox Bonfigliol planetary gearbox

Tipo
Torque Nm
EP300L
EP300L1 /EP300L2 /EP300L3 /EP300L4
1000
EP301L
EP301L1 /EP301L2 /EP301L3 /EP301L4
1750
EP303L
EP303L1 /EP303L2 /EP303L3 /EP303L4
2500
EP305L
EP305L1 /EP305L2 /EP305L3 /EP305L4
5000
EP306L
EP306L1 /EP306L2 /EP306L3 /EP306L4
8500
EP307L
EP307L1 /EP307L2 /EP307L3 /EP307L4
12500
EP309L
EP309L1 /EP309L2 /EP309L3 /EP309L4
18000
EP310L
EP310L1 /EP310L2 /EP310L3 /EP310L4
25000
EP311L
EP311L1 /EP311L2 /EP311L3 /EP311L4
40000
EP313L
EP313L1 /EP313L2 /EP313L3 /EP313L4
55000
EP315L
EP315L1 /EP315L2 /EP315L3 /EP315L4
100000
EP316L
EP316L1 /EP316L2 /EP316L3 /EP316L4
135000
EP317L
EP317L1 /EP317L2 /EP317L3 /EP317L4
170000
EP318L
EP318L1 /EP318L2 /EP318L3 /EP318L4
250000
EP319L
EP319L1 /EP319L2 /EP319L3 /EP319L4
350000
EP321L
321L1/321L2/321L3/321L4
500000

Superior Performance of Inline Planetary Gearbox

The Ever-power EP300 Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation, and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300L Series is also available in a high power version, linking the performance of our planetary technology with the high quality and reliability of gearboxes: a solution that is more efficient, quieter, more compact, and more cost-effective compared with traditional gear units.

Key Features of Inline Planetary Reducer

1 . Torque range: 1000-450.000 Nm
2. Transmissible mechanical power. up to 540 kW
3. Gear ratios: 34-9.000
4 . Gear unit versions: inline
5. Output configurations
1 ) Foot and flange mounted
2 ) Output shaft: solid with key, splined, splined hollow
3 ) Hollow with shrink disc
6 . Input configurations
1 ) Flanged axial piston hydraulic motors
2 ) Hydraulic orbit motors
3 ) IEC and NEMA motor adaptors
4 ) Solid input shaft
7 . Hydraulic brake: hydraulically released parking brake
8 . Electric brake. DC and AC type

Application of Inline Planetary Reducer

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment (rotating filters, thickeners, clarifiers, Warm hoists, agitators)
Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy (pitch drives, yaw drives)
Substructures (movable roofs, movable gantries, piling)
Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry (mixing machines, mixers, conveyors, fruit extractor machines)

Bonfigliol planetary gearbox

Other Types of Planetary Gearboxes

Gear Speed Reducer for Tracked VehicleGear Speed Reducer for Tracked Vehicle

Gear Speed Reducer for WinchGear Speed Reducer for Winch

Planetary Gear Reducer for Wheeled Vehicle
Planetary Gear Reducer for Wheeled Vehicle

Planetary Slewing DrivePlanetary Slewing Drive

Gear Speed Reducer for Wind TurbinesGear Speed Reducer for Wind Turbines

Inline Planetary Gear ReducerInline Planetary Gear Reducer

Right Angle Gear DrivesRight Angle Gear Drives

Power Wheel Planetary Gear DrivePower Wheel Planetary Gear Drive

Feed Mixer DriveFeed Mixer Drive

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
