Professional Manufacture Cheap TW510 5000lbs Trailer jack

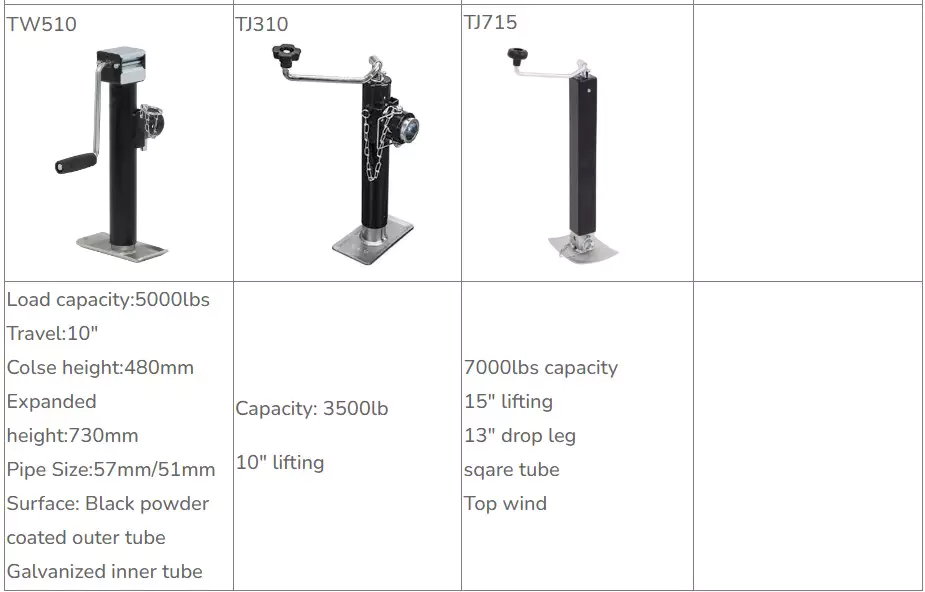

TW510 trailer jack 5000 pounds
We are a manufacturer of low flatbed semi-trailers. The company has good assembly line production equipment standards and strong production capacity and is a comprehensive enterprise that integrates production and sales. Hangzhou Low Plate Semi trailer Sales: The main products include various series of semi-trailers, full trailers, light low plate semi-trailers, excavator trucks, light hook trucks, multi-axle trucks, light rollover semi-trailers, container skeleton trucks, bulk cement tank trucks, light Canglan semi-trailers, box trucks, vehicle transport vehicles, tank trucks, mixing tanks, cement bulk tank trucks, etc.

How to maintain trailer jack

Trailer jacks are essential to any trailer and must be adequately maintained to ensure they operate safely and efficiently. Here are some tips on how to keep your trailer jack:

• Grease the jack regularly. This will help to keep the moving parts lubricated and prevent them from wearing out prematurely. You can use a grease gun to apply grease to the jack's moving components, such as the screw, gears, and linkages.
• Inspect the jack for wear and tear. Check the jack for any signs of wear, such as rust, cracks, or missing parts. If you find any damage, it's essential to repair or replace the jack immediately.
• Keep the jack clean. Dirt and debris can build up on the jack, making operating difficult. Clean the jack regularly with a mild soap and water solution.
• Store the jack in a dry place. Storing the jack in a dry place will help to prevent rust and corrosion.

By following these simple tips, you can help keep your trailer jack in good condition and ensure it operates safely for many years.

Here are some additional tips for maintaining your trailer jack:

• Check the jack's weight rating before using it. Make sure the jack is rated for the weight of your trailer.
• Never overload the jack. Overloading the jack can damage it and make it unsafe to use.
• Use the jack correctly. Follow the manufacturer's instructions for using the jack.
• Never leave the jack unattended while it is supporting the trailer. Always make sure the trailer is properly supported before going it alone.

By following these tips, you can help to ensure your trailer jack is adequately maintained and used safely.

Adjustment of trailer jack

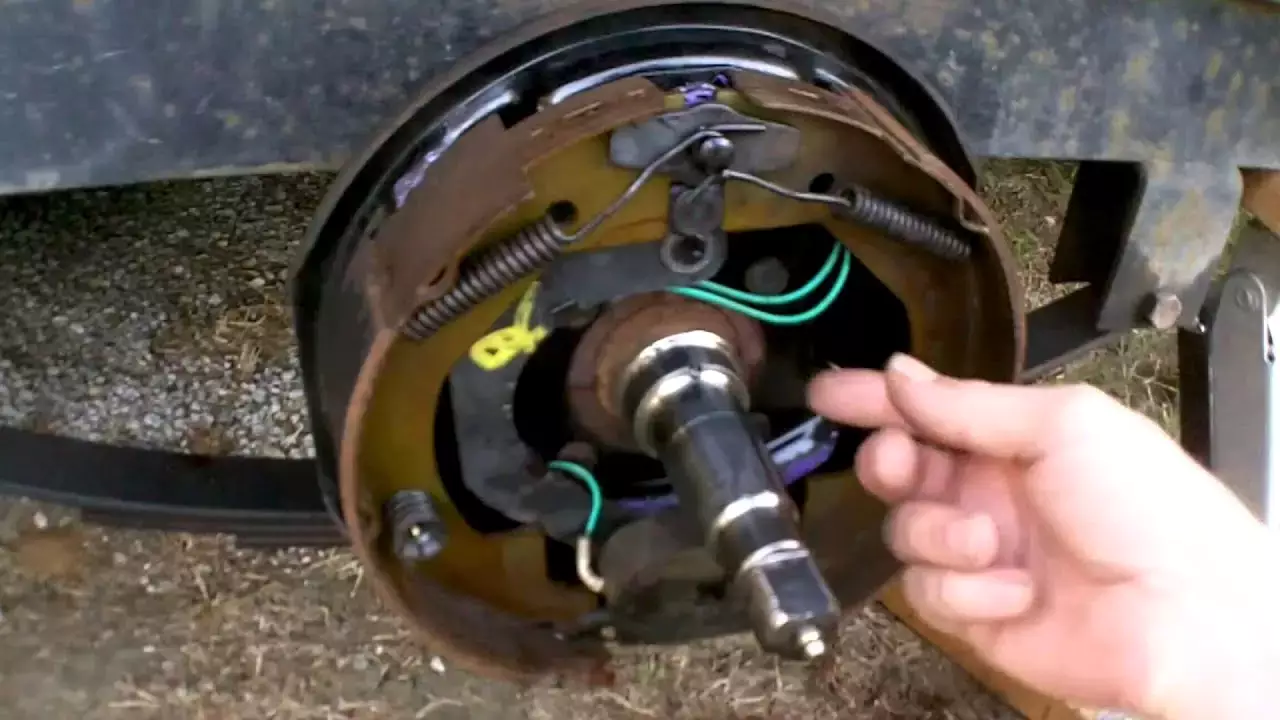

As the brake shoe friction plates wear, the gap between the brake drum and the brake shoe friction plates will increase, and the stroke of the brake chamber push rod will also increase accordingly. If the stroke of the brake chamber push rod is more significant than 40mm, it indicates that the gap between the brake drum and the brake shoe friction plate is too large. At this point, it is necessary to adjust the wheel brakes. After adjustment, the stroke of the brake chamber push rod should be around 20mm. The stroke of the push rods in the two brake chambers of the rear wheel should be consistent to ensure that the left and right rear wheels brake simultaneously. The gap between the adjusted brake shoe friction plate and the inner surface of the brake hub should be measured at a distance of 20-30mm near the cam end, and the gap should be approximately 0.4mm; Measure at a distance of 20-30mm near the end of the pin shaft, and the hole should be 0.2-0.6mm. After releasing the brake, the brake drum should be able to rotate freely and not bite. After adjustment, a road test is required to check the braking performance and whether the brake drum is hot.
During locomotive transportation operations, the trailer braking should be 0.3 to 0.8 seconds earlier than the primary vehicle braking. When the brake pedal is pressed to 4/5 of the total travel, the trailer brakes, and the primary vehicle brakes when further pressed. If the trailer brakes later than the preceding vehicle, it will cause the trailer to collide with the primary vehicle, making it difficult for the driver to operate; If the trailer brakes too early, it may lead to traction, which can lead to issues such as frame stretching and brake cup damage.
