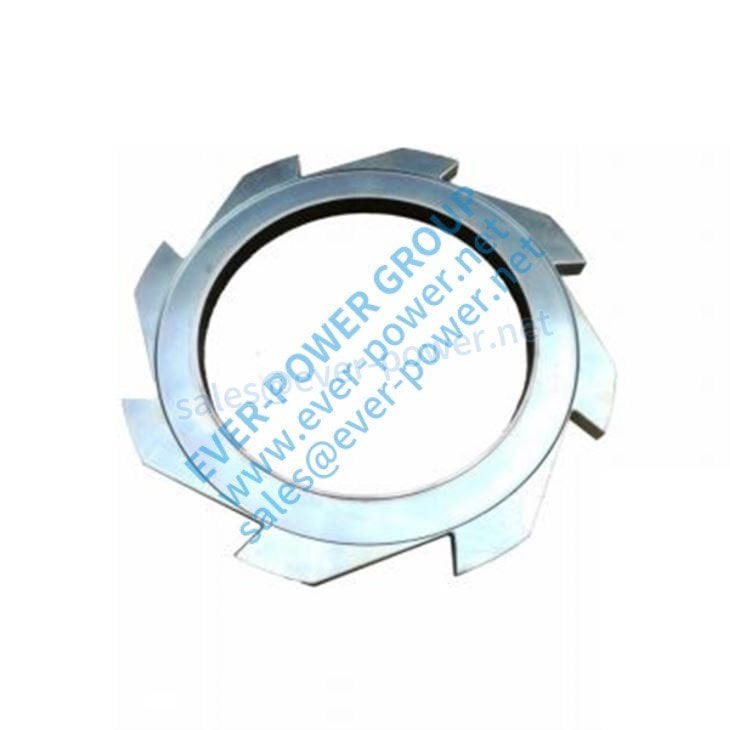

Escalator Ratchet Sprocket

Escalator Friction Sprocket

Category: Tag:

We are top 3 major supplier of sprockets for escalator in China. We produced already for Schindler elevator, Hitachi elevator , Thyssen krupp escalator and Toshiba elevator.

Total Outer Inner Tooth Number of
ID Height Diameter Diameter Width Teeth
Cust. Types
(H) (D) (0d) (W) (z)
mm
TK Left
TK-RW -001 左置 19 360 250.6 17.5 8
TK Right
TK-RW -002 右置 19 360 250.6 17.5 8
TK Half
TK-RW -003 分体 20 335 215 20 8
TK Middle
TK  RW   004 中置 30 335 225.6 24 8
TK Middle
TK-RW -005 中置 50 335 225.6 44 12
TK Right
TK-RW -006 右置 25 360 250.6 23.5 12
TK Left
TK-RW -007 左置 25 360 250.6 23.5 12
TK Right
TK-RW -008 右置 25 360 250.6 23.5 12
TK Middle
TK-RW -009 中置 50 300 225 50 20

Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

    pruduct quality report

    Materials Available

    1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
    2. Steel:C45(K1045), C46(K1046),C20
    3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
    4. Bronze: C51000, C52100, C54400, etc
    5. Iron: 1213, 12L14,1215
    6. Aluminum: Al6061, Al6063
    7.OEM according to your request
    product materials available

    Surface Treatment

    Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

    Processing Method

    CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
    product finishing

    QC & Certificate

    Technicians self-check in production,final-check before package by professional Quality inspector
    ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

    Package & Lead Time

    Size: Drawings
    Wooden Case/Container and pallet, or as per customized specifications.
    15-25days samples. 30-45days offcial order
    Port: Shanghai/Ningbo port
    product packages

    FAQ

    Q: Are you trading company or manufacturer ?
    A: Our group consists in 3 factories and 2 abroad sales corporations.

    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: How long is your delivery time ? What is your terms of payment ?
    A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

    Q: What is the exact MOQ or price for your product ?
    A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
