300 Series Inline Planetary Gear Reducer Replacement Bonfiglioli 300L1 300L2 300L3 300L4 300R2 300R3 300R4
The 300L series and 300R series planetary gear reducer can be interchangeable with the following models of Trasmital Bonfiglioli
300 Series Inline Planetary Gear Reducer Replacement Bonfiglioli 300L1 300L2 300L3 300L4 300R2 300R3 300R4
Replacement Bonfiglioli Models
303L3-HC | 305L2-HZ |
The 300L series and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Bonfiglioli
300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
Performance of 300 Series Inline Planetary Gear Reducer
Tipo | Torque Nm | |
300L | 300L1, 300L2, 300L3, 300L4 | 1000 |
301L | 301L1, 301L2, 301L3, 301L4 | 1750 |
303L | 303L1, 303L2, 303L3, 303L4 | 2500 |
305L | 305L1, 305L2, 305L3, 305L4 | 5000 |
306L | 306L1, 306L2, 306L3, 306L4 | 8500 |
307L | 307L1, 307L2, 307L3, 307L4 | 12500 |
309L | 309L1, 309L2, 309L3, 309L4 | 18000 |
310L | 310L1, 310L2, 310L3, 310L4 | 25000 |
311L | 311L1, 311L2, 311L3, 311L4 | 40000 |
313L | 313L1, 313L2, 313L3, 313L4 | 55000 |
315L | 315L1, 315L2, 315L3, 315L4 | 100000 |
316L | 316L1, 316L2, 316L3, 316L4 | 135000 |
317L | 317L1, 317L2, 317L3, 317L4 | 170000 |
318L | 318L1, 318L2, 318L3, 318L4 | 250000 |
319L | 319L1, 319L2, 319L3, 319L4 | 350000 |
321L | 321L 1, 321L2, 321L3, 321L4 | 500000 |
300L series inline planetary gear reducer is the best gearbox solution for all high torque applications requiring minimum size, such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution is much better than the ordinary gearbox in terms of space occupation and weight. The transmission has high performance, low cost and compact size, excellent reliability, simple installation and reduced maintenance. Nb300l series planetary gear boxes are available in a variety of sizes to ensure optimal duration and quiet operation in a variety of applications.
The 300l series inline planetary gear reducer also offers a high-power version that links the performance of our planetary technology to the high quality and reliability of the gearbox: compared with traditional gear units, this solution is more efficient, quieter, more compact and more cost-effective.
Product Benefits of 300 Series Inline Planetary Gear Reducer
1. Compact design, high torque density
2. Low backlash, high torsional stiffness
3. Low moment of inertia, high dynamics
4. High efficiency, low noise
5. Excellent cost-performance rate
6. Easy motor mounting with clamping connection
7. Maintenance free. universal mounting
Applications of 300 Series Inline Planetary Gear Reducer
1. Roller presses
2. Slewing gear drives
3. Bucket wheel drives
4. Apron conveyor drives
5. Agitator drives
6. Travelling gear drives
7. Rotary kiln drives
8 Central drives for tube mills
Other Types of Planetary Gearboxes
Gear Speed Reducer for Tracked Vehicle | Gear Speed Reducer for Winch | Planetary Gear Reducer for Wheeled Vehicle |
Planetary Slewing Drive | Gear Speed Reducer for Wind Turbines | Inline Planetary Gear Reducer |
Right Angle Gear Drives | Power Wheel Planetary Gear Drive | Feed Mixer Drive |
About our company
Main products: Take gear reducer and gearbox products as the leading products, and expand to electrical equipment, mixing equipment, precision transmission equipment, environmental protection equipment and other large mechanical equipment
R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, aswell as solar tracking reducer

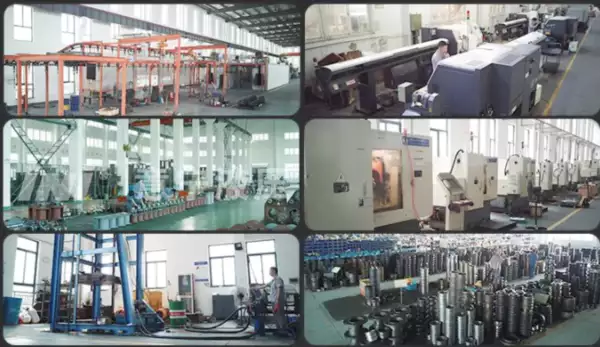

Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally500 personnel, and advanced equipments & machines
Additional information
Edited | Miya |
---|
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
