ZL03 Planetary Gearbox Reducer

Overview

ZL03 Planetary Gearbox Reducer is a type of gearbox that uses a planetary gear system to provide speed reduction and torque multiplication. It is widely used in various industrial applications due to its high efficiency, compact size, and low noise operation. The gearbox consists of a sun gear, planet gears, and a ring gear, which work together to transmit power from the input shaft to the output shaft.

Function

The gearbox is designed to reduce the rotational speed of the input shaft while increasing the torque output. This makes it ideal for use in applications that require high torque, such as industrial machinery, construction equipment, and mining equipment.

Features

Our planetary gearbox design features high precision transmission, rugged durability, compact structure, and low noise operation.

- High Precision Transmission: The planetary gear system provides highly accurate speed reduction and torque multiplication, ensuring smooth and reliable operation.
- Rugged Durability: Our gearbox is built to withstand harsh operating conditions, with high-quality materials and robust construction.
- Compact Structure: The compact and lightweight design allows for easy installation in confined spaces.
- Low Noise Operation: The use of high-quality materials and precision manufacturing processes ensures that our gearbox operates quietly and efficiently.

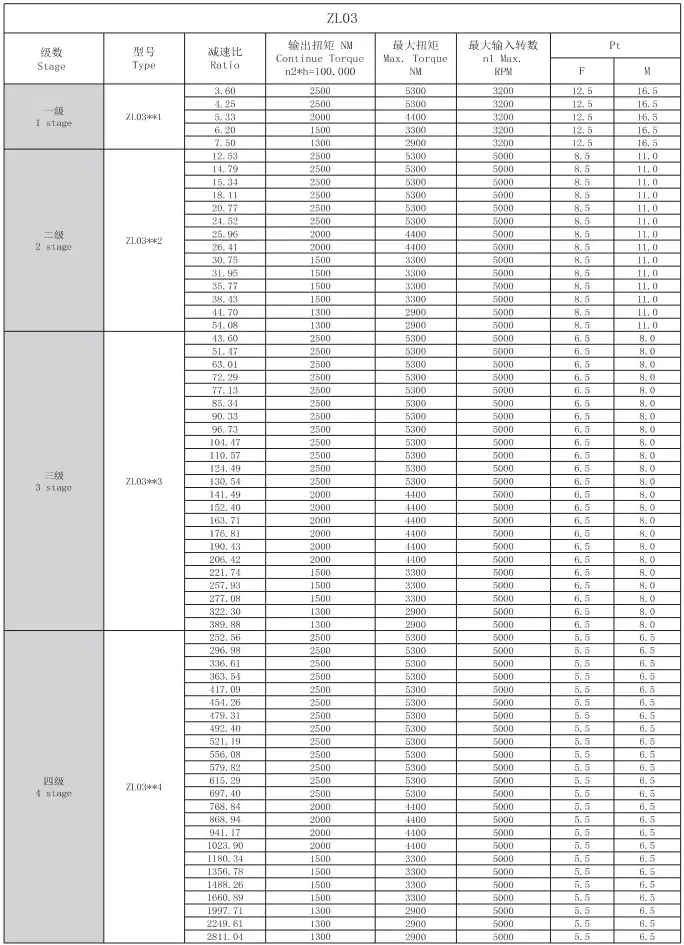

Technical Parameters

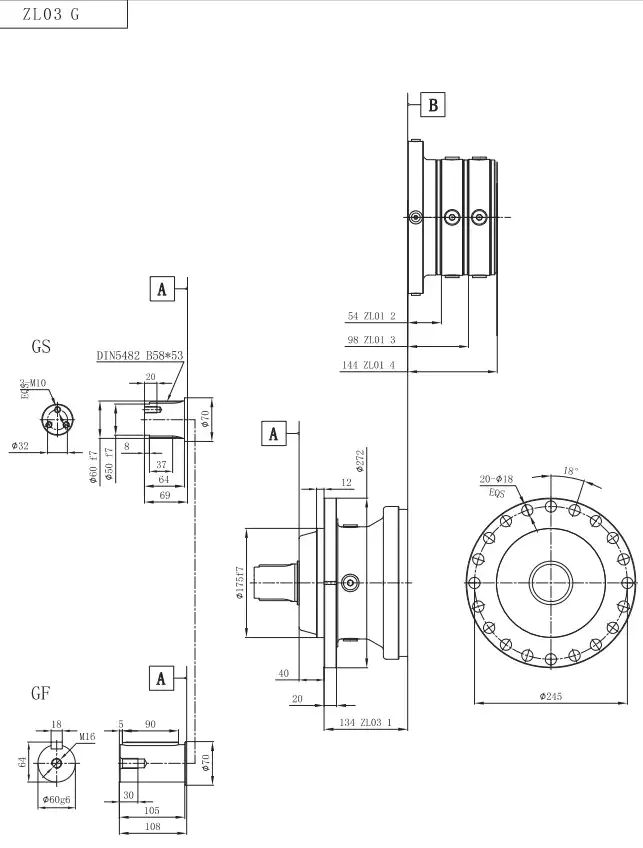

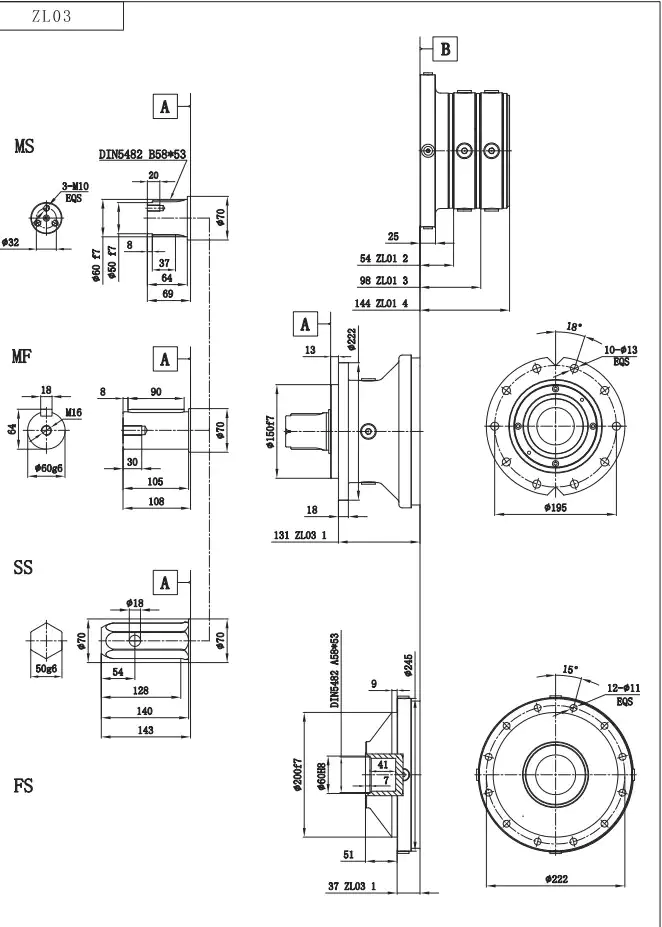

Specifications and Dimensions

Performance Advantages

Our ZL03 Planetary Gearbox Reducer offers high efficiency, long service life, and high reliability.

- High Efficiency: The planetary gear system provides high transmission efficiency, reducing power loss and increasing overall efficiency.
- Long Service Life: Our gearbox is designed for durability and reliable performance, ensuring a long service life with minimal maintenance.
- High Reliability: The use of high-quality materials and precision manufacturing processes ensures that our gearbox operates reliably even in harsh environments.

Applications

Our ZL03 Planetary Gearbox Reducer is widely used in various industrial applications, including:

- Construction Industry: Excavators, cranes, and other heavy machinery
- Crushing Equipment: Crushers, grinders, and other crushing equipment
- Environmental Industry: Fans, pumps, and other environmental equipment
- Mining Industry: Mining machinery, conveyor systems, and other mining equipment
- Port Equipment: Cranes, loaders, and other port equipment
- Communication Industry: Antenna positioning systems, satellite tracking systems, and other communication equipment
- Papermaking Industry: Papermaking machinery and equipment
- Power Equipment: Generators, turbines, and other power equipment
- Amusement Equipment: Rides, attractions, and other amusement equipment
- Chemical Mixing: Mixing equipment for chemical processes
- Marine Industry: Marine propulsion systems, steering systems, and other marine equipment
- Metal Products: Metal cutting machines, extruders, and other metalworking equipment

Ordering Information

To order our planetary gearbox, please provide the following information:

- Application Requirements and Operating Environment: Describe the specific application and operating environment, including any special requirements or constraints.
- Basic Parameters: Provide basic parameters such as the gear ratio, input speed, output speed, rated torque, and power requirements.
- Installation and Connection: Specify the installation and connection requirements, including the mounting method and connection type.
- Space Requirements: Describe the specific space requirements for the gearbox installation.
- Surface Treatment: Specify any surface treatment requirements, such as coating or plating.
- Other Requirements: Specify any additional requirements, such as noise and vibration limits, lubrication requirements, and protection ratings.

Shipping Information

Our gearbox is shipped without lubricating oil and is coated with rust-proof paint. If you require any special coating or painting, please let us know in advance. If the gearbox will be stored for an extended period of time, it should be coated with grease. The gearbox is packed in a wooden case to protect it during shipping.

Author: Miya
