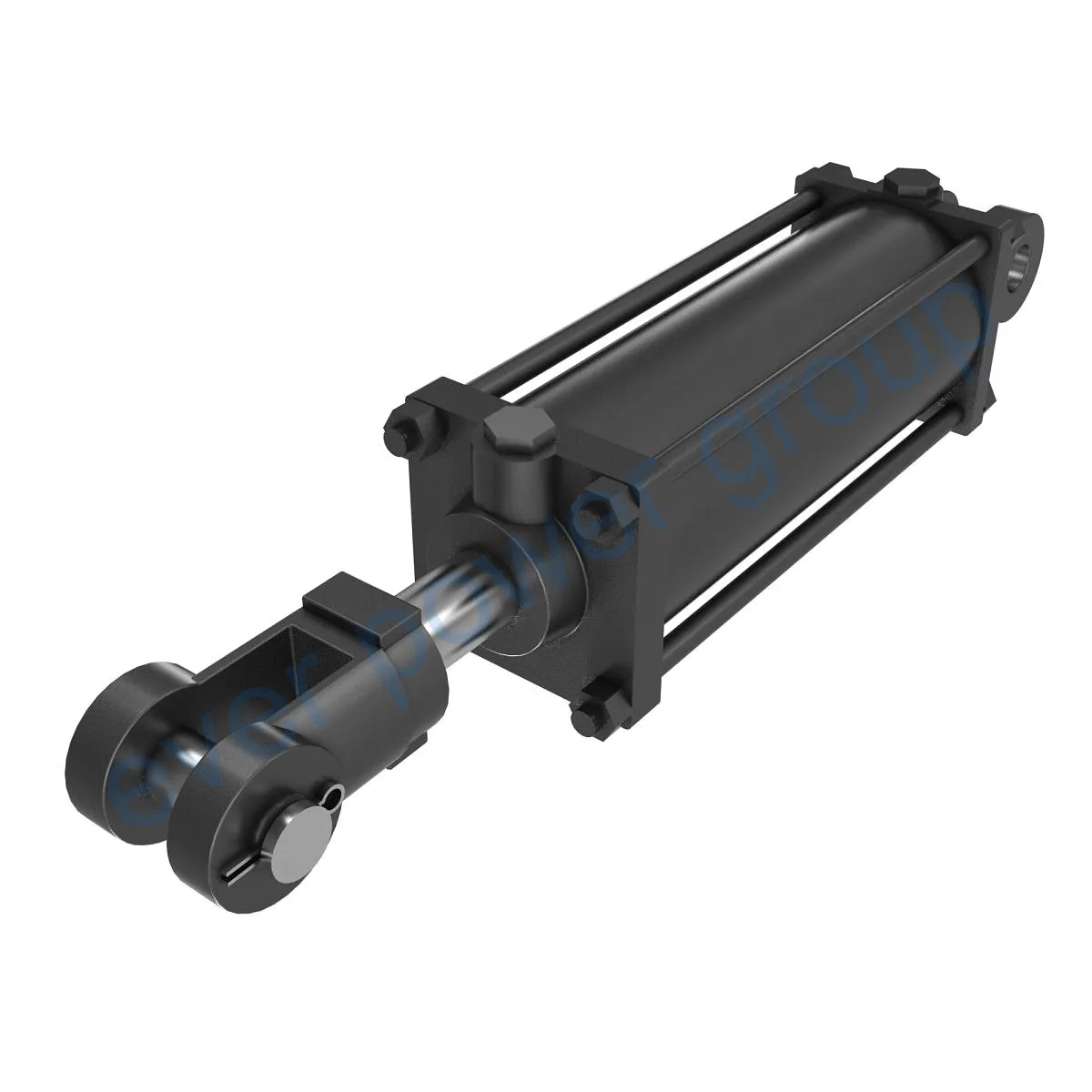

Replacement Of AW32224 Axle Lift Hydraulic Cylinder

Replacement Of AW32224 Axle Lift Hydraulic Cylinder is a hydraulic cylinder that is designed to replace the original AW32224 Axle Lift Hydraulic Cylinder. The hydraulic cylinder is an essential component of the hydraulic system that is used in various applications such as construction equipment, manufacturing, transportation, and aviation. This hydraulic cylinder is specifically designed for use in CX20, FC20M, FC20R, HX20, M20, and R20 models.

Specifications and Models

The Replacement Of AW32224 Axle Lift Hydraulic Cylinder has the following specifications:

• Weight: 32.96 lb
• Height: 4.5 in
• Width: 4.8 in
• Length: 22.5 in
• Volume: 3.302 gal

This hydraulic cylinder is compatible with the following models:

• CX20
• FC20M
• FC20R
• HX20
• M20
• R20

Design Considerations and Selection Standards

Load Bearing Capacity

The Replacement Of AW32224 Axle Lift Hydraulic Cylinder is designed to handle heavy loads. It has a high load bearing capacity that allows it to lift and support heavy objects with ease.

Sealing

The hydraulic cylinder is equipped with various seals, including piston seals and rod seals, which are made of wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and thread end surfaces are finely treated to improve wear resistance. Regular lubrication is required to ensure proper sealing and prevent leaks.

Durability

The hydraulic cylinder is made of high-quality materials that are durable and resistant to wear and tear. It is designed to withstand harsh working conditions and can provide reliable performance for a long time.

Safety

The Replacement Of AW32224 Axle Lift Hydraulic Cylinder is designed with safety in mind. It is equipped with various safety features such as overload protection, emergency stop, and safety locks to ensure safe and reliable operation.

Maintenance

The hydraulic cylinder requires regular maintenance to ensure optimal performance. This includes checking the seals, lubrication, and calibration. Regular maintenance can prevent breakdowns and prolong the life of the hydraulic cylinder.

Installation Guide

To install the Replacement Of AW32224 Axle Lift Hydraulic Cylinder, follow the steps below:

1. Align the hydraulic cylinder with the mounting bracket.
2. Use the appropriate installation bracket to secure the cylinder in place.
3. Connect the hydraulic hoses to the cylinder.
4. Check for leaks and make sure all connections are tight.

Features

The Replacement Of AW32224 Axle Lift Hydraulic Cylinder has the following features:

• High load bearing capacity
• Durable and wear-resistant materials
• Equipped with various safety features
• Easy to install and maintain
• Compatible with various models

We are a leading manufacturer and wholesaler of hydraulic cylinders. Our company offers a wide range of hydraulic cylinders that are designed to meet the needs of various industries. We pride ourselves on our professionalism, international certifications, customized services, state-of-the-art production equipment, and excellent after-sales service.

Applications

The Replacement Of AW32224 Axle Lift Hydraulic Cylinder is used in various applications such as:

• Construction equipment - typically used for cranes, hoists, and elevators that require a secure and stable way to fix heavy objects in place.
• Manufacturing - used in pressure machines where materials are shaped under high pressure, requiring a secure way to fix materials in place during the processing.
• Transportation - used in stabilizers and jacks of vehicles to ensure safety during maintenance or transportation.
• Aviation - used in landing gear systems to fix the landing gear in the proper position during takeoff and landing.

Maintenance and Troubleshooting

Maintenance

The Replacement Of AW32224 Axle Lift Hydraulic Cylinder requires regular maintenance to ensure optimal performance. The following maintenance tasks should be performed:

1. Regularly check the seals for wear and tear.
2. Regularly lubricate the hydraulic cylinder to ensure proper functioning.
3. Replace any damaged or worn-out seals.
4. Calibrate the hydraulic cylinder as needed.

Troubleshooting

The following are common problems that may occur with the Replacement Of AW32224 Axle Lift Hydraulic Cylinder:

• Leaking seals
• Difficulty lifting heavy loads
• Slow or insufficient movement
• Unusual noises

If you encounter any of these issues, please refer to the manufacturer's instructions for troubleshooting and problem solving.
