Motor Reducer Spiral bevel gearbox

Motor Reducer Spiral bevel Type

The Spiral cone of our company's reducer spiral cone is a new type of gear motor, which is similar to the straight cone of our motor reducer spiral cone. However, there are differences. The tooth shape on the conical surface of the spiral bevel gear motor is not a straight line but a spiral curve. It is this helical shape that allows it to mesh slowly during withdrawal with a high rate of overlap. The carrying capacity is also great.

The main drive gear of the spiral bevel gear motor adopts Gleason hypoid gear, with a hard tooth surface, large bearing capacity, low noise, long service life, and high efficiency. The input shaft is orthogonal to the output shaft, including a casing, an input shaft, and an output shaft, and the intermediate transmission shaft is provided with the main transmission driven bevel gear and a secondary transmission active bevel gear. In the intermediate transmission shaft, a passive transmission spiral bevel gear meshes with the primary transmission passive spiral bevel gear on the input shaft, and the secondary transmission active spiral bevel gear meshes with the secondary transmission passive spiral bevel gear. The structure is simple and compact, and the transmission efficiency is high. The transmission torque is large, the noise is low, the comprehensive performance is good, and the operation is relatively stable. It is driven by a horizontal motor and is driven to the gear part through a set of V-belts. The variable speed output can be directly connected with the vertical motor and the spiral cone of the motor reducer. slow down the output. Its structure has great advantages and is the first choice for driving agitator machinery.

Features of the machine:

1. The gears are made of high-strength low-carbon alloy steel by carburizing and quenching. Tooth surface hardness up to HRC58-62. The gears all adopt CNC grinding technology, with high precision and good contact.

2. High transmission rate: single-level greater than 96.5%, double-level greater than 93%, three-level greater than90%.

3. Smooth operation and low noise. 4. Small size, lightweight, long service life, and high bearing capacity. 5. Easy to disassemble and install

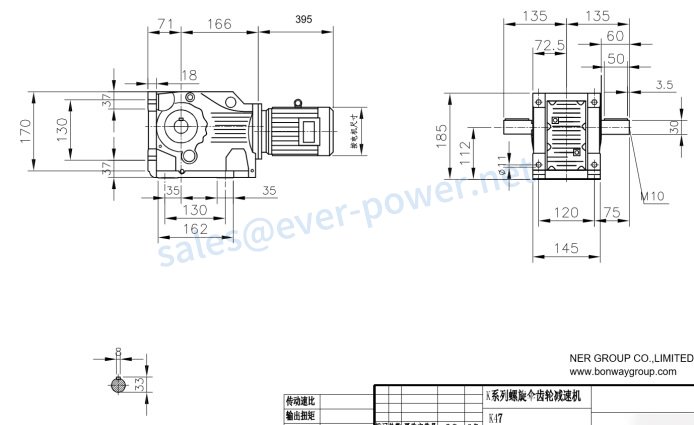

Product Data

Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the broadest range of standard and custom applications for motion control and mechanical transmission applications. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). In addition, we provide customers with a one-year warranty and lifetime after-sales service. All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory.

3. All-round professional technical support

Don't worry if you don't know how to choose the correct transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

We can provide custom service according to your requirements if you need a custom gearbox for a unique application. We will provide reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and the necessary dimensions you want. The more information you provide, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers quickly, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a specific size urgently and we do not have it in stock, we can arrange priority production, especially for you.

6. Professional

As one of the leading bevel gearbox manufacturers, mechanical product suppliers, and factories, we supply angular contact worm gearbox, planetary gearbox, and many other products.
