ZL16 Planetary Gearbox Reducer

The ZL16 Planetary Gearbox Reducer is a type of gearbox that utilizes a planetary gear mechanism to achieve speed reduction and torque multiplication. It is commonly used in various industrial applications where precise and efficient power transmission is required.

Definition

The ZL16 Planetary Gearbox Reducer is a mechanical device that consists of multiple gears arranged in a planetary configuration. It is designed to transmit power from an input shaft to an output shaft while reducing the rotational speed and increasing the torque.

Function

The primary function of the ZL16 Planetary Gearbox Reducer is to provide speed reduction and torque multiplication in mechanical systems. It allows for efficient power transfer between different components, enabling smooth and reliable operation.

Features

• High Precision Transmission: The ZL16 Planetary Gearbox Reducer offers precise and accurate power transmission, ensuring consistent performance.
• Durability and Robustness: Built to withstand demanding conditions, the gearbox is made from high-quality materials to ensure longevity and reliability.
• Compact Structure: The compact design of the ZL16 Planetary Gearbox Reducer allows for easy installation and integration into various systems.
• Low Noise Operation: With its advanced design and high-quality components, the gearbox operates with minimal noise, providing a quiet working environment.

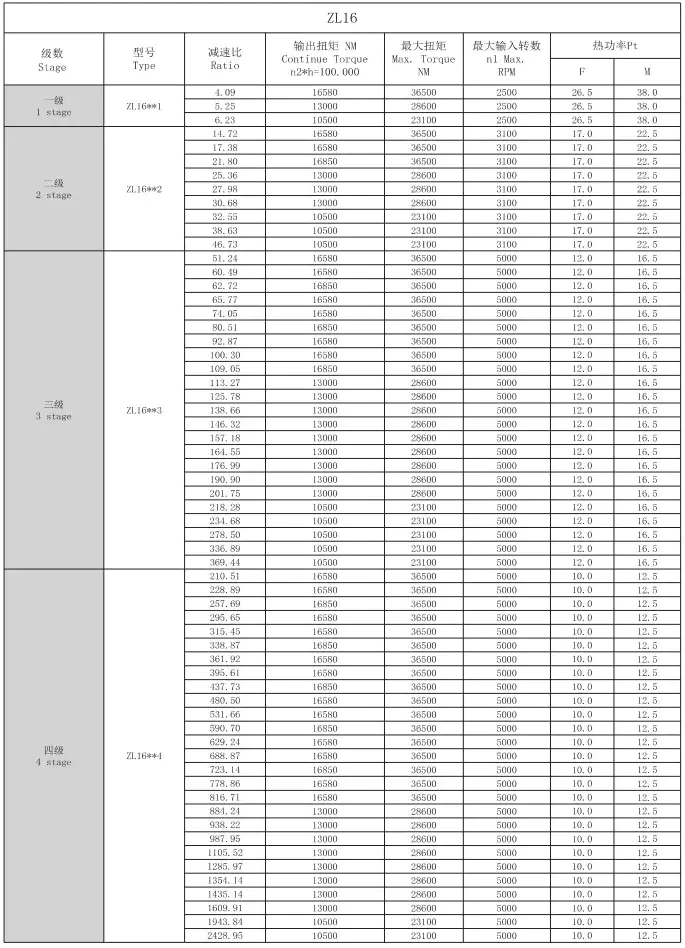

Technical Specifications

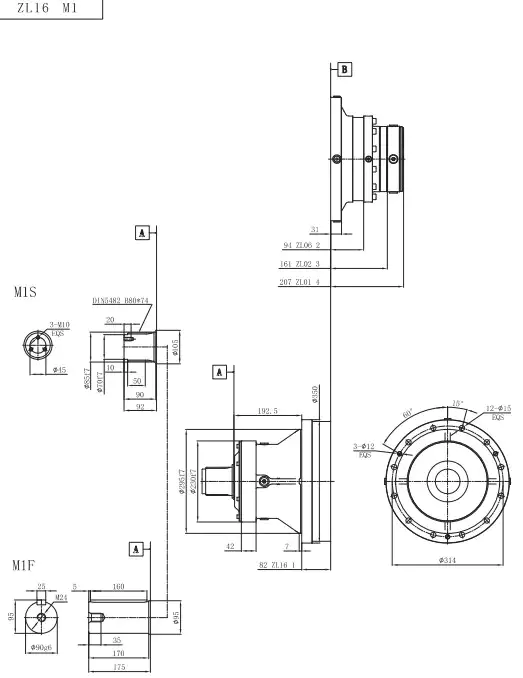

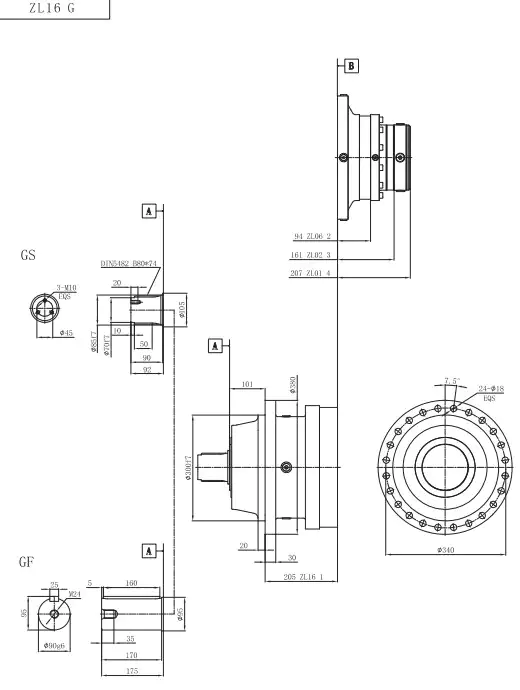

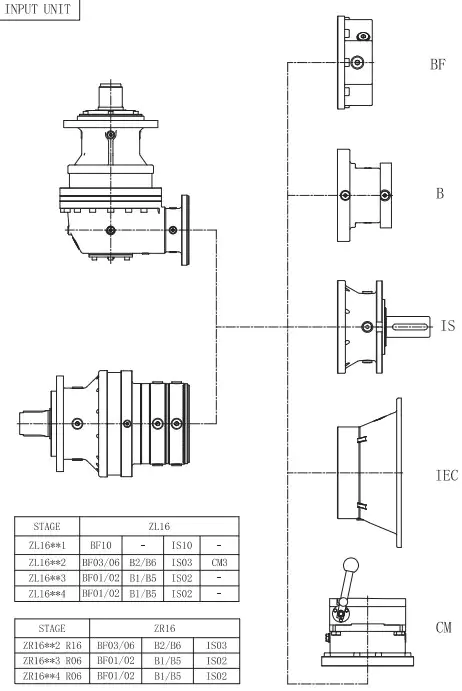

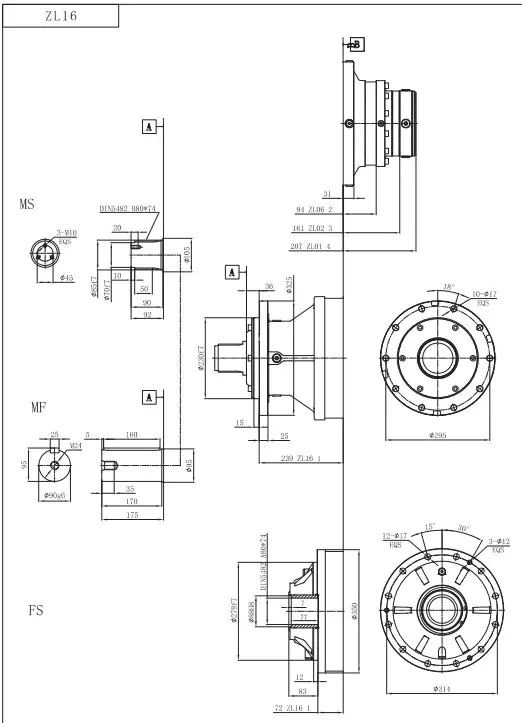

Dimensions

Performance Advantages

• High Efficiency and Energy Savings: The ZL16 Planetary Gearbox Reducer is designed to minimize power loss, resulting in high efficiency and energy savings.
• Long Lifespan: With its durable construction and precision engineering, the gearbox offers a long lifespan, reducing the need for frequent replacements.
• High Reliability: The ZL16 Planetary Gearbox Reducer ensures reliable performance even under demanding operating conditions, providing peace of mind and uninterrupted operation.

Applications

The ZL16 Planetary Gearbox Reducer finds its applications in various industries, including:

• Construction Industry
• Crushing Equipment
• Environmental Protection Industry
• Mining Industry
• Port Equipment
• Communications Industry
• Paper Industry
• Power Equipment
• Amusement Equipment
• Chemical Mixing
• Marine Vessels
• Metal Products

Ordering Process

To place an order for the ZL16 Planetary Gearbox Reducer, please follow these steps:

1. Provide application requirements and operating environment details.
2. Specify basic parameters such as ratio, input speed, output speed, rated torque, power, etc.
3. Select the installation and connection method.
4. Provide specific dimensions of the installation space.
5. Specify surface treatment and other requirements such as protection level, lubrication method, vibration and noise limitations, etc.

Supply Information

When ordering the gearbox, please note the following supply information:

• The gearbox is shipped without lubricating oil.
• The surface is treated with rust-proof paint. If you require additional special coating, please inform us in advance.
• For long-term storage, please apply grease to prevent corrosion.
• The gearbox is packaged in wooden crates for safe transportation.

Author: Miya
