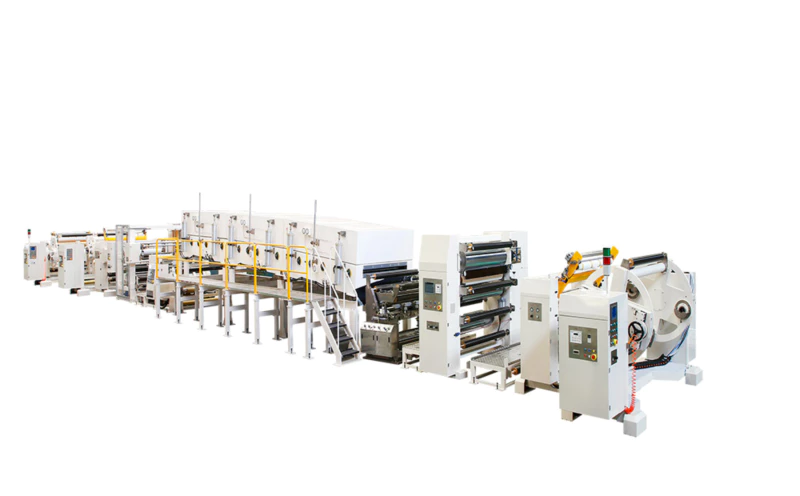

Window Film Coating Machine For Sale

A Window Film Coating Machine is a specialized equipment used for applying window films onto glass surfaces. Window films are thin, transparent or semi-transparent films that are applied to windows for various purposes such as solar control, privacy, security, or decorative enhancements.

Main?Parameters

The Window Film Coating Machine operates based on the following principles:

1. Unwinding: The machine starts by unwinding the roll of window film, which is typically held on a spool or mandrel. The film is pulled through the machine using motorized rollers or similar mechanisms.

2. Coating Application: The window film passes through a coating system where the adhesive or coating material is applied. The coating system usually consists of a coating head or applicator that evenly spreads the adhesive or coating onto the film surface. The specific method of coating application can vary depending on the type of window film and the desired properties. It can involve techniques such as roll coating, spray coating, or curtain coating.

3. Drying/Curing: After the adhesive or coating is applied, the window film may undergo a drying or curing process to remove solvents, activate the adhesive, or allow the coating to set or cure. The drying or curing system can utilize various methods such as hot air, infrared radiation, or UV curing, depending on the specific requirements of the window film and the applied material.

4. Tension Control: Throughout the coating process, the machine incorporates tension control mechanisms to maintain the appropriate tension of the window film. This helps ensure uniform coating thickness and prevents wrinkles or stretching of the film during application.

5. Winding: Once the window film is coated and dried/cured, it is collected onto a roll or reel using a winding system. The coated film is wound tightly and evenly onto the roll, ready for further processing, packaging, or distribution.

6. Control System: The machine has a control panel that allows operators to set and adjust various parameters such as coating thickness, line speed, drying/curing temperature, and tension control. The control system ensures precise and consistent application of the window film coating.

By following these principles, the Window Film Coating Machine enables efficient and accurate application of window films onto glass surfaces, resulting in high-quality finished products with desired optical properties, adhesion, and durability.

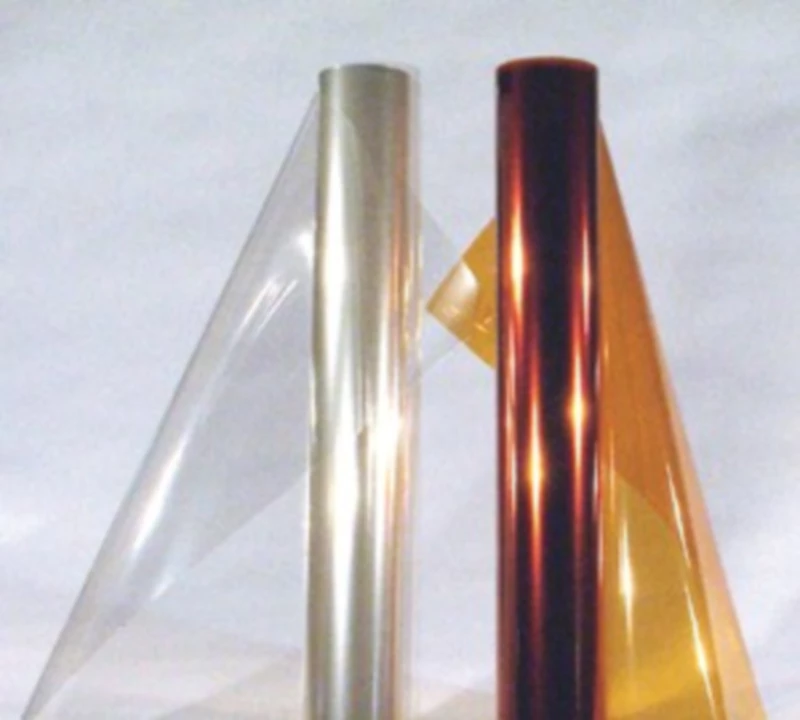

Application

The Release Film Coating Machine enables precise and consistent application of release films, ensuring the desired release properties and temporary surface protection. It helps to improve production efficiency, reduce waste, and enhance the quality of the end products.

It can be used in many fields: adhesive products, medical/sanitary material, reflective material, waterproof materials, packaging and printing, and cross-cut processing.

?? Protection film, Diffusion film, Reflective film, Release film, Brightness enhancement film,3D film, AG Dizzy-resisting film, Laser film, Silver Nano-Wire electric conduction film, TAC/PVA film, OCA film, etc.
?? Window film, Construction decorative film, IMD/IML film, Paint Protection Film
?? FPCB,CCL(Copper clad laminate)
?? Solar film, Lithium battery film, Battery insulating film
?? Electronic /Electrical functional adhesive tape
?? Photo paper,Painting material ??Carbon tape (Ink ribbon)

Technical ?Feature

?? High efficient drier,with dismountable air nozzle for easy cleaning.

?? The coating unit and exposed components are nickel-coated; Transmission parts are enclosed to ensure safety.
?? Closed loop tension control; Human Machine Interface for printing monitoring.
?? Centralized control,distributed l/0 cables,bus connection, easy maintenance.
?? Hot air and exhaust are controlled by frequency motor;Air pressure and pressure differences for drier are realtime monitored;Alarm if drier concentration exceeds the limit;Alarm if exhaust flow is below the minimum limit.
?? Intelligent control for drier temperature;Electrical overheating isolation protection;Natural gas heating,energy saving.
?? Intelligent equipment and coating factory intelligence.

Coating?Methods

Rewind?/Unwind?Units

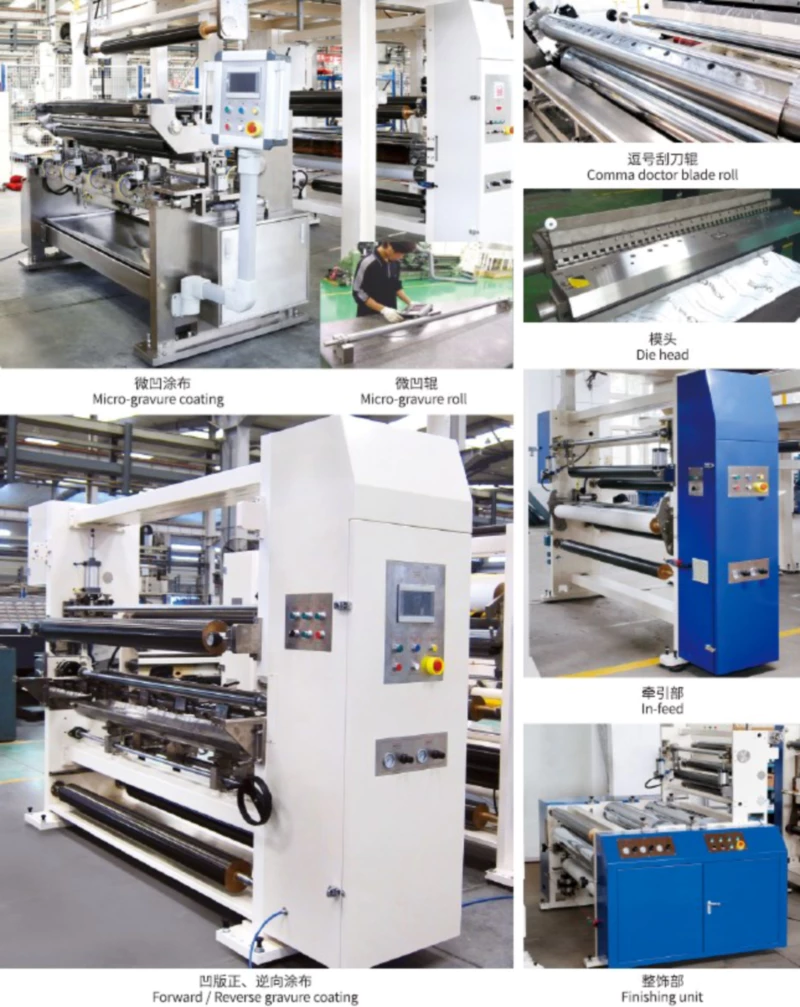

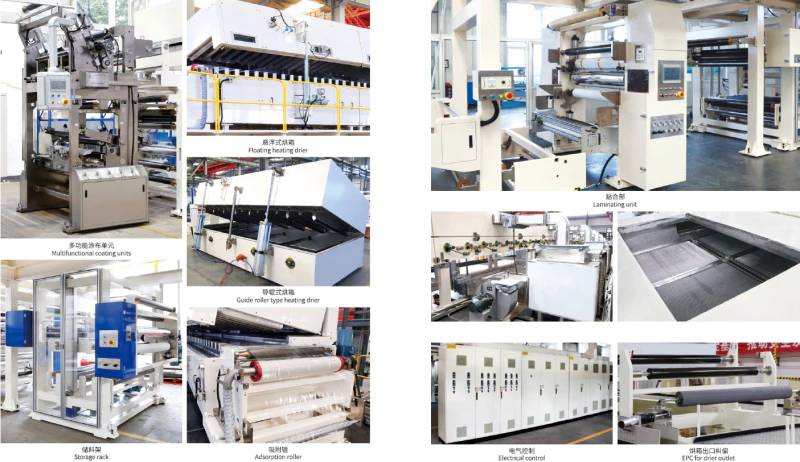

Other?Parts

EVER-POWER company has a core technology group including vector frequency conversion tension control technology, servo drive tension control technology, shaftless transmission control technology, solvent residue control technology, efficient drying and drying technology, suspension oven drying technology, precision coating technology such as comma, micro concave, narrow gap, gap, precision coating composite technology, computer integrated control technology, and precision mechanical manufacturing technology. The company has 202 national patents and 35 registered computer software copyrights. The company has developed into a manufacturer and technical service provider of five series of high-end equipment, including precision coating equipment, new energy and new materials equipment, decorative materials equipment, satellite flexographic printing equipment, aerospace and military products, and intelligent equipment manufacturing.
EVER-POWER company has fully passed ISO9001 international quality system certification, GJB9001B national military standard quality system certification, and EU CE safety certification in 2001, and has established a comprehensive after-sales service system.

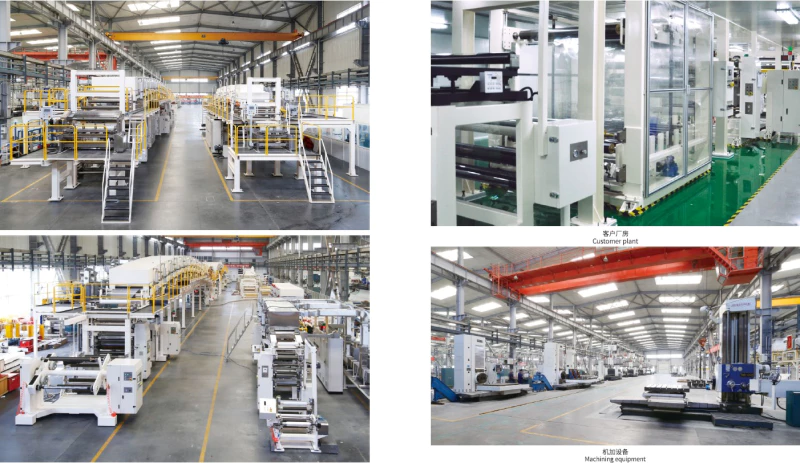

Assembly?Plant

EVER-POWER Company is based on transforming and applying aerospace optoelectromechanical technology, relying on precision machining and manufacturing capabilities. It is committed to the research and development of printing and packaging equipment, precision coating equipment, and special electromechanical equipment. Its main products include printing equipment, precision coating equipment, new energy and new material production lines, water treatment film material complete production lines, decorative material complete production lines, intelligent production lines, and precision machining business.
EVER-POWER has a core technology group including tension system coupling modeling and decoupling control technology, equipment intelligent control technology, precision coating composite technology, high-speed and high-definition printing technology, coating curing and solvent residue control technology, and multi-material adaptive winding technology. We have obtained more than 239 national patents, more than 10 national high-tech achievement awards, won the National Science and Technology Progress Award, and been approved as one of the first batch of national key "specialized, refined, unique, and new" little giants. EVER-POWER has passed ISO9001:2015 international quality system certification, SGS certification, and EU CE safety certification and has a complete after-sales service system.
