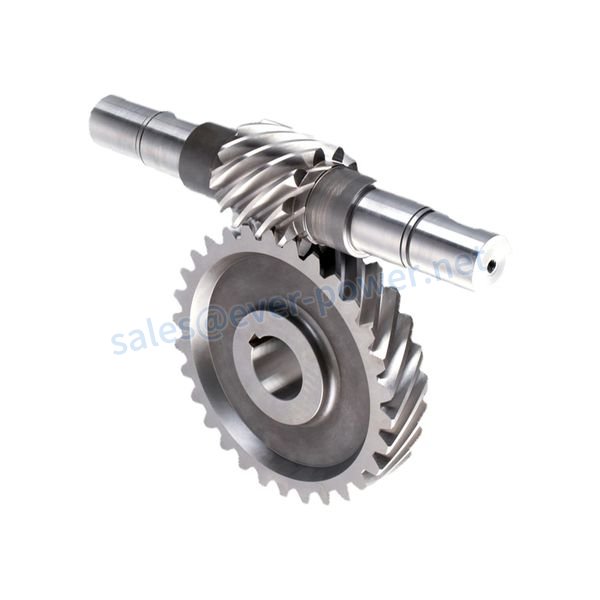

Stainless Steel Worm Gear for CNC Machinery

1. Produce strictly following ANSI or DIN standard dimension
2. Material: 1045 Carbon Steel
3. Bore: Finished bore
4. Module: 1~3

Category:

Description

Main Features:
1. Produce strictly following ANSI or DIN standard dimension
2. Material: 1045 Carbon Steel
3. Bore: Finished bore
4. Module: 1~3

Product Parameters

Product name Worm Gear and Worm Wheel
Materials Available Stainless Steel, Carbon Steel, Brass,  Bronze, Iron, Aluminum Alloy,Copper,Plastic,Nylon,PA66,MC,PEER,MSM,POM,Derlin etc
Heat Treatment Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding......
Surface Treatment Carburizing and Quenching, Tempering, Tooth surface high quenching Hardening, Tempering
BORE Finished bore, Pilot Bore, Special request
Processing Method Molding, Shaving, Hobbing, Drilling, Tapping, Reaming, Manual Chamfering, Grinding, etc
Pressure Angle 20 Degree
Hardness 55- 60HRC
Size Customer Drawings & ISO standard
Package Wooden Case/Container and pallet, or made-to-order
Certificate ISO9001:2008
Applications Electric machinery, metallurgical machinery, environmental protection machinery, electronic and electrical appliances, road construction machinery, chemical machinery, food machinery, light industrial machinery, mining machinery, transportation machinery, construction machinery, building materials machinery, cement machinery, rubber machinery, water conservancy machinery and petroleum machinery
Machining Process Material preparation, normalizing, rough turning, quenching and tempering, semi-fine turning outer circle, rough turning spiral surface, fine turning (fine grinding) inner hole end face, keyway, semi-fine turning spiral surface, pliers (rest incomplete teeth), semi-fine grinding outer circle, semi-fine grinding spiral surface, grinding center hole, delicate grinding outer ring, fine scratching helical surface, finished product inspection.
Advantages 1. Produce strictly following ANSI or DIN standard dimension
2. Material: SCM 415 steel
3. Bore: Finished bore
4. Precision grade: DIN 5 to DIN 7
5. Surface treatment: Carburizing and Quenching
6. Module: From 1 to 4
7. Tooth: From Z15 to Z70

Specification:

Number Number of Teeth Shaft Bore Dia. AH7 (1mm Increment) Twisting Direction B C D E F G
Type Module Straight Bore Straight Bore+Tap Keyway+Tap
Straight Bore

Straight Bore+Tap

Keyway+Tap

1.0 20 6 8 L(Left)

R(Right)

17 20 22 8 10 18
22~ 28 8 8~13 18~20 22~28 24~30
30~48 10 10~17 25~30 30~48 32~50
50~70 12 12~17 35~40 50~70 52~72
80~100 15 15~30 50 80~100 82~102
1.5 20~26 12 12~17 24~32 30~39 33~42 12 12 24
28~44 15 15~30 36~50 42~67.5 45~70.5
45~52 18 18~40 50~60 72~78 75~81
60~100 20 20-50 60~70 90~150 93·153
2.0 15~18 12 12~17 24~30 30~36 34~40 16 13 29
20~28 15 15·22 32~45 40~56 44~60
30~36 18 18~40 50 60~72 64~76
40~48 20 20~44 60 80~96 84~100
50~100 25 25~60 60~100 100~200 104~204
2.5 15~18 15 15~30 30~38 37.5~45 42.5~50 20 14 34
20~24 18 18~40 40~48 50~60 55~65
25~36 20 20~50 50~70 62.5~90 67.5~95
40~60 25 25~70 70~80 90~150 95~155
3.0 15~18 18 18~22 36~40 45~54 51~60 25 16 4

Machining Process

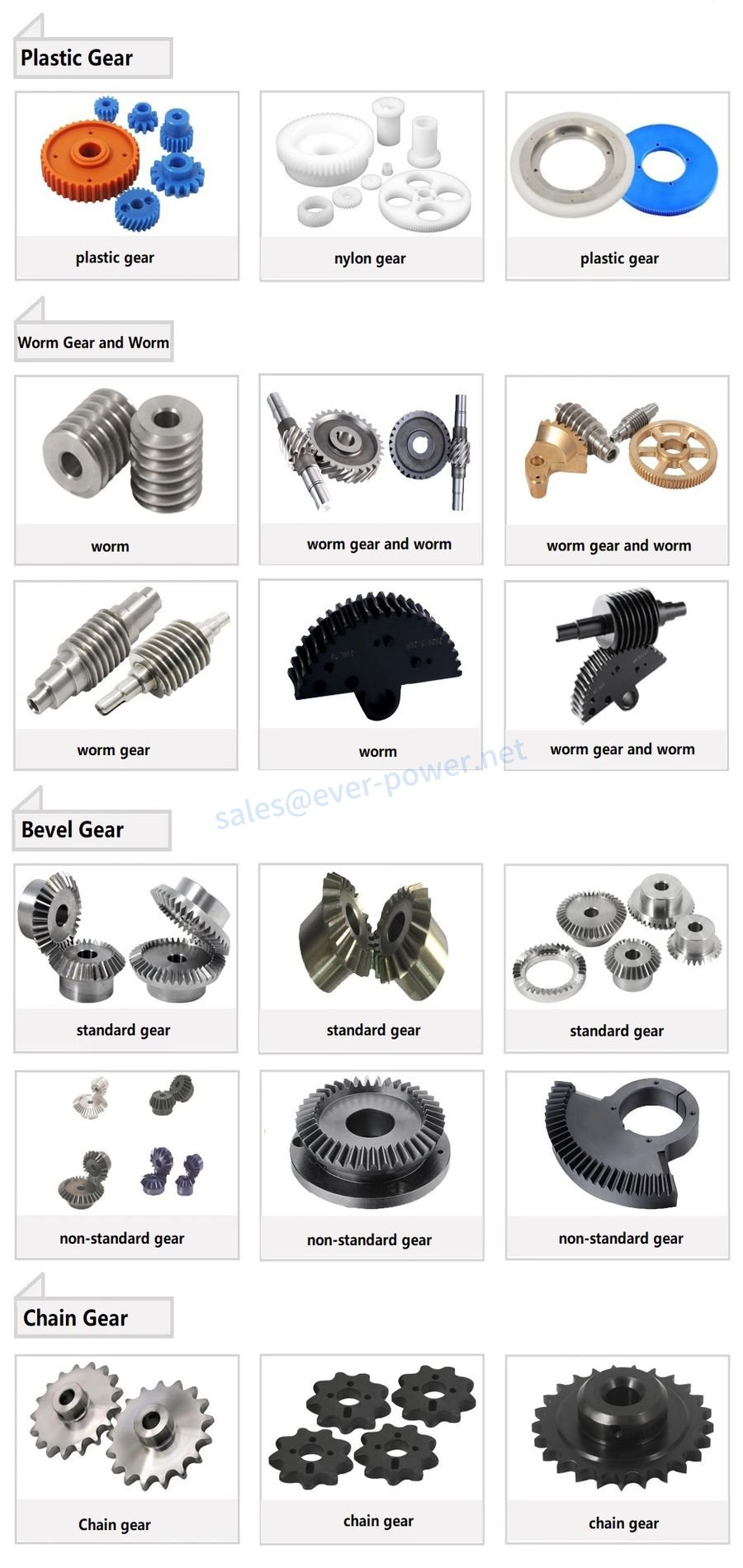

Related Products

EVER-POWER Machinery Co., Ltd, established in 2009, is a professional manufacturer engaged in the development, production, sales, and service of timing pulley, precise spur gears, helical gears, bevel gear, worm& worm gear, and so on. We are located in Hangzhou with convenient transposition excite. EVER-POWER Machinery is dedicated to strict quality control and thoughtful customer service. Our experienced staffs are always available to discuss your requirements and fulfill your satisfaction. Welcome to contact us for wholesale assistance.

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

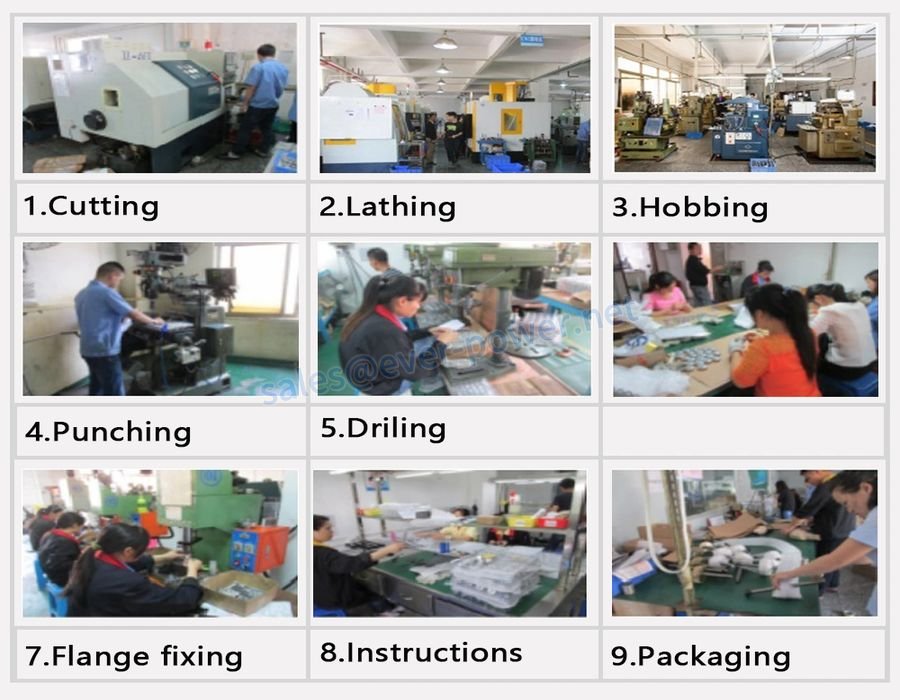

pruduct quality report
