Stainless Steel Motor For Rigorous Washdown Applications
Features of Stainless Steel Motor
- Single cable for power supply and feedback… Easier to clean
- No external hardware… Smooth, easier to clean
- 316L stainless steel. Easy to clean and highly corrosion resistant
- Ventilation motor option (passive)… Reduces condensation and extends service life
- A full range of 19 motor sizes are available – best for your machine
- Ip69k 1450 psi flushing seal standard
- Laser annealed nameplate…… no pathogens
- The puddle has no flat surface
- Designed according to EHEDG and 3a standards
Stainless Steel Motor For Rigorous Washdown Applications
The new series from China can withstand the most stringent flushing scheme. The combination of the ip69 structure of ever-power and corrosion-resistant materials enables the servo motor to extend the machine's service life.
Ever-power enables fast cleaning. Ever-power is specially designed for CIP (local cleaning) without a cover plate, which can maximize your uptime and profit. The Ever-power series is available in 19 sizes and various standard configurations, which will open the door to replacing expensive air shafts or dirty hydraulic shafts with clean and high-performance servo motor solutions.
Features of Stainless Steel Motor
- Single cable for power supply and feedback... Easier to clean
- No external hardware... Smooth, easier to clean
- 316L stainless steel. Easy to clean and highly corrosion resistant
- Ventilation motor option (passive)... Reduces condensation and extends service life
- A full range of 19 motor sizes are available - best for your machine
- Ip69k 1450 psi flushing seal standard
- Laser annealed nameplate...... no pathogens
- The puddle has no flat surface
- Designed according to EHEDG and 3a standards

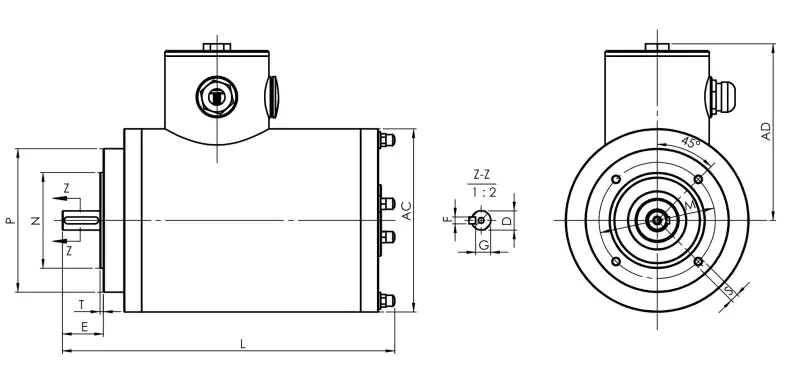

| Frame Type | Flange type | Poles | D | E | F | G | M | N | P | R | S | T | Flange Hole | Shaft Hole | AC | AD |
| 63 | FT75 | 2,4 | 11 | 23 | 4 | 8.5 | 75 | 60 | 90 | 0 | M5 | 2.5 | 4 | M4 | 114 | 117 |
| 71 | FT85 | 2.4.6 | 14 | 30 | 5 | 11 | 85 | 70 | 105 | 0 | M6 | 2.5 | 4 | M5 | 134 | 129 |
| 80 | FT100 | 2.4.6 | 19 | 40 | 6 | 155 | 100 | 80 | 120 | 0 | M6 | 3 | 4 | M6 | 144 | 135 |
| 90S | FT115 | 2.4.6 | 24 | 50 | 8 | 20 | 115 | 95 | 140 | 0 | M8 | 3 | 4 | M8 | 164 | 147 |

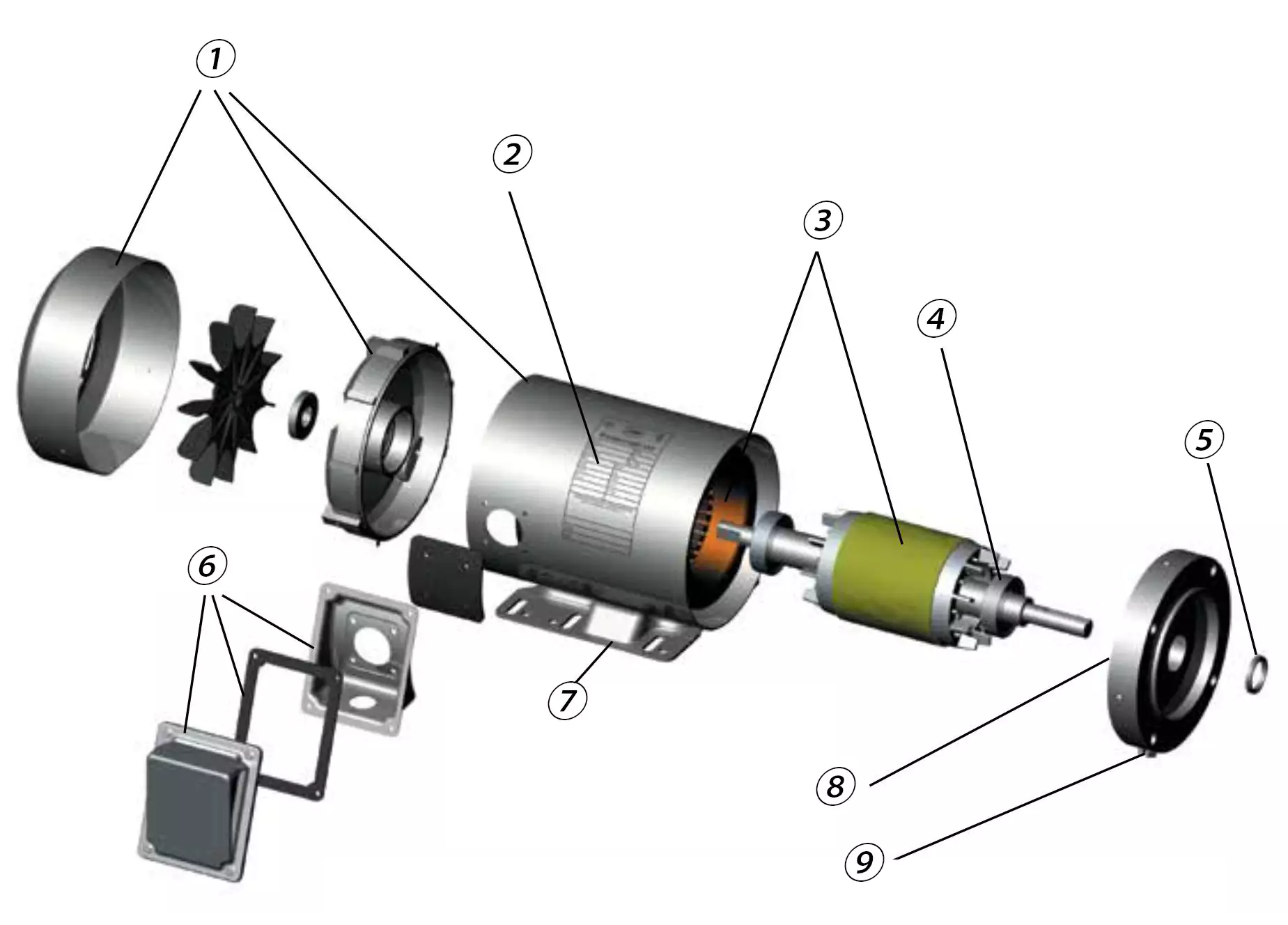

Internal structure diagram
① 300-series stainless steel exterior components-frame, base, end shields, shaft extension, fan guard, hardware, conduit box, and cover- for maximum corrosion resistance
② Laser-etched full-fact nameplate on the motor frame
③ Anti-corrosion coating applied to rotor and heavy polyester varnish on the stator to prevent corrosion
④ Double-sealed bearings with moisture-resistant high-temperature grease.
⑤ Rubber-covered seals on both shaft extensions of TEFC motors
⑥ Split conduit box design with flanged cover and rubber gasket for better sealing
⑦ Heavy duty 12 ga stamped base used on all ratings
⑧ Moisture-resistant sealant between frame and end shields excludes water
⑨ Four condensate drains in each windshield （at 3,6，9 and 12 o'clock）provide locations to purge condensate and water， which may enter
Other stainless steel motors
 IEC B3 foot mounted stainless steel motor -TENV |  IEC B14 face-mounted stainless steel motor -TENV |  IEC B15 flange-mounted stainless steel motor -TENV |  IEC B3 foot-mounted stainless steel motor -TEFC |

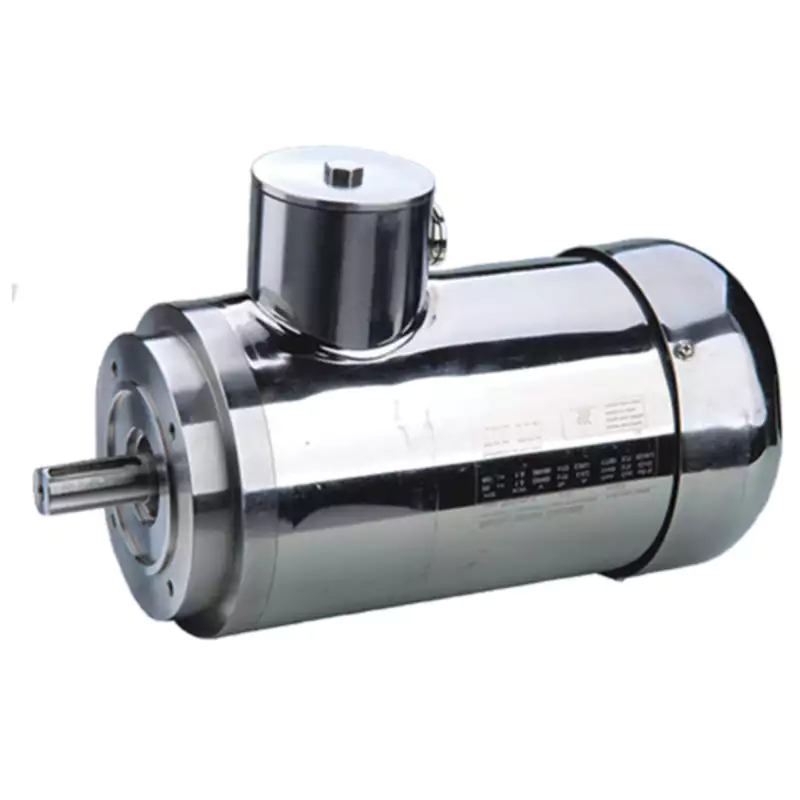

 IEC B14 face-mounted stainless steel motor -TEFC |  IEC B5 flange-mounted stainless steel motor -TEFC |  NEMA stainless steel motor -TENV |  NEMA stainless steel motor -TEFC |

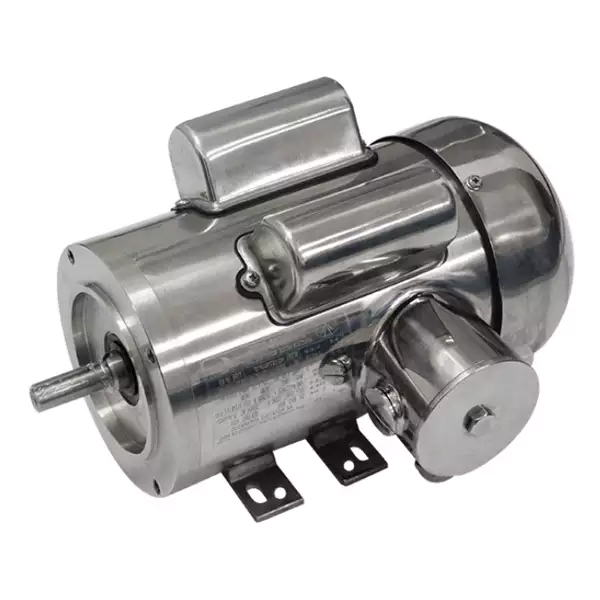

 NEMA stainless steel motor -TENV Single capacitor |  NEMA stainless steel motor -TEFC Single capacitor |  NEMA stainless steel motor -TEFC double capacitor |
Additional information
| Edited | Miya |
|---|
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
