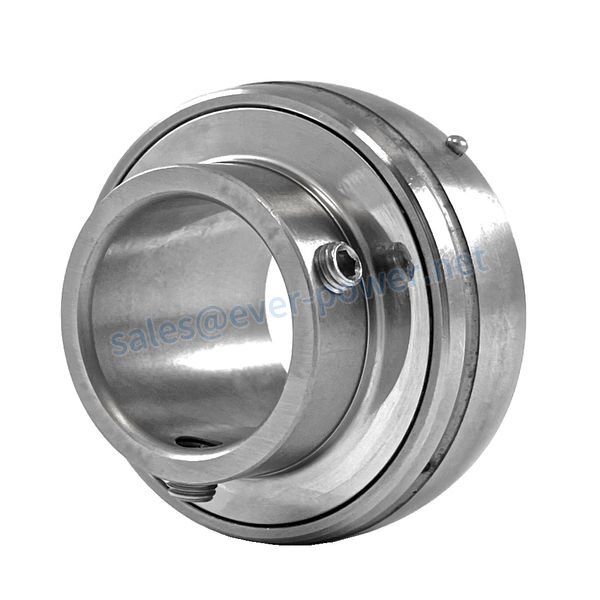

Stainless Steel Insert Bearings
Stainless steel insert bearings and wide inner ring bearings are used for mounting on shafts without needing shoulders or adapters. The bearing is locked in place through setscrews or a locking collar. UC Style Insert Bearings have an inner ring that extends on both sides of the bearing, and SB Style Insert Bearings extend on one side. Both designs, however, are intended to provide extra shaft support.
Stainless Steel Insert Bearings
Stainless steel insert bearings and wide inner ring bearings are used for mounting on shafts without needing shoulders or adapters. The bearing is locked in place through setscrews or a locking collar. UC Style Insert Bearings have an inner ring that extends on both sides of the bearing, and SB Style Insert Bearings extend on one side. Both designs, however, are intended to provide extra shaft support. Sometimes insert bearings are standard deep groove ball bearings that fit into a housing, and these bearings may be purchased as stand-alone products to use as replacements. While standard radial ball bearings must be pressed into a machined shaft, insert bearings can be fitted directly onto the post using special installation tools.
The HZPT Bearing Company offers a wide assortment of miniature and standard size insert bearings in various combinations of materials. Stainless steel insert bearings are available for washdown conditions, high temperature, and food-grade applications.
Stainless Steel Bearing Insert Sizes
(1) SUC 200 Normal Duty Insert Bearings With Set Screws
Bearing Insert #
|
Shaft Diameter (d)
|
Setscrew Used
|
(D)
|
(Bi)
|
(Be)
|
(N)
|
(M)
|
(G)
|
(T)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
SUC 201 | 12mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC 201-8 | 1/2" | 1/4-28 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC202 | 15mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC202-10 | 5/8" | 1/4-28 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC203 | 17mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC204-12 | 3/4" | 1/4-28 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC 204 | 20mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6693" | 0.5000" | 0.7205" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.4 |
SUC205-14 | 7/8" | 1/4-28 | 2.0472" | 1.3425" | 0.6693" | 0.5630" | 0.7795" | 0.1969" | 0.1654" | 2,542 | 1,349 | 0.5 |
SUC205-15 | 15/16" | 1/4-28 | 2.0472" | 1.3425" | 0.6693" | 0.5630" | 0.7795" | 0.1969" | 0.1654" | 2,542 | 1,349 | 0.5 |
SUC205 | 25mm | M6 x 0.75 | 2.0472" | 1.3425" | 0.6693" | 0.5630" | 0.7795" | 0.1969" | 0.1654" | 2,542 | 1,349 | 0.5 |
SUC205-16 | 1" | 1/4-28 | 2.0472" | 1.3425" | 0.6693" | 0.5630" | 0.7795" | 0.1969" | 0.1654" | 2,542 | 1,349 | 0.5 |
SUC206-17 | 1-1/16" | 1/4-28 | 2.4409" | 1.5000" | 0.7480" | 0.6260" | 0.8740" | 0.1969" | 0.1969" | 3,554 | 1,942 | 0.8 |
SUC206-18 | 1-1/8" | 1/4-28 | 2.4409" | 1.5000" | 0.7480" | 0.6260" | 0.8740" | 0.1969" | 0.1969" | 3,554 | 1,942 | 0.8 |
SUC206 | 30mm | M6 x 0.75 | 2.4409" | 1.5000" | 0.7480" | 0.6260" | 0.8740" | 0.1969" | 0.1969" | 3,554 | 1,942 | 0.8 |
SUC206-19 | 1-3/16" | 1/4-28 | 2.4409" | 1.5000" | 0.7480" | 0.6260" | 0.8740" | 0.1969" | 0.1969" | 3,554 | 1,942 | 0.8 |
SUC206-20 | 1-1/4" | 1/4-28 | 2.4409" | 1.5000" | 0.7480" | 0.6260" | 0.8740" | 0.1969" | 0.1969" | 3,554 | 1,942 | 0.8 |
SUC207-20 | 1-1/4" | 5/16-24 | 2.8346" | 1.6890" | 0.7874" | 0.6890" | 1.0000" | 0.2362" | 0.2244" | 4,683 | 2,626 | 1.1 |
SUC207-21 | 1-5/16" | 5/16-24 | 2.8346" | 1.6890" | 0.7874" | 0.6890" | 1.0000" | 0.2362" | 0.2244" | 4,683 | 2,626 | 1.1 |
SUC207-22 | 1-3/8" | 5/16-24 | 2.8346" | 1.6890" | 0.7874" | 0.6890" | 1.0000" | 0.2362" | 0.2244" | 4,683 | 2,626 | 1.1 |
SUC207 | 35mm | M8 x 1 | 2.8346" | 1.6890" | 0.7874" | 0.6890" | 1.0000" | 0.2362" | 0.2244" | 4,683 | 2,626 | 1.1 |
SUC207-23 | 1-7/16" | 5/16-24 | 2.8346" | 1.6890" | 0.7874" | 0.6890" | 1.0000" | 0.2362" | 0.2244" | 4,683 | 2,626 | 1.1 |
SUC208-24 | 1-1/2" | 5/16-24 | 3.1496" | 1.9370" | 0.8268" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,294 | 3,057 | 1.4 |
SUC208-25 | 1-9/16" | 5/16-24 | 3.1496" | 1.9370" | 0.8268" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,294 | 3,057 | 1.4 |
SUC208 | 40mm | M8 x 1 | 3.1496" | 1.9370" | 0.8268" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,294 | 3,057 | 1.4 |
SUC209-26 | 1-5/8" | 5/16-24 | 3.3465" | 1.9370" | 0.8661" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,923 | 3,507 | 1.6 |
SUC209-27 | 1-11/16." | 5/16-24 | 3.3465" | 1.9370" | 0.8661" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,923 | 3,507 | 1.6 |
SUC209-28 | 1-3/4" | 5/16-24 | 3.3465" | 1.9370" | 0.8661" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,923 | 3,507 | 1.6 |
SUC209 | 45mm | M8 x 1 | 3.3465" | 1.9370" | 0.8661" | 0.7480" | 1.1890" | 0.3150" | 0.2480" | 5,923 | 3,507 | 1.6 |
SUC210-30 | 1-7/8" | 3/8-24 | 3.5433" | 2.0315" | 0.9449" | 0.7480" | 1.2835" | 0.3937" | 0.2598" | 6,402 | 4,046 | 1.8 |
SUC210-31 | 1-15/16." | 3/8-24 | 3.5433" | 2.0315" | 0.9449" | 0.7480" | 1.2835" | 0.3937" | 0.2598" | 6,402 | 4,046 | 1.8 |
SUC210 | 50mm | M10 x 1.25 | 3.5433" | 2.0315" | 0.9449" | 0.7480" | 1.2835" | 0.3937" | 0.2598" | 6,402 | 4,046 | 1.8 |
SUC210-32 | 2" | 3/8-24 | 3.5433" | 2.0315" | 0.9449" | 0.7480" | 1.2835" | 0.3937" | 0.2598" | 6,402 | 4,046 | 1.8 |
SUC211-32 | 2" | 3/8-24 | 3.9370" | 2.1890" | 0.9843" | 0.8740" | 1.3150" | 0.3937" | 0.2756" | 7,931 | 5,036 | 2.4 |
SUC211-34 | 2-1/8" | 3/8-24 | 3.9370" | 2.1890" | 0.9843" | 0.8740" | 1.3150" | 0.3937" | 0.2756" | 7,931 | 5,036 | 2.4 |
SUC211 | 55mm | M10 x 1.25 | 3.9370" | 2.1890" | 0.9843" | 0.8740" | 1.3150" | 0.3937" | 0.2756" | 7,931 | 5,036 | 2.4 |
SUC211-35 | 2-3/16" | 3/8-24 | 3.9370" | 2.1890" | 0.9843" | 0.8740" | 1.3150" | 0.3937" | 0.2756" | 7,931 | 5,036 | 2.4 |
SUC212-36 | 2-1/4" | 3/8-24 | 4.3307" | 2.5630" | 1.0630" | 1.0000" | 1.5630" | 0.3937" | 0.2756" | 9,554 | 5,921 | 3.3 |
SUC212 | 60mm | M10 x 1.25 | 4.3307" | 2.5630" | 1.0630" | 1.0000" | 1.5630" | 0.3937" | 0.2756" | 9,554 | 5,921 | 3.3 |
SUC212-38 | 2-3/8" | 3/8-24 | 4.3307" | 2.5630" | 1.0630" | 1.0000" | 1.5630" | 0.3937" | 0.2756" | 9,554 | 5,921 | 3.3 |
SUC212-39 | 2-7/16" | 3/8-24 | 4.3307" | 2.5630" | 1.0630" | 1.0000" | 1.5630" | 0.3937" | 0.2756" | 9,554 | 5,921 | 3.3 |
(2) SNC 200 Normal Duty Insert Bearings With Narrow Inner Ring and Eccentric Locking Collar
Bearing Insert #
|
Shaft Diameter (d)
|
Setscrew Used
|
(D)
|
(Bi)
|
(Be)
|
(N)
|
(M)
|
(T)
|
(W)
|
(K)
|
(G)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SNC201-8 | 1/2" | 1/4-28 | 1.850" | 1.547" | 0.669" | 0.500" | 0.673" | 0.146" | 1.311" | 0.531" | 0.197" | 2,331 | 1,142 | 0.5 |
SNC202-10 | 5/8" | 1/4-28 | 1.850" | 1.547" | 0.669" | 0.500" | 0.673" | 0.146" | 1.311" | 0.531" | 0.197" | 2,331 | 1,142 | 0.5 |
SNC204-12 | 3/4" | 1/4-28 | 1.850" | 1.547" | 0.669" | 0.500" | 0.673" | 0.146" | 1.311" | 0.531" | 0.197" | 2,331 | 1,142 | 0.5 |
SNC204 | 20mm | M6 x 0.75 | 1.850" | 1.547" | 0.669" | 0.500" | 0.673" | 0.146" | 1.311" | 0.531" | 0.197" | 2,331 | 1,142 | 0.5 |
SNC205-14 | 7/8" | 1/4-28 | 2.047" | 1.622" | 0.669" | 0.563" | 0.685" | 0.154" | 1.500" | 0.531" | 0.197" | 2,542 | 1,349 | 0.6 |
SNC205-15 | 15/16" | 1/4-28 | 2.047" | 1.622" | 0.669" | 0.563" | 0.685" | 0.154" | 1.500" | 0.531" | 0.197" | 2,542 | 1,349 | 0.6 |
SNC205 | 25mm | M6 x 0.75 | 2.047" | 1.622" | 0.669" | 0.563" | 0.685" | 0.154" | 1.500" | 0.531" | 0.197" | 2,542 | 1,349 | 0.6 |
SNC205-16 | 1" | 1/4-28 | 2.047" | 1.622" | 0.669" | 0.563" | 0.685" | 0.154" | 1.500" | 0.531" | 0.197" | 2,542 | 1,349 | 0.6 |
SNC206-17 | 1-1/16" | 5/16-24 | 2.441" | 1.811" | 0.748" | 0.626" | 0.717" | 0.197" | 1.752" | 0.626" | 0.236" | 3,554 | 1,942 | 0.9 |
SNC206-18 | 1-1/8" | 5/16-24 | 2.441" | 1.811" | 0.748" | 0.626" | 0.717" | 0.197" | 1.752" | 0.626" | 0.236" | 3,554 | 1,942 | 0.9 |
SNC206 | 30mm | M8 x 1 | 2.441" | 1.811" | 0.748" | 0.626" | 0.717" | 0.197" | 1.752" | 0.626" | 0.236" | 3,554 | 1,942 | 0.9 |
SNC206-20 | 1-1/4" | 5/16-24 | 2.441" | 1.811" | 0.748" | 0.626" | 0.717" | 0.197" | 1.752" | 0.626" | 0.236" | 3,554 | 1,942 | 0.9 |
SNC206-19 | 1-3/16" | 5/16-24 | 2.441" | 1.811" | 0.748" | 0.626" | 0.717" | 0.197" | 1.752" | 0.626" | 0.236" | 3,554 | 1,942 | 0.9 |
SNC207-20 | 1-1/4" | 5/16-24 | 2.835" | 1.961" | 0.787" | 0.689" | 0.740" | 0.224" | 2.189" | 0.689" | 0.256" | 4,683 | 2,626 | 1.3 |
SNC207-21 | 1-5/16" | 5/16-24 | 2.835" | 1.961" | 0.787" | 0.689" | 0.740" | 0.224" | 2.189" | 0.689" | 0.256" | 4,683 | 2,626 | 1.3 |
SNC207-22 | 1-3/8" | 5/16-24 | 2.835" | 1.961" | 0.787" | 0.689" | 0.740" | 0.224" | 2.189" | 0.689" | 0.256" | 4,683 | 2,626 | 1.3 |
SNC207 | 35mm | M8 x 1 | 2.835" | 1.961" | 0.787" | 0.689" | 0.740" | 0.224" | 2.189" | 0.689" | 0.256" | 4,683 | 2,626 | 1.3 |
SNC207-23 | 1-7/16" | 5/16-24 | 2.835" | 1.961" | 0.787" | 0.689" | 0.740" | 0.224" | 2.189" | 0.689" | 0.256" | 4,683 | 2,626 | 1.3 |
SNC208-24 | 1-1/2" | 5/16-24 | 3.150" | 2.122" | 0.827" | 0.748" | 0.843" | 0.224" | 2.374" | 0.720" | 0.256" | 5,294 | 3,057 | 1.7 |
SNC208-25 | 1-9/16" | 5/16-24 | 3.150" | 2.122" | 0.827" | 0.748" | 0.843" | 0.224" | 2.374" | 0.720" | 0.256" | 5,294 | 3,057 | 1.7 |
SNC208 | 40mm | M8 x 1 | 3.150" | 2.122" | 0.827" | 0.748" | 0.843" | 0.224" | 2.374" | 0.720" | 0.256" | 5,294 | 3,057 | 1.7 |
SNC209-26 | 1-5/8" | 5/16-24 | 3.346" | 2.122" | 0.866" | 0.748" | 0.843" | 0.252" | 2.500" | 0.720" | 0.256" | 5,923 | 3,507 | 1.9 |
SNC209-27 | 1-11/16." | 5/16-24 | 3.346" | 2.122" | 0.866" | 0.748" | 0.843" | 0.252" | 2.500" | 0.720" | 0.256" | 5,923 | 3,507 | 1.9 |
SNC209-28 | 1-3/4" | 5/16-24 | 3.346" | 2.122" | 0.866" | 0.748" | 0.843" | 0.252" | 2.500" | 0.720" | 0.256" | 5,923 | 3,507 | 1.9 |
SNC209 | 45mm | M8 x 1 | 3.346" | 2.122" | 0.866" | 0.748" | 0.843" | 0.252" | 2.500" | 0.720" | 0.256" | 5,923 | 3,507 | 1.9 |
SNC210-30 | 1-7/8" | 5/16-24 | 3.543" | 2.248" | 0.945" | 0.748" | 0.969" | 0.256" | 2.752" | 0.720" | 0.256" | 6,402 | 4,046 | 2.3 |
SNC210-31 | 1-15/16." | 5/16-24 | 3.543" | 2.248" | 0.945" | 0.748" | 0.969" | 0.256" | 2.752" | 0.720" | 0.256" | 6,402 | 4,046 | 2.3 |
SNC210 | 50mm | M8 x 1 | 3.543" | 2.248" | 0.945" | 0.748" | 0.969" | 0.256" | 2.752" | 0.720" | 0.256" | 6,402 | 4,046 | 2.3 |
SNC210-32 | 2" | 5/16-24 | 3.543" | 2.248" | 0.945" | 0.748" | 0.969" | 0.256" | 2.752" | 0.720" | 0.256" | 6,402 | 4,046 | 2.3 |
SNC211-32 | 2" | 3/8-24 | 3.937" | 2.591" | 0.984" | 0.874" | 1.091" | 0.276" | 3.000" | 0.815" | 0.315" | 7,931 | 5,036 | 3.1 |
SNC211-34 | 2-1/8" | 3/8-24 | 3.937" | 2.591" | 0.984" | 0.874" | 1.091" | 0.276" | 3.000" | 0.815" | 0.315" | 7,931 | 5,036 | 3.1 |
SNC211 | 55mm | M10 x 1.25 | 3.937" | 2.591" | 0.984" | 0.874" | 1.091" | 0.276" | 3.000" | 0.815" | 0.315" | 7,931 | 5,036 | 3.1 |
SNC211-35 | 2-3/16" | 3/8-24 | 3.937" | 2.591" | 0.984" | 0.874" | 1.091" | 0.276" | 3.000" | 0.815" | 0.315" | 7,931 | 5,036 | 3.1 |
SNC212-36 | 2-1/4" | 3/8-24 | 4.331" | 2.843" | 1.063" | 1.000" | 1.217" | 0.299" | 3.315" | 0.878" | 0.315" | 9,554 | 5,921 | 4.2 |
SNC212 | 60mm | M10 x 1.25 | 4.331" | 2.843" | 1.063" | 1.000" | 1.217" | 0.299" | 3.315" | 0.878" | 0.315" | 9,554 | 5,921 | 4.2 |
SNC212-38 | 2-3/8" | 3/8-24 | 4.331" | 2.843" | 1.063" | 1.000" | 1.217" | 0.299" | 3.315" | 0.878" | 0.315" | 9,554 | 5,921 | 4.2 |
SNC212-39 | 2-7/16" | 3/8-24 | 4.331" | 2.843" | 1.063" | 1.000" | 1.217" | 0.299" | 3.315" | 0.878" | 0.315" | 9,554 | 5,921 | 4.2 |
(3) SHC 200 Normal Duty Insert Bearings With Wide Inner Ring and Eccentric Locking Collar
Bearing Insert #
|
Shaft Diameter (d)
|
Setscrew Used
|
(D)
|
(Bi)
|
(Be)
|
(N)
|
(M)
|
(T)
|
(W)
|
(K)
|
(G)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SHC204-12 | 3/4" | 1/4-28 | 1.8504" | 1.720" | 0.6693" | 0.6732" | 0.6732" | 0.1575" | 1.3110" | 0.5315" | 0.1969" | 2,331 | 1,142 | 0.5 |
SHC 204 | 20mm | M6 x 0.75 | 1.8504" | 1.720" | 0.6693" | 0.6732" | 0.6732" | 0.1575" | 1.3110" | 0.5315" | 0.1969" | 2,331 | 1,142 | 0.5 |
SHC205-14 | 7/8" | 1/4-28 | 2.0472" | 1.7480" | 0.6693" | 0.6890" | 0.6850" | 0.1654" | 1.5000" | 0.5315" | 0.1969" | 2,542 | 1,349 | 0.6 |
SHC205-15 | 15/16" | 1/4-28 | 2.0472" | 1.7480" | 0.6693" | 0.6890" | 0.6850" | 0.1654" | 1.5000" | 0.5315" | 0.1969" | 2,542 | 1,349 | 0.6 |
SHC205 | 25mm | M6 x 0.75 | 2.0472" | 1.7480" | 0.6693" | 0.6890" | 0.6850" | 0.1654" | 1.5000" | 0.5315" | 0.1969" | 2,542 | 1,349 | 0.6 |
SHC205-16 | 1" | 1/4-28 | 2.0472" | 1.7480" | 0.6693" | 0.6890" | 0.6850" | 0.1654" | 1.5000" | 0.5315" | 0.1969" | 2,542 | 1,349 | 0.6 |
SHC206-17 | 1-1/16" | 5/16-24 | 2.4409" | 1.9055" | 0.7480" | 0.7205" | 0.7165" | 0.1969" | 1.7520" | 0.6260" | 0.2362" | 3,554 | 1,942 | 0.9 |
SHC206-18 | 1-1/8" | 5/16-24 | 2.4409" | 1.9055" | 0.7480" | 0.7205" | 0.7165" | 0.1969" | 1.7520" | 0.6260" | 0.2362" | 3,554 | 1,942 | 0.9 |
SHC206 | 30mm | M8 x 1 | 2.4409" | 1.9055" | 0.7480" | 0.7205" | 0.7165" | 0.1969" | 1.7520" | 0.6260" | 0.2362" | 3,554 | 1,942 | 0.9 |
SHC206-19 | 1-3/16" | 5/16-24 | 2.4409" | 1.9055" | 0.7480" | 0.7205" | 0.7165" | 0.1969" | 1.7520" | 0.6260" | 0.2362" | 3,554 | 1,942 | 0.9 |
SHC206-20 | 1-1/4" | 5/16-24 | 2.4409" | 1.9055" | 0.7480" | 0.7205" | 0.7165" | 0.1969" | 1.7520" | 0.6260" | 0.2362" | 3,554 | 1,942 | 0.9 |
SHC207-20 | 1-1/4" | 5/16-24 | 2.8346" | 2.0118" | 0.7874" | 0.7402" | 0.7402" | 0.2244" | 2.1890" | 0.6890" | 0.2559" | 4,683 | 2,626 | 1.3 |
SHC207-21 | 1-15/16." | 5/16-24 | 2.8346" | 2.0118" | 0.7874" | 0.7402" | 0.7402" | 0.2244" | 2.1890" | 0.6890" | 0.2559" | 4,683 | 2,626 | 1.3 |
SHC207-22 | 1-3/8" | 5/16-24 | 2.8346" | 2.0118" | 0.7874" | 0.7402" | 0.7402" | 0.2244" | 2.1890" | 0.6890" | 0.2559" | 4,683 | 2,626 | 1.3 |
SHC207 | 35mm | M8 x 1 | 2.8346" | 2.0118" | 0.7874" | 0.7402" | 0.7402" | 0.2244" | 2.1890" | 0.6890" | 0.2559" | 4,683 | 2,626 | 1.3 |
SHC207-23 | 1-7/16" | 5/16-24 | 2.8346" | 2.0118" | 0.7874" | 0.7402" | 0.7402" | 0.2244" | 2.1890" | 0.6890" | 0.2559" | 4,683 | 2,626 | 1.3 |
SHC208-24 | 1-1/2" | 5/16-24 | 3.1496" | 2.2165" | 0.8268" | 0.8425" | 0.8425" | 0.2480" | 2.3740" | 0.7205" | 0.2559" | 5,294 | 3,057 | 1.7 |
SHC208-25 | 1-9/16" | 5/16-24 | 3.1496" | 2.2165" | 0.8268" | 0.8425" | 0.8425" | 0.2480" | 2.3740" | 0.7205" | 0.2559" | 5,294 | 3,057 | 1.7 |
SHC208 | 40mm | M8 x 1 | 3.1496" | 2.2165" | 0.8268" | 0.8425" | 0.8425" | 0.2480" | 2.3740" | 0.7205" | 0.2559" | 5,294 | 3,057 | 1.7 |
SHC209-26 | 1-5/8" | 5/16-24 | 3.3465" | 2.2165" | 0.8661" | 0.8425" | 0.8425" | 0.2480" | 2.5000" | 0.7205" | 0.2559" | 5,923 | 3,507 | 1.9 |
SHC209-27 | 1-11/16." | 5/16-24 | 3.3465" | 2.2165" | 0.8661" | 0.8425" | 0.8425" | 0.2480" | 2.5000" | 0.7205" | 0.2559" | 5,923 | 3,507 | 1.9 |
SHC209-28 | 1-3/4" | 5/16-24 | 3.3465" | 2.2165" | 0.8661" | 0.8425" | 0.8425" | 0.2480" | 2.5000" | 0.7205" | 0.2559" | 5,923 | 3,507 | 1.9 |
SHC209 | 45mm | M8 x 1 | 3.3465" | 2.2165" | 0.8661" | 0.8425" | 0.8425" | 0.2480" | 2.5000" | 0.7205" | 0.2559" | 5,923 | 3,507 | 1.9 |
SHC210-30 | 1-7/8" | 5/16-24 | 3.5433" | 2.4685" | 0.9449" | 0.9685" | 0.9685" | 0.2598" | 2.7520" | 0.7205" | 0.2559" | 6,402 | 4,046 | 2.3 |
SHC210-31 | 1-15/16." | 5/16-24 | 3.5433" | 2.4685" | 0.9449" | 0.9685" | 0.9685" | 0.2598" | 2.7520" | 0.7205" | 0.2559" | 6,402 | 4,046 | 2.3 |
SHC210 | 50mm | M8 x 1 | 3.5433" | 2.4685" | 0.9449" | 0.9685" | 0.9685" | 0.2598" | 2.7520" | 0.7205" | 0.2559" | 6,402 | 4,046 | 2.3 |
SHC210-32 | 2" | 5/16-24 | 3.5433" | 2.4685" | 0.9449" | 0.9685" | 0.9685" | 0.2598" | 2.7520" | 0.7205" | 0.2559" | 6,402 | 4,046 | 2.3 |
SHC211-32 | 2" | 3/8-24 | 3.9370" | 2.8110" | 0.9843" | 1.0945" | 1.0906" | 0.2756" | 3.0000" | 0.8150" | 0.3150" | 7,931 | 5,036 | 3.1 |
SHC211-34 | 2-1/8" | 3/8-24 | 3.9370" | 2.8110" | 0.9843" | 1.0945" | 1.0906" | 0.2756" | 3.0000" | 0.8150" | 0.3150" | 7,931 | 5,036 | 3.1 |
SHC211 | 55mm | M10 x 1.25 | 3.9370" | 2.8110" | 0.9843" | 1.0945" | 1.0906" | 0.2756" | 3.0000" | 0.8150" | 0.3150" | 7,931 | 5,036 | 3.1 |
SHC211-35 | 2-3/16" | 3/8-24 | 3.9370" | 2.8110" | 0.9843" | 1.0945" | 1.0906" | 0.2756" | 3.0000" | 0.8150" | 0.3150" | 7,931 | 5,036 | 3.1 |
SHC212-36 | 2-1/4" | 3/8-24 | 4.3307" | 3.0630" | 1.0630" | 1.2205" | 1.2165" | 0.2756" | 3.3150" | 0.8780" | 0.3150" | 9,554 | 5,921 | 4.2 |
SHC212 | 60mm | M10 x 1.25 | 4.3307" | 3.0630" | 1.0630" | 1.2205" | 1.2165" | 0.2756" | 3.3150" | 0.8780" | 0.3150" | 9,554 | 5,921 | 4.2 |
SHC212-38 | 2-3/8" | 3/8-24 | 4.3307" | 3.0630" | 1.0630" | 1.2205" | 1.2165" | 0.2756" | 3.3150" | 0.8780" | 0.3150" | 9,554 | 5,921 | 4.2 |
SHC212-39 | 2-7/16" | 3/8-24 | 4.3307" | 3.0630" | 1.0630" | 1.2205" | 1.2165" | 0.2756" | 3.3150" | 0.8780" | 0.3150" | 9,554 | 5,921 | 4.2 |
(4) SUE 200 Normal Duty Insert Bearings With Tru-Loc Concentric Locking Collar Clamp
Bearing Insert # | Shaft Diameter (d) | Bolt Used | (D) | (Bi) | (Be) | (N) | (M) | (W) | (K) | (T) | Dynamic Load Rating (LBS) | Static Load Rating (LBS) | Weight (LBS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SUE204-12 | 3/4" | 1/4-28 | 1.8504" | 1.2992" | 0.6693" | 0.5000" | 0.7205" | 1.6063" | 0.3740" | 0.1693" | 2,331 | 1,142 | 0.4 |
SUE204 | 20mm | M4 x 0.7 | 1.8504" | 1.2992" | 0.6693" | 0.5000" | 0.7205" | 1.6063" | 0.3740" | 0.1693" | 2,331 | 1,142 | 0.4 |
SUE205-14 | 7/8" | 1/4-28 | 2.0472" | 1.3937" | 0.6693" | 0.5630" | 0.7795" | 1.9291" | 0.3740" | 0.1575" | 2,542 | 1,349 | 0.5 |
SUE205-15 | 15/16" | 1/4-28 | 2.0472" | 1.3937" | 0.6693" | 0.5630" | 0.7795" | 1.9291" | 0.3740" | 0.1575" | 2,542 | 1,349 | 0.5 |
SUE205 | 25mm | M4 x 0.7 | 2.0472" | 1.3937" | 0.6693" | 0.5630" | 0.7795" | 1.9291" | 0.3740" | 0.1575" | 2,542 | 1,349 | 0.5 |
SUE205-16 | 1" | 1/4-28 | 2.0472" | 1.3937" | 0.6693" | 0.5630" | 0.7795" | 1.9291" | 0.3740" | 0.1575" | 2,542 | 1,349 | 0.5 |
SUE206-17 | 1-1/16" | 1/4-28 | 2.4409" | 1.5669" | 0.7480" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.2087" | 3,554 | 1,942 | 0.7 |
SUE206-18 | 1-1/8" | 1/4-28 | 2.4409" | 1.5669" | 0.7480" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.2087" | 3,554 | 1,942 | 0.7 |
SUE206 | 30mm | M4 x 0.7 | 2.4409" | 1.5669" | 0.7480" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.2087" | 3,554 | 1,942 | 0.7 |
SUE206-19 | 1-3/16" | 1/4-28 | 2.4409" | 1.5669" | 0.7480" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.2087" | 3,554 | 1,942 | 0.7 |
SUE206-20 | 1-1/4" | 1/4-28 | 2.4409" | 1.5669" | 0.7480" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.2087" | 3,554 | 1,942 | 0.7 |
SUE207-20 | 1-1/4" | 5/16-24 | 2.8346" | 1.7283" | 0.7874" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.2283" | 4,683 | 2,626 | 1.1 |
SUE207-21 | 1-15/16." | 5/16-24 | 2.8346" | 1.7283" | 0.7874" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.2283" | 4,683 | 2,626 | 1.1 |
SUE207-22 | 1-3/8" | 5/16-24 | 2.8346" | 1.7283" | 0.7874" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.2283" | 4,683 | 2,626 | 1.1 |
SUE207 | 35mm | M5 x 0.8 | 2.8346" | 1.7283" | 0.7874" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.2283" | 4,683 | 2,626 | 1.1 |
SUE207-23 | 1-7/16" | 5/16-24 | 2.8346" | 1.7283" | 0.7874" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.2283" | 4,683 | 2,626 | 1.1 |
SUE208-24 | 1-1/2" | 5/16-24 | 3.1496" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.6772" | 0.4331" | 0.2441" | 5,294 | 3,057 | 1.5 |
SUE208-25 | 1-9/16" | 5/16-24 | 3.1496" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.6772" | 0.4331" | 0.2441" | 5,294 | 3,057 | 1.5 |
SUE208 | 40mm | M5 x 0.8 | 3.1496" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.6772" | 0.4331" | 0.2441" | 5,294 | 3,057 | 1.5 |
SUE209-26 | 1-5/8" | 5/16-24 | 3.3465" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.2559" | 5,923 | 3,507 | 1.7 |
SUE209-27 | 1-11/16." | 5/16-24 | 3.3465" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.2559" | 5,923 | 3,507 | 1.7 |
SUE209-28 | 1-3/4" | 5/16-24 | 3.3465" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.2559" | 5,923 | 3,507 | 1.7 |
SUE209 | 45mm | M5 x 0.8 | 3.3465" | 1.9764" | 0.8661" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.2559" | 5,923 | 3,507 | 1.7 |
SUE210-30 | 1-7/8" | 3/8-24 | 3.5433" | 2.0709" | 0.9449" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.2756" | 6,402 | 4,046 | 1.9 |
SUE210-31 | 1-15/16." | 3/8-24 | 3.5433" | 2.0709" | 0.9449" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.2756" | 6,402 | 4,046 | 1.9 |
SUE210 | 50mm | M6 x 1 | 3.5433" | 2.0709" | 0.9449" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.2756" | 6,402 | 4,046 | 1.9 |
SUE210-32 | 2" | 3/8-24 | 3.5433" | 2.0709" | 0.9449" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.2756" | 6,402 | 4,046 | 1.9 |
SUE211-32 | 2" | 3/8-24 | 3.9370" | 2.2283" | 0.9843" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.2913" | 7,931 | 5,036 | 2.6 |
SUE211-34 | 2-1/8" | 3/8-24 | 3.9370" | 2.2283" | 0.9843" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.2913" | 7,931 | 5,036 | 2.6 |
SUE211 | 55mm | M6 x 1 | 3.9370" | 2.2283" | 0.9843" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.2913" | 7,931 | 5,036 | 2.6 |
SUE211-35 | 2-3/16" | 3/8-24 | 3.9370" | 2.2283" | 0.9843" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.2913" | 7,931 | 5,036 | 2.6 |
SUE212-36 | 2-1/4" | 3/8-24 | 4.3307" | 2.6220" | 1.0630" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.2992" | 9,554 | 5,921 | 3.5 |
SUE212 | 60mm | M8 x 1.25 | 4.3307" | 2.6220" | 1.0630" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.2992" | 9,554 | 5,921 | 3.5 |
SUE212-38 | 2-3/8" | 3/8-24 | 4.3307" | 2.6220" | 1.0630" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.2992" | 9,554 | 5,921 | 3.5 |
SUE212-39 | 2-7/16" | 3/8-24 | 4.3307" | 2.6220" | 1.0630" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.2992" | 9,554 | 5,921 | 3.5 |
(5) SUER 200 Normal Duty Insert Bearings With Snap Ring and Tru-Loc Concentric Locking Collar Clamp
Bearing Insert #
|
Shaft Diameter (d)
|
Bolt Used
|
(D)
|
(Bi)
|
(Be)
|
(N)
|
(M)
|
(W)
|
(K)
|
(A)
|
(AN)
|
(Y)
|
(T)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SUER 204-12 | 3/4" | 1/4-28 | 1.8504" | 1.2992" | 0.6260" | 0.4055" | 0.8150" | 1.6063" | 0.3740" | 0.0421" | 0.0937" | 2.0748" | 0.1594" | 2,331 | 1,142 | 0.4 |
SUER 204 | 20mm | M4 x 0.7 | 1.8504" | 1.2992" | 0.6260" | 0.4055" | 0.8150" | 1.6063" | 0.3740" | 0.0421" | 0.0937" | 2.0748" | 0.1594" | 2,331 | 1,142 | 0.4 |
SUER 205-14 | 7/8" | 1/4-28 | 2.0472" | 1.3937" | 0.7480" | 0.5157" | 0.8583" | 1.9291" | 0.3740" | 0.0421" | 0.0937" | 2.2795" | 0.2657" | 2,542 | 1,349 | 0.5 |
SUER 205-15 | 15/16" | 1/4-28 | 2.0472" | 1.3937" | 0.7480" | 0.5157" | 0.8583" | 1.9291" | 0.3740" | 0.0421" | 0.0937" | 2.2795" | 0.2657" | 2,542 | 1,349 | 0.5 |
SUER 205 | 25mm | M4 x 0.7 | 2.0472" | 1.3937" | 0.7480" | 0.5157" | 0.8583" | 1.9291" | 0.3740" | 0.0421" | 0.0937" | 2.2795" | 0.2657" | 2,542 | 1,349 | 0.5 |
SUER 205-16 | 1" | 1/4-28 | 2.0472" | 1.3937" | 0.7480" | 0.5157" | 0.8583" | 1.9291" | 0.3740" | 0.0421" | 0.0937" | 2.2795" | 0.2657" | 2,542 | 1,349 | 0.5 |
SUER 206-17 | 1-1/16" | 1/4-28 | 2.4409" | 1.5669" | 0.8740" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.0650" | 0.1252" | 2.6650" | 0.2165" | 3,554 | 1,942 | 0.7 |
SUER 206-18 | 1-1/8" | 1/4-28 | 2.4409" | 1.5669" | 0.8740" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.0650" | 0.1252" | 2.6650" | 0.2165" | 3,554 | 1,942 | 0.7 |
SUER 206 | 30mm | M4 x 0.7 | 2.4409" | 1.5669" | 0.8740" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.0650" | 0.1252" | 2.6650" | 0.2165" | 3,554 | 1,942 | 0.7 |
SUER 206-19 | 1-3/16" | 1/4-28 | 2.4409" | 1.5669" | 0.8740" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.0650" | 0.1252" | 2.6650" | 0.2165" | 3,554 | 1,942 | 0.7 |
SUER 206-20 | 1-1/4" | 1/4-28 | 2.4409" | 1.5669" | 0.8740" | 0.6260" | 0.8740" | 2.1850" | 0.3740" | 0.0650" | 0.1252" | 2.6650" | 0.2165" | 3,554 | 1,942 | 0.7 |
SUER 207-20 | 1-1/4" | 5/16-24 | 2.8346" | 1.7283" | 0.9370" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.0650" | 0.1252" | 3.0944" | 0.2480" | 4,683 | 2,626 | 1.1 |
SUER 207-21 | 1-15/16." | 5/16-24 | 2.8346" | 1.7283" | 0.9370" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.0650" | 0.1252" | 3.0944" | 0.2480" | 4,683 | 2,626 | 1.1 |
SUER 207-22 | 1-3/8" | 5/16-24 | 2.8346" | 1.7283" | 0.9370" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.0650" | 0.1252" | 3.0944" | 0.2480" | 4,683 | 2,626 | 1.1 |
SUER 207 | 35mm | M5 x 0.8 | 2.8346" | 1.7283" | 0.9370" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.0650" | 0.1252" | 3.0944" | 0.2480" | 4,683 | 2,626 | 1.1 |
SUER 207-23 | 1-7/16" | 5/16-24 | 2.8346" | 1.7283" | 0.9370" | 0.6890" | 1.0000" | 2.5197" | 0.4331" | 0.0650" | 0.1252" | 3.0944" | 0.2480" | 4,683 | 2,626 | 1.1 |
SUER 208-24 | 1-1/2" | 5/16-24 | 3.1496" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.6772" | 0.4331" | 0.0650" | 0.1252" | 3.4094" | 0.2953" | 5,294 | 3,057 | 1.5 |
SUER 208-25 | 1-9/16" | 5/16-24 | 3.1496" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.6772" | 0.4331" | 0.0650" | 0.1252" | 3.4094" | 0.2953" | 5,294 | 3,057 | 1.5 |
SUER 208 | 40mm | M5 x 0.8 | 3.1496" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.6772" | 0.4331" | 0.0650" | 0.1252" | 3.4094" | 0.2953" | 5,294 | 3,057 | 1.5 |
SUER 209-26 | 1-5/8" | 5/16-24 | 3.3465" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.0650" | 0.1252" | 3.6063" | 0.295" | 5,923 | 3,507 | 1.7 |
SUER 209-27 | 1-11/16." | 5/16-24 | 3.3465" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.0650" | 0.1252" | 3.6063" | 0.295" | 5,923 | 3,507 | 1.7 |
SUER 209-28 | 1-3/4" | 5/16-24 | 3.3465" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.0650" | 0.1252" | 3.6063" | 0.295" | 5,923 | 3,507 | 1.7 |
SUER 209 | 45mm | M5 x 0.8 | 3.3465" | 1.9764" | 1.0945" | 0.7480" | 1.1890" | 2.9134" | 0.4331" | 0.0650" | 0.1252" | 3.6063" | 0.295" | 5,923 | 3,507 | 1.7 |
SUER 210-30 | 1-7/8" | 3/8-24 | 3.5433" | 2.0709" | 1.1260" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.0949" | 0.1252" | 3.7992" | 0.2677" | 6,402 | 4,046 | 1.9 |
SUER 210-31 | 1-15/16." | 3/8-24 | 3.5433" | 2.0709" | 1.1260" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.0949" | 0.1252" | 3.7992" | 0.2677" | 6,402 | 4,046 | 1.9 |
SUER 210 | 50mm | M6 x 1 | 3.5433" | 2.0709" | 1.1260" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.0949" | 0.1252" | 3.7992" | 0.2677" | 6,402 | 4,046 | 1.9 |
SUER 210-32 | 2" | 3/8-24 | 3.5433" | 2.0709" | 1.1260" | 0.7480" | 1.2835" | 3.1890" | 0.5709" | 0.0949" | 0.1252" | 3.7992" | 0.2677" | 6,402 | 4,046 | 1.9 |
SUER 211-32 | 2" | 3/8-24 | 3.9370" | 2.2283" | 1.1890" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.0949" | 0.1252" | 4.1929" | 0.2992" | 7,931 | 5,036 | 2.6 |
SUER 211-34 | 2-1/8" | 3/8-24 | 3.9370" | 2.2283" | 1.1890" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.0949" | 0.1252" | 4.1929" | 0.2992" | 7,931 | 5,036 | 2.6 |
SUER 211 | 55mm | M6 x 1 | 3.9370" | 2.2283" | 1.1890" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.0949" | 0.1252" | 4.1929" | 0.2992" | 7,931 | 5,036 | 2.6 |
SUER 211-35 | 2-3/16" | 3/8-24 | 3.9370" | 2.2283" | 1.1890" | 0.8740" | 1.3150" | 3.6220" | 0.5709" | 0.0949" | 0.1252" | 4.1929" | 0.2992" | 7,931 | 5,036 | 2.6 |
SUER 212-36 | 2-1/4" | 3/8-24 | 4.3307" | 2.6220" | 1.2520" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.0949" | 0.1240" | 4.5906" | 0.3307" | 9,554 | 5,921 | 3.5 |
SUER 212 | 60mm | M8 x 1.25 | 4.3307" | 2.6220" | 1.2520" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.0949" | 0.1240" | 4.5906" | 0.3307" | 9,554 | 5,921 | 3.5 |
SUER 212-38 | 2-3/8" | 3/8-24 | 4.3307" | 2.6220" | 1.2520" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.0949" | 0.1240" | 4.5906" | 0.3307" | 9,554 | 5,921 | 3.5 |
SUER 212-39 | 2-7/16" | 3/8-24 | 4.3307" | 2.6220" | 1.2520" | 1.0000" | 1.5630" | 4.0551" | 0.6890" | 0.0949" | 0.1240" | 4.5906" | 0.3307" | 9,554 | 5,921 | 3.5 |
(6) SSER 200 Normal Duty Insert Bearings With Snap Ring and Set Screws
Bearing Insert #
|
Shaft Diameter (d)
|
Setscrew Used
|
(D)
|
(Bi)
|
(Be)
|
(N)
|
(M)
|
(A)
|
(AN)
|
(Y)
|
(G)
|
(T)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Weight (LBS)
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SSER 201 | 12mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 201-8 | 1/2" | 1/4-28 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 202 | 15mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 202-10 | 5/8" | 1/4-28 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 203 | 17mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 204-12 | 3/4" | 1/4-28 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 204 | 20mm | M6 x 0.75 | 1.8504" | 1.2205" | 0.6260" | 0.5000" | 0.7205" | 0.0421" | 0.0937" | 2.0748" | 0.1850" | 0.1575" | 2,331 | 1,142 | 0.5 |
SSER 205-14 | 7/8" | 1/4-28 | 2.0472" | 1.3740" | 0.7480" | 0.5157" | 0.8583" | 0.0421" | 0.0937" | 2.2795" | 0.1969" | 0.1693" | 2,542 | 1,349 | 0.5 |
SSER 205-15 | 15/16" | 1/4-28 | 2.0472" | 1.3740" | 0.7480" | 0.5157" | 0.8583" | 0.0421" | 0.0937" | 2.2795" | 0.1969" | 0.1693" | 2,542 | 1,349 | 0.5 |
SSER 205 | 25mm | M6 x 0.75 | 2.0472" | 1.3740" | 0.7480" | 0.5157" | 0.8583" | 0.0421" | 0.0937" | 2.2795" | 0.1969" | 0.1693" | 2,542 | 1,349 | 0.5 |
SSER 205-16 | 1" | 1/4-28 | 2.0472" | 1.3740" | 0.7480" | 0.5157" | 0.8583" | 0.0421" | 0.0937" | 2.2795" | 0.1969" | 0.1693" | 2,542 | 1,349 | 0.5 |
SSER 206-17 | 1-1/16" | 1/4-28 | 2.4409" | 1.5000" | 0.8740" | 0.6260" | 0.8740" | 0.0650" | 0.1252" | 2.6654" | 0.1969" | 0.2165" | 3,554 | 1,942 | 0.8 |
SSER 206-18 | 1-1/8" | 1/4-28 | 2.4409" | 1.5000" | 0.8740" | 0.6260" | 0.8740" | 0.0650" | 0.1252" | 2.6654" | 0.1969" | 0.2165" | 3,554 | 1,942 | 0.8 |
SSER 206 | 30mm | M6 x 0.75 | 2.4409" | 1.5000" | 0.8740" | 0.6260" | 0.8740" | 0.0650" | 0.1252" | 2.6654" | 0.1969" | 0.2165" | 3,554 | 1,942 | 0.8 |
SSER 206-19 | 1-3/16" | 1/4-28 | 2.4409" | 1.5000" | 0.8740" | 0.6260" | 0.8740" | 0.0650" | 0.1252" | 2.6654" | 0.1969" | 0.2165" | 3,554 | 1,942 | 0.8 |
SSER 206-20 | 1-1/4" | 1/4-28 | 2.4409" | 1.5000" | 0.8740" | 0.6260" | 0.8740" | 0.0650" | 0.1252" | 2.6654" | 0.1969" | 0.2165" | 3,554 | 1,942 | 0.8 |
SSER 207-20 | 1-1/4" | 5/16-24 | 2.8346" | 1.6890" | 0.9370" | 0.6890" | 1.0000" | 0.0650" | 0.1252" | 3.0945" | 0.2362" | 0.2362" | 4,683 | 2,626 | 1.1 |
SSER 207-21 | 1-15/16." | 5/16-24 | 2.8346" | 1.6890" | 0.9370" | 0.6890" | 1.0000" | 0.0650" | 0.1252" | 3.0945" | 0.2362" | 0.2362" | 4,683 | 2,626 | 1.1 |
SSER 207-22 | 1-3/8" | 5/16-24 | 2.8346" | 1.6890" | 0.9370" | 0.6890" | 1.0000" | 0.0650" | 0.1252" | 3.0945" | 0.2362" | 0.2362" | 4,683 | 2,626 | 1.1 |
SSER 207 | 35mm | M8 x 1 | 2.8346" | 1.6890" | 0.9370" | 0.6890" | 1.0000" | 0.0650" | 0.1252" | 3.0945" | 0.2362" | 0.2362" | 4,683 | 2,626 | 1.1 |
SSER 207-23 | 1-7/16" | 5/16-24 | 2.8346" | 1.6890" | 0.9370" | 0.6890" | 1.0000" | 0.0650" | 0.1252" | 3.0945" | 0.2362" | 0.2362" | 4,683 | 2,626 | 1.1 |
SSER 208-24 | 1-1/2" | 5/16-24 | 3.1496" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.4094" | 0.3150" | 0.2953" | 5,294 | 3,057 | 1.5 |
SSER 208-25 | 1-9/16" | 5/16-24 | 3.1496" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.4094" | 0.3150" | 0.2953" | 5,294 | 3,057 | 1.5 |
SSER 208 | 40mm | M8 x 1 | 3.1496" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.4094" | 0.3150" | 0.2953" | 5,294 | 3,057 | 1.5 |
SSER 209-26 | 1-5/8" | 5/16-24 | 3.3465" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.6063" | 0.3150" | 0.2953" | 5,923 | 3,507 | 1.8 |
SSER 209-27 | 1-11/16." | 5/16-24 | 3.3465" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.6063" | 0.3150" | 0.2953" | 5,923 | 3,507 | 1.8 |
SSER 209-28 | 1-3/4" | 5/16-24 | 3.3465" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.6063" | 0.3150" | 0.2953" | 5,923 | 3,507 | 1.8 |
SSER 209 | 45mm | M8 x 1 | 3.3465" | 1.9370" | 1.0945" | 0.7480" | 1.1890" | 0.0650" | 0.1252" | 3.6063" | 0.3150" | 0.2953" | 5,923 | 3,507 | 1.8 |
SSER 210-30 | 1-7/8" | 3/8-24 | 3.5433" | 2.0315" | 1.1260" | 0.7480" | 1.2835" | 0.0949" | 0.1252" | 3.7992" | 0.3937" | 0.2953" | 6,402 | 4,046 | 2.0 |
SSER 210-31 | 1-15/16." | 3/8-24 | 3.5433" | 2.0315" | 1.1260" | 0.7480" | 1.2835" | 0.0949" | 0.1252" | 3.7992" | 0.3937" | 0.2953" | 6,402 | 4,046 | 2.0 |
SSER 210 | 50mm | M10 x 1.25 | 3.5433" | 2.0315" | 1.1260" | 0.7480" | 1.2835" | 0.0949" | 0.1252" | 3.7992" | 0.3937" | 0.2953" | 6,402 | 4,046 | 2.0 |
SSER 210-32 | 2" | 3/8-24 | 3.5433" | 2.0315" | 1.1260" | 0.7480" | 1.2835" | 0.0949" | 0.1252" | 3.7992" | 0.3937" | 0.2953" | 6,402 | 4,046 | 2.0 |
SSER 211-32 | 2" | 3/8-24 | 3.9370" | 2.1890" | 1.1890" | 0.8740" | 1.3150" | 0.0949" | 0.1252" | 4.1929" | 0.3937" | 0.2953" | 7,931 | 5,036 | 2.6 |
SSER 211-34 | 2-1/8" | 3/8-24 | 3.9370" | 2.1890" | 1.1890" | 0.8740" | 1.3150" | 0.0949" | 0.1252" | 4.1929" | 0.3937" | 0.2953" | 7,931 | 5,036 | 2.6 |
SSER 211 | 55mm | M10 x 1.25 | 3.9370" | 2.1890" | 1.1890" | 0.8740" | 1.3150" | 0.0949" | 0.1252" | 4.1929" | 0.3937" | 0.2953" | 7,931 | 5,036 | 2.6 |
SSER 211-35 | 2-3/16" | 3/8-24 | 3.9370" | 2.1890" | 1.1890" | 0.8740" | 1.3150" | 0.0949" | 0.1252" | 4.1929" | 0.3937" | 0.2953" | 7,931 | 5,036 | 2.6 |
SSER 212-36 | 2-1/4" | 3/8-24 | 4.3307" | 2.5630" | 1.2520" | 1.0000" | 1.5630" | 0.0949" | 0.1240" | 4.5906" | 0.3937" | 0.3346" | 9,554 | 5,921 | 3.6 |
SSER 212 | 60mm | M10 x 1.25 | 4.3307" | 2.5630" | 1.2520" | 1.0000" | 1.5630" | 0.0949" | 0.1240" | 4.5906" | 0.3937" | 0.3346" | 9,554 | 5,921 | 3.6 |
SSER 212-38 | 2-3/8" | 3/8-24 | 4.3307" | 2.5630" | 1.2520" | 1.0000" | 1.5630" | 0.0949" | 0.1240" | 4.5906" | 0.3937" | 0.3346" | 9,554 | 5,921 | 3.6 |
SSER 212-39 | 2-7/16" | 3/8-24 | 4.3307" | 2.5630" | 1.2520" | 1.0000" | 1.5630" | 0.0949" | 0.1240" | 4.5906" | 0.3937" | 0.3346" | 9,554 | 5,921 | 3.6 |
Features of Stainless Steel Insert Bearings
- with extended inner ring and grub screws for fixing the inner ring on a shaft
- suitable for mounting in a housing bearing
- suitable for high loads
- all components are made of stainless steel: the radial insert ball bearing is, therefore, corrosion-resistant and hygienic
- smooth running and good behavior with tilting due to the extended inner ring
- the spherical outer surface of the outer ring can compensate for misalignment if it is installed in a corresponding housing
- two-piece sealing system: with washer made of stainless steel reinforced rubber seal inside; outside additionally with upstream slinger made of stainless steel for high mechanical protection against foreign matter
- lubricated for life; under normal operating conditions, relubrication is not required
Company Information
We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need stainless steel bearings, please contact us.
FAQ
Q. Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: How long is your stainless steel bearings delivery time?
A: Generally, it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.
Q: Do you provide samples for stainless steel bearings? Is it free or extra?
A: Yes, we could offer the sample for free but do not pay the freight cost.
Q: Could you accept OEM and customize stainless steel bearings?
A: We can customize it for you according to the sample or drawing.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
Q: Will you check these products before shipment?
A: Our factory QC Process System will strictly inspect products before shipment. We have a professional QC team.
Q: What will we do if you are unsatisfied with the product?
A: If you have any abnormalities, please get in touch with us for the first time, and we will immediately process them.
Q: How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way, and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirmed the PI;
4. Confirm Payment and arrange the production.
If you need stainless steel bearings or any models of bearings, please contact me!
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
