Spiral Miter Gears

Spiral miter gears have a strength, oscillation, and noise level advantage over straight miter gears.

Category: Gear

Description

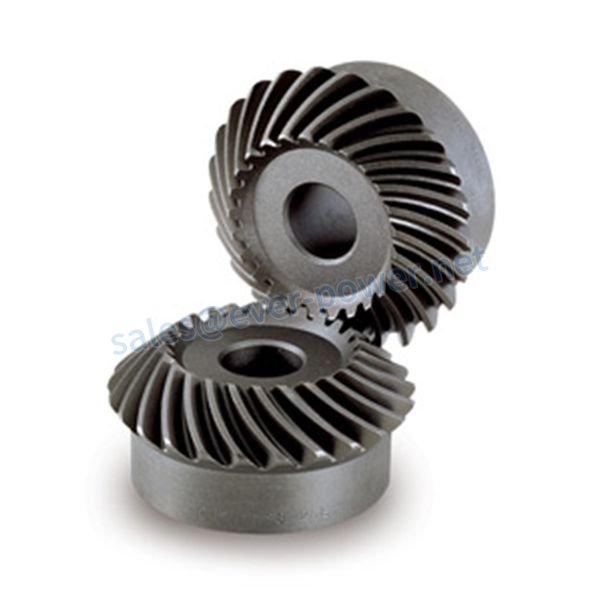

Spiral miter gears have their teeth formed along spiral lines. They are somewhat analogous to cylindrical helical gears in that the teeth are angled; however, the teeth are also curved with spiral gears. Spiral Miter gears have a strength, oscillation, and noise level advantage over straight Miter gears. The disadvantage of Spiral miter gears is that they produce an axial thrust load. Therefore proper bearing location and firm support are required for their assembly.

Basic Information

Module: 2 – 5
Material: SCM415
Hardening: Carburized
Tooth finish: Cut (non Ground)
Grade: JIS 4

Gears that have been hardened have excellent strength and wear resistance. Secondary operations are possible except for the teeth.

Product Features

Right-hand spiral miter 90 degree mesh transmits mechanical power between perpendicular shafts
The spiral angle of 35 degrees better suits this spiral miter gear for higher speed and larger torque applications than straight miter gears
Low carbon steel (.2 percent carbon) for applications where the hardness and strength of higher levels of carbon are not needed to transmit torque and motion
Hardened teeth for 1:1 gear ratio applications where hardness and strength are needed to transmit torque and motion
Bore has keyway and setscrew for use with keyed shaft
Stocked Materials range from steel, brass, and stainless steel

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
