Sintered Metal Bevel Gear

LM1.25-20, Module 1.25, 20 Tooth, Sintered Metal Miter Gears Specifications Gear Type Miter Gears Construction Sintered Metal Miter Gears Bore Type Plain Gear Ratio 1.0 Module 1.25 No. of teeth 20 Shape B1 Bore (A) 6.0 (mm) Hub Diameter (B) 22.0 (mm) Pitch Diameter (C) 25.00 (mm) Outer Diameter…

Categories: ,

LM1.25-20, Module 1.25, 20 Tooth, Sintered Metal Miter Gears Specifications

Sintered Metal Bevel Gear

Gear Type
Miter Gears
Construction
Sintered Metal Miter Gears
Bore Type
Plain
Gear Ratio
1.0
Module
1.25
No. of teeth
20
Shape
B1
Bore (A)
6.0 (mm)
Hub Diameter (B)
22.0 (mm)
Pitch Diameter (C)
25.00 (mm)
Outer Diameter (D)
26.77 (mm)
Mounting Distance (E)
23.0 (mm)
Face Width (J)
6.36 (mm)
Hub Width (H)
6.0 (mm)
Total Length (F)
15.00 (mm)
Length from Crown to Back
11.38 (mm)
Length Of Bore (I)
15.00 (mm)
Bending Strength (N-m)
0.8100
Surface Durability (N-m)
0.0990
Bending Strength (kgf-m)
0.0830
Surface Durability (kgf-m)
0.01
Backlash
0-0.20 (mm)
Weight
0.03880 (kg)
Precision Grade
JIS B 1704:1978 grade 5
Gear Teeth Type
Gleason
Pressure Angle
20°
Material
SMF5040 Sintered Carbon Steel
Tooth Hardness
70-95HRB
Hot Tags: sintered metal bevel gear, China, suppliers, manufacturers, factory, wholesale, buy, made in China

Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

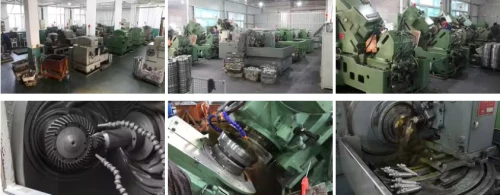

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

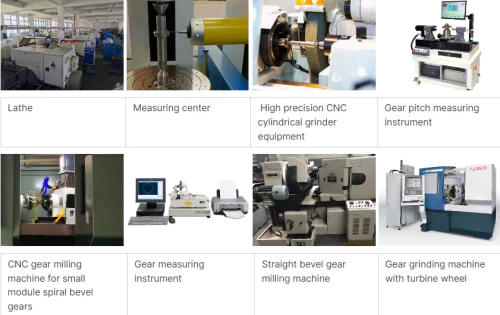

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
