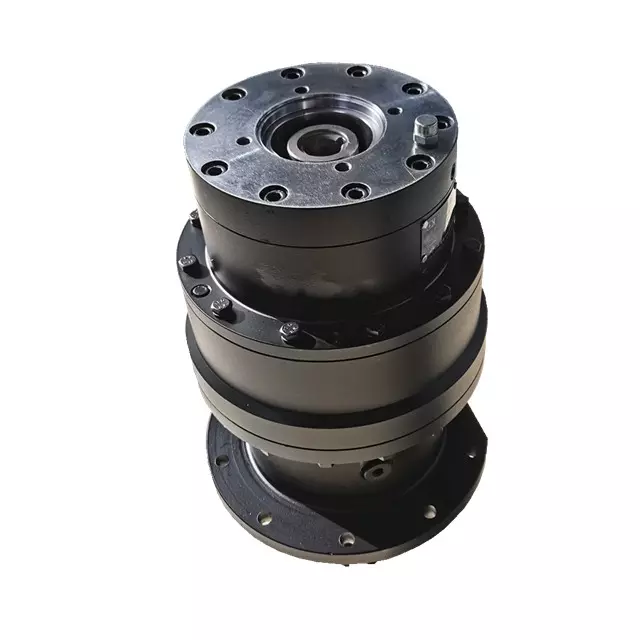

Planetary Gearbox for Trucked and wheeled cranes

Wheel drive, single reduction

1. The coupling (1) rotates in the direction of rotation of the motor shaft (CW)
2. Input shaft (2) splined to coupling (CW)
3. The sun gear (3) is splined to the input shaft (CW)
4. Planetary gear (4) rotates relative to sun gear (CCW)
5. Planetary gear (4) drives ring gear (5) in the same direction (CCW)
6. Ring gear (5) connects to the hub (6), hub rotates (CCW)
7. Hub (6) attached to wheel/rim, wheel rotation (CCW)

.

Wheel Drive, Double Reduction

1. Coupling (1) rotates in the direction of motor shaft rotation (CCW)
2. Input shaft (2) splined to coupling (CCW)
3. Primary sun gear (3) splined to the input shaft (CCW)
4. Planet gears (4) rotate opposite sun gear (CW)
5. Primary carrier (5) rotates opposite planet gears (CCW)
6. Secondary sun gear (6) attached to the primary carrier (5) (CCW)
7. Secondary planet gears (7) rotate opposite sec. sun gear (6) (CW)
8. Ring gear (8) rotates in the same direction as sec. planet gears (7) (CW)
9. Hence driving the hub (9) (CW)
10. Hub (9) attached to wheel/rim (CW)

Shaft/Spindle Output, Single Reduction

1. Sun gear (1) rotates in the direction of motor shaft rotation (CW)
2. Planet gears (2) rotate opposite sun gear (1) (CCW)
3. Carrier (3) is driven in the same direction as the sun gear (1) (CW)
4. Spindle or shaft (4) is splined to the carrier (3); therefore, it rotates (CW)

Shaft/Spindle Output, Double Reduction

1. Primary sun gear (1) rotates in the direction of motor shaft rotation (CCW)
2. Primary planet gears (2) rotate (CW)
3. Primary carrier (3) driven (CCW)
4. Secondary sun gear (4) attached to the primary carrier (3) (CCW)
5. Secondary planets (5) rotate opposite secondary sun gear (4) (CW)
6. Secondary carrier (6) driven (CCW)
7. Output spindle or shaft (7) splined to secondary carrier assembly (6) (CCW)

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
