Magnetic Rodless Cylinder

magnetic rodless cylinder, rodless cylinder with magnetic coupling, pneumatic cylinder

Category: Pneumatic Cylinder Tags: rodless cylinder, rodless cylinder with magnetic coupling

Description

A rodless cylinder is often a pneumatic part capable of moving a load inside a linear path with compressed air. Whereas a regular pneumatic cylinder employs a rod to push or pull the load in the piston, a rodless cylinder moves the load alongside the piston. This provides the key advantages of getting the identical stroke length in much less space, no rod buckling to fear about with substantial loads or long strokes, and it delivers the exact same force in both instructions. The rodless cylinder is most normally applied for applications like material handling, loading, lifting, internet cutting, and so on. Figure 1 displays an instance of the rodless cylinder.

CY3R Series Magnetic Rodless Cylinder

How to Order:

CY3R		G		20		50
Model		Piping form		Bore size		Stroke

Specification:

Bore Size	15	20	25	32	40
Max. operating pressure	0.7
Min. operating pressure	0.16		0.15	0.14	0.12
Temperature Range	-10～50 ℃(No freezing)
Piston speed(mm/s)	50-500
Stroke Tolerance(mm)	02~250 ±0.1 251~1000 ±1.4 1001~±1.8
Magnet holding force (N)	137	231	363	588	922
Piping Port	M5*0.8	R1/8

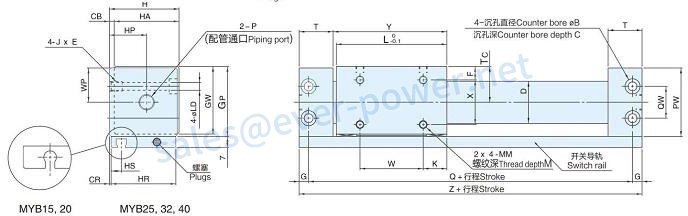

Outline Dimension:

Both sides Piping type:	MYB Ø15~Ø40

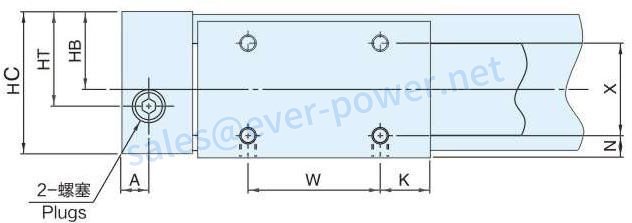

Note 1) the drawing shows types with switch rail(Nil)

rodless-cylinder-outline-dimension-1

Model	A	B	C	CB	CR	D	F	G	GP	GW	H	HA	HB	HC	HP	HR	HS	HT	J x E	K
MYB15	10.5	8	4.2	2	0.5	16.6	8	5	33	31.5	32.39	30	17	31	17	30	8.5	17	M5x0.8x7	14
MYB20	9	9.5	5.2	3	1	21.6	9	6	39	38.5	39	36	21	38	24	36	7.5	24	M6x1x8	11
MYB25	8.5	9.5	5.2	3	1	26.4	8.5	6	44	42.5	44	41	23.5	43	23.5	41	6.5	23.5	M6x1x8	15
MYB32	10.5	11	6.5	3	1.5	33.6	10.5	7	55	53.5	55	52	29	54	29	51	7	29	M8x1.23x10	13
MYB40	10	11	6.5	5	2	41.6	13	7	65	63.5	67	62	36	66	36	62	8	36	M8x1.23x10	15

Model	L	LD	M	MM	N	PW	Q	QW	T	TC	W	WP	X	Y	Z
MYB15	53	4.3	5	M4 x 0.7	6	32	84	18	19	17	25	16	18	54.5	94
MYB20	62	5.6	5	M4 x 0.7	7	38	95	17	20.5	20	40	19	22	64	107
MYB25	70	5.6	6	M5 x 0.8	6.5	43	105	20	21.5	22.5	40	21.5	27	72	117
MYB32	76	7	7	M6 x 1	8.5	54	116	26	24	28	50	27	35	79	130
MYB40	90	7	8	M6 x 1	11	64	134	34	26	33	50	32	40	93	148

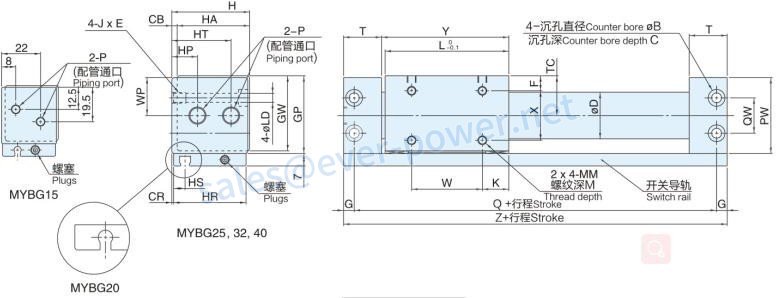

Centralized Piping type:

MYB Ø15~Ø40

Model	HP	HT
MYBG15	-	-
MYBG20	11	28
MYBG25	14.5	33.5
MYBG32	220	41
MYBG40	25	50

Note 2) the unmarked sizes are same as both sides piping form.

Rodless cylinders have no rod, only a fairly extended piston. Cable cylinders retain openings at one or each ends, but pass a flexible cable as an alternative to a rod. This cable features a smooth plastic jacket for sealing purposes. Not surprisingly, a single cable needs to be kept in tension. Other rodless cylinders shut off both ends, coupling the piston either magnetically or mechanically to an actuator that runs along the outside in the cylinder. Within the magnetic style, the cylinder is thin-walled and of the non-magnetic materials, the cylinder is often a strong magnet, and pulls along a magnetic traveller to the outdoors.

From the mechanical sort, part with the cylinder extends for the outside via a slot cut down the length with the cylinder. The slot is then sealed by versatile metal sealing bands about the inside (to avoid gasoline escape) and outdoors (to prevent contamination). The piston itself has two end seals, and amongst them, camming surfaces to "peel off" the seals ahead from the projecting linkage and also to exchange them behind. The interior with the piston, then, is at atmospheric pressure.

A single well-known application from the mechanical type (albeit steam-powered) are the catapults utilised on a lot of contemporary aircraft carriers.

How does the rodless cylinder work?

Product Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
