Low pressure micro-oil screw air compressor
We is a leading manufacturer of industrial air compressor china manufacturers, oir free air compressor china suppliers and screw air compressor china spare parts.Based in China, our product lower noise air compressors,Oil-free screw air compressor range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, etc. industries.
CMN/D series low pressure micro-oil screw air compressor widely used:
In textile industry,oil-free and micro oil low pressure compressed air is nedded in many occasions
All kinds of glass bottle is shaped by the low pressure air compressor.It saves energy resources and blows perfect shape

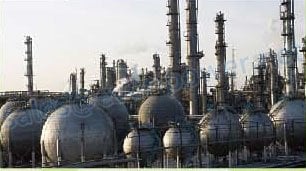

The chemical industry(filter pressing,transmission)needs low pressure compressed air

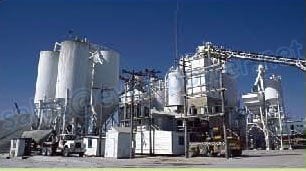

In the cement transportation process,the low pressure compressed air helps the work of transportation and also avoids blowing everywhere
Model | Maximum work pressure | FAD | >Air supply temperature | Power | Noise | Oil content(supply air) | Net weight | Cooling fan power | Air outlet diameter | Size | |
L×W×H | |||||||||||
Mpa | m3/min | ℃ | kW | HP | dB(A) | PPM | kg | kw | inch | mm | |
CMN08D | 0.4 | 1.77 | ≤环境温度+15℃ | 7.5 | 10 | 62 | ≤2 | 565 | 0.18 | 1 1/2″ | 1250×790×1200 |
CMN11D | 0.4 | 2.6 | ≤ambient temperature+15℃ | 11 | 15 | 62 | 585 | ||||
CMN15D | 0.4 | 3.55 | 15 | 20 | 63 | 710 | 0.45 | 2″ | 1500×960×1400 | ||
CMN22D | 0.4 | 5.2 | 22 | 30 | 65 | 770 | |||||
CMN30D | 0.4 | 7.09 | 30 | 40 | 66 | 1250 | 1.8 | 2 1/2″ | 1850×1105×1600 | ||
CMN37D | 0.4 | 8.75 | 37 | 50 | 67 | 1290 | |||||
CMN45D | 0.4 | 10.64 | 45 | 60 | 68 | 1476 | 3 | 3″ | 1900×1200×1600 | ||
CMN55D | 0.4 | 13 | 55 | 75 | 70 | ||||||
1570 | |||||||||||
CMN75D | 0.4 | 17.73 | 75 | 100 | 73 | 4.3 | 3″ | 2000×1320×1980 | |||
2290 | |||||||||||
CMN90D | 0.4 | 21.27 | 90 | 125 | 73 | ||||||
2250 | 2000×1370×1980 | ||||||||||
CMN110D | 0.4 | 26 | 110 | 150 | 78 | 5 | 4″ | 2830×1900×2325 | |||
3700 | |||||||||||
CMN132D | 0.4 | 31.2 | 132 | 175 | 78 | ||||||
3760 | |||||||||||
CMN160D | 0.4 | 37.82 | 160 | 215 | 78 | 4430 | 7 | 5″ | 3200×2000×2500 | ||
CMN185D | 0.4 | 43.73 | 185 | 250 | 78 | ||||||
5000 | |||||||||||
CMN200D | 0.4 | 47.27 | 200 | 270 | 78 | 5050 | 11 | 6″ | 3200×200×2500 | ||
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
