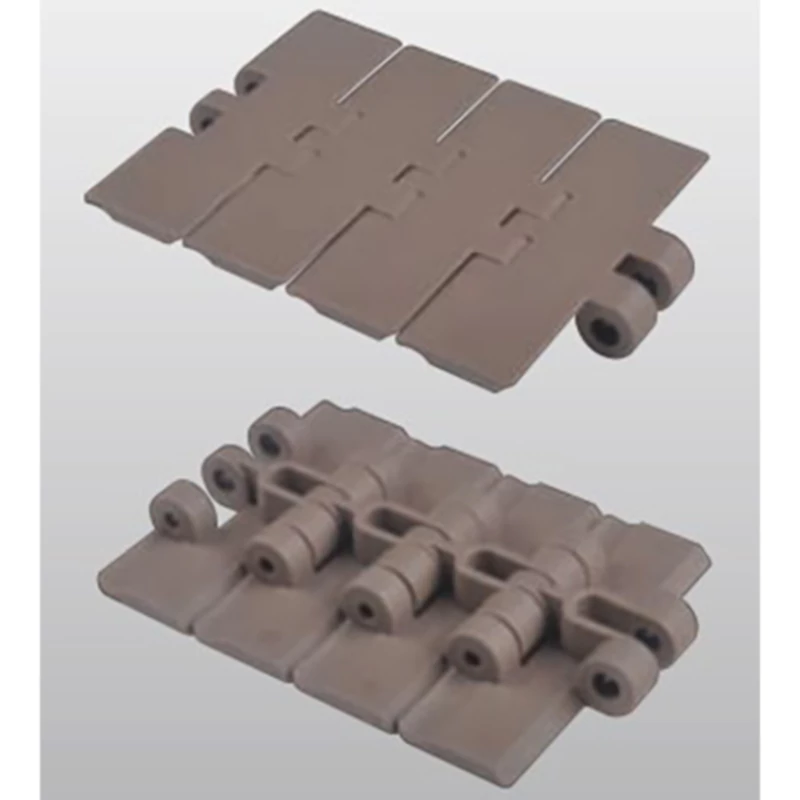

LF520-K325 plastic flat top chains Single Hinge Straight Running: An Efficient Solution for Multiple Industries

Introduction

Plastic flat top chains are a versatile and cost-efficient solution for a variety of industrial applications. These chains, known for their lightweight construction, corrosion resistance, chemical resistance, low friction, and noise reduction during operation, offer improved performance and efficiency.

Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.

The longest distance: 12M

Max. speed: lubricant 80M/min

dryness 50M/min

Working load: 1250N

Pin material: austenitic stainless steel

Plate material: POM acetal

(Temperature: -40 ~ 90℃)

Packing: 10 feet = 3.048 M/box 39pcs/M

Advantages and Benefits

Plastic flat top chains boast a myriad of benefits. Offering smooth and precise accommodation, excellent stability, tracking, and easy cleaning and maintenance, they are superior to other types of conveyor chains. They are capable of handling high-speed applications and are compatible with a variety of conveyor systems.

Applications

Plastic flat top chains find wide-ranging applications across various industries such as food and beverages, packaging, pharmaceutical, automotive, and general material handling. For example, they are used to transport bottles, cans, packages, and automotive components.

Design and Configuration

Plastic flat top chains come in different widths, pitches, and materials to accommodate specific vessel requirements. Some also offer special features or customization options such as side guards, flights, or attachments.

Maintenance and Longevity

Plastic flat top chains require minimal lubrication, are easy to clean, and offer excellent resistance to wear and tear. They are long-lasting and durable, capable of withstanding hard operating conditions and providing reliable performance over time.

Installation and Replacement

Proper tension, alignment, and pocket engagement are crucial for the optimal performance of plastic flat top chains. It is also important to follow recommended procedures for replacing damaged or worn-out chain segments.

Considerations and Limitations

When selecting a plastic flat top chain, considerations such as load capacity limits, temperature resistance, and potential challenges in extreme operating conditions should be taken into account.

Industry Standards and Regulations

Plastic flat top chains adhere to various industry standards and regulations, ensuring product quality, safety, and performance across multiple industries.

Case Studies or Examples

Real-life case studies demonstrate the successful implementation of plastic flat top chains, with outcomes such as increased production, reduced downtime, and improved product quality.

Future Developments

Emerging trends in plastic flat top chain technology, such as the use of advanced materials or the integration of smart technologies, may further enhance their performance and capabilities.

Additional Chain Products

Ever-Power offers a wide range of chain products, including Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, Mega Chains,and more.

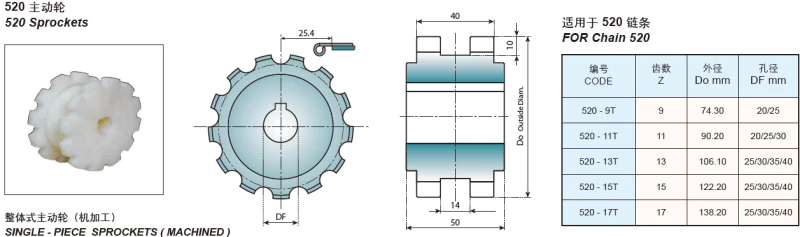

We also provide sprockets that match the chain.

The sprocket is a key component of the chain's power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing the chain to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

About EVER-POWER

EVER-POWER is a leader in the industry with advanced production and inspection equipment, including CNC Gear grinding machine, gear measuring machine, CNC gear shaper, machine center, CMMS, and torque test system. Our professionalism, international certification, customized services, and excellent after-sales service make us a preferred partner for many businesses.
