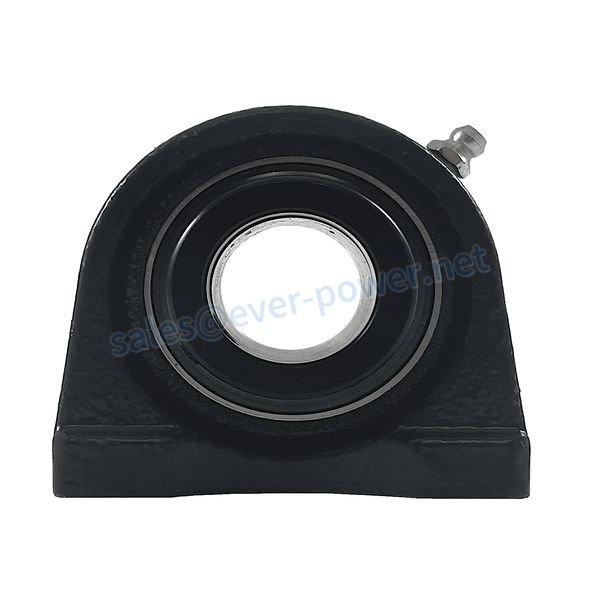

HCTB200 Pillow Block Bearings

HCTB200 pillow block bearings are threaded base housing bearings secured to the shaft with an eccentric locking ring. Our premium HCTB200 pillow block bearings feature C3 precision inserts mounted within a high-strength cast iron housing with an easy-access grease nipple for relubrication and bearing maintenance. These are standard bearings commonly found in the following applications: automotive, agriculture, construction, conveyor belts, fans, and factory machinery. We stock a full range of HCTB200 pillow block bearings in both imperial and metric bores.

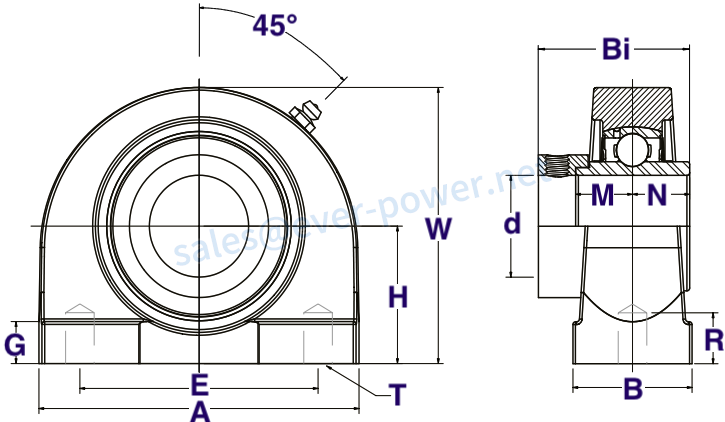

HCTB200 Pillow Block Bearing Sizes

Advantages of Pillow Block Bearing

However, let it be any baring when handling heavy vibration. A pillow block is necessary. This comes along with a mounting to provide load shift. The bearing pillow block has the advantage that it has the ability of self-alignment. They are easy to install, have a low maintenance cost, and have high mechanical strength. It can carry heavier weights. It allows dragging the heavy object at a low speed but with smoothness and the least friction.

How to Choose Pillow Block Bearing?

1. Shaft diameter or bore of pillow block bearing: calculate the loads according to the customer's selection, and determine the shaft diameter or the bore of pillow block bearing with sufficient rigidity and deflection.
2. Shaft height position: Determine the height of the shaft center from the mounting base of the pillow block bearing according to the structure size of the mechanism.
3. The maximum shaft speed: According to the operating speed of the shaft, EVER-POWER, as a professional pillow block bearing supplier, determines whether the limit speed of the bearing with a seat can meet the application requirements.
4. The maximum load of the pillow block bearing: According to the limitation of the entire shafting system, the burden of the pillow block bearing would be verified, including the fatigue life of the bearing and the strength of the pillow blocks.
5. Misalignment performance: According to the misalignment information required in the shafting design, select the appropriate type and configuration of pillow block bearing.

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need pillow block bearing, please feel free to contact us.
