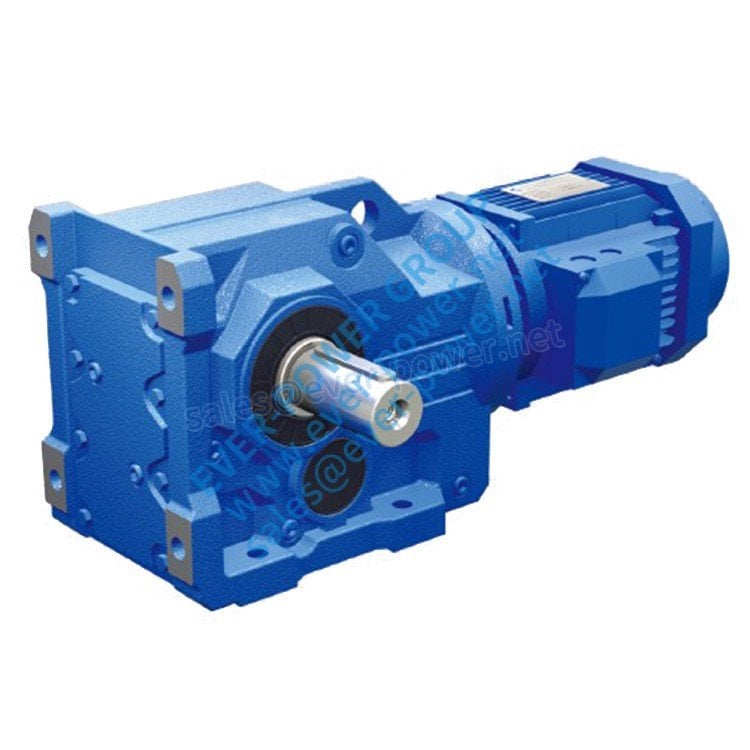

EK series helical-bevel gear motor

EK series helical-bevel gear motor

1 Performance Characteristics
Systematic and modular design;Transmiss­ion ratio with fine stage covers a wide range.
High efficiency; Low energy consumption; Superior performance.
High Precision gearwith teeth grinding;Sta­ble transmission; Low noise; Strong bearing capacity; Long Service life.
Deft design: Small volume; Simple Installa­的n; Wide usage.

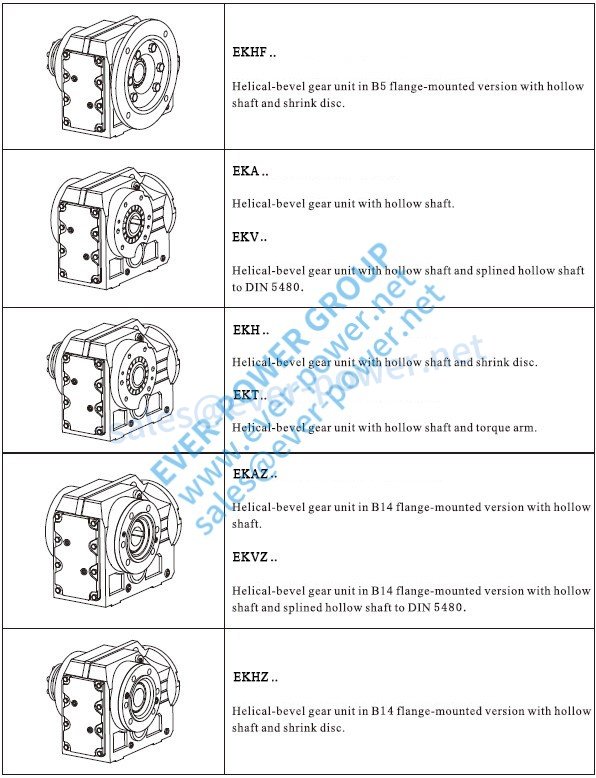

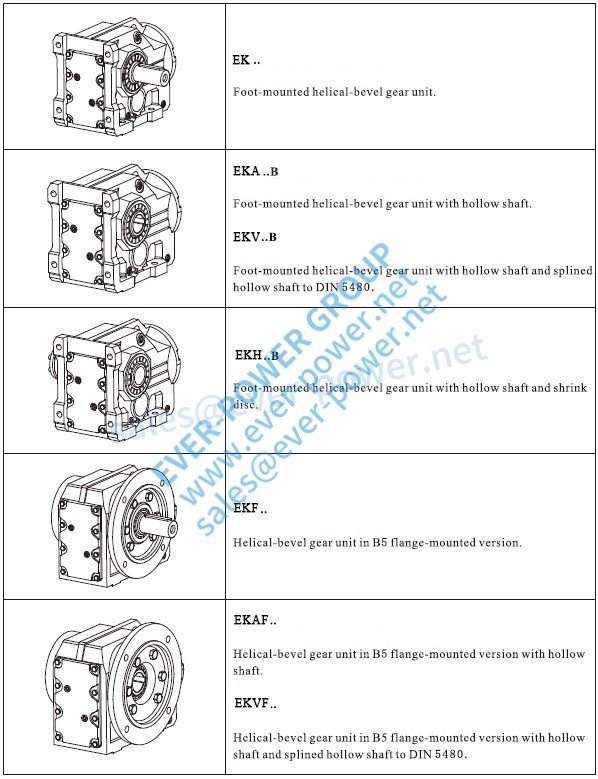

Suitable for all kinds of mounting positions
EK .. and ERF .. conjoined combination for special low speed.
2 Material
Housing: High strength cast iron HT250, die casting lumen, reduce the abrasion of parts.
Gears: 20CrMo, Carbonitriding, Teeth hard­ness: HRC 60 after grinding.
Flat keys: C45, Surface hardness: HRC 50.
3 Gear Unit Efficiency
High precision gear; seals; bearings;Effecti­vely reduces friction; Stage efficiency of ge­ar drive reaches 97%.
For some ways of mounting, the input gear is completely immersed in the lubricant, please consider the churning loss when it comes to big frame size and high input speed .

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
