EWA9 Series Slewing Drive

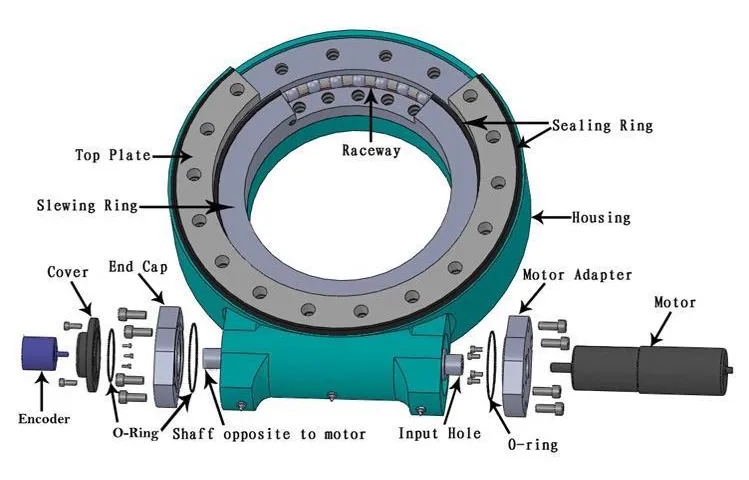

Slewing drive is a slewing device, also known as slewing drive, worm gear reducer or slewing bearing driven slewing drive, etc. Slewing drive consists of an hourglass worm, slewing bearing (bearing), bearing seat, tapered roller bearing, etc. The purpose of deceleration is achieved by the worm drive of the outer ring of the slewing bearing. A worm driven by a motor rotates the outer ring of the slewing bearing. The outer ring outputs torque through the flange, and the inner ring is fixed on the shell and connected with the host shell or flange.

Category:

Slewing drive is a slewing device, also known as slewing drive, worm gear reducer or slewing bearing driven slewing drive, etc. Slewing drive consists of an hourglass worm, slewing bearing (bearing), bearing seat, tapered roller bearing, etc. The purpose of deceleration is achieved by the worm drive of the outer ring of the slewing bearing. A worm driven by a motor rotates the outer ring of the slewing bearing. The outer ring outputs torque through the flange, and the inner circle is fixed on the shell and connected with the host shell or flange.

HZPT now brings you low-price slewing drives made in China. As a professional slewing drive manufacturer and supplier in China, we are also known as a world-renowned brand. There are many products in stock. Welcome to customize wholesale our slewing bearings.

Performance Parameters

Front View Top View



Output torque Tilting moment torque Holding torque Axial load Radial load Ratio Backlash Weight
输出转矩 倾覆力矩 保持力矩 轴向承载力 径向承载力 速比 精度 重量
8kN.m 35.6 kN.m 39.8 kN.m 580 KN 220 KN 62:1 <= 0.15 ° 52Kg
5904 Lbf.ft 26300 Lbf.ft 29370 Lbf.ft 130300 Lbf 49400 Lbf

Benefits of Using Slewing Drive Technology

Slew drives are a powerful and cost-effective alternative compared to traditional gearbox systems. Its advantages include:

  • High power density: While slewing rings are most commonly used to generate slew rotation. Slewing drive technology capitalizes on the capacity of its internal slewing ring while introducing a built-in driving force through the worm gear. Speed and reduction ratios are better controlled through the worm wheel design than a standard slew ring and pinion.
  • Space-saving: Slew drives allow for considerable space saving in perpendicular planes, as no other gearboxes are required for speed reduction.
  • Protection for internal components: In harsh environments, an enclosed housing slewing drive protects the internal components from debris and contamination through different sealing solutions.
  • Plug and play: Slew drives can be integrated and installed into any system once they are in place and attached to a power source. This setup is an improvement from the corrective adjustments made on older systems.
  • Customizable: Slew drives can be customized to meet their application, including multiple drive motors to double the torque capacity.

Swapping from Right Hand to Left Hand Drive

HZPT slewing drives are usually imported and stocked with the motor mounted on the right-hand side. If requested, we can change the units to left-hand motor mounts before despatch, but this is easily accomplished in the field.

  1. Remove the four bolts holding the end caps onto the main housing.
  2. Remove the end caps., the seals, and the taper roller bearings cones.
  3. Gently remove the worm shaft - turning it will assist in this process
  4. Reverse and insert the worm shaft into the housing in the opposite orientation
  5. Replace the tapered roller bearing cones and seals. Replace the end caps.
  6. Check rotation by hand.

Company Profile

HZPT is a high-tech enterprise integrated with research and development, production, and sales. We focus on the research and development of slew bearings, high-precision slew drives, and planetary gear motors. Our products are widely used in solar photovoltaic, photothermal, satellite, robot, engineering machinery, etc. We will devote ourselves to continuous product improvement and the implementation of strict quality control standards and will continue striving to meet customers' growing needs. We are committed to providing customers with reliable, diversified, high-quality, and customized solutions.

OEM/ODM Service

To meet the actual demand of the market and provide a suitable and appropriate solution, we provide OEM service for stable and long-term business cooperation with customers and traders. Our customers will earn competitive advantages with the effective reduction and time-to-market.

With OEM services, we are your supplier to offer cost-effective manufacturing, on-time deliveries, and the best quality standards. We sincerely hope to make the cooperation with any company, enterprise, or individual with OEM service.

Our technical team has extensive experience in slew drive unit technology across new energy and construction machinery industries. We can assist you from the sample through the final product as follows:

1) Improve your product's capabilities

2) Your sample and specification are welcome;

3) Excellent technical support available to help you solve some problems in the project application

4) Just-in-time delivery

FAQ About Slew Drives

1. What is the prime mover for slew drive?

A: An electric or hydraulic motor is the prime mover for slew drive.

2. Does slew drive requires a brake or not?

A: Depends upon the requirement and application.
3: Where is slew drive used?

A: Slew drive is used for any machine having turning movement. Usually, it is used with slew bearings with internal or external teeth, and the gearbox has a pinion on the output shaft that drives the big gear of the slew bearing.

4. What type of gearbox is used in slew drive?

A: Planetary gearbox is used in slew drive.

5: What kind of braking arrangement is provided for slew drive?

A: Normally, slew drives are electric or hydraulic. The electric type has got shoe type brake or Negative electromagnetic brake on the motor. At the same time, the hydraulic type has got a multidisc hydraulic brake.

6. What type of bearings are used in this slew drive?

A: Spherical or roller bearings are usually used in the slew gearbox output shafts to take care of high radial loading.
7. Which type of pinion is used in the slew drive?
A: Normally, the slew drive has a pinion with a corrected profile to ensure a complete contact pattern with bearing gear.
8. How is backlash adjusted in slew drive?

A: To adjust the backlash between the pinion and slew gear, the gearbox's mounting is slightly eccentric to adjust the backlash precisely.

9. Slew drive is used for which applications?
A:  Slew drive is used for stacker, ash handling reclaimer, windmill, tower cranes, and excavators.
