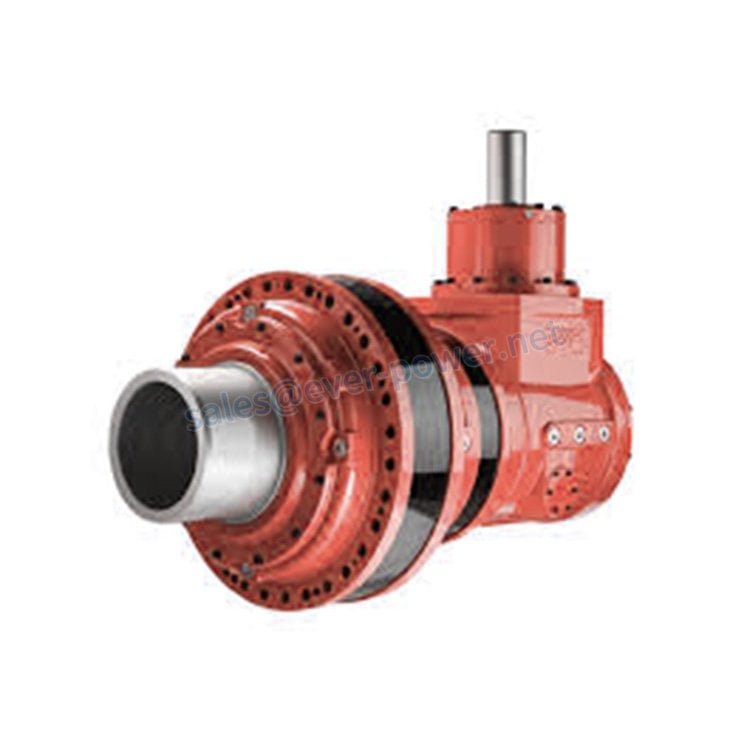

EPW Planetary Gearboxes With Foot Dimensions

EPW Planetary Gearboxes With Foot Dimensions

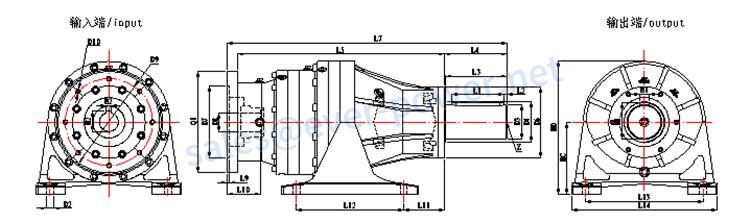

products type EPW215 EPW265 EPW315 EPW360 EPW420
stages 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3
D2 installment hole 4- Φ 14 19 19 24 24
D3 output shaft diameter Φ h7 50 80 90 110 120
D4 shaft root Φ 60 100 110 125 140
D6 end surface diameter Φ h7 140 175 205 225 245
D7 input center bore for motor Φ H7 114.3 114.3 114.3 180 114.3 114.3 230 180 114.3 250 230 180 300 250 230
D8 input pinion bore Φ F7 35 35 35 42 35 35 55 42 35 60 55 42 65 60 55
D9 hole circle Φ 200 200 200 215 200 200 265 215 200 300 265 215 350 300 265
D10 mounting thread depth 4-/8- M12 M12 M12 M12 M12 M12 M12 M12 M12 M16 M12 M12 M16 M16 M12
Q1 input flange Φ □ 175 □ 175 □ 175 250 □ 175 □ 175 300 250 □ 175 350 300 250 400 350 300
L1 key length 70 90 120 150 180
L2 distance from shaft end 5 10 10 10 15
L3 shaft length from spigot 80 110 140 170 210
L4 shaft length from outpur 85 115 145 175 215
L5 body length 236.5 284.5 322 387 399.5 447.5 443 524 536.5 495 603 684 550 665 773
L7 overall length 381.5 429.5 467 532 574.5 622.5 623 699 741.5 730 813 889 807 940 1023
L9 motor location depth 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5
L10 motor shaft length 83.5 83.5 83.5 93.5 83.5 83.5 116.5 93.5 83.5 145 116.5 93.5 144 145 116.5
L11 installment hole to end surface 60 70 75 95 115
L12 pitch of holes 160 250 300 320 350
L13 pitch of holes 216 254 310 360 410
L14 foot width 260 310 380 445 500
B1 key width 14 22 25 28 32
H1 key height 53.5 85 95 116 127
Z orient holes M12*26 M16*35 M16*35 M16*35 M20*50
HC height of center 132 160 200 225 250
HD entire high 239.5 292.5 357.5 405 460
B2 input key slot width 10 10 10 12 10 10 16 12 10 18 16 12 18 18 16
H2 input key slot height 38.3 38.3 38.3 45.3 38.3 38.3 59.3 45.3 38.3 64.4 59.3 45.3 69.4 64.4 59.3
