EP-Automotive Power Steering Pump Driving Motor 130 Series
This Automotive Power Steering Pump Driving Motor 130 Series operates within a voltage range of 540-700 VDC and provides a peak output of 4.5 kW, achieving a 91.1% efficiency rate. With a maximum speed of 1500 RPM and a rated torque of 9.5 Nm, this motor is designed to deliver high performance under varied load conditions.
In terms of electrical characteristics, it operates with a rated current of 3.1 A and a low resistance of 2.8 ohms, ensuring minimal energy loss. The motor also supports a wide working temperature range from -15°C to 55°C, making it suitable for diverse operating environments. The motor is rated with an IP67 protection class, ensuring durability in challenging conditions.
1. Technical Specifications of Automotive Power Steering Pump Driving Motor 130 Series
| Model | 130ST-SNT220-010-15A | 130ST-SNT220-015-15A | 130ST-SNT380-015-15A | 130ST-SNT220-023-15A | 130ST-SNT380-023-15A |
|---|---|---|---|---|---|
| Controller Voltage Range (VDC) | 320-420 | 320-420 | 540-700 | 320-420 | 540-700 |
| Base Number | 130 | 130 | 130 | 130 | 130 |
| Rated Voltage (V) | 220 | 220 | 380 | 220 | 380 |
| Rated Power (kW) | 1 | 1.5 | 1.5 | 2.3 | 2.3 |
| Rated Torque (Nm) | 6.4 | 9.5 | 9.5 | 15 | 15 |
| Rated Speed (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rated Current (A) | 3.8 | 5.4 | 3.1 | 7.8 | 4.7 |
| Rated Efficiency (%) | 90.6 | 91.2 | 91.1 | 92.0 | 91.8 |
| Peak Power (kW) | 3 | 4.5 | 4.5 | 6.9 | 6.9 |
| Number of Poles | 10 | 10 | 10 | 10 | 10 |
| Back EMF (20°C) (V/krpm) | 107.5 | 113 | 198 | 118 | 197 |
| Phase Resistance (75°C) (Ω) | 1.28 | 0.902 | 2.8 | 0.524 | 1.52 |
| Phase Inductance (mH) | 19.3 | 15 | 46.8 | 10.5 | 29.4 |
| Electrical Time Constant (ms) | 7.54 | 8.31 | 8.36 | 10.02 | 9.67 |
| Torque Constant (Nm/A) | 1.7 | 1.77 | 3.09 | 1.92 | 3.19 |
| Protection Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Insulation Class | H | H | H | H | H |
| Duty Cycle | S2-3min | S2-3min | S2-3min | S2-3min | S2-3min |
*Please consult the EVER-POWER engineering team for detailed 2D/3D drawings and customization options regarding the automotive power steering pump driving motor diagram.

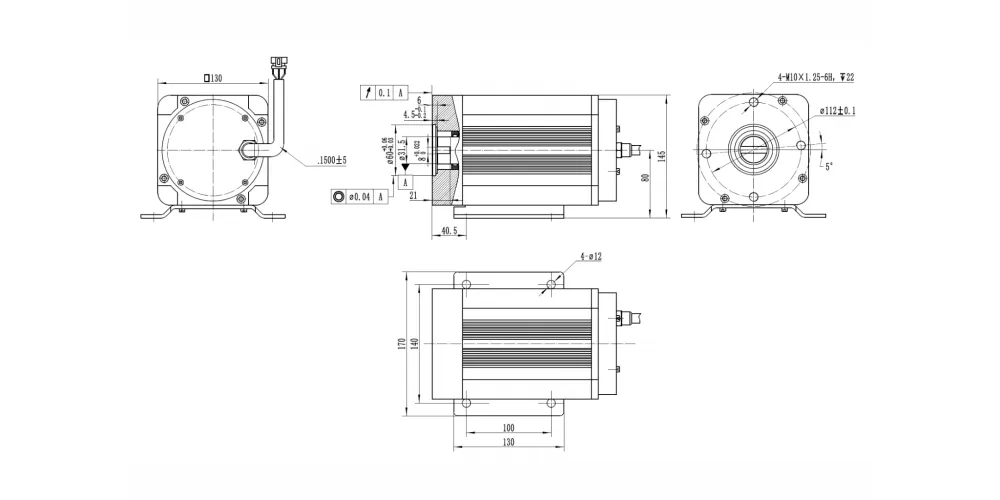

1.5kW automotive power steering pump driving motor diagram

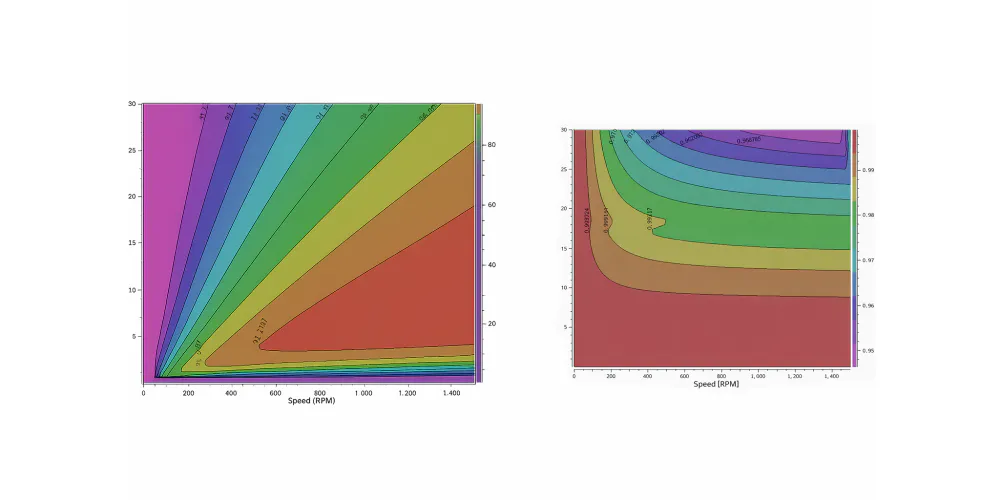

1.5 kW motor efficiency map and power factor map
| Controller Voltage Range (VDC) | 540-700 | Number of Poles | 10 |
|---|---|---|---|
| Frame Size | 130 | Back EMF (20℃) (v/krpm) | 198 |
| Rated Voltage (V) | 380 | Phase Resistance (75℃) (Ω) | 2.8 |
| Rated Power (kW) | 1.5 | Line-to-Line Inductance (mH) | 46.8 |
| Rated Torque (Nm) | 9.5 | Electrical Time Constant (ms) | 8.36 |
| Rated Speed (rpm) | 1500 | Torque Constant (Nm/A) | 3.09 |
| Rated Current (A) | 3.1 | Protection Class | IP67 |
| Rated Efficiency (%) | 91.1 | Insulation Class | H |
| Peak Power (kW) | 4.5 | Duty Cycle | S2-3min |
2. Product working principle, materials, and application scenarios
2.1. Working Principle of the 130 Series Motor
The working principle of the Automotive Power Steering Pump Driving Motor 130 Series revolves around the efficient conversion of electrical energy into mechanical energy to drive the hydraulic fluid within the power steering system. Unlike traditional belt-driven pumps that parasitically drain engine power, this motor is an independent unit controlled by the vehicle's ECU. It utilizes Permanent Magnet Synchronous Motor (PMSM) technology, which employs high-strength permanent magnets in the rotor to create a constant magnetic field. When the stator windings are energized by the inverter, a rotating magnetic field is generated, causing the rotor to spin in synchronization.
This synchronous operation ensures precise speed control and high torque density. When the driver turns the steering wheel, sensors detect the torque and speed of the input. The system controller then commands the power steering motor to spin at the exact RPM required to generate the necessary hydraulic pressure via the attached pump. This "on-demand" functionality means the motor consumes minimal energy when the vehicle is driving straight, drastically improving the overall energy efficiency of the electric vehicle. The 130 Series is engineered to handle rapid changes in load, providing instant torque to assist steering maneuvers, ensuring safety and comfort for the driver.
2.2. Material & Robust Construction
The durability of an automotive power steering pump driving motor replacement unit is defined by the quality of its materials. EVER-POWER utilizes premium-grade materials to ensure the 130 Series withstands the harsh operational environments of commercial vehicles. The stator core is manufactured from high-permeability cold-rolled silicon steel laminations, which significantly reduce eddy current losses and improve magnetic efficiency. The winding wire is composed of high-purity copper with Class H insulation enamel, capable of resisting temperatures up to 180°C, preventing thermal breakdown during peak load operations.
The rotor features high-grade Neodymium Iron Boron (NdFeB) rare-earth magnets, selected for their exceptional magnetic field strength and resistance to demagnetization at high temperatures. The motor housing is cast from high-strength aluminum alloy, which provides a lightweight yet rigid structure that excellent thermal conductivity for heat dissipation. To achieve the IP67 protection rating, all mating surfaces are sealed with automotive-grade silicone gaskets and high-performance shaft seals, effectively preventing the ingress of dust, road salts, and water. This meticulous material selection ensures that the power steering pump driving motor for EV applications delivers a long service life with minimal maintenance requirements.
2.3. Application Scenarios
The versatility of the EP-Automotive Power Steering Pump Driving Motor 130 Series makes it the preferred choice across a wide spectrum of new energy commercial vehicles. Its primary application lies in Electric Buses and Public Transit Vehicles, where reliability and noise reduction are paramount. The quiet operation of our motor enhances passenger comfort, while its high efficiency supports the extended range requirements of daily city routes. It is also extensively used in Electric Logistics Trucks and Delivery Vans, providing the necessary steering assist for maneuvering heavy payloads in tight urban spaces.
Beyond standard road vehicles, the 130 Series serves as a robust power steering pump replacement solution for specialized industrial machinery, including electric forklifts, municipal street sweepers, and airport ground support equipment. These applications often require motors that can endure stop-and-go cycles and exposure to outdoor elements. The 130 Series’ high torque output is also ideal for retrofitting older hydraulic steering systems in vehicle electrification projects, allowing fleet operators to modernize their assets with cleaner, more efficient technology. Whether for OEM assembly or aftermarket automotive power steering pump driving motor replacement, EVER-POWER provides a solution that adapts to diverse operational demands.
3. Advantages and Features of the Automotive Power Steering Pump Driving Motor 130 Series
The 1.5kW permanent magnet synchronous motor is designed for electric vehicles, offering a range of advanced features. This motor operates within a voltage range of 540-700V and delivers a nominal power output of 1.5kW with a maximum torque of 9.5Nm. It provides consistent high efficiency, with a peak efficiency of 91.1%, making it a reliable choice for electric vehicle applications. The motor operates at a speed of 1500 rpm, providing a robust power delivery. The current at nominal power is 3.1A, ensuring efficient performance. Additionally, the motor is equipped with IP67 protection, ensuring that it is dust-tight and can withstand water immersion to a certain depth, providing excellent durability in various environmental conditions. This motor also boasts a high-performance power factor, ensuring efficient energy use. Furthermore, the motor’s compact design, with a size of 130mm in diameter and 170mm in length, makes it a versatile and space-efficient option for electric vehicle integration. The motor operates under an S2-3min duty cycle, suitable for most short-term applications.
4. How to install the Automotive Power Steering Pump Driving Motor 130 Series
Motor Mounting: Secure the motor onto the mounting base, ensuring that it aligns with the provided specifications. For the 1.5 kW model (130ST-SNT380-015-15A), it operates within a voltage range of 540-700 VDC and a rated speed of 1500 RPM. The motor has a rated current of 3.1 A and an efficiency of 91.1%. Ensure that the motor is fixed at the appropriate mounting points as per the design.
Electrical Connections: Connect the motor’s power input and control wires. For the 1.5 kW version, the recommended wiring is 540-700 VDC with the appropriate power rating (3.1 A). The connection should be handled with care, ensuring secure and correct wiring to avoid electrical failures.
Cooling: Make sure the motor operates within the temperature range of -15°C to 55°C, as per the specifications. The motor uses natural cooling to maintain optimal performance, ensuring efficient heat dissipation during operation.
Protection Class: The motor is rated IP67, offering protection against dust and water ingress, making it suitable for various automotive applications, especially in challenging environments.
Testing: Once installation is complete, verify the motor's operation under controlled conditions, ensuring it meets the required power and performance metrics, including maximum torque of 9.5 Nm and a peak power rating of 4.5 kW.
