Conveyor Chain For Grain Machines

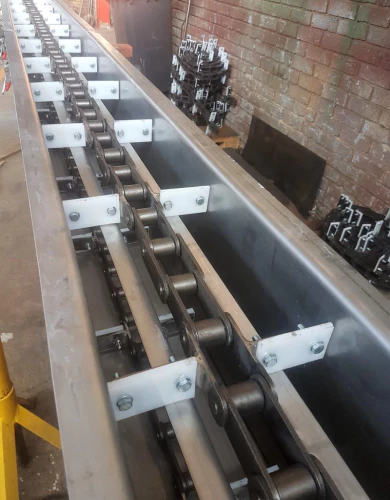

The conveyor chain is usually found on grain processing machines. It is available with welded and bended structure types. The welded style is made up of the chain and the scraper blade which are welded together. The bended style comes with bended link plates. All the chain components are made of heat treated medium carbon steel. To suit grain conveying application demands, the conveyor chain is designed with a polyethylene sweeping plate and a bucket every few links.

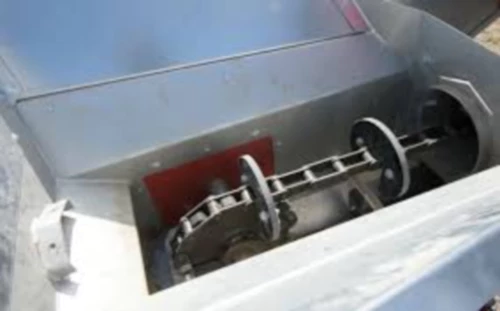

Application of conveyor chains for grain machines
1. Grain Elevators: Conveyor chains are used in grain elevators to transport grains vertically between different levels. They facilitate the efficient loading and unloading of grains from storage bins, silos, or hoppers.
2. Grain Conveying Systems: Conveyor chains are utilized in grain conveying systems to transport grains horizontally from one processing stage to another. They ensure the smooth and continuous movement of grains along the conveyor line, reducing manual labor and improving efficiency.
3. Grain Processing Machines: Conveyor chains are an integral part of various grain processing machines, such as grain cleaners, sorters, mills, and separators. They help in conveying grains through different stages of processing, such as cleaning, sorting, grinding, and separating.
4. Grain Drying Systems: Conveyor chains are used in grain drying systems to transport grains through drying chambers or tunnels. They facilitate the even distribution of heat or airflow, ensuring the effective drying of grains while maintaining their quality.
5. Grain Packaging and Storage: Conveyor chains play a role in the packaging and storage of grains. They are used to transport grains to packaging machines, where they are filled into bags, boxes, or other containers. They can also be employed in automated grain storage systems for efficient loading and unloading of grains.
6. Grain Handling Equipment: Conveyor chains are utilized in various grain handling equipment, such as bucket elevators, drag conveyors, screw conveyors, and belt conveyors. They enable the movement of grains from one location to another, facilitating the overall grain handling process.

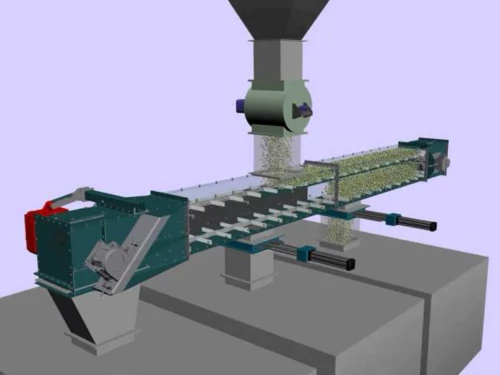

The working principle of a conveyor chain
1. Grain Loading: Grains are initially loaded onto the conveyor chain at the feeding point. This can be done manually or through an automated feeding system.
2. Chain Movement: The conveyor chain is driven by a motorized sprocket or pulley system. As the sprocket rotates, it engages with the links of the conveyor chain, causing it to move in a continuous loop.
3. Grain Transportation: The moving conveyor chain carries the grains along the designated path. The grains are securely held within the chain links, preventing spillage or loss during transportation.
4. Grain Discharge: At the desired discharge point, the grains are released from the conveyor chain. This can be achieved through mechanisms such as a discharge chute or through the use of additional equipment like diverters or gates.
5. Return Path: After the grains are discharged, the conveyor chain completes its loop and returns to the starting point for the next cycle. This can be accomplished using a return mechanism, such as an idle sprocket or a return conveyor.
Throughout this process, the conveyor chain ensures the smooth and continuous movement of grains from the feeding point to the discharge point. It provides a reliable and efficient means of grain transportation within the grain machines, contributing to the overall productivity and functionality of the grain handling system.
How to install a conveyor chain for grain machines?
1. Preparations: Before installation, ensure that all necessary components, tools, and equipment are available. Inspect the installation area and ensure it is clean and free of any obstructions.
2. Chain Inspection: Thoroughly inspect the conveyor chain for any signs of damage, wear, or defects. Replace any damaged or worn-out components before installation.
3. Alignment: Proper alignment is crucial for efficient operation. Align the conveyor chain and sprockets to ensure smooth engagement and minimal chain tension.
4. Tensioning: Adjust the tension of the conveyor chain according to the manufacturer's recommendations. Proper tension ensures optimal performance and prevents premature wear.
5. Lubrication: Apply the recommended lubricant to the chain. Ensure even distribution of lubrication to minimize friction and reduce wear. Follow the manufacturer's instructions on lubrication frequency and type.
6. Tracking: Check the alignment and tracking of the conveyor chain during operation. Make any necessary adjustments to maintain proper alignment and prevent chain derailment.

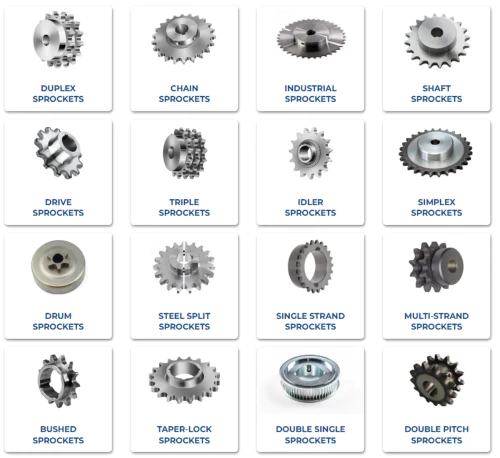

The sprockets must match the specifications of the conveyor chain
The conveyor chain for grain machines and its corresponding sprockets have a crucial relationship in the smooth operation of the system. The chain engages with the teeth of the sprockets, enabling the transfer of power and motion to move the grain along the conveyor.
The design and alignment of the sprockets must match the specifications of the conveyor chain to ensure proper engagement and prevent slippage or derailing. The size, pitch, and tooth profile of the sprockets must be compatible with the chain to achieve optimal performance and minimize wear.
Additionally, the number of teeth on the sprockets determines the speed ratio and conveying capacity of the system. Properly selected and maintained sprockets, combined with a well-maintained conveyor chain, result in efficient and reliable operation, reducing downtime and maximizing productivity in grain processing applications.

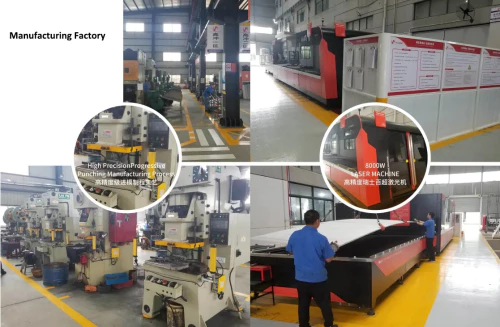

About Us
Since our establishment in 2003, we have amassed extensive production experience and a reputation for delivering reliable, high-quality products.
Our conveyor chains are designed to meet diverse production needs and have gained recognition in regions including Europe, North America, Africa, Oceania, and South America. With a vast customer network, we take pride in our ability to serve clients worldwide.
In addition to our conveyor chains for grain machines, we also offer a wide range of other products, including stainless steel chains, plastic chains, and various agricultural machinery chains. Our team is dedicated to meeting your specific requirements, whether it's customizing products based on your designs or providing competitive price quotations.
At EVER-POWER, we prioritize customer satisfaction and strive to deliver exceptional products that meet industry standards. With our commitment to excellence, reliable performance, and extensive product range, we are confident in our ability to exceed your expectations.
Contact us today to discuss your conveyor chain needs or to inquire about our other product offerings. We look forward to serving you.
Additional information
| edited | by hyw |
|---|
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
