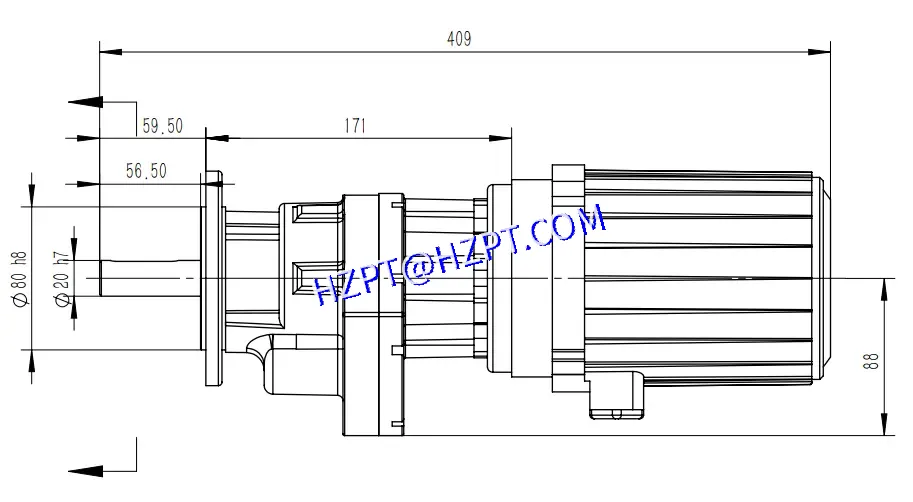

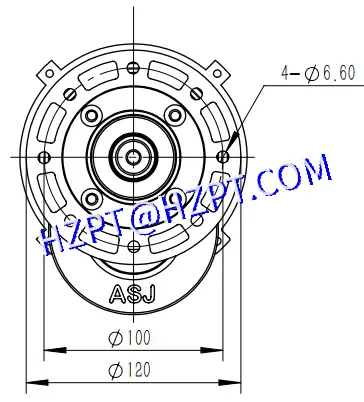

Car Washer Helical Gear Reducer SJRGV040 helical gearbox
SJRGV040 series helical gear reducer, it is mainly used in wheel brush of car washer, The main structure is composed of two-stage helical gear. It has advantages of higher transmission efficiency, smaller volume, more choice of ratio, compared to worm reducers. Further more, it has simple construction with more durable and reliable.
Product performance:
- Modular design of every module,with more parts common.
- Large ratio range,providing more choice.
- Material of gear and gear shaft is 20CrMnTi,with nitrogencase hardening,gear HRC 55-58,gear shaft HRC 59-62.
- Compact and compact body can fit most equipment structure
- Full-Synthetic Oil lubrication (the viscosity of 320/220 can be choice).
- The housing material is EN44300 with powder painting,better anticorrosive properties than others.
- Sealing with NOK oil seal(NBR),good sealability.
- IP Grade can reach IP67, adapt to most spraying conditions.
Product parameter:
Type | Ratio | Flange | Power |
SJRGV040 | 6.54~56.93 | 71B14 | 0.25KW 0.37KW 0.55KW |
Ratio | Output speed | Output torque | Work factor | input power | |
Type | i | n2/r/min | Mn2/Nm | sf | P1/kw |
SJRGV040 | 6.57 | 213 | 11 | 6.4 | 0.25 |
213 | 16 | 4.4 | 0.37 | ||
213 | 23 | 2.9 | 0.55 | ||
9.78 | 143 | 16 | 5.1 | 0.25 | |
143 | 23 | 3.4 | 0.37 | ||
143 | 34 | 2.3 | 0.55 | ||
12.62 | 111 | 20 | 5.1 | 0.25 | |
111 | 30 | 3.5 | 0.37 | ||
111 | 45 | 2.3 | 0.55 | ||
15.44 | 91 | 25 | 5 | 0.25 | |
91 | 37 | 3.3 | 0.37 | ||
91 | 54 | 2.2 | 0.55 | ||
19.88 | 70 | 32 | 3.7 | 0.25 | |
70 | 47 | 2.5 | 0.37 | ||
70 | 70 | 1.7 | 0.55 | ||
23.99 | 58 | 38 | 3.1 | 0.25 | |
58 | 57 | 2.1 | 0.37 | ||
58 | 85 | 1.4 | 0.55 | ||
29.67 | 47 | 48 | 2.5 | 0.25 | |
47 | 70 | 1.7 | 0.37 | ||
47 | 105 | 1.1 | 0.55 | ||
35.75 | 39 | 57 | 2.1 | 0.25 | |
39 | 85 | 1.4 | 0.37 | ||
39 | 126 | 0.9 | 0.55 | ||
38.2 | 37 | 61 | 1.9 | 0.25 | |
37 | 91 | 1.3 | 0.37 | ||
44.22 | 32 | 71 | 1.6 | 0.25 | |
32 | 105 | 1.1 | 0.37 | ||
56.93 | 25 | 91 | 1.3 | 0.25 | |
25 | 135 | 0.9 | 0.37 |
IP67 Motor Dimension

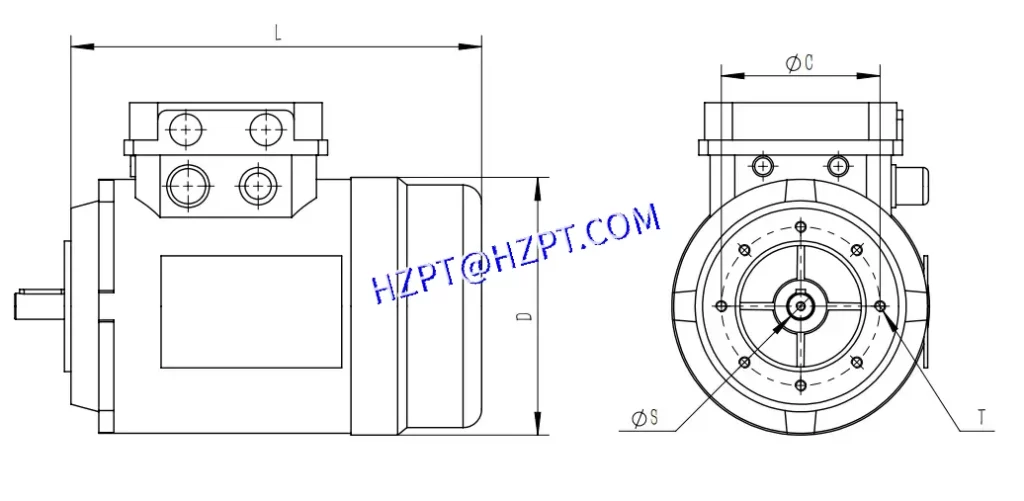

IP56 Motor Dimension
Type | IP56 Motor | IP67 Motor | ||||||||
De | L | D | ΦC | ΦS | T | L | D | ΦC | ΦS | T |
71B14 | 190 | 140 | 85 | 14 | M6 | 180 | 120 | 85 | 14 | M6 |
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
