Agricultural Lawn Mower Gearbox EP-RC31-193 EP-RC31-147

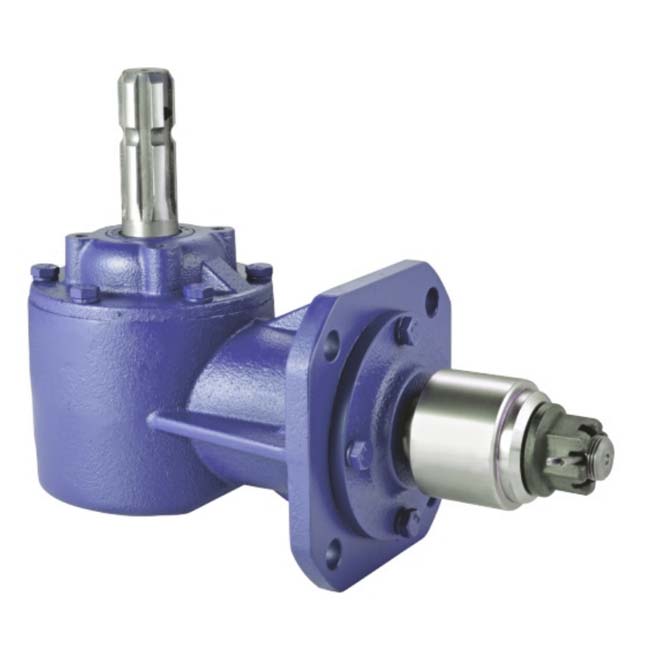

Replacement OMNI GEAR series RC-31 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16″-18 tapped holes on 4-1/8″ dia. B.C.  For ships without oil, the user must add oil prior to use per the user‘s manual.

Agricultural Lawn Mower Gearbox EP-RC31-193 EP-RC31-147

Lawn Mower Gearbox Detail

Agricultural Lawn Mower Gearbox EP-RC31-193 EP-RC31-147

ITEM EP-RC31-193 lawn mower gearbox EP-RC31-147 lawn mower gearbox
Ratio 1:1.93 1:1.47
Teeth 15/29 15/22
Module 4.0 5.08
Power(HP) 30 40
Rated Input 540rpm 540rpm
Input/Output Description 1-3/8 Z6

Cone base aequilate spline shaft

Weight(N.W) 24.5KG 24.5KG

Ever-power group specializes in the production of agricultural machinery gearbox. Products have been exported to Venezuela, Australia, the USA, Sri Lanka, India, and other countries and regions. Gearbox body material is to use high-quality wear-resisting ductile cast iron, the forming of precoated sand casting, gear and shaft are made of high-quality, low carbon alloy steel, after carburizing and quenching treatment, refined but become, therefore, high product quality, performance is good, flat embellish smooth appearance welcome by users.

Replacement OMNI GEAR series RC-31 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16"-18 tapped holes on 4-1/8" dia. B.C.  For ships without oil, the user must add oil before use per the user‘s manual.

Agricultural Lawn Mower Gearbox EP-RC31-193 EP-RC31-147

PTO Shafts for Agricultural Gearboxes

A PTO shaft is an extremely sophisticated mechanism that allows implements to draw energy from an engine. It works with a mechanical agricultural gearbox. A PTO drive shaft can be mounted on a vehicle's transmission and is an essential part of the system. A high-quality PTO shaft should be durable enough to withstand torsion and minimize vibration. Ever-power manufactures a wide range of durable PTO shafts to meet all your requirements.

pto shaft

Other Agricultural Gearboxes

Agricultural gearbox application: Grain transportation storage, Rotary lawn mower, Rice harvester, Rotary Tiller, Pesticide sprayer, Potato harvester, Post-hole digger, Chain gearbox, Oil pump jack reducer, Fertilizer spreader

Agricultural Lawn Mower Gearbox EP-55

Lawn Mower Gearbox Production Workshop

Agricultural Lawn Mower Gearbox EP-55

Established in Nov.2006, Ever-power group is a professional manufacturer and supplier supplying spare parts and accessories for agricultural machinery. In addition to the 3000 standard parts, we also offer our customers tailor-made articles or assemblies for special applications.

Ever-power is focused on the development and production of gearboxes with a professional team and continues to learn advanced technology; the use of first-class equipment; high-quality supply chain system; relying on these, the gearboxes get a high reputation among customers at home and abroad.

These gearboxes are widely used in rotary tillers, lawn mowers, harvesters, hole diggers, pesticide sprayers, irrigation machines, fertilizer spreaders, blenders, and so on. The main products are:

--Straight bevel gearbox
--Spiral bevel gearbox
--Planetary reducer
--Worm gearbox

Agricultural Lawn Mower Gearbox EP-55



Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
