WHAT IS A PLANETARY GEARBOX?

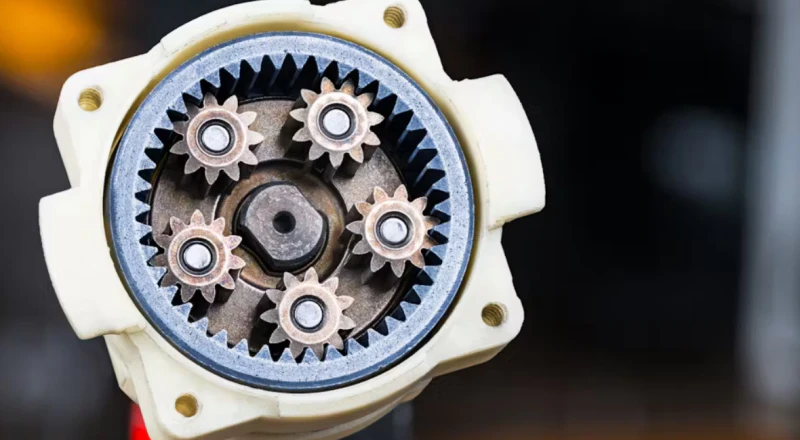

A planetary gearbox, also known as an epicyclic gearbox, is a type of gear system that consists of three main components: the sun gear, planet gears, and the ring gear. The sun gear is at the center, while the planet gears orbit around it and are held in place by a carrier. The ring gear encircles the planet gears, providing a compact and efficient design.
One of the primary advantages of planetary gearboxes is their ability to transmit high torque while maintaining a small footprint. This makes them ideal for applications where space is limited, such as in robotics, automotive, and aerospace industries. They offer a high power-to-weight ratio and can achieve significant gear reductions, allowing for precise control of speed and movement.
Planetary gearboxes are known for their durability and reliability, as the load is distributed among multiple gears, reducing wear and tear. They also exhibit low backlash, which is crucial for applications requiring high precision. Additionally, their design allows for easy customization, accommodating various torque and speed requirements.
Planetary gearboxes application industry
Aerospace Industry
Automotive Industry
Renewable Resources Industry
Mining
Advantages of planetary gearboxes compared to other gearboxes
| Feature/Advantage | Planetary Gearboxes | Other Gearboxes (e.g., Spur, Helical) |
|---|---|---|
| Torque Capacity | High torque capacity due to multiple gears sharing the load | Generally lower torque capacity |
| Size and Weight | Compact design allows for high power-to-weight ratio | Often bulkier for similar power outputs |
| Efficiency | High efficiency with minimal energy loss | Efficiency can vary, typically lower than planetary |
| Backlash | Low backlash, ideal for precision applications | Higher backlash, affecting precision |
| Load Distribution | Load is distributed across multiple gears, enhancing durability | Load concentrated on fewer gears, leading to quicker wear |
| Versatility | Suitable for a wide range of applications due to customizable designs | Limited customization options |
| Gear Reduction | Achieves significant gear reduction in a compact space | Requires larger sizes for similar reductions |
| Operational Reliability | More reliable under heavy loads and adverse conditions | Reliability can vary based on design and application |
| Maintenance | Generally lower maintenance due to reduced wear | May require more frequent maintenance |
| Speed Control | Excellent speed control capabilities | Speed control may not be as precise |
How to choose Planet Gears?
Load Requirements
Torque Capacity: Determine the maximum torque the gears need to handle. Ensure the selected planet gears can withstand this load without failure.
Dynamic and Static Loads: Consider both the dynamic loads during operation and static loads during non-operational periods.
Gear Ratio
Desired Output Speed: Calculate the required gear ratio based on the input speed and desired output speed.
Efficiency: Higher gear ratios can lead to increased efficiency, but ensure the selected ratio meets your application’s performance requirements.
Material Selection
Durability: Choose materials that can withstand the operating environment (e.g., temperature, humidity, corrosion).
Weight: Consider lightweight materials if space and weight are critical factors.
Gear Profile
Tooth Design: Select between different tooth profiles (e.g., spur, helical) based on your application needs. Helical gears offer smoother operation and lower noise.
Tooth Count: The number of teeth affects the gear ratio and strength. More teeth typically provide smoother operation but can increase size.
Backlash Consideration
Precision Requirements: Determine the acceptable backlash for your application. Lower backlash is essential for high-precision applications.
Working principle of planetary gearboxes
Components Overview
Sun Gear: The central gear that serves as the input.
Planet Gears: Multiple gears that rotate around the sun gear.
Planet Carrier: Holds and supports the planet gears, transferring output motion.
Ring Gear: An outer gear that encircles the planet gears, often acting as the output gear.
Input and Rotation
When the input shaft drives the sun gear, it begins to rotate. This rotation transfers motion to the planet gears, which are engaged with the sun gear.
Orbiting Motion
As the sun gear rotates, the planet gears rotate on their axes and simultaneously orbit around the sun gear. This motion is akin to how planets orbit the sun, hence the name “planetary gearbox.”
Torque Multiplication
The design allows the load to be distributed across multiple planet gears, enhancing torque capacity. The amount of torque transmitted depends on the number of planet gears and their arrangement.
Output Motion
The planet carrier collects the motion from the planet gears and transfers it to the output shaft. Depending on the configuration, the output can be taken from the carrier, the ring gear, or the sun gear.
Gear Reduction
By varying the sizes of the gears (specifically, the number of teeth), planetary gearboxes can achieve significant gear reductions. This means that the input speed can be greatly reduced while increasing the output torque.
Efficiency
The planetary arrangement reduces friction and allows for efficient power transmission. The compact design also minimizes weight and space, making it ideal for various applications.
Versatility
Depending on the configuration (e.g., which component is fixed), planetary gearboxes can be designed for different speed-torque characteristics, making them suitable for a wide range of applications.
Industrial planetary gearbox applications
Conveyor Systems:
Planetary gearboxes employed in conveyor systems to control the speed and torque of conveyor belts. facilitating smooth material handling in industries such as manufacturing and logistics.
Mixers and Agitators:
In the construction and chemical industries, planetary gearboxes used in mixers and agitators. to efficiently blend and process materials.
Automotive Transmissions:
Planetary gear systems are a crucial component in automatic transmissions of vehicles. providing efficient torque conversion and enabling smooth gear shifting.
Robotic Systems:
Industrial robots use planetary gearboxes in their joints. and actuators for precise and controlled movement. making them essential in manufacturing and assembly processes.
Aerospace Applications:
In aerospace, planetary gearboxes used in various applications. including aircraft landing gear systems, where their lightweight and compact design are advantageous.
Wind Turbines:
The gearboxes in wind turbines use planetary configurations. to increase the rotational speed of the low-speed shaft. optimizing energy conversion for electricity generation.
Mining Equipment:
Heavy-duty mining equipment, such as crushers and conveyors. utilizes planetary gearboxes for reliable and efficient power transmission in demanding environments.
Printing and Packaging Machinery:
Planetary gearboxes used in printing and packaging machines to control the speed and torque of rollers. ensuring precise and consistent printing and packaging processes.
Textile Machinery:
In textile manufacturing, planetary gearboxes employed in spinning. and weaving machines for efficient control of the production process.
Steel Mills:
Rolling mills in steel production use planetary gearboxes. to achieve precise control over the rolling process, ensuring quality and consistency.
Advantages of planetary gearboxes
High Torque Density: Planetary gearboxes consist of a sun gear, planetary gears, and a ring gear, allowing torque loads to be distributed across multiple gears. This design enables them to handle significantly higher torque in the same volume compared to other gearbox types.
Cost Efficiency: By pairing a planetary gearbox with a lower power motor, users can achieve increased output torque while reducing overall configuration costs.
Exceptional Precision: These gearboxes can achieve precision levels of up to 1 arcminute, making them suitable for applications that require high accuracy.
Low Noise Levels: Planetary gearboxes operate quietly, with noise levels as low as 55 decibels, contributing to a more pleasant working environment.
High Efficiency: With minimal efficiency losses, the transmission efficiency of planetary gear trains can reach up to 97%, making them an energy-efficient choice.
Variety of Reduction Ratios: Planetary gearboxes offer a wide range of reduction ratios, and their modular design allows for the combination of multiple gearbox stages to achieve even higher reductions.
Versatile Applications: The combination of high torque density, precision, and compact design allows planetary gearboxes to be used in a vast array of industrial applications, providing flexibility and adaptability to meet diverse needs.
Types and applications of planetary gearboxes
Output Shaft
An output shaft can be configured either coaxially or in parallel with the input shaft, providing flexibility in design. There are various types of output shafts available, with the most common being those featuring a keyway. This design allows for a secure and efficient connection between the speed reducer and the machinery. Additionally, options like smooth shafts and spline shafts enable the attachment of other drive components such as pulleys, gears, and sprockets.
Planetary speed reducers equipped with different output shaft types are highly versatile, making them suitable for a broad spectrum of automation and machinery applications. They find use in various equipment, including machine tools, lathes, milling machines, water jet cutting machines, laser cutters, bottle blowing machines, rubber and plastic machinery, packaging machines, CNC metal processing machines, and automated loading and unloading systems like gantry robotic arms. This adaptability highlights the importance of selecting the appropriate output shaft configuration for optimal performance in diverse industrial settings.
Flange Type
The output flange of a planetary speed reducer is designed in accordance with ISO 9409 standards, allowing for easy and rapid connection to compatible pinions, pulleys, or couplings. This design ensures a reliable interface with various machinery and equipment.
Flange-type planetary speed reducers offer enhanced torsional rigidity thanks to their robust structural design and larger output flange diameter. This makes them particularly well-suited for applications involving dynamic motion control, where frequent changes in motion are required. They are commonly utilized in delta robotics and rack-and-pinion drive systems, providing reliable performance in demanding environments.

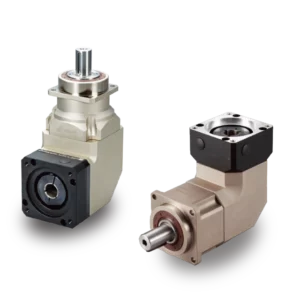

Right Angle Type
The right angle planetary speed reducer features a housing that allows it to convert the output torque and speed of a servo motor by 90 degrees. This design not only saves installation space but also contributes to a more compact overall equipment layout.
The output end of the right angle planetary gearbox offers two options: output shaft or flange type, providing versatility based on specific application needs. Additionally, the gearbox can be installed in any orientation, significantly enhancing design and installation flexibility.
This type of gearbox is commonly used in various automation applications driven by servo motors, including panel handling systems, automated storage solutions, robotic arms, pipe bending machines, and automated guided vehicles (AGVs). Its adaptability and compact design make it an excellent choice for modern industrial applications.
Planetary gearboxes maintenance
Regular inspection
Appearance inspection: Regularly inspect the appearance of the waste box, looking for discharge, blockage or other obvious damaged parts.
Audio inspection: Pay attention to abnormal noise or vibration, which may indicate internal problems.
Lubrication
Oil level inspection: Regularly check the lubricant level to ensure that it is within the recommended range.
Replace lubricant: Regularly replace lubricant according to the manufacturer’s recommendations to prevent insufficient lubrication and overheating.
Temperature monitoring
Temperature inspection: Monitor the operating temperature of the monitoring box to ensure that it is within the safe range. Excessive temperature may cause lubricant damage and part wear.
Load and performance monitoring
Load inspection: Ensure that the operating load of the load box is within its rated range and avoid overload use.
Performance evaluation: Regularly evaluate the output performance of the interceptor box to check for any drop in efficiency.
Tightening and tightening
Bolt inspection: Regularly check and support all connecting bolts to ensure mechanical connection brackets.
Wiring inspection: Ensure the connection of the production box to the drive motor and load to prevent additional fatigue.
Cleaning
Regular cleaning: Keep the waste box and the surrounding environment clean to prevent methanol and methanol from entering the interior.
