81X Rooftop Chain Lumber RT Chain
The 81x rooftop chain is made of high-quality, durable steel, which can withstand heavy impact loads and operate in harsh environments. This chain is used in many conveyor applications and transfer applications.

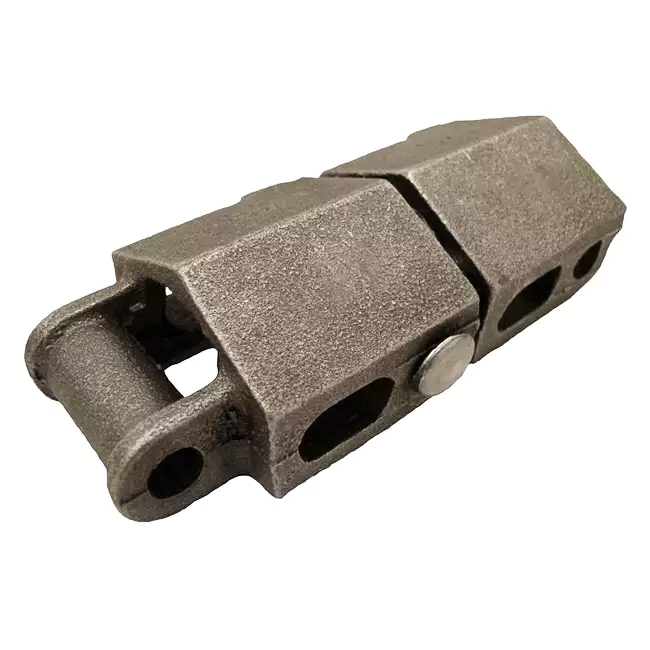

81X Rooftop Chain
The 81x rooftop chain has a unique side-splitting function. This smooth roof style will help protect the handled wood from scratches and dents while reducing unnecessary dust accumulation in the chain mechanism. Cold forged solid rollers and solid bushings can significantly prolong the life of the chain. Specially selected alloy steel and computer-monitored heat treatment process ensure high strength and durability.
The 81x rooftop chain is made of high-quality, durable steel, which can withstand heavy impact loads and operate in harsh environments. This chain is used in many conveyor applications and transfer applications.
81X Rooftop Roller Chain Dimensions
| Pitch (P) | Roller Width (W) | Roller Diameter (R) | Pin Diameter (D) | Pin Length (L1) | Pin Length (L2) | Plate Height (H) | Plate Thickness (T) | Roof Width (M) | Roof Height (RH) | Tensile Strength | Weight Per Foot |
| 2.609" | 1.063" | 0.905" | 0.437" | 0.945" | 1.118" | 1.125" | 0.154" | 2.500" | 1.000" | 30,000 LBS | 3.68 LBS |
The rooftop transfer chain is used chiefly in two or more stands on transfer conveyors handling lumber, boxes, packages, barrels, bars, etc. Only the bevel tops of the links project about the guides, permitting loading and unloading to be done transversely.

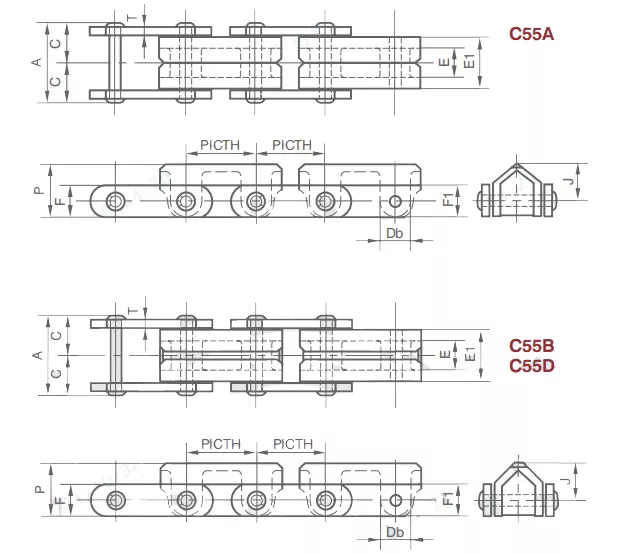

Other Rooftop Chains
chain No. | Pitch in inches | Dimensions in Decimal Inches | |||||||
A | C | Db | Dp | E | E1 | F | F1 | ||
C55A | 1.631 | 2.000 | 1.000 | 0.72 | 0.375 | 0.69 | 1.19 | 0.75 | 0.75 |
C55B | 1.631 | 2.000 | 1.000 | 0.72 | 0.375 | 0.69 | 1.19 | 0.75 | 0.75 |
C55D | 1.631 | 2.000 | 1.000 | 0.72 | 0.375 | 0.69 | 1.19 | 0.75 | 0.88 |
Moline Chain No. | Pitch in Inches | Links Per 10 Feet | Weight Per Foot Lbs. | Average Ultimate Strength Load Lbs. | Recommended Maximum Working Load Lbs. |
C55A | 1.631 | 74 | 3.2 | 11700 | 1400 |
C55B | 1.631 | 41 | 3.2 | 11700 | 1400 |
C55D | 1.631 | 71 | 3.2 | 11700 | 1400 |

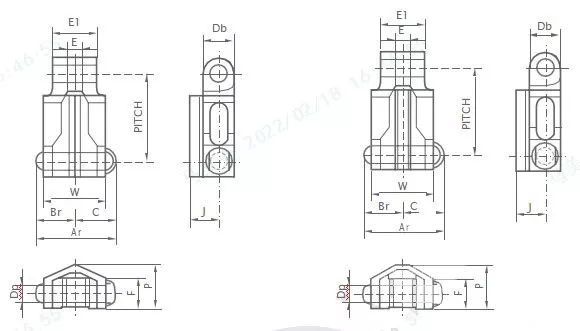

Chain No. | Pitch in inches | Dimensions in Decimal Inches | |||||||
Ar | Br | C | Db | Dp | E | E1 | F | ||
H78A | 2.609 | 3.25 | 1.62 | 1.56 | 0.88 | 0.500 | 1.12 | 1.88 | 1.00 |
H78B | 2.609 | 3.25 | 1.62 | 1.56 | 0.88 | 0.500 | 1.12 | 1.88 | 1.00 |
H130 | 4.000 | 3.25 | 1.63 | 1.63 | 1.00 | 0.500 | 1.00 | 1.62 | 1.06 |
H131 | 4.000 | 4.00 | 2.06 | 1.94 | 1.25 | 0.625 | 1.62 | 2.50 | 1.56 |
H138 | 4.000 | 3.25 | 1.62 | 1.62 | 1.00 | 0.500 | 1.00 | 1.62 | 1.06 |
81x sprocket matched with 81x chain; if you need a matching sprocket, please click here
Related Sprockets and Chains
Sprockets fit our entire conveyor chain range.
The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.
Because sprockets significantly impact the chain's life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.
Our Services
- Any kind of inquiry roller chains would be replied to within 24 hours.
- Well-trained and experienced sales staff will answer your concerns fluently.
- OEM services are available with us; our professional designer would make your private idea into being.
- Protection of your sales area, ideas of design, and all your private information.
- Delivery by airmail or shipping for your orders.
- Years of manufacturing and promotion experience in the global market brings you profit and great success!
FAQ
- Q1: what is your average delivery time?
A: It's different. Our regular end-to-end delivery period is 1-2 months. We also provide express delivery for urgent orders. For more information, please contact our sales assistant. - Q2: with the same quality, is your price better than that of your competitors?
A: Absolutely. We offer the most competitive prices in the power transmission industry. We will be happy to match the price if there is a price difference. - Q3: Can you make chains according to my CAD drawings?
A: Right. In addition to the conventional standard chain, we produce non-standard and custom-designed products to meet specific technical requirements. A considerable part of our production capacity is allocated to producing non-standard products. - Q4: Can we check the goods before shipment?
A: Right. You, your representative, or any designated third-party inspector may enter our factory for inspection.
Additional information
| Edited | Miya |
|---|
Product Quick Detail:
- Standard and non-standard available
- With high quality and competitive price
- Prompt delivery
- Packing as per customer’s demand.
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
Surface Treatment
Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.
Processing Method
CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
QC & Certificate
Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009
Package & Lead Time
Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
