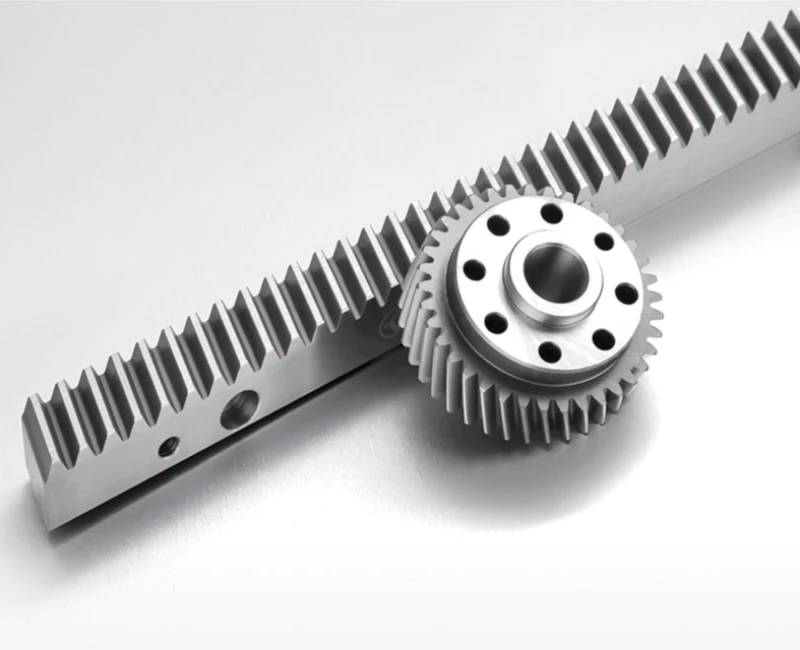

Gear Rack For Rack Actuator

The gear rack for rack actuator is typically made of durable materials such as steel or aluminum to withstand the forces and stresses involved in linear motion. It is precisely machined to ensure accurate tooth profiles and smooth engagement with the actuator gears.

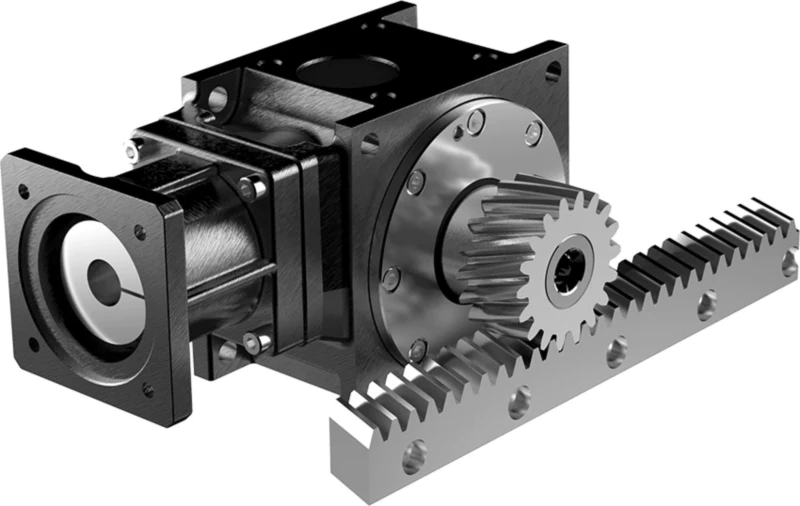

The teeth on the gear rack are designed to match the pitch and profile of the actuator gears, allowing for efficient power transmission and precise positioning. The engagement of the gears with the rack enables the actuator to convert rotational motion into linear motion, extending or retracting the actuator arm.

The length of the gear rack can vary depending on the desired travel distance for the actuator. It may be supplied as a single piece or in modular sections that can be joined together to achieve the required length.

Proper lubrication and maintenance of the gear rack are essential to ensure smooth and reliable operation. Regular cleaning and inspection can help prevent the accumulation of dirt or debris that may affect the meshing of the teeth.

Units may be purchased assembled for quick installation, or as individual components for custom designs. V slides and flat tracks come in two grades; commercial for lower cost, or precision ground for higher accuracy applications. Gear racks can be added to single edge V slides and narrow flat tracks for linear actuation. Back plates offer another option for mounting V slides and flat tracks on a stable frame without the height of a construction beam.

The gear rack for a rack actuator finds application in various industries and systems where linear motion is required.

1. Industrial Automation: Gear racks are commonly used in automated machinery and production lines for tasks such as material handling, assembly, and packaging.

2. Robotics: Rack actuators with gear racks are utilized in robotic systems for precise and controlled linear motion, allowing robots to perform tasks like pick-and-place operations or linear positioning.

3. Automotive: Gear racks are found in automotive applications such as power steering systems, where they convert rotational motion from the steering column into linear motion to control the movement of the wheels.

4. Aerospace: Rack actuators with gear racks are used in aircraft control systems, such as wing flap actuation or landing gear extension and retraction.

5. Medical Equipment: Gear racks are incorporated into various medical devices and equipment, including hospital beds, surgical tables, and diagnostic machines, to enable controlled linear motion.

6. HVAC Systems: Gear racks are employed in systems like dampers and HVAC actuators to regulate airflow and control the opening and closing of vents.

7. Material Handling: Gear racks are crucial components in conveyor systems, overhead cranes, and lifting equipment, facilitating the movement and positioning of goods.

8. Home Automation: Gear racks are utilized in home automation systems for applications like motorized curtains, automated gates, and garage door openers.

9. Printing and Packaging: Gear racks are found in printing presses and packaging machinery, allowing for precise control of linear motion during printing or packaging processes.

10. Renewable Energy: Gear racks are used in solar tracking systems to orient solar panels towards the sun, maximizing energy generation efficiency.

How To Select The Right Gear Rack For Rack Actuator?

1. Load Capacity: Determine the maximum load the rack actuator will need to handle. Choose a gear rack with a load capacity that exceeds the anticipated load to ensure reliable operation.

2. Pitch and Tooth Profile: Match the pitch and tooth profile of the gear rack with the gear mechanism of the rack actuator. Proper alignment and engagement are crucial for efficient power transmission and smooth operation.

3. Material: Consider the environmental conditions and application requirements. Choose a gear rack made from durable materials such as steel or aluminum to withstand the forces and stresses involved in linear motion. If corrosion resistance is needed, consider materials such as stainless steel or coated options.

4. Precision and Accuracy: Evaluate the required precision and accuracy of the linear motion. Look for gear racks with precise tooth profiles and minimal backlash to ensure accurate positioning.

5. Length and Configuration: Determine the required length of the gear rack based on the desired travel distance of the rack actuator. Consider whether a single piece or modular sections that can be joined together will best suit your application.

6. Lubrication and Maintenance: Consider the lubrication requirements of the gear rack and ensure that it can be properly maintained to ensure smooth operation and prolong its lifespan.

7. Application-Specific Requirements: Take into account any specific requirements or standards relevant to your application, such as industry regulations or certifications.

8. Budget: Consider your budget constraints while balancing the desired performance and quality of the gear rack. Compare different options and suppliers to find the best value for your specific needs.

About Us

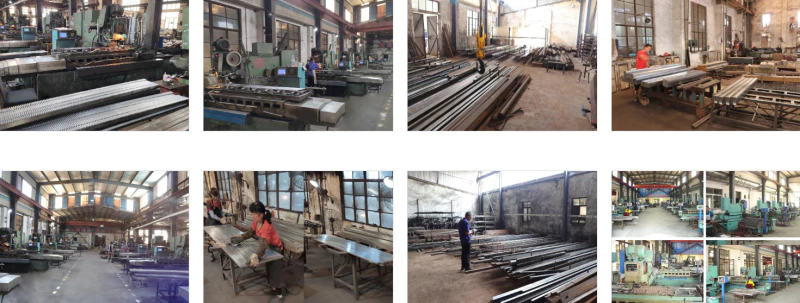

The company has more than 100 professional rack production equipment and testing equipment. The one-time processing length of the rack is 3000MM, the module range is M1-M30, British CP, American DP, etc., in order to better adapt to market changes. For high-end customers who demand high-precision racks, our company specially introduces rack milling machines and rack grinding machines imported from Germany. The precision of the racks produced by this equipment can reach (JIS2 level) DIN6n25 to meet various needs of the high-end market,with excellent products, affordable prices, and good service attitude, our products are exported to different countries such as Spain, the Netherlands, the United States,South Korea,Turkey,and Russia.At the same time, we sincerely hope to help customers develop new products and solve technical and quality problems. We are willing to meet the needs of users with high-quality products, fair prices, and perfect services.In short, we adhere to the principles of quality first, timely delivery, and credit first, treat every business partner sincerely, and wholeheartedly welcome friends from the business community to cooperate with us to develop together and create brilliance.Besides, EVER POWER also offers other rack products such as Gear Rack For Door Opener,gear rack for elevator,rack and pinion steering,metric gear rack,etc. Customers are welcome to inquire about customized products.EVER POWER is a professional manufacturer of racks in China. Its products are mainly sold to hundreds of fixed suppliers such as domestic steel rolling mills, shipyards, precision machine tool factories, automation machinery factories and various distribution companies, and exported to Western Europe, the Middle East, and Southeast Asia. and other countries and regions. The developing EVER POWER currently has hundreds of employees, including many engineers, with fixed assets of 20 million yuan and an annual output value of 50 million yuan. It mainly produces 1 to 32 module standard racks, non-standard straight racks, helical racks, double-sided racks, cylindrical racks, and various inch racks, with an accuracy of up to 7 to 9 levels, and is a horizontal directional drilling rig. , military industry, various large and medium-sized machine tools, automatic skylights, marine, steel mills, coal mines, petroleum, woodworking machinery, flame cutting machines, engraving machines, various automated assembly lines and other production supporting racks. The company has a complete set of strict quality management systems , equipped with a series of precision measuring instruments such as optical projectors and 16 full-process production monitoring systems. Currently, it has 30 fully automatic precision CNC rack-specific machine tool assembly lines as well as polishing and more than 20 general-purpose machine tools. EVER POWER has considerable competitiveness in the same industry.
