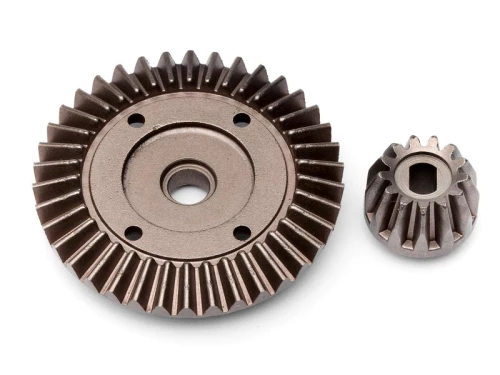

Sintered Metal Bevel Gear

A sintered metal bevel gear is a type of gear made using the powder metallurgy process. Powder metallurgy is a manufacturing technique that involves compacting and heating powdered metal particles to form a solid, dense component. Sintered metal bevel gears are commonly used in a variety of applications due to their durability, strength, and cost-effectiveness.

LM1.25-20, Module 1.25, 20 Tooth, Sintered Metal Miter Gears Specifications

Advantages of Sintered Metal Bevel Gears:

High Strength and Durability: Sintered metal gears can withstand high loads and harsh operating conditions due to their dense, homogeneous structure.

Design Flexibility: Powder metallurgy allows for the creation of complex gear shapes and geometries that are difficult or impossible to produce using traditional machining methods.

Cost-Effectiveness: Sintered metal gears can be manufactured more efficiently and at lower costs compared to machined gears, especially for high-volume production.

Reduced Waste: The powder metallurgy process generates minimal material waste compared to machining, making it a more environmentally friendly manufacturing method.

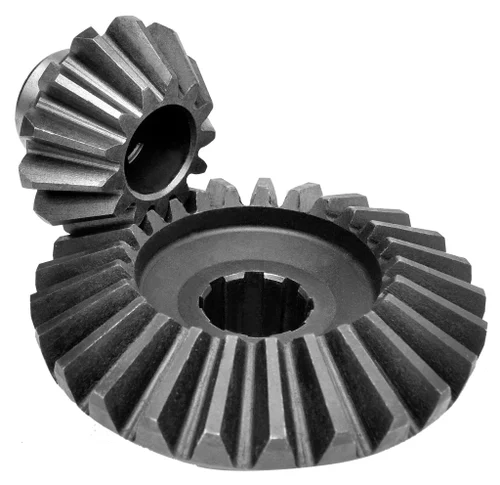

Applications of Sintered Metal Bevel Gears:

Automotive Industry: Sintered metal bevel gears are widely used in automotive transmissions, differentials, and other powertrain components.

Agricultural Machinery: Gearboxes in agricultural equipment, such as tractors, harvesters, and irrigation systems, often utilize sintered metal bevel gears.

Construction Equipment: Cranes, excavators, and bulldozers rely on sintered metal bevel gears for their power transmission needs.

Material Handling Equipment: Conveyors, hoists, and winches in material handling systems often incorporate sintered metal bevel gears.

Industrial Machinery: Gearboxes in various industrial applications, including pumps, mixers, and compressors, frequently employ sintered metal bevel gears.

Manufacturing Process:

Powder Preparation: Metal powders, typically iron or steel alloys, are carefully selected and blended to achieve the desired properties.

Compaction: The metal powder mixture is compressed into the desired shape of the gear teeth and gear blank using a high-pressure press.

Sintering: The compacted gear is heated in a controlled atmosphere to a temperature below its melting point, allowing the metal particles to bond together and form a solid, porous structure.

Impregnation: The sintered gear is impregnated with a lubricant, such as oil or grease, to fill the pores and improve lubrication between the gear teeth.

Finishing: The gear may undergo additional machining processes, such as grinding or honing, to achieve the desired precision and surface finish.

Installation

Inspection: Before installation, carefully inspect the sintered metal bevel gear for any damage or defects. Check for cracks, chips, or other irregularities that could compromise the gear's performance or safety.

Cleaning: Ensure the gear and surrounding components are clean and free of debris or contaminants that could interfere with proper operation. Use appropriate cleaning solvents or methods as recommended by the manufacturer or industry standards.

Alignment: Proper alignment of the bevel gears is crucial for smooth and efficient power transmission. Align the gear shafts carefully to ensure they are parallel and have the correct center distance. Use precision measurement tools and alignment techniques as necessary.

Bearings: Install the appropriate bearings for the gear shafts, ensuring they are properly seated and secured. Use the correct torque specifications and follow the manufacturer's instructions for bearing installation.

Lubrication: Apply the recommended lubricant to the gear teeth and bearings. Use the specified lubricant type and quantity, ensuring it is evenly distributed and covers all contact surfaces.

Housing and Seals: Install the gear housing and ensure all seals are properly seated and in good condition. Check for any leaks or signs of wear on the seals.

Final Checks: Before running the gear system, perform final checks to ensure all components are properly installed, aligned, lubricated, and secured. Follow the manufacturer's instructions and safety guidelines.

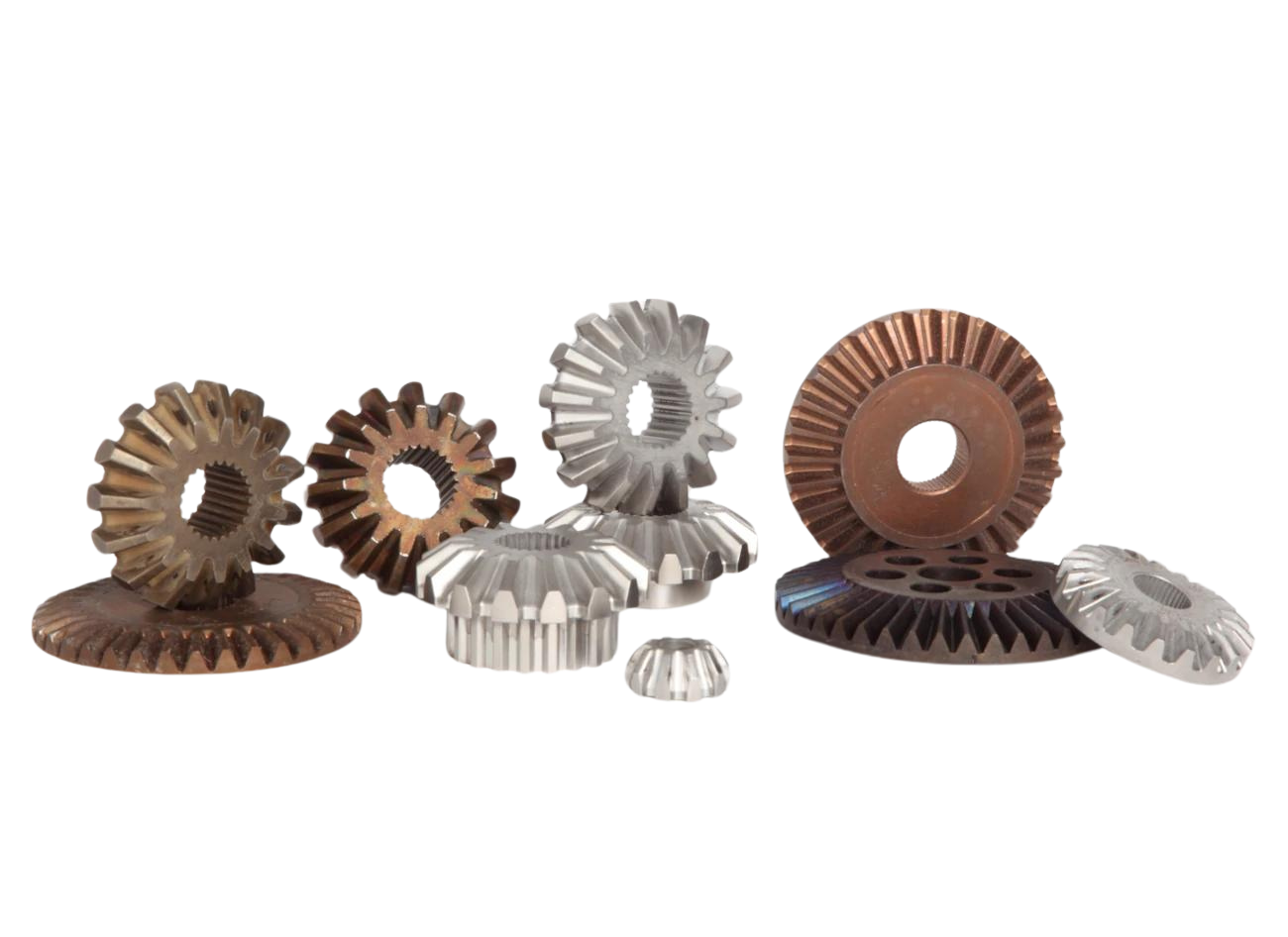

Maintenance

Regular Inspection: Regularly inspect the sintered metal bevel gear for signs of wear, damage, or contamination. Check for tooth wear, chipping, pitting, or any other abnormalities that could indicate potential issues.

Lubrication: Follow the recommended lubrication schedule and maintain the proper lubricant level. Use the specified lubricant type and quantity to ensure adequate lubrication and prevent wear.

Temperature Monitoring: Monitor the operating temperature of the gear system. Excessive temperatures can indicate issues with lubrication, alignment, or other factors. Take corrective actions if abnormal temperatures are observed.

Noise Monitoring: Listen for any unusual noises coming from the gear system. Excessive noise or grinding sounds could indicate problems with gear wear, alignment, or bearings. Investigate the source of the noise promptly.

Vibration Monitoring: Monitor the gear system for excessive vibration. Unusual vibrations can be a sign of imbalance, misalignment, or other mechanical issues. Use vibration monitoring tools or techniques if necessary.

Predictive Maintenance: Implement predictive maintenance practices, such as oil analysis or vibration monitoring, to anticipate potential problems before they lead to breakdowns.

Overload Protection: Ensure the gear system is equipped with overload protection mechanisms to prevent damage from excessive loads. Regularly check the overload protection devices for proper operation.

Maintenance Schedule: Follow the manufacturer's recommended maintenance schedule, including regular inspections, lubrication, and any necessary adjustments or replacements.

Expert Assistance: Seek assistance from qualified technicians or engineers if you encounter complex issues or require specialized expertise for maintaining the sintered metal bevel gear system.
