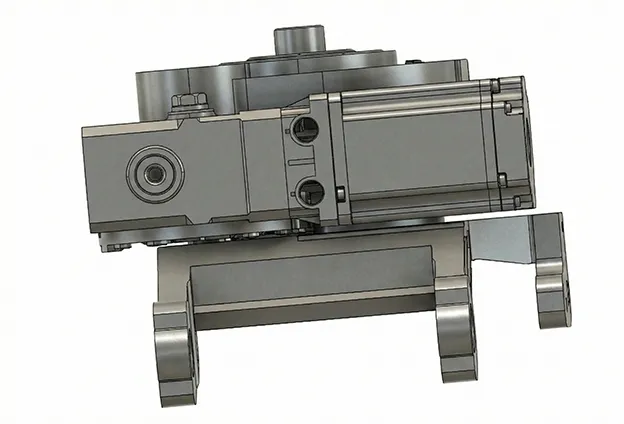

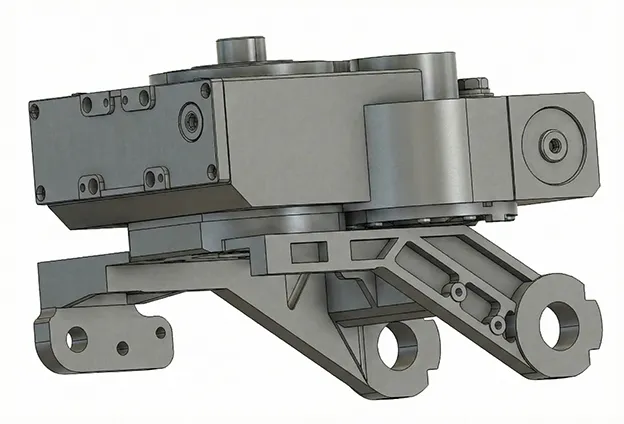

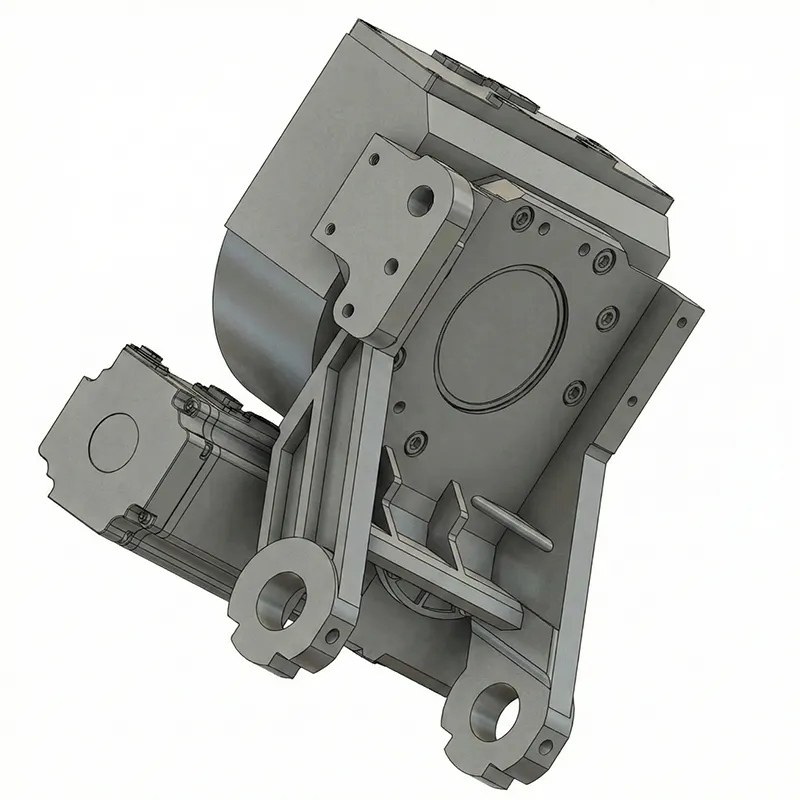

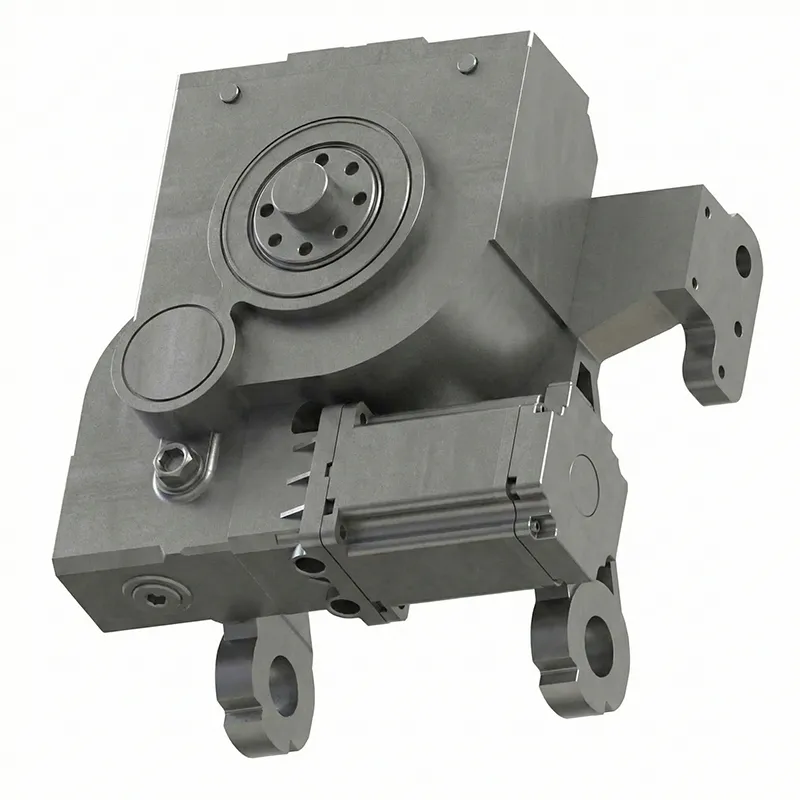

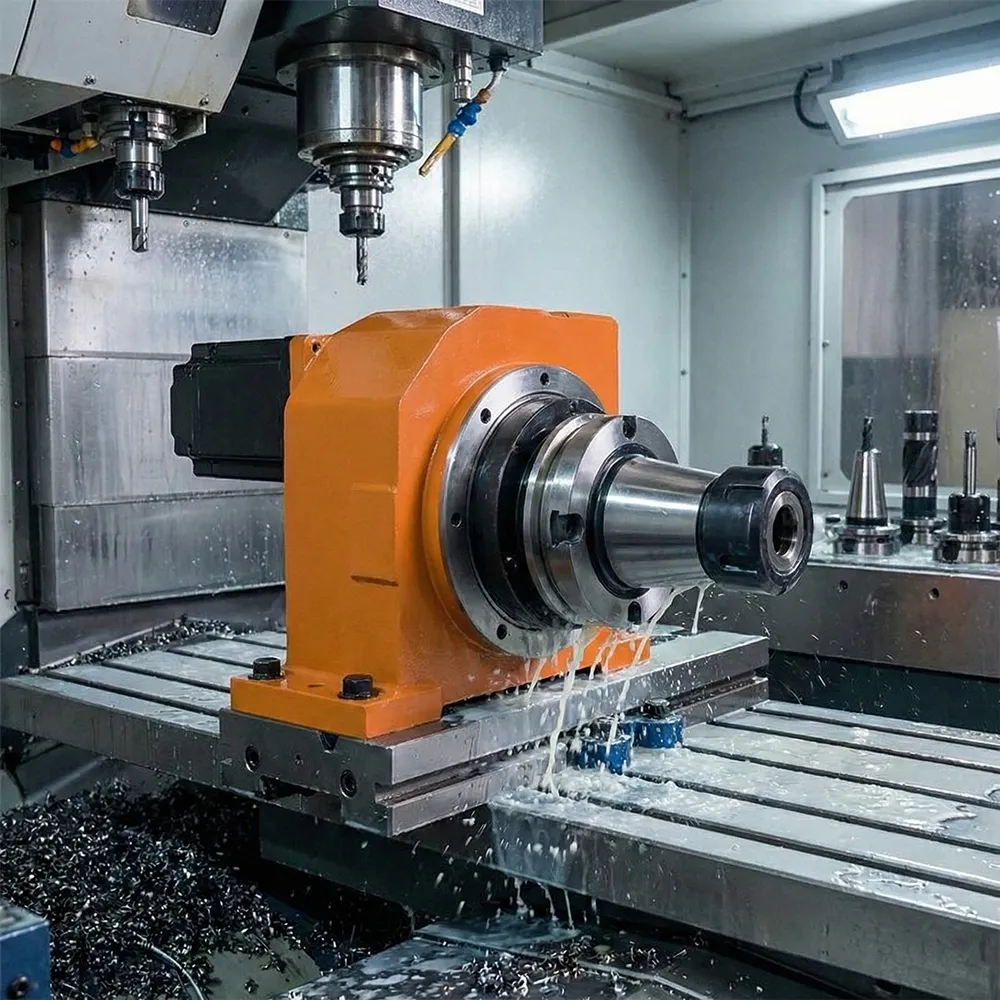

High-Precision Low-Rotation Tool Magazine Gearbox For Machining Centers

Ultra-High Precision

Backlash of ≤1 arcminute ensures precise tool positioning, eliminating indexing errors and improving machining accuracy.

High Torque Capacity

900 N·m peak torque capacity with 2:1 safety factor handles heavy tool loads while providing protection against shock loads during rapid indexing.

Low Noise Operation

Advanced gear tooth profile design and precision manufacturing keep noise levels at ≤72 dB, creating a more comfortable working environment.

Extended Service Life

Designed for ≥5 years of operation with minimal maintenance requirements, significantly reducing total cost of ownership.

Compact Design

Space-efficient construction fits seamlessly into existing machining center designs while providing robust performance.

Superior Reliability

Engineered with high-grade alloy steel and advanced heat treatment processes to withstand demanding industrial environments.

"We've been running these gearboxes in our 5-axis machining centers for over two years now. The precision is outstanding - we've seen a 40% reduction in tool change positioning errors compared to our previous system. The low noise operation is also a huge benefit for our operators. Highly recommended for high-precision applications!"

"Exceptional build quality and reliability. We installed 12 units across our production line, and after 18 months of continuous operation, we haven't experienced a single failure. The 85:1 reduction ratio is perfect for our heavy tool magazines, and the torque capacity handles our largest tools with ease. Ever-Power's engineering support during installation was excellent."

"The backlash specification of under 1 arcminute is truly impressive. For our medical device manufacturing applications, this level of precision is non-negotiable. We've integrated these gearboxes into six machining centers, and the consistency across all units is remarkable. The 5-year design life claim appears conservative based on our experience."

"What impressed us most was the minimal maintenance requirement. In our 24/7 operation, downtime is extremely costly. These gearboxes have proven incredibly reliable. The noise level is noticeably lower than our old units, which our operators really appreciate. Value for money is excellent considering the performance and longevity."

"We retrofit these gearboxes into our existing machining centers, and the improvement was immediate. Tool change time reduced by 15%, and more importantly, tool positioning repeatability improved significantly. The compact design made installation straightforward. After one year of operation, we're expanding to our entire fleet."

Q: What is the typical lead time for this gearbox?

A: Standard models are typically available within 2-4 weeks. Custom configurations may require 6-8 weeks depending on specifications. We recommend contacting our sales team for current availability and expedited shipping options for urgent requirements.

Q: What type of lubrication is required?

A: The gearbox comes pre-filled with high-quality synthetic gear oil suitable for continuous operation. We recommend checking oil level every 1000 operating hours through the sight glass and changing oil every 5000 hours or annually, whichever comes first. Detailed lubrication specifications are provided in the user manual.

Q: Can this gearbox be used in vertical mounting orientation?

A: Yes, the gearbox can be mounted in any orientation (horizontal, vertical, or angled). However, ensure proper lubrication level adjustment for non-horizontal installations. Consult the installation manual or contact our technical support for specific mounting orientation recommendations.

Q: What warranty coverage is provided?

A: We provide a comprehensive 2-year warranty covering manufacturing defects and material failures under normal operating conditions. Extended warranty options are available. The warranty includes technical support and covers replacement parts, though it excludes wear items and damage from improper installation or operation.

Q: Is the gearbox compatible with servo motors from different manufacturers?

A: Yes, the gearbox features standardized input shaft dimensions compatible with most major servo motor brands including Siemens, Fanuc, Mitsubishi, and Yaskawa. We provide adapter flanges for specific motor models upon request. Verify motor specifications match the gearbox's 0.75 kW power rating and speed range.

Q: How does this compare to planetary gearboxes for tool magazine applications?

A: While planetary gearboxes offer high torque density, our helical design provides superior precision (lower backlash), quieter operation, and easier serviceability. For tool magazine applications requiring precise positioning and extended service life, helical designs typically outperform planetary configurations. Cost-effectiveness is also better for this specific application.

Q: What maintenance procedures are recommended?

A: Regular maintenance includes: visual inspection of oil level every 500 hours, oil change every 5000 hours or annually, checking mounting bolts for proper torque every 2000 hours, and monitoring noise and vibration levels during operation. Keep external surfaces clean and ensure adequate ventilation. Detailed maintenance schedules are included in the service manual.

Q: Can you provide custom reduction ratios?

A: Yes, we can manufacture custom reduction ratios for specific applications. Minimum order quantities apply for custom configurations. Contact our engineering team with your requirements, and we'll evaluate feasibility and provide quotations. Standard ratios offer the best lead times and cost-effectiveness for most applications.

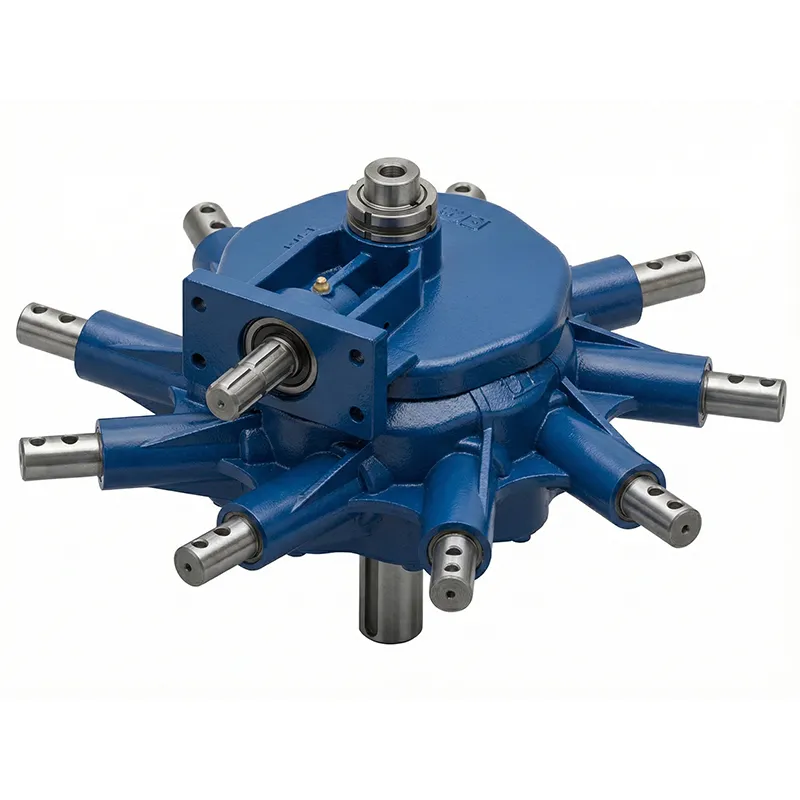

Agricultural Gearbox

Our agricultural gearboxes are engineered specifically for demanding farming applications including rotary tillers, harvesters, seeders, and irrigation systems. Built with heavy-duty components and corrosion-resistant materials, these gearboxes withstand harsh environmental conditions including dust, moisture, and temperature extremes. Available in various configurations with ratios from 1:1 to 100:1, they deliver reliable power transmission for both stationary and mobile agricultural equipment. Features include sealed bearings for extended service life, standardized PTO mounting interfaces, and high torque capacity to handle variable loads typical in farming operations. Our agricultural gearboxes significantly reduce maintenance requirements while improving operational efficiency across diverse agricultural machinery.

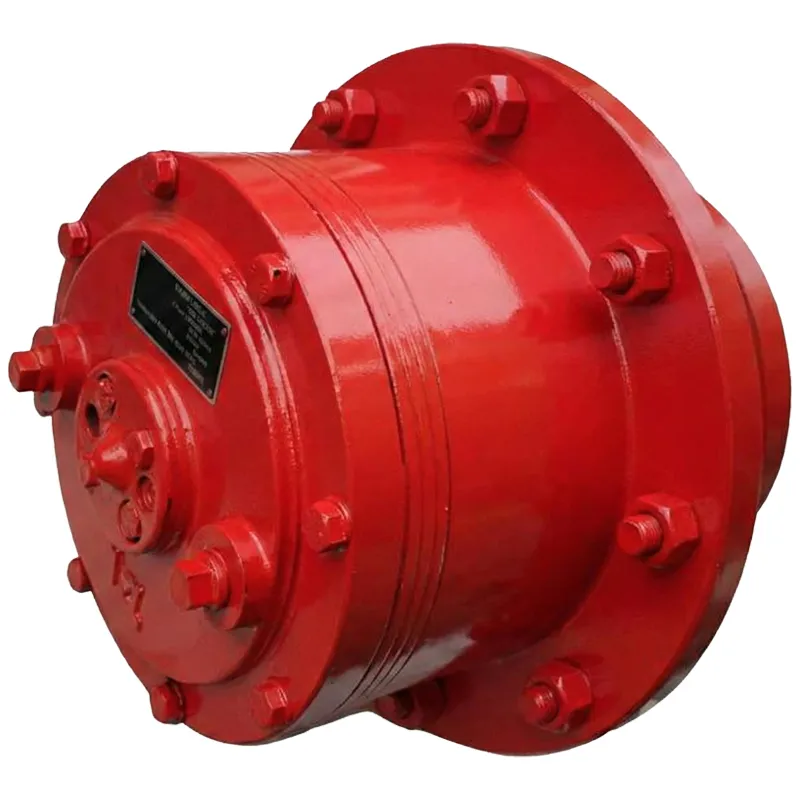

Planetary Gearbox

Planetary gearboxes represent the ultimate solution for applications requiring exceptional torque density in compact packages. Our planetary designs feature multiple planet gears orbiting a central sun gear, distributing loads evenly for superior durability and efficiency. These gearboxes excel in robotics, servo applications, aerospace actuators, and precision automation where space constraints demand maximum power in minimal volume. With efficiencies exceeding 95%, backlash options down to 3 arcminutes, and ratios up to 1000:1 in single or multi-stage configurations, planetary gearboxes deliver unmatched performance. We offer both inline and right-angle versions with various mounting options, making them adaptable to diverse mechanical systems requiring precise motion control and high power transmission.

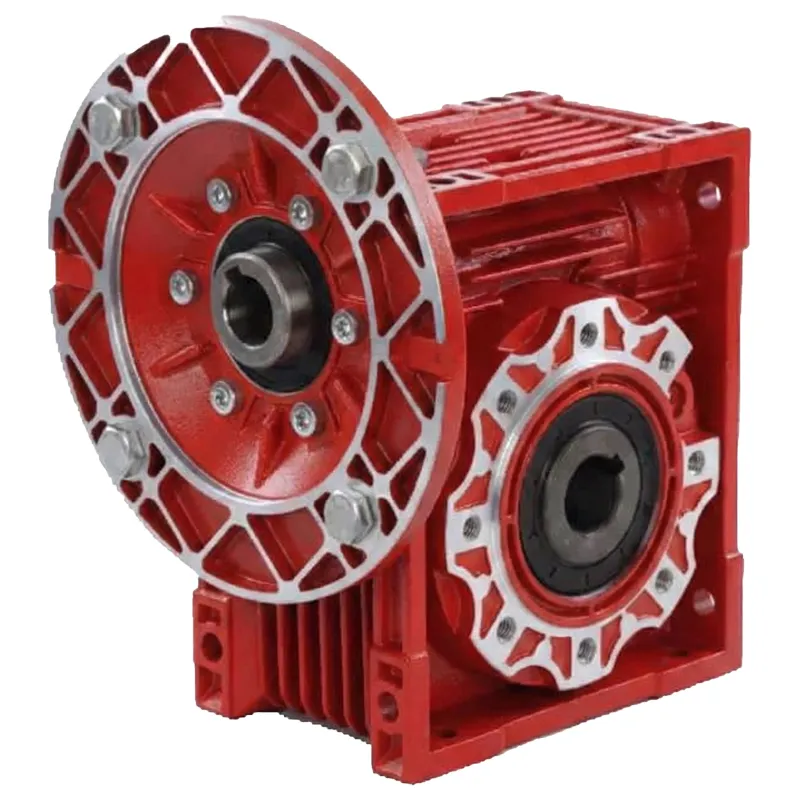

Worm Gearbox

Worm gearboxes provide unique advantages including self-locking capability, smooth quiet operation, and high reduction ratios in single-stage designs. The perpendicular shaft arrangement makes them ideal for applications requiring right-angle power transmission such as conveyors, elevators, packaging machinery, and gate operators. Our worm gearboxes feature precision-ground worm wheels and hardened steel worm shafts for extended wear life. Available in ratios from 5:1 to 100:1, they handle applications from fractional to hundreds of horsepower. The inherent self-locking property provides built-in braking for vertical loads without additional brake mechanisms. With aluminum or cast iron housings and various mounting configurations, our worm gearboxes offer versatile solutions for industrial and commercial applications demanding reliable right-angle power transmission.

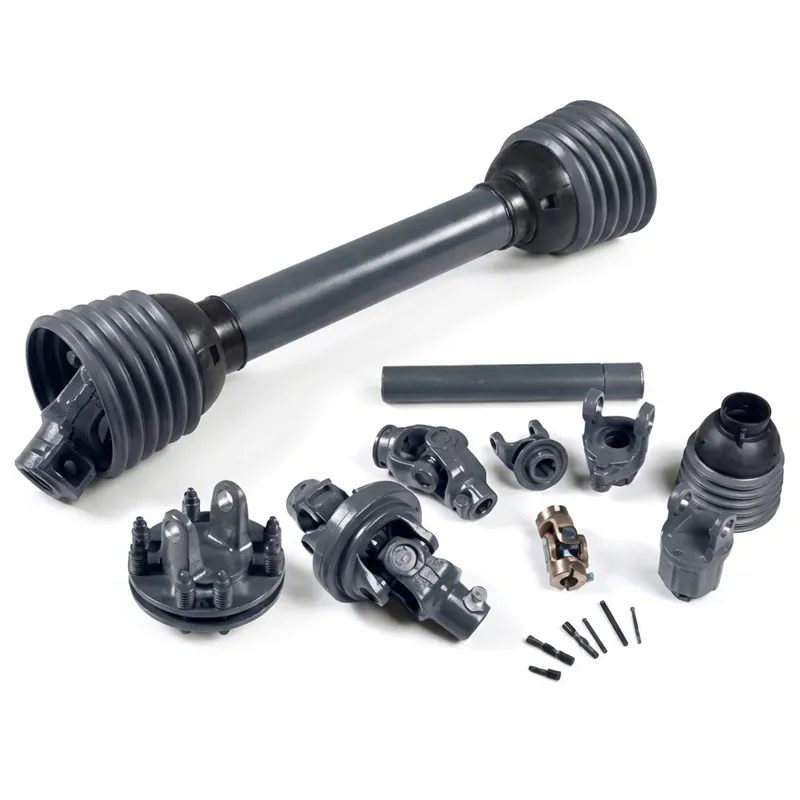

PTO Shaft

Power Take-Off (PTO) shafts are critical components connecting tractors to implements, transferring rotational power for agricultural and industrial operations. Our PTO shaft range includes standard agricultural series with telescoping designs accommodating variable distances, wide-angle joints for misalignment compensation, and protective shields meeting international safety standards. Manufactured from high-strength alloy steel with precision universal joints, these shafts handle demanding torque loads while providing smooth power transmission even at acute operating angles. We offer various series including light-duty, medium-duty, and heavy-duty configurations with torque capacities from 150 Nm to over 3000 Nm. Standard spline connections ensure compatibility with major tractor brands, while our quick-release couplings simplify attachment and detachment, improving operator convenience and safety during implement changes.

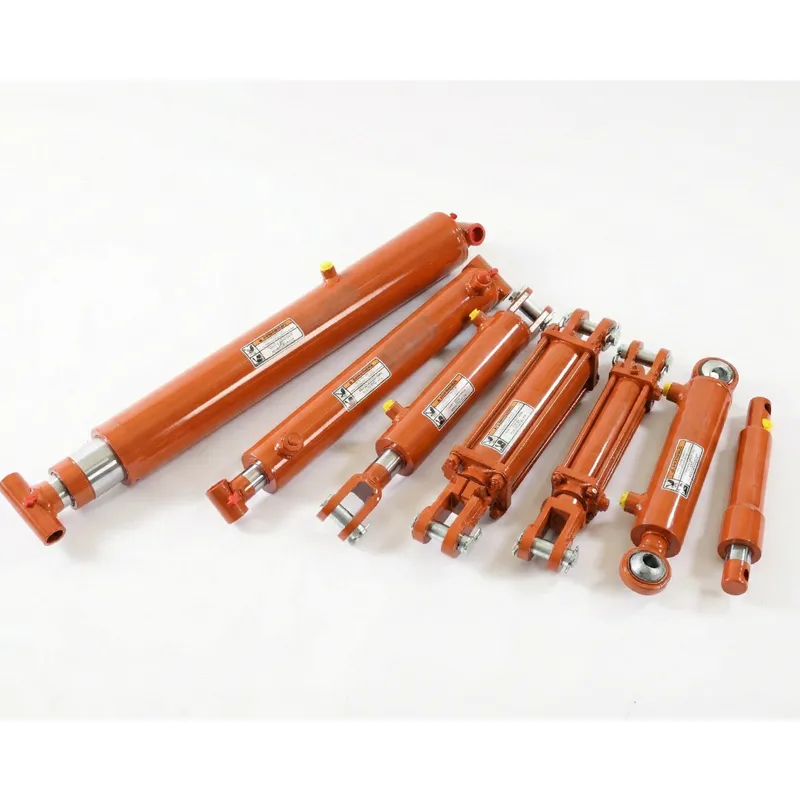

Hydraulic Cylinder

Our hydraulic cylinders convert hydraulic pressure into linear mechanical force, serving as essential actuators across construction equipment, agricultural machinery, industrial presses, and material handling systems. Engineered with precision-honed tubes and chrome-plated piston rods, these cylinders deliver reliable performance under extreme pressures and environmental conditions. Available in single-acting and double-acting configurations with bore sizes from 40mm to 250mm and stroke lengths up to 3000mm, they accommodate diverse application requirements. Features include high-quality seals for leak-free operation, hardened surfaces for wear resistance, and cushioning options for smooth deceleration at stroke ends. Our manufacturing process ensures precise tolerances and concentricity, resulting in efficient operation with minimal internal friction. Whether for mobile equipment or stationary industrial machinery, our hydraulic cylinders provide the robust linear actuation modern equipment demands.

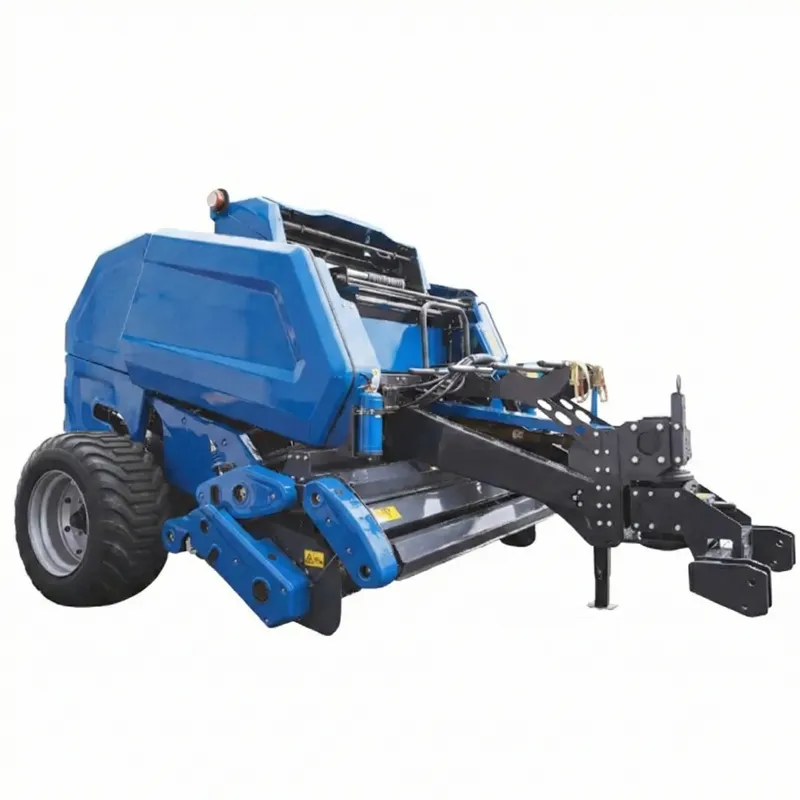

Round Baler
