BS Series Helical Geared Motors

BS Series Helical Geared Motors

The BS Series Helical Geared Motors are cutting-edge mechanical devices designed to deliver exceptional power transmission and efficiency in various industrial applications. These geared motors combine robust construction, precise engineering, and advanced features to provide reliable performance and optimize productivity.

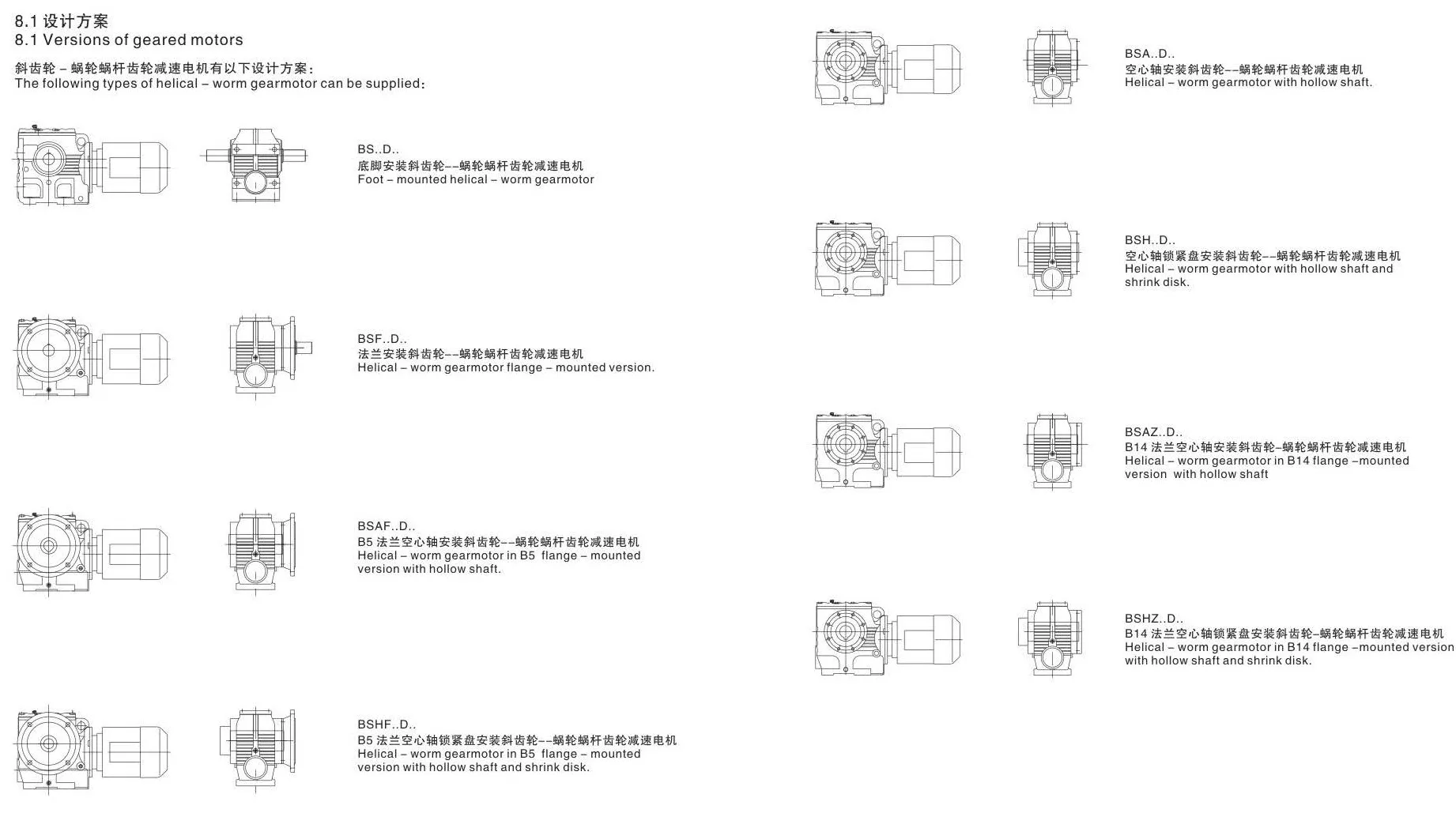

Version Of Geared Motors:

The following types of helical-bevel motors can be supplied

Usage Method Of BS Series Helical Geared Motors:

Power Requirements Assessment:

• Assess your application's power and torque requirements to select the appropriate BS Series Helical Geared Motor.
• Consider load capacity, speed, and duty cycle to ensure optimal performance.

Mounting and Alignment:

• Securely mount the geared motor using suitable brackets and fasteners.
• Ensure proper alignment with the input and output shafts of the connected equipment.

Electrical Connections:

• Connect the motor to the power supply using the recommended electrical connections and wiring procedures.
• Follow the manufacturer's instructions for proper voltage, phase, and frequency settings.

Control and Operation:

• Utilize suitable control systems, such as variable frequency drives (VFDs), to manage the speed and direction of the geared motor.
• Familiarize yourself with the control interface and adjust settings as required for your specific application.

Type Of Combination:

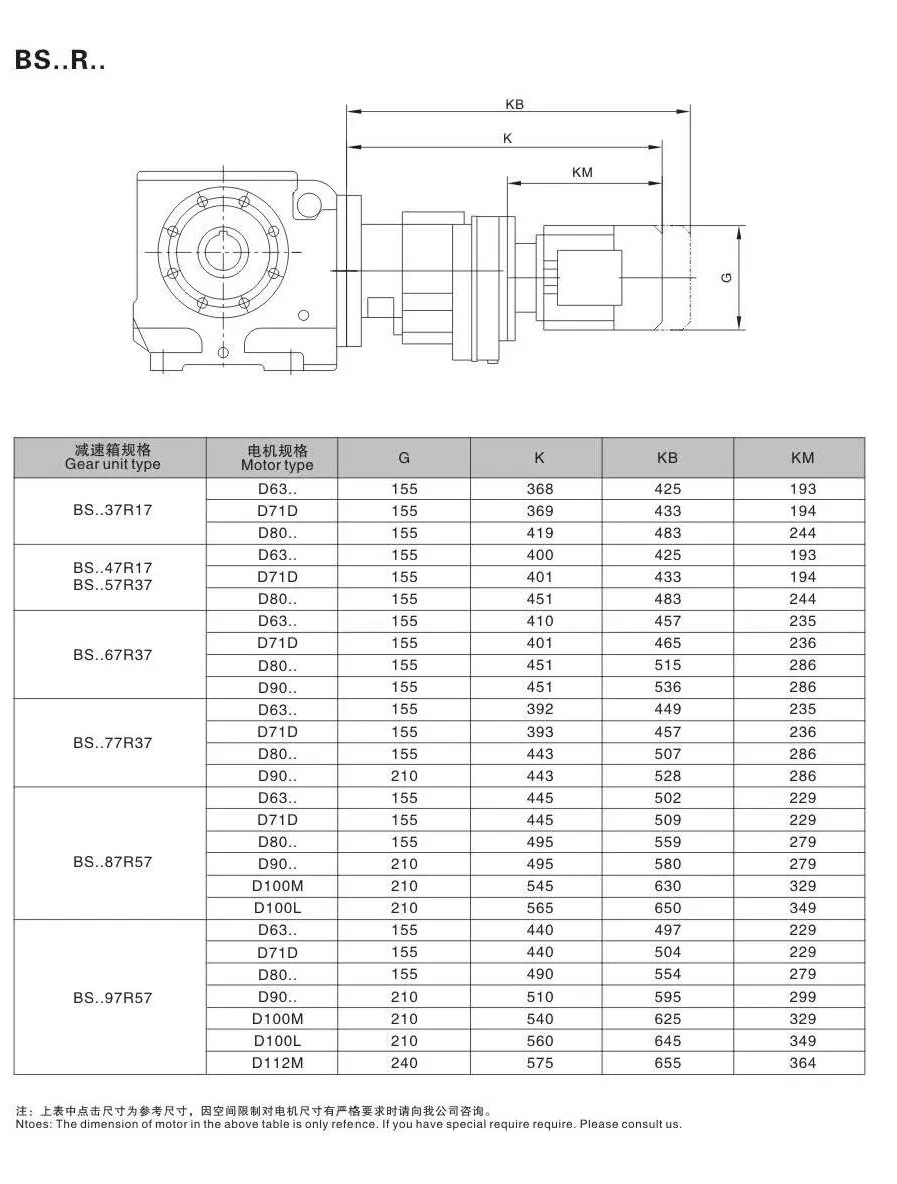

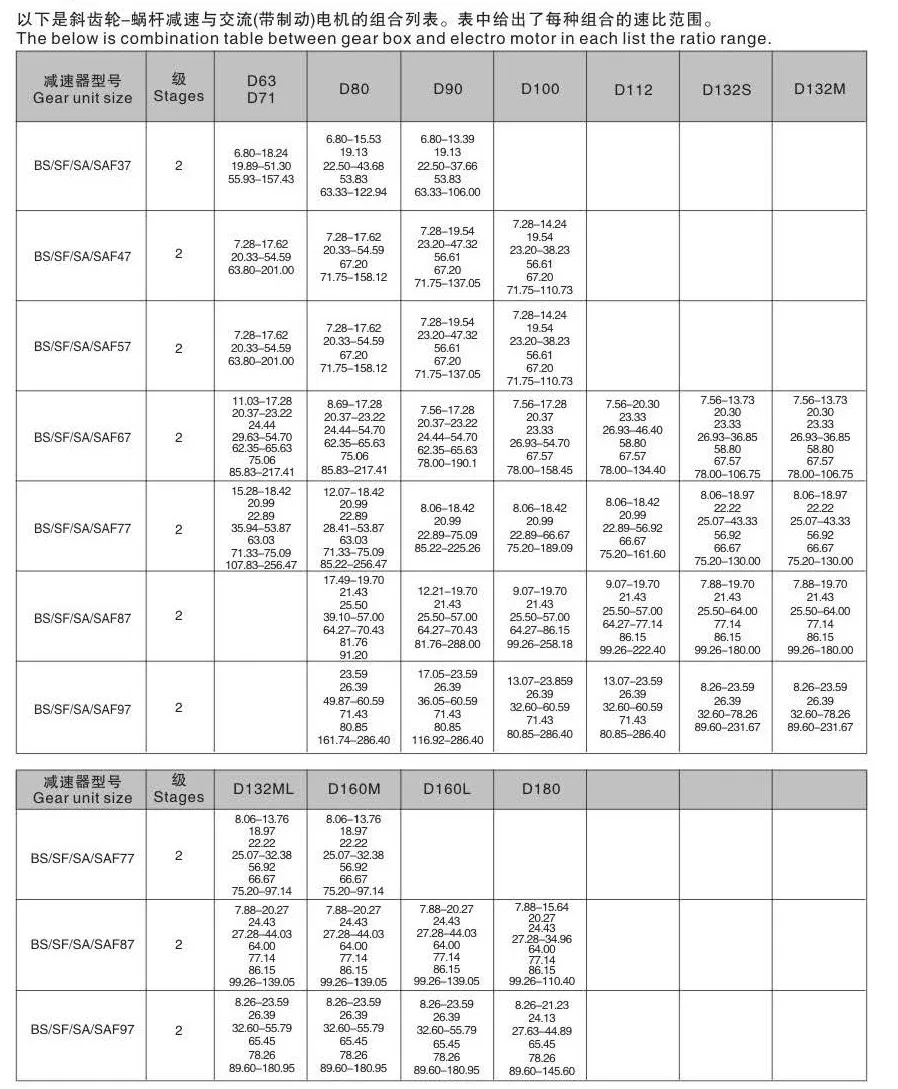

Below is a combination table between the gearbox and the electro-motor in each list of the ratio range.

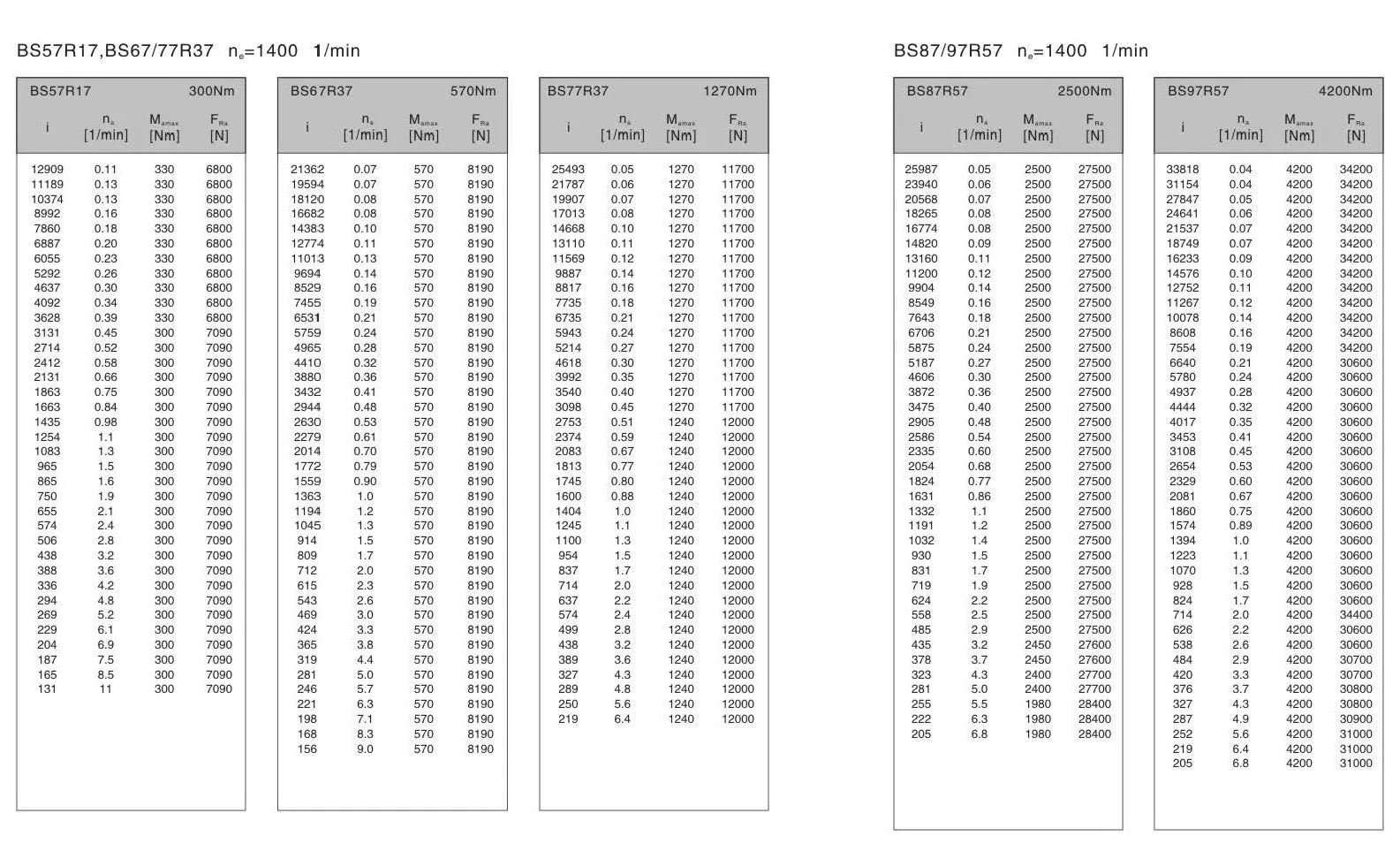

Ratio And Max Torque:

Selection Table:

Important Notes Of Desgin And Mounting:

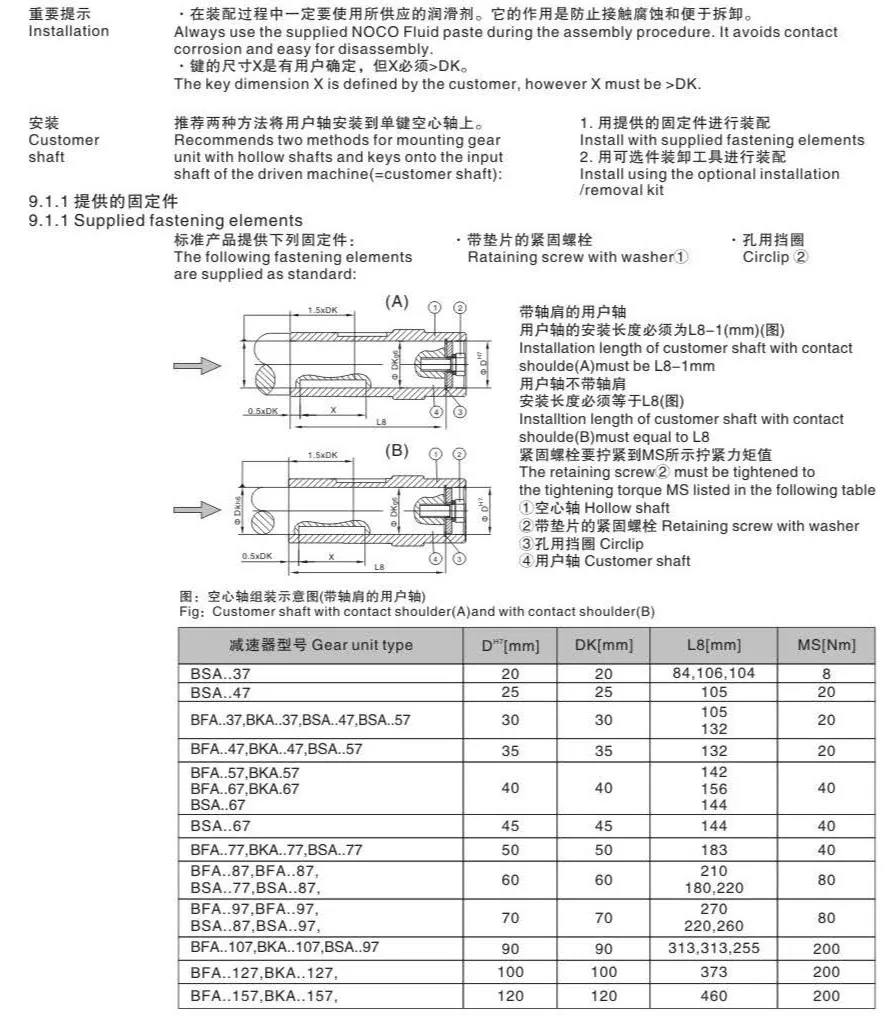

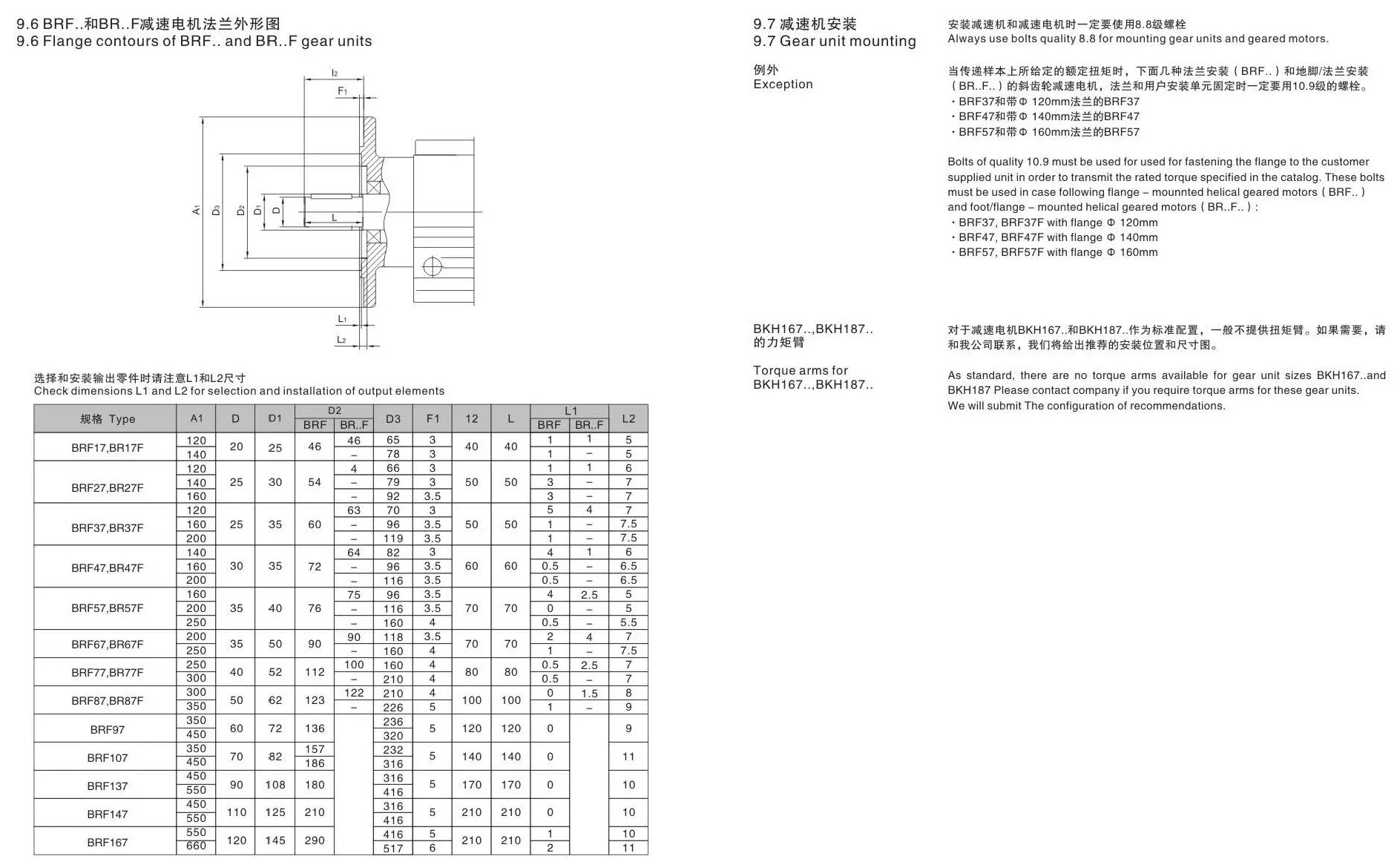

Installation/removal of gear units with hollow shafts and keys

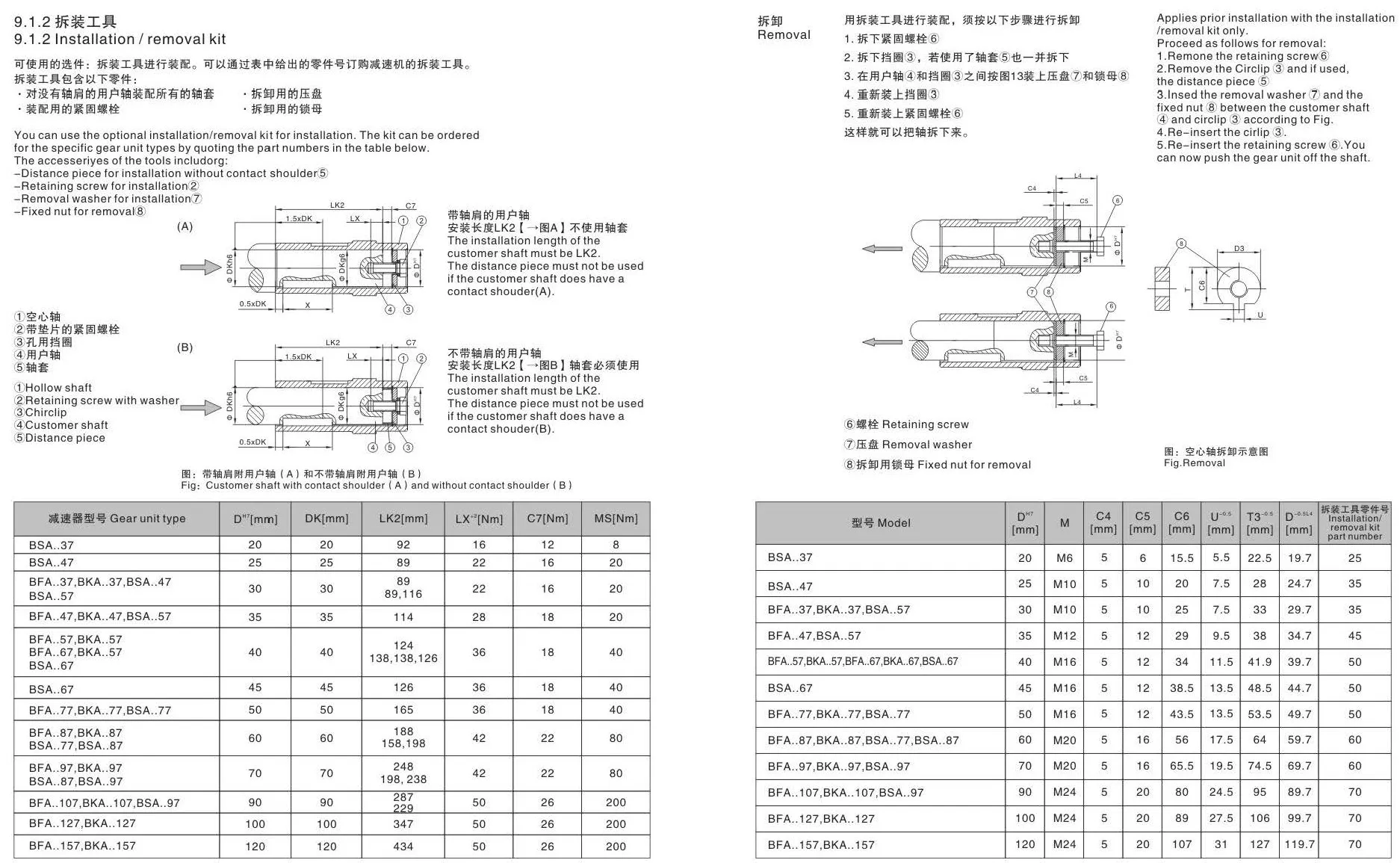

Installation/removal Kit:

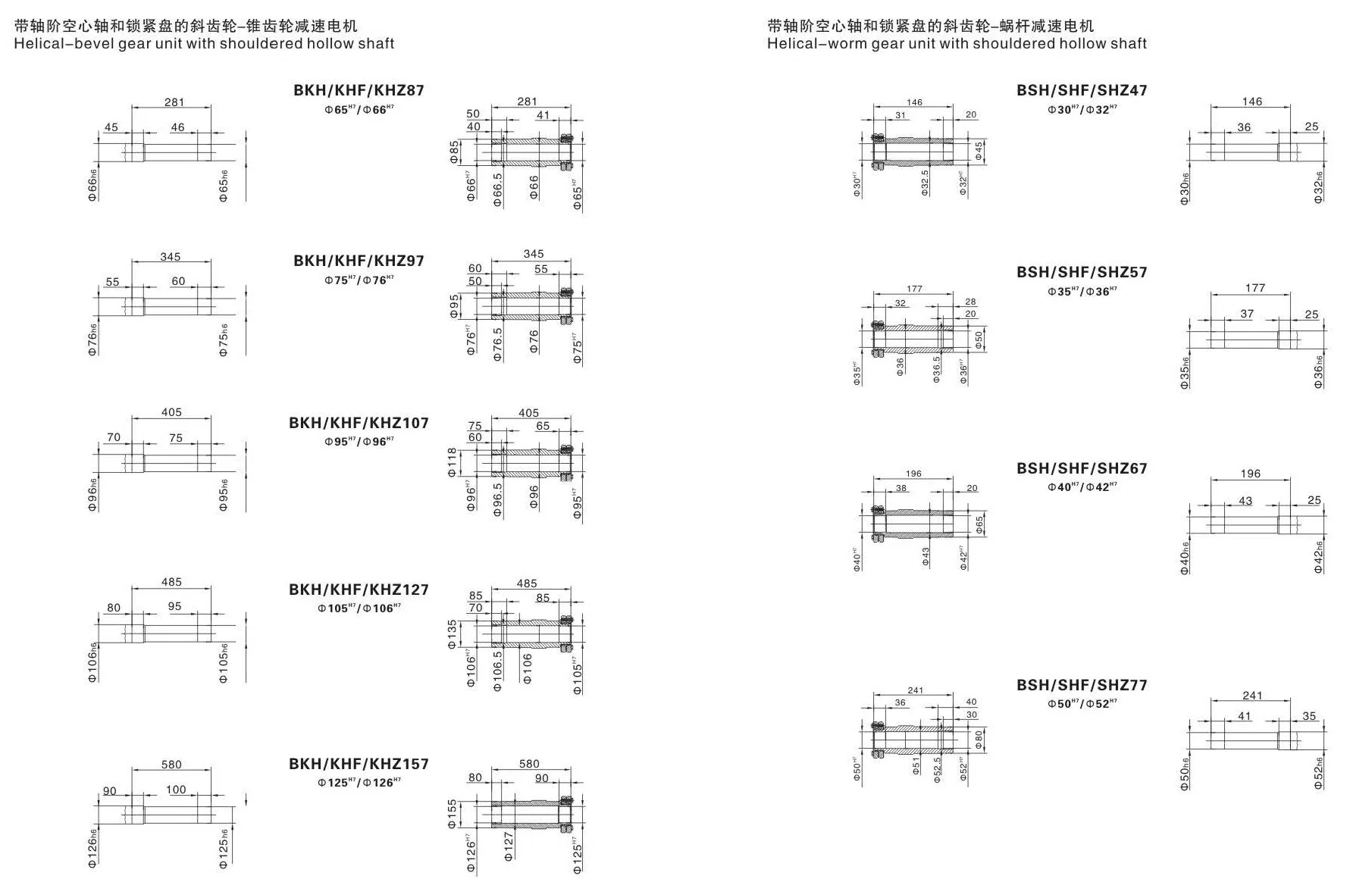

Shouldered Hollow Shaft With Shrink Disk:

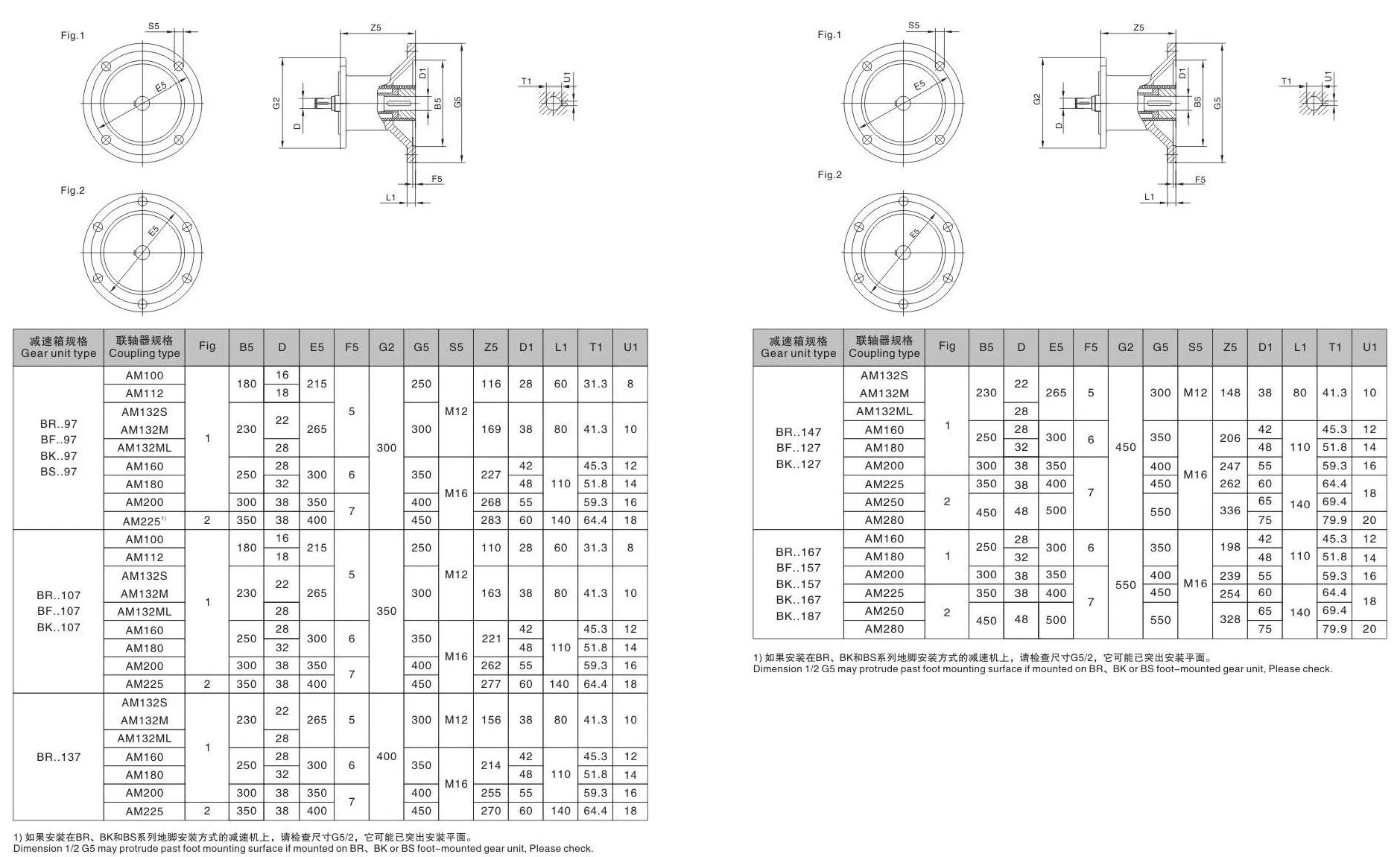

Coupling For Mounting Of IEC Motors:

Adapter For Mounting Of Servomotors:

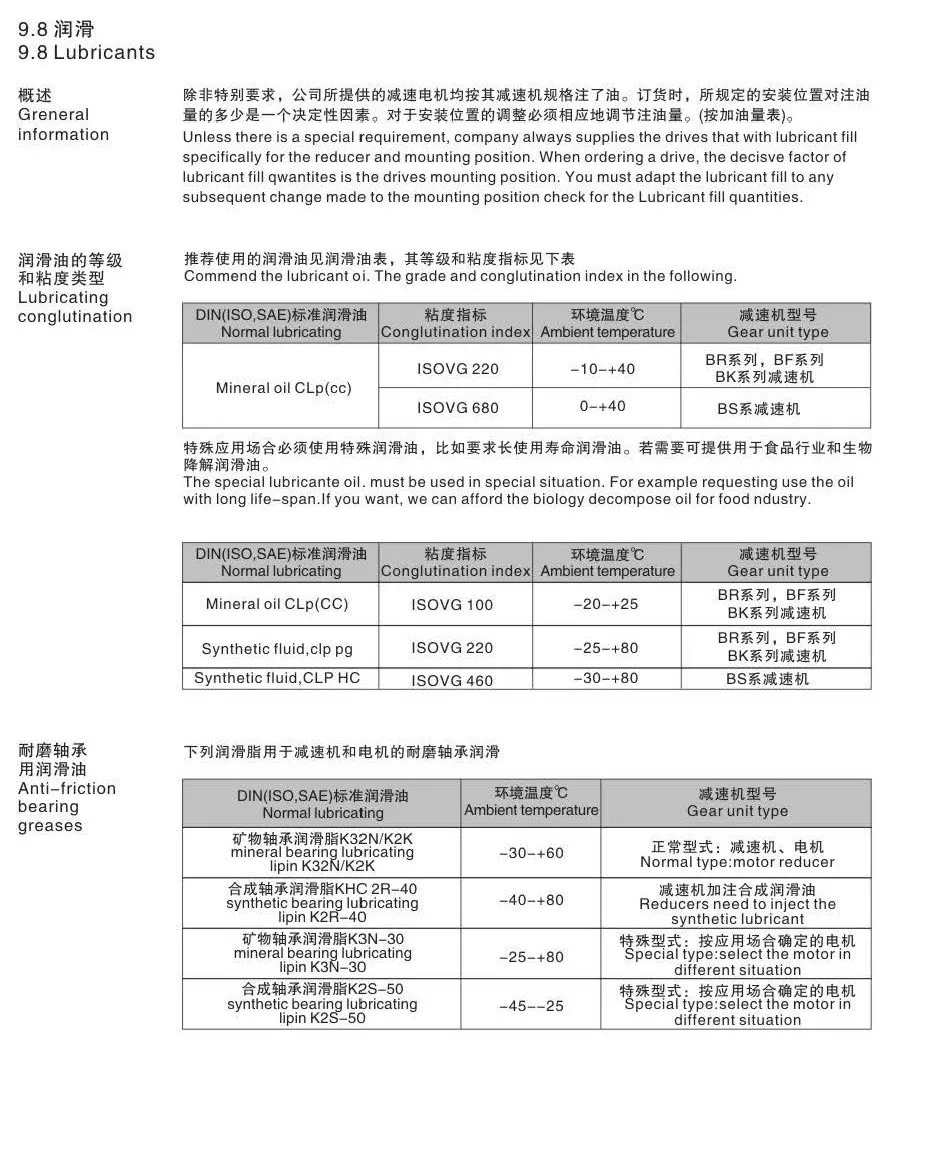

Lubricants:

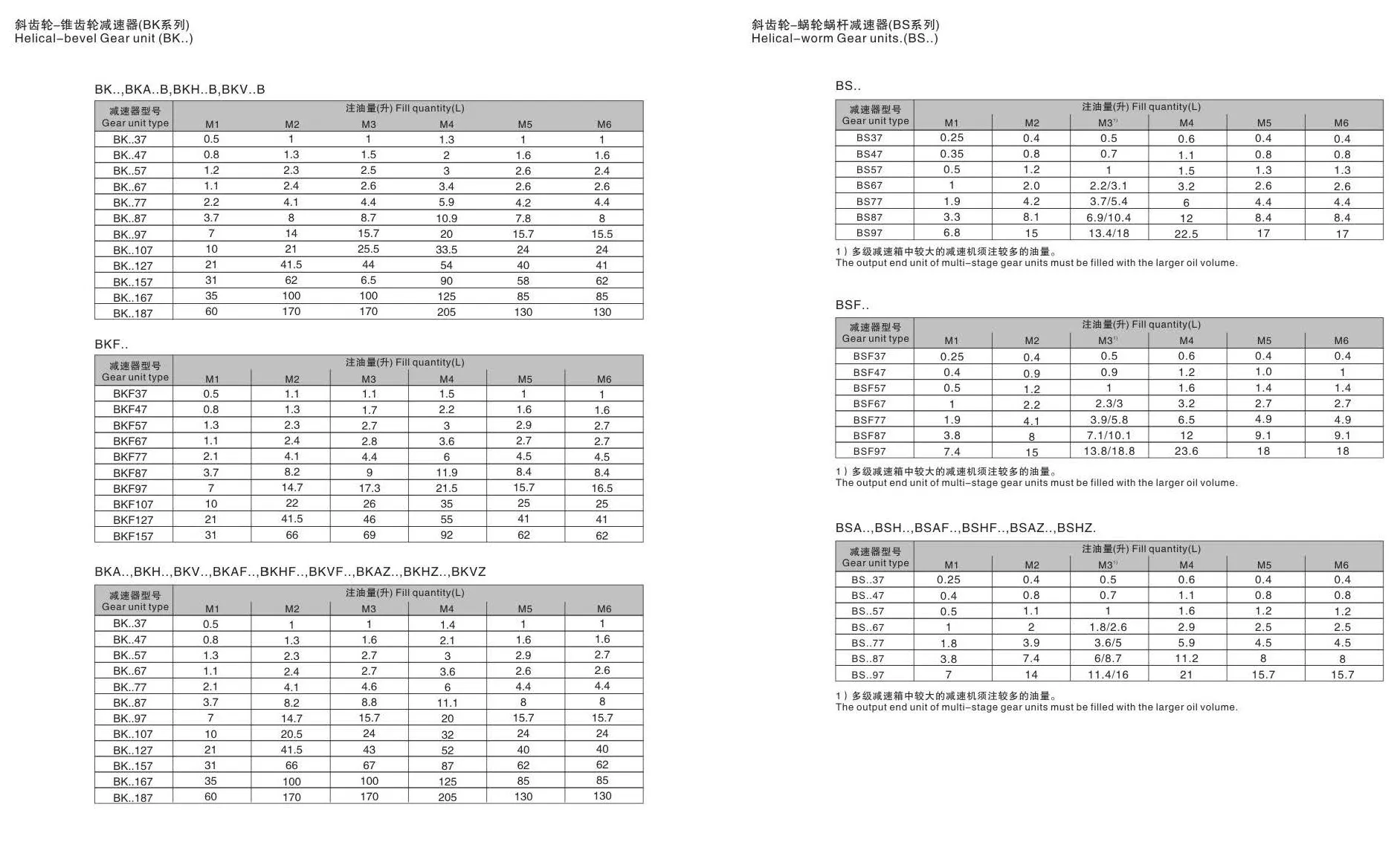

Lubricant Table:

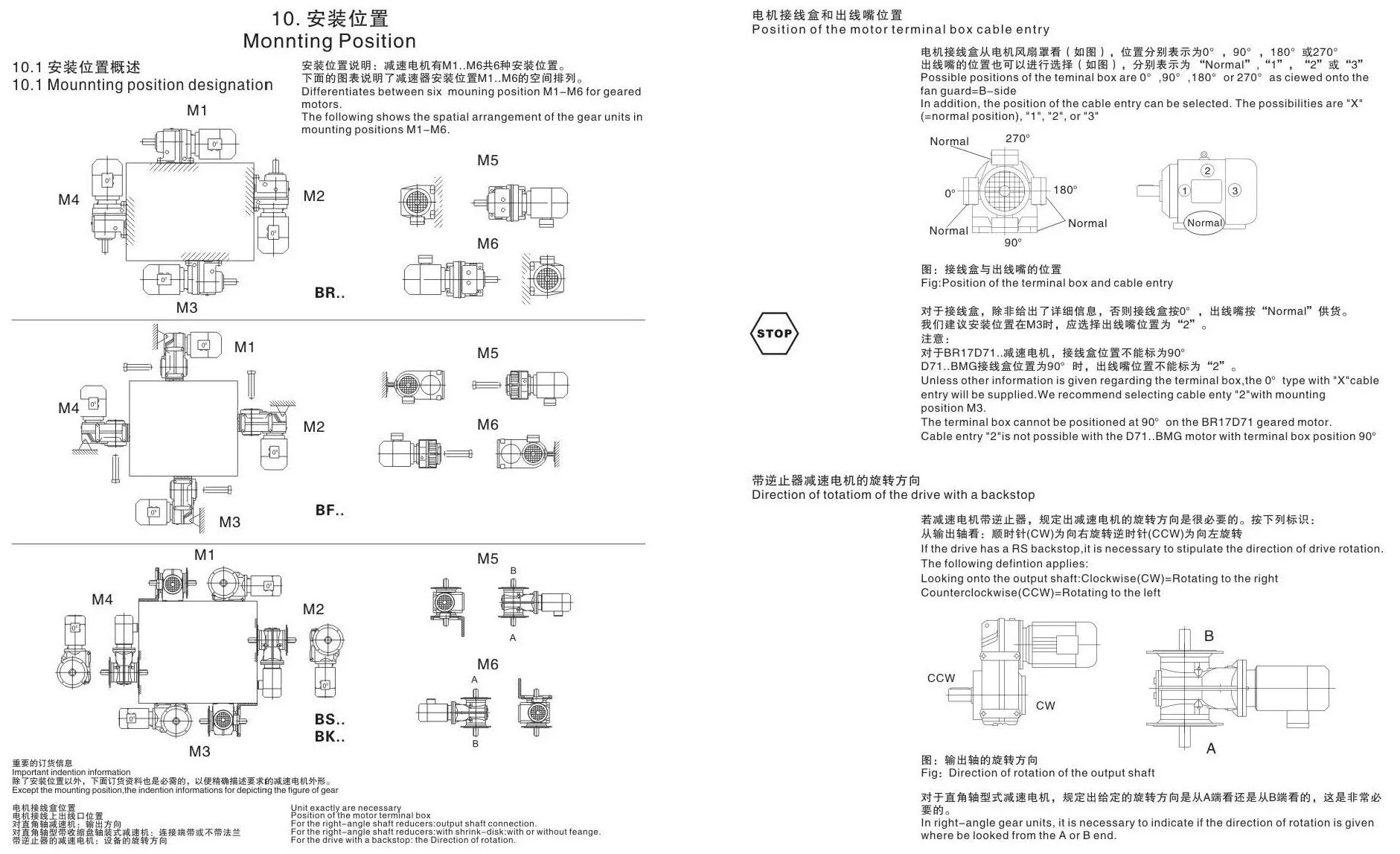

Mounting Position:

Differentiates between six mounting positions M1 -M6 for geared motors.
The following shows the spatial a『rangement of the gear units in mounting positions M1-M6.

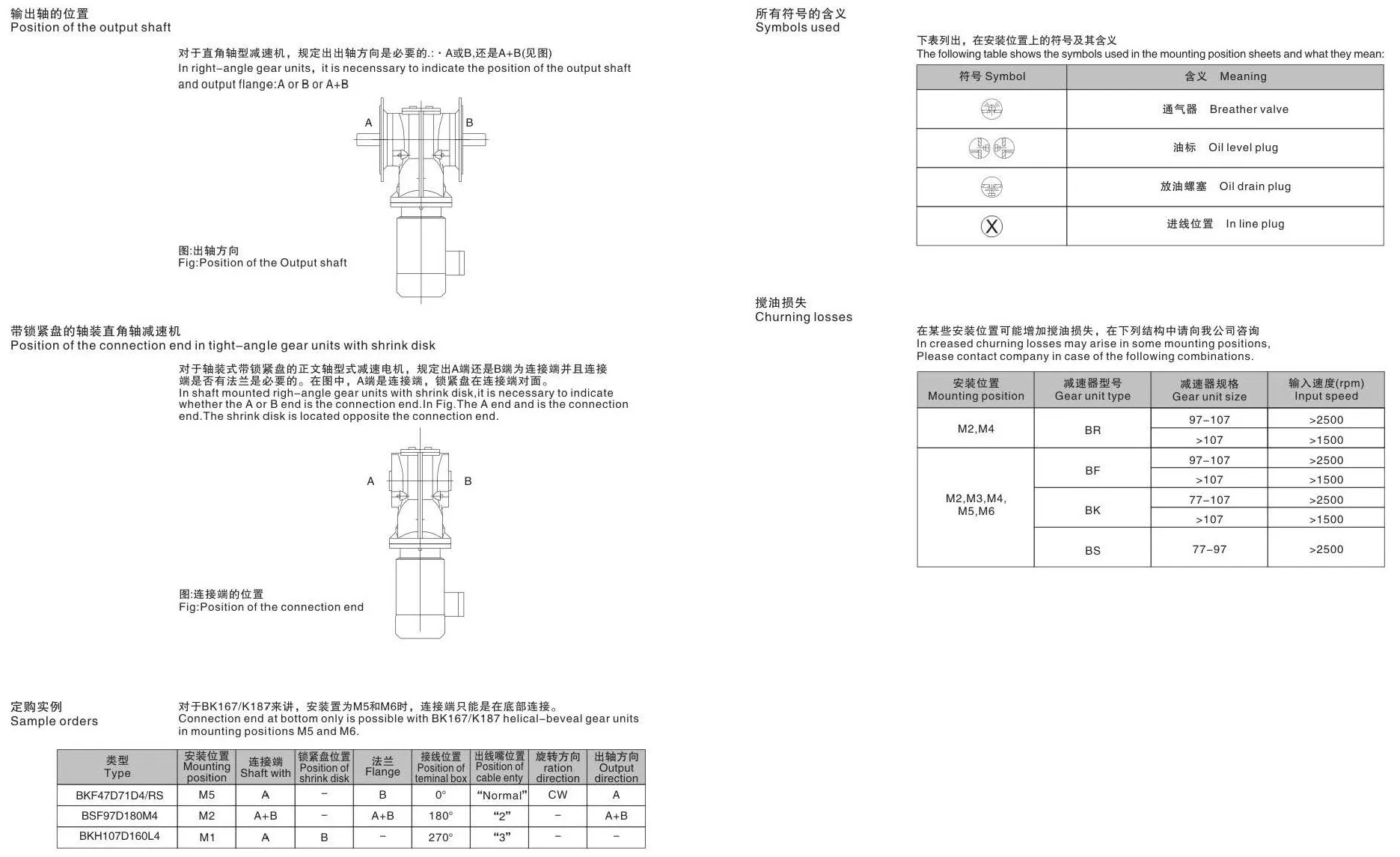

Position of the output shaft

In right-angle gear units, it is necessary to indicate the position of the output shaft and output flange: A or B or A+B

Position of the connection end in tight-angle gear units with shrink disk

In shaft-mounted right-angle gear units with shrink disk.It is necessary to identify whether the A or B end is the connection end.In Fig., The A end is the connection end. The shrink d isk is located opposite the connection end.

Symbols Used

Churning Losses

In creased churning, losses may arise in some mounting positions, Please contact a company in case of the following combinations.

Working Area:

Processing Equipment:

Semi-automatic Assembly Line:
