ZL55 Planetary Gearbox Reducer

The ZL55 Planetary Gearbox Reducer is a type of gearbox that utilizes a planetary gear system to achieve speed reduction and torque multiplication. It is commonly used in various mechanical applications to provide efficient power transmission.

Definition

The ZL55 Planetary Gearbox Reducer is a compact and robust gear mechanism that consists of a central sun gear, multiple planet gears, and an outer ring gear. These gears are arranged in a way that allows for efficient power transmission and torque multiplication.

Function

The primary function of the ZL55 Planetary Gearbox Reducer is to reduce the input speed and increase the output torque. It achieves this by distributing the load across multiple planet gears, resulting in a more efficient and reliable power transmission.

Features

• High Precision Transmission: The ZL55 Planetary Gearbox Reducer ensures precise and accurate power transmission, making it suitable for applications that require precise control.
• Durability: Built to withstand heavy loads and harsh operating conditions, the ZL55 Planetary Gearbox Reducer is highly durable and long-lasting.
• Compact Structure: With its compact design, the ZL55 Planetary Gearbox Reducer can be easily integrated into various mechanical systems.
• Low Noise Operation: The gear system of the ZL55 Planetary Gearbox Reducer is designed to minimize noise and vibration during operation, ensuring a smooth and quiet performance.

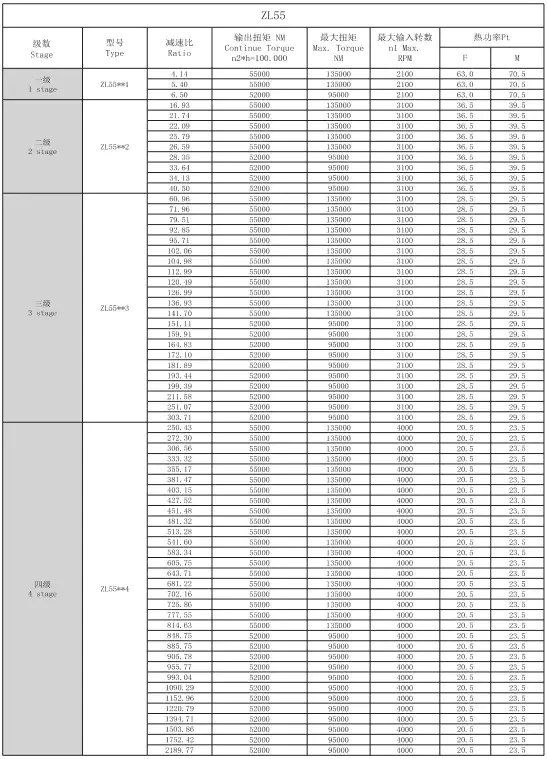

Technical Specifications

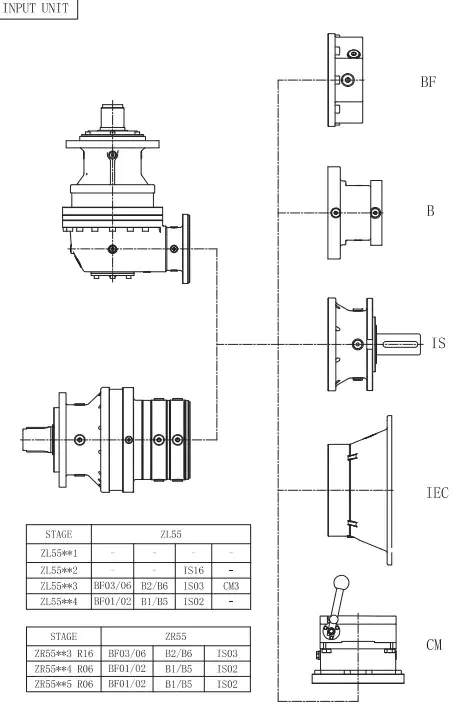

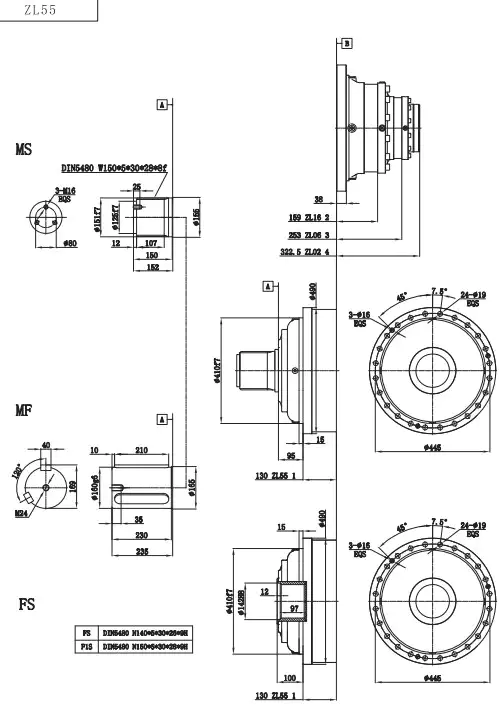

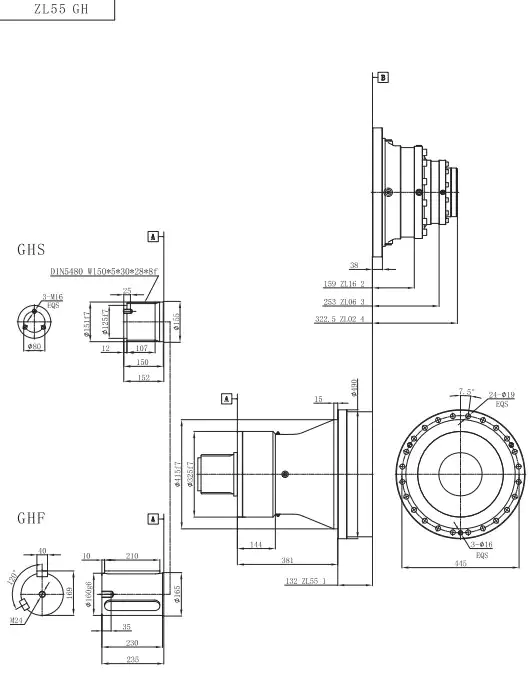

Specifications and Dimensions

Performance Advantages

• High Efficiency and Energy Saving: The ZL55 Planetary Gearbox Reducer ensures efficient power transmission, resulting in energy savings and reduced operating costs.
• Long Service Life: Due to its robust construction and high-quality materials, the ZL55 Planetary Gearbox Reducer offers a long service life and minimal maintenance requirements.
• High Reliability: With its precise and durable gear system, the ZL55 Planetary Gearbox Reducer provides reliable performance even in demanding applications.

Applications

The ZL55 Planetary Gearbox Reducer finds application in various industries, including:

• Construction Industry
• Crushing Equipment
• Environmental Protection Industry
• Mining Industry
• Port Equipment
• Communication Industry
• Paper Industry
• Power Equipment
• Amusement Equipment
• Chemical Mixing
• Marine and Shipbuilding
• Metal Products

Ordering a ZL55 Planetary Gearbox Reducer

To place an order for a ZL55 Planetary Gearbox Reducer, please provide the following information:

• Application Requirements and Operating Environment
• Basic Parameters (Ratio, Input Speed, Output Speed, Rated Torque, Power, etc.)
• Installation Method and Connection Type
• Specific Installation Space Dimensions
• Material Surface Treatment
• Other Requirements such as Protection Level, Lubrication Method, Vibration and Noise Restrictions, etc.

Supply Information

When ordering a ZL55 Planetary Gearbox Reducer, please note the following supply details:

• The gearbox is shipped without lubricating oil.
• The surface is treated with rust-proof paint. If you require a special coating, please inform us in advance.
• For long-term storage, it is recommended to apply grease on the gearbox.
• The gearbox is packed in a wooden crate for secure transportation.

Author: Miya
