Дат баспас болоттон жасалган илгич подшипниктер
Stainless steel hanger bearings are designed to support shafts and are used in a wide range of industrial applications, including screw conveyors. These bearings are made of stainless steel and can operate in highly abrasive and corrosive environments over a wide temperature range. These bearings are also classified as food grade and will be used with premium food grade greases for food processing applications.
Дат баспас болоттон жасалган илгич подшипниктер
Stainless steel hanger bearings are designed to support shafts and are used in a wide range of industrial applications, including screw conveyors. These bearings are made of stainless steel and can operate in highly abrasive and corrosive environments over a wide temperature range. These bearings are also classified as food grade and will be used with premium food grade greases for food processing applications. We offer a variety of shaft locking options for these bearings, such as set screws, eccentric locking rings, concentric locking rings, and wide inner rings.
Stainless Steel Hanger Bearing Sizes

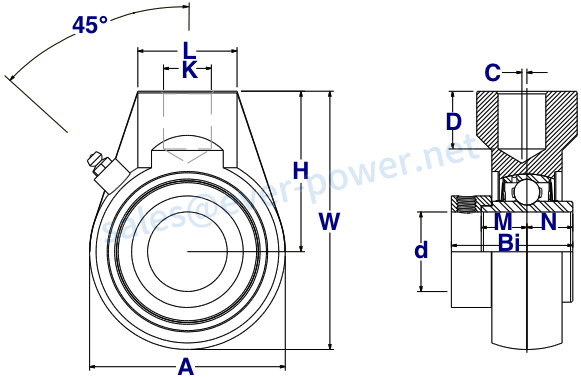

(1) SUCSHAM 200 Normal Duty Stainless Steel Hanger Bearing With Set Screws
 |
 |
|
Подшипник #
|
Валдын диаметри (d)
|
(А)
|
(W)
|
(С)
|
(Н)
|
(L)
|
(D)
|
(К)
|
(Би)
|
(N)
|
(М)
|
Динамикалык жүктөө рейтинги (LBS)
|
Статикалык жүктөө рейтинги (LBS)
|
Подшипник киргизүү
|
Турак жай номери
|
Салмагы (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUCSHAM 201 | 12мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 201 | SHAM 204 | 1.8 |
| SUCSHAM 201-8 | 1/2" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 201-8 | SHAM 204 | 1.8 |
| SUCSHAM 202 | 15мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 202 | SHAM 204 | 1.8 |
| SUCSHAM 202-10 | 5/8" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 202-10 | SHAM 204 | 1.8 |
| SUCSHAM 203 | 17мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 203 | SHAM 204 | 1.8 |
| SUCSHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 204-12 | SHAM 204 | 1.8 |
| SUCSHAM 204 | 20мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2205" | 0.5000" | 0.7205" | 2,331 | 1,142 | SUC 204 | SHAM 204 | 1.8 |
| SUCSHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205-14 | SHAM 205 | 2.0 |
| SUCSHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205-15 | SHAM 205 | 2.0 |
| SUCSHAM 205 | 25мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205 | SHAM 205 | 2.0 |
| SUCSHAM 205-16 | 1mm | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3425" | 0.5630" | 0.7795" | 2,542 | 1,349 | SUC 205-16 | SHAM 205 | 2.0 |
| SUCSHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-17 | SHAM 206 | 2.0 |
| SUCSHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-18 | SHAM 206 | 2.0 |
| SUCSHAM 206 | 30мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206 | SHAM 206 | 2.0 |
| SUCSHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-19 | SHAM 206 | 2.0 |
| SUCSHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5000" | 0.6260" | 0.8740" | 3,554 | 1,942 | SUC 206-20 | SHAM 206 | 2.0 |
| SUCSHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-20 | SHAM 207 | 2.6 |
| SUCSHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-21 | SHAM 207 | 2.6 |
| SUCSHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-22 | SHAM 207 | 2.6 |
| SUCSHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.6890" | 0.6890" | 1.0000" | 4,683 | 2,626 | SUC 207-23 | SHAM 207 | 2.6 |
| SUCSHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9370" | 0.7480" | 1.1890" | 5,294 | 3,057 | SUC 208-24 | SHAM 208 | 3.3 |
| SUCSHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9370" | 0.7480" | 1.1890" | 5,294 | 3,057 | SUC 208-25 | SHAM 208 | 3.3 |
| SUCSHAM 208 | 40мм | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9370" | 0.7480" | 1.1890" | 5,294 | 3,057 | SUC 208 | SHAM 208 | 3.3 |
| SUCSHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209-26 | SHAM 209 | 4.0 |
| SUCSHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209-27 | SHAM 209 | 4.0 |
| SUCSHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209-28 | SHAM 209 | 4.0 |
| SUCSHAM 209 | 45мм | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1 | 1.9370" | 0.7480" | 1.1890" | 5,923 | 3,507 | SUC 209 | SHAM 209 | 4.0 |
| SUCSHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210-30 | SHAM 210 | 4.6 |
| SUCSHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210-31 | SHAM 210 | 4.6 |
| SUCSHAM 210 | 50мм | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210 | SHAM 210 | 4.6 |
| SUCSHAM 210-32 | 2mm | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1 | 2.0315" | 0.7480" | 1.2835" | 6,402 | 4,046 | SUC 210-32 | SHAM 210 | 4.6 |
| SUCSHAM 211-32 | 2mm | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211-32 | SHAM 211 | 7.3 |
| SUCSHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211-34 | SHAM 211 | 7.3 |
| SUCSHAM 211 | 55мм | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211 | SHAM 211 | 7.3 |
| SUCSHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.1890" | 0.8740" | 1.3150" | 7,931 | 5,036 | SUC 211-35 | SHAM 211 | 7.3 |
| SUCSHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212-36 | SHAM 212 | 8.1 |
| SUCSHAM 212 | 60мм | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212 | SHAM 212 | 8.1 |
| SUCSHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212-38 | SHAM 212 | 8.1 |
| SUCSHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.5630" | 1.0000" | 1.5630" | 9,554 | 5,921 | SUC 212-39 | SHAM 212 | 8.1 |

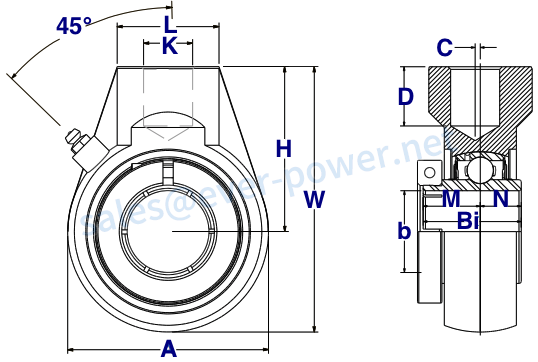

(2) SNCSHAM 200 Normal Duty Stainless Steel Hanger Bearing With Eccentric Locking Collar
 |
|
Подшипник #
|
Валдын диаметри (d)
|
(А)
|
(W)
|
(С)
|
(Н)
|
(L)
|
(D)
|
(К)
|
(Би)
|
(N)
|
(М)
|
Динамикалык жүктөө рейтинги (LBS)
|
Статикалык жүктөө рейтинги (LBS)
|
Подшипник киргизүү
|
Турак жай номери
|
Салмагы (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SNCSHAM 201-8 | 1/2" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 201-8 | SHAM 204 | 2.0 |
| SNCSHAM 202-10 | 5/8" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 202-10 | SHAM 204 | 2.0 |
| SNCSHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 204-12 | SHAM 204 | 2.0 |
| SNCSHAM 204 | 20мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5472" | 0.5000" | 0.6732" | 2,331 | 1,142 | SNC 204 | SHAM 204 | 2.0 |
| SNCSHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205-14 | SHAM 205 | 2.2 |
| SNCSHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205-15 | SHAM 205 | 2.2 |
| SNCSHAM 205 | 25мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205 | SHAM 205 | 2.2 |
| SNCSHAM 205-16 | 1" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.6220" | 0.5630" | 0.6850" | 2,542 | 1,349 | SNC 205-16 | SHAM 205 | 2.2 |
| SNCSHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-17 | SHAM 206 | 2.3 |
| SNCSHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-18 | SHAM 206 | 2.3 |
| SNCSHAM 206 | 30мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206 | SHAM 206 | 2.3 |
| SNCSHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-19 | SHAM 206 | 2.3 |
| SNCSHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.8110" | 0.6260" | 0.7165" | 3,554 | 1,942 | SNC 206-20 | SHAM 206 | 2.3 |
| SNCSHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-20 | SHAM 207 | 2.9 |
| SNCSHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-21 | SHAM 207 | 2.9 |
| SNCSHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-22 | SHAM 207 | 2.9 |
| SNCSHAM 207 | 35мм | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207 | SHAM 207 | 2.9 |
| SNCSHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.9606" | 0.6890" | 0.7402" | 4,683 | 2,626 | SNC 207-23 | SHAM 207 | 2.9 |
| SNCSHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.8" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.1220" | 0.7480" | 0.8425" | 5,294 | 3,057 | SNC 208-24 | SHAM 208 | 3.6 |
| SNCSHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.8" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.1220" | 0.7480" | 0.8425" | 5,294 | 3,057 | SNC 208-25 | SHAM 208 | 3.6 |
| SNCSHAM 208 | 40мм | 3.78" | 4.76" | 0.8" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.1220" | 0.7480" | 0.8425" | 5,294 | 3,057 | SNC 208 | SHAM 208 | 3.6 |
| SNCSHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209-26 | SHAM 209 | 4.2 |
| SNCSHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209-27 | SHAM 209 | 4.2 |
| SNCSHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209-28 | SHAM 209 | 4.2 |
| SNCSHAM 209 | 45мм | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.1220" | 0.7480" | 0.8425" | 5,923 | 3,507 | SNC 209 | SHAM 209 | 4.2 |
| SNCSHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210-30 | SHAM 210 | 4.8 |
| SNCSHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210-31 | SHAM 210 | 4.8 |
| SNCSHAM 210 | 50мм | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210 | SHAM 210 | 4.8 |
| SNCSHAM 210-32 | 2" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.2480" | 0.7480" | 0.9685" | 6,402 | 4,046 | SNC 210-32 | SHAM 210 | 4.8 |
| SNCSHAM 211-32 | 2" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211-32 | SHAM 211 | 7.6 |
| SNCSHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211-34 | SHAM 211 | 7.6 |
| SNCSHAM 211 | 55мм | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211 | SHAM 211 | 7.6 |
| SNCSHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF 1/4" | 2.5906" | 0.8740" | 1.0906" | 7,931 | 5,036 | SNC 211-35 | SHAM 211 | 7.6 |
| SNCSHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212-36 | SHAM 212 | 8.6 |
| SNCSHAM 212 | 60мм | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212 | SHAM 212 | 8.6 |
| SNCSHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212-38 | SHAM 212 | 8.6 |
| SNCSHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF 1/4" | 2.8425" | 1.0000" | 1.2165" | 9,554 | 5,921 | SNC 212-39 | SHAM 212 | 8.6 |

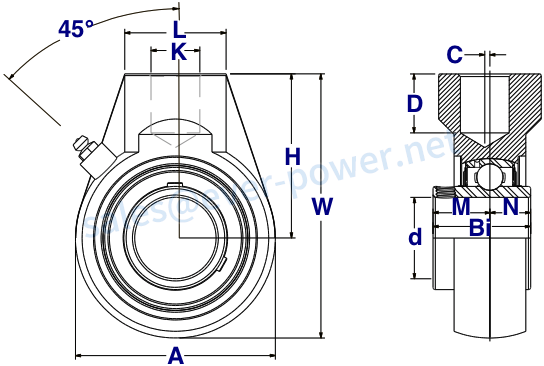

(3) SHCSHAM 200 Normal Duty Stainless Steel Hanger Bearing With Eccentric Locking Collar and Wide Inner Ring
 |
|
Подшипник #
|
Валдын диаметри (d)
|
(А)
|
(W)
|
(С)
|
(Н)
|
(L)
|
(D)
|
(К)
|
(Би)
|
(N)
|
(М)
|
Динамикалык жүктөө рейтинги (LBS)
|
Статикалык жүктөө рейтинги (LBS)
|
Подшипник киргизүү
|
Турак жай номери
|
Салмагы (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHCSHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7205" | 0.6732" | 0.6732" | 2,331 | 1,142 | SHC 204-12 | SHAM 204 | 2.0 |
| SHCSHAM 204 | 20мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7205" | 0.6732" | 0.6732" | 2,331 | 1,142 | SHC 204 | SHAM 204 | 2.0 |
| SHCSHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205-14 | SHAM 205 | 2.2 |
| SHCSHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205-15 | SHAM 205 | 2.2 |
| SHCSHAM 205 | 25мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205 | SHAM 205 | 2.2 |
| SHCSHAM 205-16 | 1" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.7480" | 0.6890" | 0.6850" | 2,542 | 1,349 | SHC 205-16 | SHAM 205 | 2.2 |
| SHCSHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-17 | SHAM 206 | 2.3 |
| SHCSHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-18 | SHAM 206 | 2.3 |
| SHCSHAM 206 | 30мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206 | SHAM 206 | 2.3 |
| SHCSHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-19 | SHAM 206 | 2.3 |
| SHCSHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.9055" | 0.7205" | 0.7165" | 3,554 | 1,942 | SHC 206-20 | SHAM 206 | 2.3 |
| SHCSHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-20 | SHAM 207 | 2.9 |
| SHCSHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-21 | SHAM 207 | 2.9 |
| SHCSHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-22 | SHAM 207 | 2.9 |
| SHCSHAM 207 | 35мм | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207 | SHAM 207 | 2.9 |
| SHCSHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 2.0118" | 0.7402" | 0.7402" | 4,683 | 2,626 | SHC 207-23 | SHAM 207 | 2.9 |
| SHCSHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.2165" | 0.8425" | 0.8425" | 5,294 | 3,057 | SHC 208-24 | SHAM 208 | 3.6 |
| SHCSHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.2165" | 0.8425" | 0.8425" | 5,294 | 3,057 | SHC 208-25 | SHAM 208 | 3.6 |
| SHCSHAM 208 | 40мм | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 2.2165" | 0.8425" | 0.8425" | 5,294 | 3,057 | SHC 208 | SHAM 208 | 3.6 |
| SHCSHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209-26 | SHAM 209 | 4.2 |
| SHCSHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209-27 | SHAM 209 | 4.2 |
| SHCSHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209-28 | SHAM 209 | 4.2 |
| SHCSHAM 209 | 45мм | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 2.2165" | 0.8425" | 0.8425" | 5,923 | 3,507 | SHC 209 | SHAM 209 | 4.2 |
| SHCSHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210-30 | SHAM 210 | 4.8 |
| SHCSHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210-31 | SHAM 210 | 4.8 |
| SHCSHAM 210 | 50мм | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210 | SHAM 210 | 4.8 |
| SHCSHAM 210-32 | 2" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.485" | 0.9685" | 0.9685" | 6,402 | 4,046 | SHC 210-32 | SHAM 210 | 4.8 |
| SHCSHAM 211-32 | 2" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211-32 | SHAM 211 | 7.6 |
| SHCSHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211-34 | SHAM 211 | 7.6 |
| SHCSHAM 211 | 55мм | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211 | SHAM 211 | 7.6 |
| SHCSHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.8110" | 1.0945" | 1.0906" | 7,931 | 5,036 | SHC 211-35 | SHAM 211 | 7.6 |
| SHCSHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212-36 | SHAM 212 | 8.6 |
| SHCSHAM 212 | 60мм | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212 | SHAM 212 | 8.6 |
| SHCSHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212-38 | SHAM 212 | 8.6 |
| SHCSHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 3.0630" | 1.2205" | 1.2165" | 9,554 | 5,921 | SHC 212-39 | SHAM 212 | 8.6 |

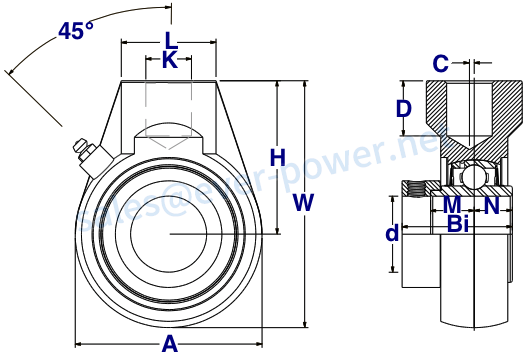

(4) SUESHAM 200 Normal Duty Stainless Steel Hanger Bearing With Tru-Loc Concentric Collar Clamp
 |
| Подшипник # | Валдын диаметри (d) | (А) | (W) | (С) | (Н) | (L) | (D) | (К) | (Би) | (N) | (М) | Динамикалык жүктөө рейтинги (LBS) | Статикалык жүктөө рейтинги (LBS) | Подшипник киргизүү | Турак жай номери | Салмагы (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUESHAM 204-12 | 3/4" | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2992" | 0.5000" | 0.7205" | 2,331 | 1,142 | СУЭ 204-12 | SHAM 204 | 1.8 |
| SUESHAM 204 | 20мм | 2.52" | 3.78" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.2992" | 0.5000" | 0.7205" | 2,331 | 1,142 | СУЭ 204 | SHAM 204 | 1.8 |
| SUESHAM 205-14 | 7/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | СУЭ 205-14 | SHAM 205 | 2.0 |
| SUESHAM 205-15 | 15/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | СУЭ 205-15 | SHAM 205 | 2.0 |
| SUESHAM 205 | 25мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | СУЭ 205 | SHAM 205 | 2.0 |
| SUESHAM 205-16 | 1" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.3937" | 0.5630" | 0.7795" | 2,542 | 1,349 | СУЭ 205-16 | SHAM 205 | 2.0 |
| SUESHAM 206-17 | 1-1/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | СУЭ 206-17 | SHAM 206 | 2.0 |
| SUESHAM 206-18 | 1-1/8" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | СУЭ 206-18 | SHAM 206 | 2.0 |
| SUESHAM 206 | 30мм | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | СУЭ 206 | SHAM 206 | 2.0 |
| SUESHAM 206-19 | 1-3/16" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | СУЭ 206-19 | SHAM 206 | 2.0 |
| SUESHAM 206-20 | 1-1/4" | 3.07" | 4.06" | 0.00" | 2.52" | 1.57" | 0.75" | PF 3/4" | 1.5669" | 0.6260" | 0.8740" | 3,554 | 1,942 | СУЭ 206-20 | SHAM 206 | 2.0 |
| SUESHAM 207-20 | 1-1/4" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | СУЭ 207-20 | SHAM 207 | 2.6 |
| SUESHAM 207-21 | 1-5/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | СУЭ 207-21 | SHAM 207 | 2.6 |
| SUESHAM 207-22 | 1-3/8" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | СУЭ 207-22 | SHAM 207 | 2.6 |
| SUESHAM 207 | 35мм | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | СУЭ 207 | SHAM 207 | 2.6 |
| SUESHAM 207-23 | 1-7/16" | 3.62" | 4.57" | 0.00" | 2.76" | 1.57" | 0.75" | PF 3/4" | 1.7283" | 0.6890" | 0.6890" | 4,683 | 2,626 | СУЭ 207-23 | SHAM 207 | 2.6 |
| SUESHAM 208-24 | 1-1/2" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9764" | 0.7480" | 0.7480" | 5,294 | 3,057 | СУЭ 208-24 | SHAM 208 | 3.3 |
| SUESHAM 208-25 | 1-9/16" | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9764" | 0.7480" | 0.7480" | 5,294 | 3,057 | СУЭ 208-25 | SHAM 208 | 3.3 |
| SUESHAM 208 | 40мм | 3.78" | 4.76" | 0.08" | 2.87" | 1.57" | 0.75" | PF 3/4" | 1.9764" | 0.7480" | 0.7480" | 5,294 | 3,057 | СУЭ 208 | SHAM 208 | 3.3 |
| SUESHAM 209-26 | 1-5/8" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | СУЭ 209-26 | SHAM 209 | 4.0 |
| SUESHAM 209-27 | 1-11/16" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | СУЭ 209-27 | SHAM 209 | 4.0 |
| SUESHAM 209-28 | 1-3/4" | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | СУЭ 209-28 | SHAM 209 | 4.0 |
| SUESHAM 209 | 45мм | 4.25" | 5.35" | 0.20" | 3.23" | 1.89" | 0.83" | PF1" | 1.9764" | 0.7480" | 0.7480" | 5,923 | 3,507 | СУЭ 209 | SHAM 209 | 4.0 |
| SUESHAM 210-30 | 1-7/8" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | СУЭ 210-30 | SHAM 210 | 4.6 |
| SUESHAM 210-31 | 1-15/16" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | СУЭ 210-31 | SHAM 210 | 4.6 |
| SUESHAM 210 | 50мм | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | СУЭ 210 | SHAM 210 | 4.6 |
| SUESHAM 210-32 | 2" | 4.65" | 5.59" | 0.20" | 3.27" | 1.89" | 0.83" | PF1" | 2.0709" | 0.7480" | 0.7480" | 6,402 | 4,046 | СУЭ 210-32 | SHAM 210 | 4.6 |
| SUESHAM 211-32 | 2" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | СУЭ 211-32 | SHAM 211 | 7.3 |
| SUESHAM 211-34 | 2-1/8" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | СУЭ 211-34 | SHAM 211 | 7.3 |
| SUESHAM 211 | 55мм | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | СУЭ 211 | SHAM 211 | 7.3 |
| SUESHAM 211-35 | 2-3/16" | 4.96" | 6.22" | 0.28" | 3.74" | 2.36" | 0.98" | PF1 1/4" | 2.2283" | 0.8740" | 0.8740" | 7,931 | 5,036 | СУЭ 211-35 | SHAM 211 | 7.3 |
| SUESHAM 212-36 | 2-1/4" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | СУЭ 212-36 | SHAM 212 | 8.1 |
| SUESHAM 212 | 60мм | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | СУЭ 212 | SHAM 212 | 8.1 |
| SUESHAM 212-38 | 2-3/8" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | СУЭ 212-38 | SHAM 212 | 8.1 |
| SUESHAM 212-39 | 2-7/16" | 5.59" | 6.81" | 0.35" | 4.02" | 2.36" | 1.10" | PF1 1/4" | 2.6220" | 1.0000" | 1.0000" | 9,554 | 5,921 | СУЭ 212-39 | SHAM 212 | 8.1 |
The role of hanger bearings
Hanger bearings are used as rotary bearings for drive shafts and screw conveyor shafts. Typically, these industrial shafts are closed with casings or troughs. Hanger bearings consist of split roller bearings in cast iron split housings with threaded bosses to provide suspension for conveyor cross supports. Rotational fixation at the cross-bracing joint is recommended to align the bearings. The frame of the suspension bearing is mounted on the top or side of the housing. Bearings are suspended in the center for shaft mounting. Suspension bearings are widely used in agricultural applications and heavy industry. They are also used in automotive, aircraft, and marine driveshaft assemblies.
Structure & Material of hanger bearings
Housings for hanger bearings are available in one- or two-piece (split) construction. The one-piece housing cannot be removed. Two-piece or split housings are bolted together and can be removed for bearing replacement or general maintenance. Hanger bearings are specified by the bearing's inner shaft diameter, bearing type (plain or rolling element), housing and frame arrangement and dimensions, and materials of construction. Hanger bearings can be purchased with the frame or separately.
Hanger bearings are manufactured from cast iron, wood, bronze, steel, ceramic, polyurethane and a variety of plastics, thermoplastics and polymers. The materials used in hanger bearings should be determined by the application in which they are used. Wood is ideal for intermediate hangers conveying moderately abrasive materials such as pulp, grain and chemicals. Bronze hanger bearings are usually oil immersed for self-lubricating.
Types of hanger bearings
Hanger bearings are available in two basic styles: plain or rolling element. Plain hanger bearings have continuous surface contact between the inner and outer races. Roller hanger bearings have rolling elements between the inner and outer races to reduce friction.
When working with hanger bearings, it is essential to provide continuous lubrication; however, some manufacturers offer self-lubricating hanger bearings. Ceramic inserts for hanger bearings are also available. Ceramic hanger bearing inserts can extend the hanger bearing’s lifespan, reduce noise, and increase journal and shaft life. In addition, air purge seals or other types of seals are recommended to extend the lifespan of hanger bearings.
Компания маалыматы
Биз Кытайда профессионалдуу подшипник экспорттоочусу болуп саналат, подшипниктердин ар кандай түрлөрүн жана өлчөмдөрүн чыгарабыз. Биз сизге дүйнөлүк деңгээлдеги сапаттагы подшипниктердин кеңири ассортиментинде мыкты кызмат көрсөтө алабыз, мисалы терең канаттуу шарик подшипниктери, сфералык ролик подшипниктери, өзүн тегиздөөчү шарик подшипниктери, цилиндрдик ролик подшипниктери, конус ролик подшипниктер, бурчтук контакт шарик подшипниктери, ийне ролик подшипниктери, кайчылаш ролик подшипниктери, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need stainless steel bearings, please contact us.
Көп берилүүчү суроолор
Q. Сиз соода компаниясы же өндүрүүчүсү болуп саналат?
A: Биз өндүрүүчүсү болуп саналат.
С: Сиздин дат баспас болоттон жасалган подшипник жеткирүү убактысы канчага созулат?
Ж: Негизинен, товарлар кампада болсо 3-5 күн. Же товардын санына жараша кампада жок болсо 15-20 күн.
С: Дат баспас болоттон жасалган подшипниктердин үлгүлөрүн бересизби? Бул бекерби же кошумчабы?
Ж: Ооба, биз үлгүнү акысыз сунуштай алабыз, бирок жүктүн баасын төлөбөйбүз.
С: Сиз OEM кабыл алып, дат баспас болоттон жасалган подшипниктерди өзгөчөлөштүрүү мүмкүнбү?
A: Биз үлгү же чийме боюнча силер үчүн өзгөчөлөштүрүү болот.
С: Сиздин төлөө шарттары кандай?
A: Төлөм = 1000USD, 30% T / T алдын ала, shippment алдында балансты төлөө.
С: Сиз ташып чейин бул өнүмдөрдү текшере аласызбы?
A: Биздин фабрика QC Process системасы катуу жөнөтүү алдында азыктарын текшерет. Бизде кесиптик QC командасы бар.
С: Эгерде сиз продуктка канааттанбасаңыз, биз эмне кылабыз?
Ж: Эгер сизде кандайдыр бир аномалиялар болсо, биз менен биринчи жолу байланышыңыз, биз аларды дароо иштетебиз.
С: Кантип заказ кылуу керек?
A: 1. Бизге моделин, брендин жана санын, жүк алуучу маалымат, жеткирүү жолу, жана төлөө шарттары электрондук почта;
2. Проформа эсеп-дүмүрчөк түзүлүп, сизге жөнөтүлдү;
3. PI тастыкталгандан кийин толук төлөм;
4. Төлөмдү ырастоо жана өндүрүштү уюштуруу.
Эгерде сизге дат баспас болоттон жасалган подшипниктер же подшипниктердин кандайдыр бир моделдери керек болсо, мени менен байланышыңыз!
Тектеш продуктылар
-
Дат баспас болоттон жасалган 4-болт фланец подшипниктери
-
Дат баспас болоттон жасалган подшипниктер
-
Дат баспас болоттон жасалган 2-болт фланец подшипниктери
-
Дат баспас болоттон жасалган 3-болт фланец подшипниктери
-
Дат баспас болоттон жасалган такталган базалык жаздык блогунун подшипниктери
-
Дат баспас болоттон жасалган кыстаруу подшипниктер
Продукт тез маалымат:
- Стандарттуу жана стандарттуу эмес
- Жогорку сапаттагы жана атаандаштыкка жөндөмдүү баа менен
- Тез жеткирүү
- Кардардын талабы боюнча пакеттөө.
Биз Кытайда жогорку сапаты менен эң жакшы бааны сунуштайбыз деп убада беребиз! Биз ошондой эле буюмдар жөнүндө атайын заказ кабыл алат. Эгерде сизди биздин продукция кызыктырса. Сураныч, бизге билдирүүдөн тартынбаңыз. Биз сизге толук маалымат бергенибизге кубанычтабыз. Эгер сиз биздин өнүмдөрүбүзгө кызыкдар болсоңуз, анда биз менен байланышыңыз.
Биздин өнүмдөрдүн көпчүлүгү Европага же Америкага экспорттолот, стандарттуу жана стандарттуу эмес өнүмдөр бар. Биз сиздин чийме же үлгү боюнча өндүрө алат. Материал стандарттуу же сиздин атайын сурооңуз боюнча болушу мүмкүн. Бизди тандасаңыз, ишенимдүү тандайсыз.
Материалдар жеткиликтүү
1. Дат баспас болот: SS201, SS303, SS304, SS316, SS416, SS420
2. Болот: C45 (K1045), C46 (K1046), C20
3. Жез:C36000 (C26800), C37700 (HPb59), C38500(HPb58), C27200(CuZn37), C28000(CuZn40)
4. Коло: C51000, C52100, C54400, ж.б.
5. Темир: 1213, 12L14,1215
6. Алюминий: Al6061, Al6063
7.OEM сиздин суроо-талабы боюнча
Surface Treatment
Күйүү, табигый канондоштуруу, жылуулук менен дарылоо, жылтыратуу, никель менен каптоо, хромдоо, цинк менен каптоо, сары пассивдештирүү, алтын пассивдөө, атлас, кара бети боёлгон ж.
Кайра иштетүү ыкмасы
CNC иштетүү, штамптоо, токуу, фрезерлөө, бургулоо, майдалоо, брошинг, ширетүү жана чогултуу
QC & күбөлүк
Техниктер өндүрүштө өзүн-өзү текшеришет, пакетке чейин кесиптик сапат инспектору тарабынан акыркы текшерүү
ISO9001:2008, ISO14001:2001,ISO/TS 16949:2009
Пакет жана жеткирүү убактысы
Өлчөмү: Сүрөттөр
Wooden Case / Контейнер жана паллет, же ылайыкташтырылган спецификациялар боюнча.
15-25 күн үлгүлөрү. 30-45 күн расмий заказ
Порт: Шанхай/Нингбо порту
Kyrgyz
English
Bulgarian
Russian
Czech
Bosnian
Thai
Arabic
Chinese
Swahili
Amharic
Japanese
Korean
Hungarian
Spanish
Azerbaijani
Greek
Vietnamese
Danish
Malay
Hebrew
Croatian
Bengali
Italian
Polish
French
Kazakh
Portuguese
