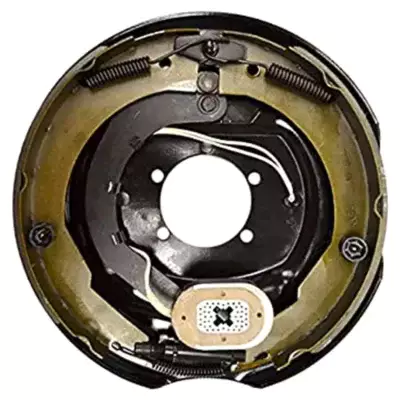

86439 ヘビーデューティー 7000ポンド 左/右トレーラーブレーキ 12 電動ブレーキ

12 'heavy-duty electric brake
The magnets in the back panel have 2 wires that are directly connected to the trailer wiring. When energized, it magnetizes the brake magnet. The magnet is attracted to the surface of the drum. When it comes into contact with the area, friction causes it to rotate, move the actuating arm, and push the brake shoes out of the brake drum. These brake shoes have a special type of brake pad material that can resist the heat generated by friction. When the brake shoes are pressed against the inside of the brake drum, the brake shoes prevent the wheel hub from rotating, thereby preventing the wheel from rotating when in contact with the ground.

How to install electric brakes on a trailer
Firstly, you must remove the existing hub. Use a trailer as support. Remove the wheel. The dust cover is a metal cover located in the center of the wheel hub. Gently tap the screwdriver behind the "lip" and pry open the grease dust cover.
Under this cover, you will see a large nut and a cotter pin, or in some new models, there is a small metal "clamp" on the nut. Straighten the split pin and remove it, or use a small screwdriver to pry the small metal clip off the nut. It slammed into the nut and then bounced open.
The nut should be loose. Remove the nut, which will have a washer and an "external" bearing behind it. If you don't catch them, they will fall to the floor. Remove the nut and gently pull the entire wheel hub off the axle.
86439 left/right trailer brake 12 'heavy-duty electric brake 7000 pounds
Next, find the correct backplane. These markings are left or right. If you sit in the driver's seat and look forward. The magnet is always at the bottom, and the 'arm' is always in front!
Install the lock washer under the nut and tighten it. Pay attention to the two green brake lines (in this photo, one end is inserted into the back panel '). On brake magnets, they are not positive or negative (they are not grounded), so it is not important which wire to connect.
Ensure that the outer bearing is lubricated, then place the hub, washer, and nut. When tightening, unscrew the nut and turn the hub. When rotating, tighten to approximately 40 foot-pounds (very tight to secure the bearings and hub).
After tightening the nut, stop rotating the drum and gently loosen the nut until it is tightened with your fingers.
Insert the cotter pin. If you don't do this, the nut will come off and you will loosen the tire! If the nut is tightened too tightly, it will burn out the wheel bearings! It must be fingers too tight!
If there is a metal "clamp" on the shaft nut, simply align the plane of the hole with the plane of the clamp and tighten it.

よくあるご質問
1. 製造工程はどのようなものですか？

A: 原材料の切断、機械加工、研磨、付属品の洗浄、組み立て、洗浄、焼き付け、オイル塗装、カバーのプレス、テスト、梱包などの製造工程が含まれます。

2. 製品の品質をどのように管理するのですか?

A: 高度な設備と厳格な管理を組み合わせることで、当社は世界中のお客様に高水準で高品質の旋回駆動装置を提供しています。
3: 配達時間はどのくらいですか?
A: 在庫がある場合は7日以内、在庫がない場合は数量に応じて25～45日かかります。

4. 貴社は商社ですか、それともメーカーですか?

A: 当社は旋回駆動装置で 20 年の経験を持つ工場を所有しており、当社のタイプは工場 + 貿易です。

5: 支払い条件は何ですか?

A: 商品は在庫があり、100%を前払いしております。生産が必要な場合は、30%を前払いし、残額は出荷前にお支払いいただきます。50,000米ドルを超える大口注文の場合は、一覧払いのL/Cも承ります。

6. 最小注文数量はいくらですか?

A: 標準タイプの場合、最小注文数量はありません。製品の生産には、電動トレーラーブレーキの仕様に応じた数量が必要です。

7. 輸送とは何ですか?
A: 少量の場合はDHL、UPS、TNT、FEDEXなどの速達便をご利用ください。大量の場合は船便または航空便をご利用ください。

8. OEM サービスを提供できますか?
A: はい、弊社では OEM サービスを提供しており、お客様のサイズ、梱包、その他の要件に応じて対応いたします。
