ウォームホイール ウォームドライブ用

Worm Wheels for worm drive

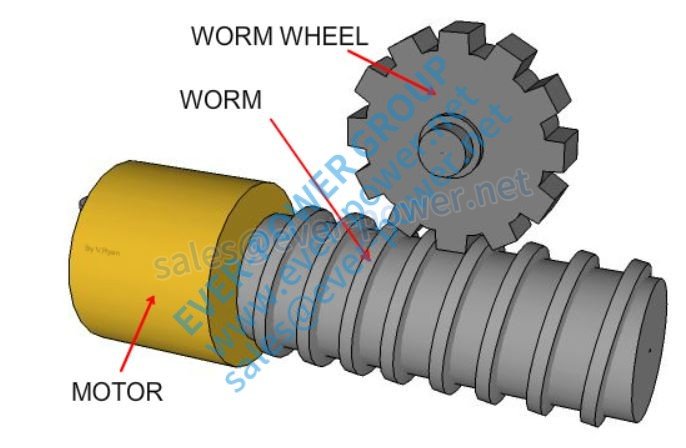

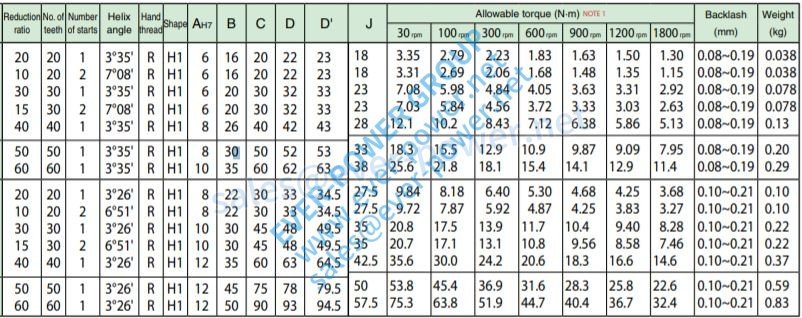

Specifications Precision grade 2 Reference section of gear Rotating plane Gear teeth Standard full depth Normal pressure angle 20° Material CAC702 (formerly JIS AℓBC2) Heat treatment ― Tooth hardness ― Module m1 m1.5 Face width (E) 10 14 Hub width (F) 10 10 Total length (G) 20 24 Screw offset (L) 5 5

we offer a complete range of Worm Wheels, which are available in metric MOD and come complete, with an H7 pilot bore.

Made from Bronze or Cast Iron, available direct from stock, we are proud to offer one of the most extensive quality ranges of Worm Wheels available online.

With both standard and custom worm wheels available in the below ranges, we can meet just about any need for gear reduction, offering ratios up to 360:1.

Hub Types – Pin & Split

Pitch - 48 & 64

Worm Starts - 1, 2, 4

Bores - 1/8’’ to 1/4’’

Standard Pitch Diameters - .6250” to 5.6250”
