K23-438/439 12.25 x 4 7穴（黄線）電動トレーラーブレーキ

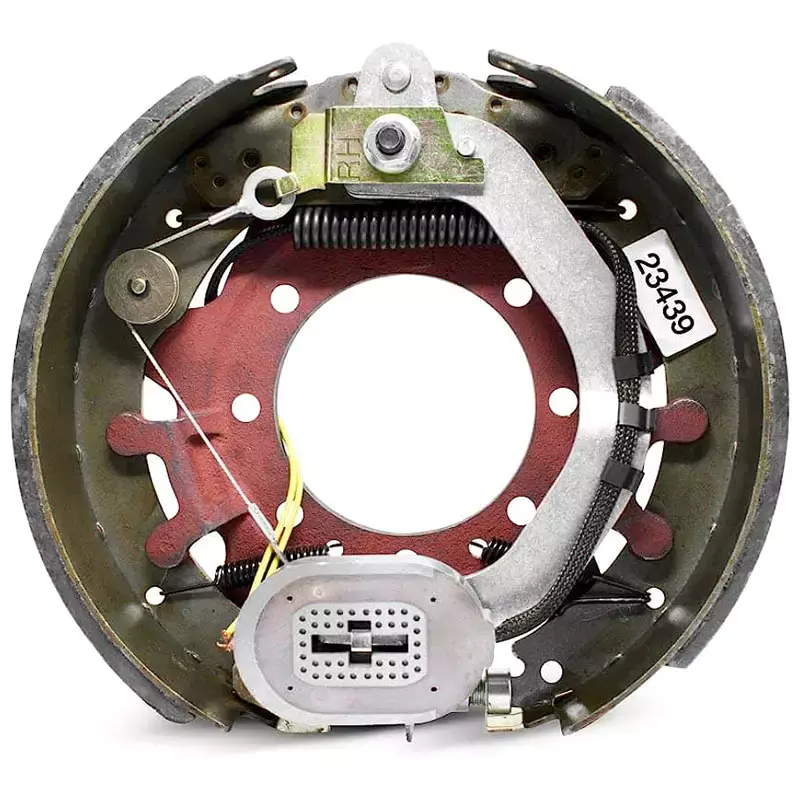

K23-438/439 electric trailer brake
The electric trailer brake K23-438 has been fully assembled and is intended to replace the electric trailer brake assembly. 12-1/4 x 4 inch drum size. Suitable for trailers with a left axle of 10000 pounds. Self-adjustable for better performance and braking power.
Brake type: electric
Drum size: 12-1/4 x 4 inches
Brake fit: left side
Capacity: 10000 pounds.
Bolt hole type: 7
Self-adjustment: Yes
Dexter number: K23-438-00
Note: Electric brake controller is required (sold separately)
Phone: K23-438

The importance of high-quality traction and electric braking
K23-438/439 electric trailer brake 12.25 x 4 "7 holes (yellow line)
You may have realized that more than just the tractor's brakes are required to stop the vehicle and its trailer within the appropriate time frame. Considering the weight and speed of the trailer, it is evident that the trailer also needs to tilt using its braking force.
This is achieved through the trailer brakes, which can be one of two types: surge (mechanical or hydraulic), which relies on inertia for automatic deceleration, or electric brakes requiring an electrical connection to the tractor. The principle behind the surge (also known as override or overspeed) brake is simple.
The coupling includes a sliding shaft connected to the traction ball. Due to vehicle deceleration, the axle slides when pushed and applies pressure directly to the mechanical linkage (mechanical brake) or the linkage connected to the hydraulic cylinder, thereby generating hydraulic pressure on the braking system (hydraulic brake). These often appear on camping trailers or boat trailers.
Electric trailer brakes may cause wear and slow the trailer by activating the electromagnetic brake drum. When the surge brake operates independently, the electric trailer brake must be connected to the power supply of the towing vehicle and adjusted by the brake control unit or electric brake controller.

Here are the steps on how to use an electric trailer brake:

1. Install the brake controller. This is usually done by a professional, but you can also do it yourself if you follow the instructions that come with the controller.
2. Connect the brake controller to the trailer. The controller will have a plug you need to connect to the trailer's brake wiring harness.
3. Set the brake controller's gain. The gain setting determines how much braking force is applied to the trailer when you apply the brakes in your tow vehicle. You must experiment with different settings to find the one that works best for your trailer and towing conditions.
4. Use the brake controller. When you apply the brakes in your tow vehicle, the brake controller will apply the brakes on the trailer in proportion to the amount of braking force you use.

Here are some additional tips for using an electric trailer brake:

• Start with a low gain setting. This will help you avoid applying too much braking force to the trailer, which could cause it to fishtail or jackknife.
• Increase the gain setting as needed. If you find that the trailer is not breaking as much as you would like, you can increase the gain setting.
• Be careful when using the manual override. The manual override allows you to apply the trailer brakes without applying the brakes in your tow vehicle. This can be useful in an emergency, but it is essential to use it carefully to not overload the trailer brakes.

Here are some answers to frequently asked questions about electric trailer brakes:

• What is the difference between electric trailer brakes and hydraulic trailer brakes? Electric trailer brakes use electricity to apply the brakes, while hydraulic trailer brakes use hydraulic fluid. Electric trailer brakes are generally easier to install and maintain than hydraulic ones.
• How often should I adjust my trailer brake controller? You should adapt your trailer brake controller whenever you change the weight of your trailer. You may also need to adjust the gain setting if you tow in different conditions, such as on hills or wet weather.
• What should I do if my trailer brakes are not working correctly? If your trailer brakes are not working properly, you should have them checked by a qualified technician. Do not tow your trailer with malfunctioning brakes.

よくあるご質問
1. 製造工程はどのようなものですか？

A: 原材料の切断、機械加工、研磨、付属品の洗浄、組み立て、洗浄、焼き付け、オイル塗装、カバーのプレス、テスト、梱包などの製造工程が含まれます。

2. 製品の品質をどのように管理するのですか?

A: 高度な設備と厳格な管理を組み合わせることで、当社は世界中のお客様に高水準で高品質の旋回駆動装置を提供しています。
3: 配達時間はどのくらいですか?
A: 在庫がある場合は7日以内、在庫がない場合は数量に応じて25～45日かかります。

4. 貴社は商社ですか、それともメーカーですか?

A: 当社は旋回駆動装置で 20 年の経験を持つ工場を所有しており、当社のタイプは工場 + 貿易です。

5: 支払い条件は何ですか?

A: 商品は在庫があり、100%を前払いしております。生産が必要な場合は、30%を前払いし、残額は出荷前にお支払いいただきます。50,000米ドルを超える大口注文の場合は、一覧払いのL/Cも承ります。

6. 最小注文数量はいくらですか?

A: 標準タイプの場合、最小注文数量はありません。製品の生産には、電動トレーラーブレーキの仕様に応じた数量が必要です。

7. 輸送とは何ですか?
A: 少量の場合はDHL、UPS、TNT、FEDEXなどの速達便をご利用ください。大量の場合は船便または航空便をご利用ください。

8. OEM サービスを提供できますか?
A: はい、弊社では OEM サービスを提供しており、お客様のサイズ、梱包、その他の要件に応じて対応いたします。
