SNU-V Worm Gear Unit
The SNU-V Worm Gear Unit is a high-quality replacement for the Elecon SNU Modular Universal Mounting 3.54 SNU-V Worm Gear Unit. It is designed to provide reliable and efficient performance in various industrial applications. Our company specializes in offering Elecon brand replacements for worm gearboxes, ensuring excellent quality and competitive prices. Please note that our products are replacement parts and not original equipment. If you require original equipment, please contact the original supplier for purchasing.
구조
Gearbox Casing
The gearbox casing is made of durable, fine-grain cast iron with a streamlined design. It is completely oil and dust-proof, allowing for outdoor installation without the need for additional covers. The surfaces and bores are precisely drilled and machined to ensure perfect alignment and interchangeability.
Worm/Worm Wheel
The worm is made of carburized alloy steel, while the worm wheel is made of centrifugally cast phosphor bronze. The worm is processed using a dedicated hobbing machine and undergoes gas carburizing and grinding. The worm wheel is precision-machined using a high-precision gear hobbing machine. Each worm wheel is carefully inspected and matched with the main worm to ensure full interchangeability.
문장
The worm and worm wheel are supported by ball or roller anti-friction bearings, ensuring sufficient safety margin to withstand axial and thrust loads. The gearbox and bearings are designed to accommodate cantilever loads generated by chain or small gear drives. However, complete and detailed information should be provided for confirmation. Additional roller bearings can be provided in case of heavy cantilever loads.
샤프트
The shaft is made of high-strength carbon steel with a larger diameter to withstand twisting and bending loads that may be caused by cantilever drives.
응용
The SNU-V Worm Gear Unit is suitable for a wide range of applications, including:
- 컨베이어
- 선동자
- 믹서
- 슬리퍼
- 포장 장비
- 자재 취급
- 그리고 더
Each application requires specific features and capabilities, and the SNU-V Worm Gear Unit excels in providing reliable and efficient power transmission in these areas.

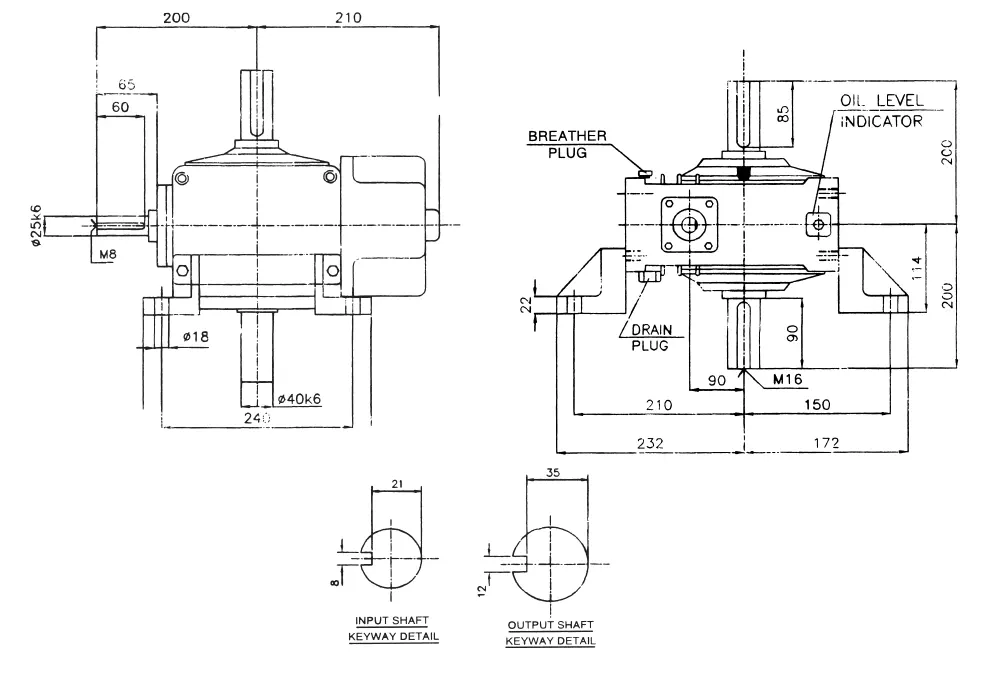

치수
설치 위치
The single-piece universal housing of the SNU-V Worm Gear Unit features top and bottom flanges, as well as support flanges, allowing for versatile mounting positions including low speed, high speed, and vertical. This means that internal components can be interchanged for all installation positions. Simply invert the unit and change the positions of drain plugs, breather plugs, and oil level indicators to quickly switch between different installation positions. The robust and compact streamlined design ensures sufficient thermal capacity.
Features of SNU-V Worm Gear Unit
- Enhanced heat dissipation through enlarged cooling fins
- 오일 용량 증가를 위한 유선형 오일 섬프
- Higher thermal rating with increased fan size
- No need to open the gearbox for manual oil change
- Easy fan and fan cover replacement without opening the gearbox
All these features contribute to increased continuous load capacity without significant temperature rise.
Elecon 웜기어 유닛 교체
Our company offers several advantages in replacing Elecon brand worm gearboxes:
- High-quality replacements for Elecon worm gear units
- 경쟁력 있는 가격
- 순전히 교체 부품이며 원래 장비가 아닙니다.
- Customization based on customer drawings and samples
- We encourage customers to explore our products and contact us to make a purchase.
자세한 내용은 아래 이미지를 참조하십시오.
웜기어 감속기용 모터
Worm gear reducers and electric motors are closely related and mutually dependent. A high-quality motor is essential for the smooth operation of a worm gear reducer, while a well-designed worm gear reducer ensures effective power transmission and load handling capabilities. At our company, we also offer various types of electric motors for sale, ensuring a complete transmission solution for our customers. Please see the image below for reference:
Our company, Ever-power, specializes in the production of worm gear reducers and possesses strong manufacturing capabilities. We have served customers in Europe, America, Africa, Asia, and other regions for over 15 years. Our commitment to providing the highest quality products, competitive prices, and excellent customer service has earned us a reputable position in the market. Our gearboxes are widely used in various industries, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and more. We encourage customers to explore our products and contact us for purchasing or customization needs.
Q&A
Q: Can I use the SNU-V Worm Gear Unit as a replacement for Elecon SNU Modular Universal Mounting directly?
A: Yes, the SNU-V Worm Gear Unit is specifically designed as a replacement for the Elecon SNU Modular Universal Mounting. It offers excellent compatibility and performance.
Q: Are the replacement parts provided by your company of the same quality as the original Elecon parts?
A: Our replacement parts are of high quality and are designed to meet or exceed the performance of the original Elecon parts. We ensure that our replacements provide reliable and efficient operation.
Q: What should I do if I need to purchase original parts from Elecon?
A: If you require original Elecon parts, we recommend contacting the original supplier for purchasing. Our company specializes in providing replacement parts for Elecon products.
